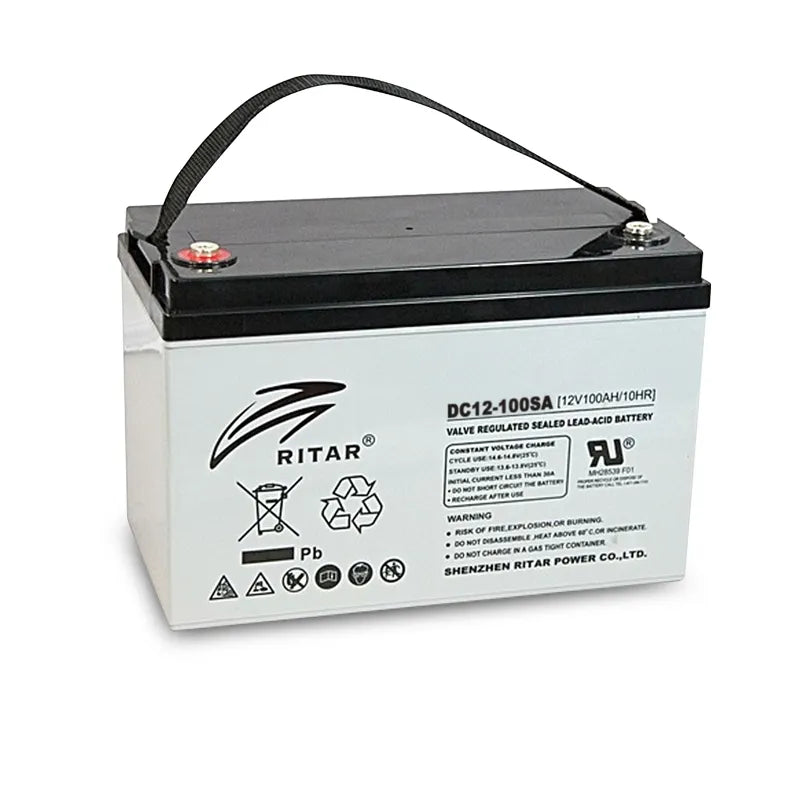

Ritar DC12-100SA grey deep cycle battery with carry handle
Ritar DC12-100SA grey deep cycle battery with carry handle
Click to open expanded view
RITAR logo

Ritar DC12-100SA 12V 100Ah AGM Deep Cycle Battery

SKU: DC12100SA
Price
$332.20
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Ritar DC12-100SA grey deep cycle battery with carry handle

Ritar DC12-100SA 12V 100Ah AGM Deep Cycle Battery

$332.20

Product features

Solar and backup setups need a battery that takes daily cycling. The Ritar DC12-100SA is a 12V 100Ah valve regulated lead acid deep cycle battery, giving 30% more cycle life than the Ritar standby range.

Strong grids and thick plates suit repeated deep discharge in solar, wind, mobility and medical equipment.

Problems it solves

  • Standby batteries wearing out under daily cycling. The DC series is made for frequent charge and discharge.
  • Losing charge while stored. Self discharge is under 3% a month at 25 degrees.
  • Mixed terminal hardware. Terminals take M6 or M8 bolts.

DC12-100SA specifications

  • Voltage: 12V, 6 cells
  • Capacity: 100Ah at 20 hours; 95.2Ah C10, 86.1Ah C5, 75Ah C3
  • Internal resistance: 6.6 milliohm
  • Max discharge: 1000A for 5 seconds
  • Max charge current: 30A
  • Float voltage: 13.6 to 13.8V at 25 degrees
  • Cycle voltage: 14.6 to 14.8V at 25 degrees
  • Dimensions: 306.5 x 168.5 x 210mm, 215mm total height
  • Weight: 26kg
  • Design life: 12 years on float

Fitment and compatibility

For solar and wind storage, mobility and medical equipment and other 12V deep cycle use with room for its 306.5 x 168.5mm footprint.

What is in the box

Battery only. Case colour can vary while the specifications stay the same.

Install notes

Set the charger to 14.6 to 14.8V for cycling or 13.6 to 13.8V for float.

Torque M6 terminals to 8 to 10Nm and M8 to 10 to 12Nm.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

DC12-100SA FAQs

What charge voltage does the DC12-100SA need?

14.6 to 14.8V in cycle use, 13.6 to 13.8V on float, at 25 degrees.

How heavy is the DC12-100SA?

26kg.

Can I store it for a while?

Up to 6 months at 25 degrees, then recharge it.
