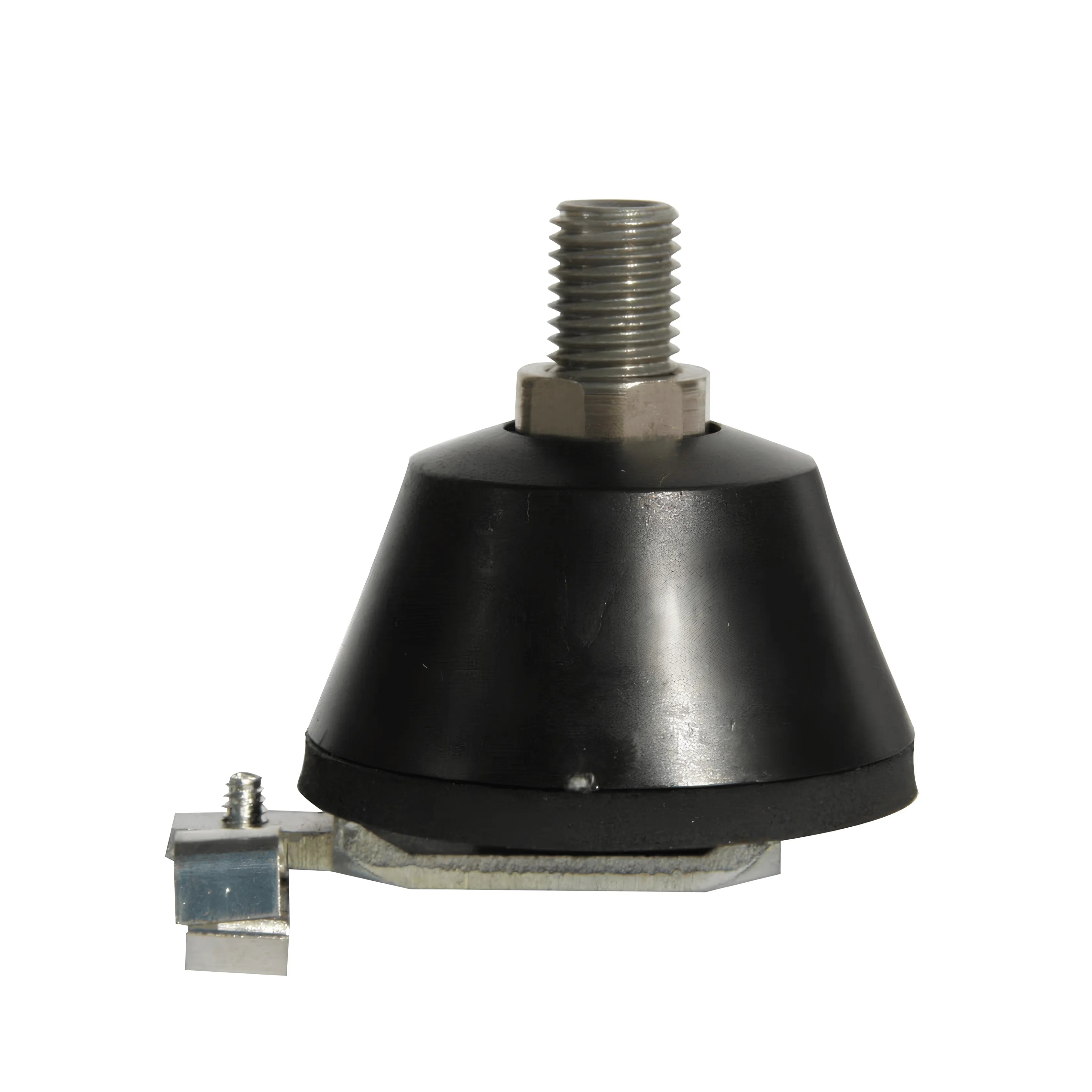

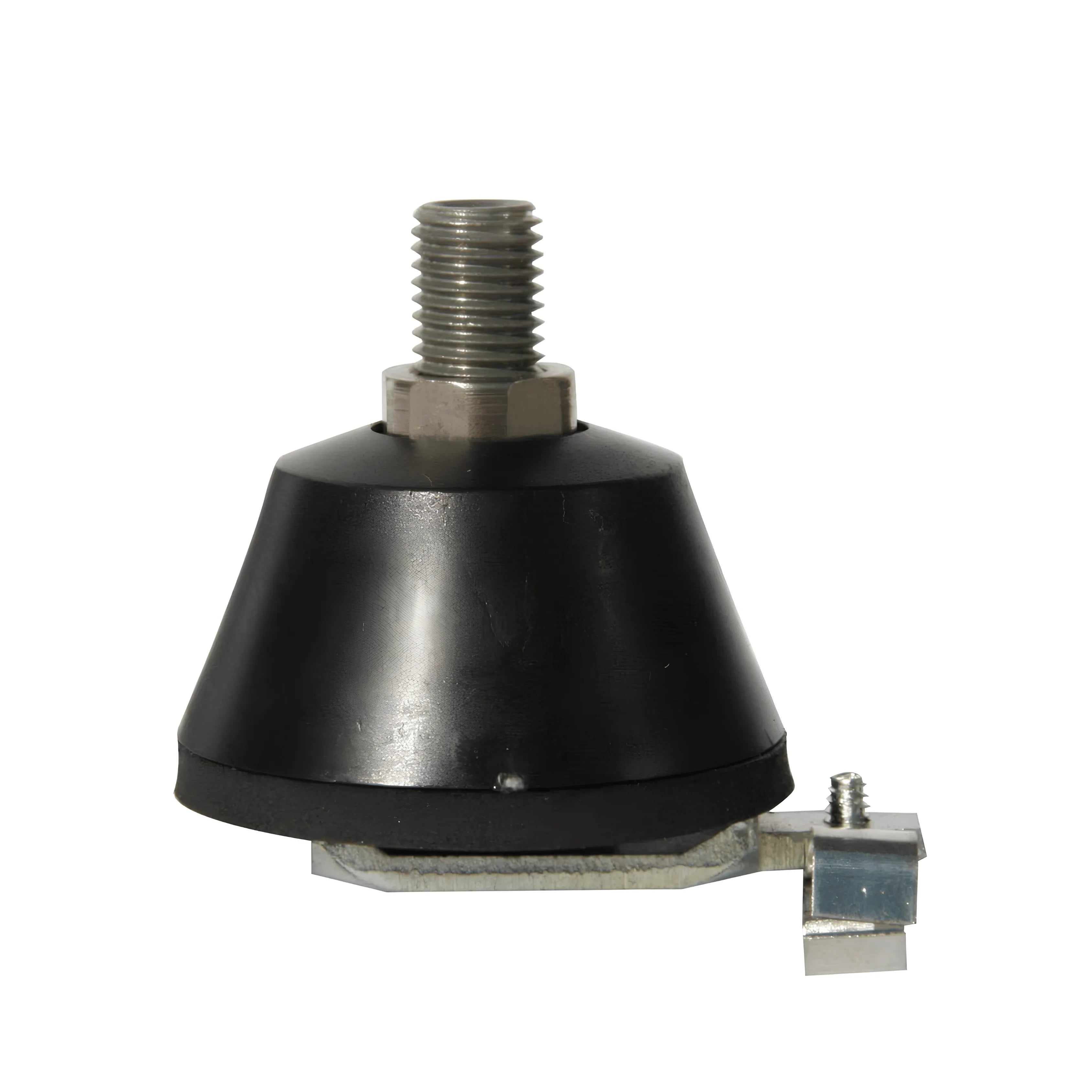

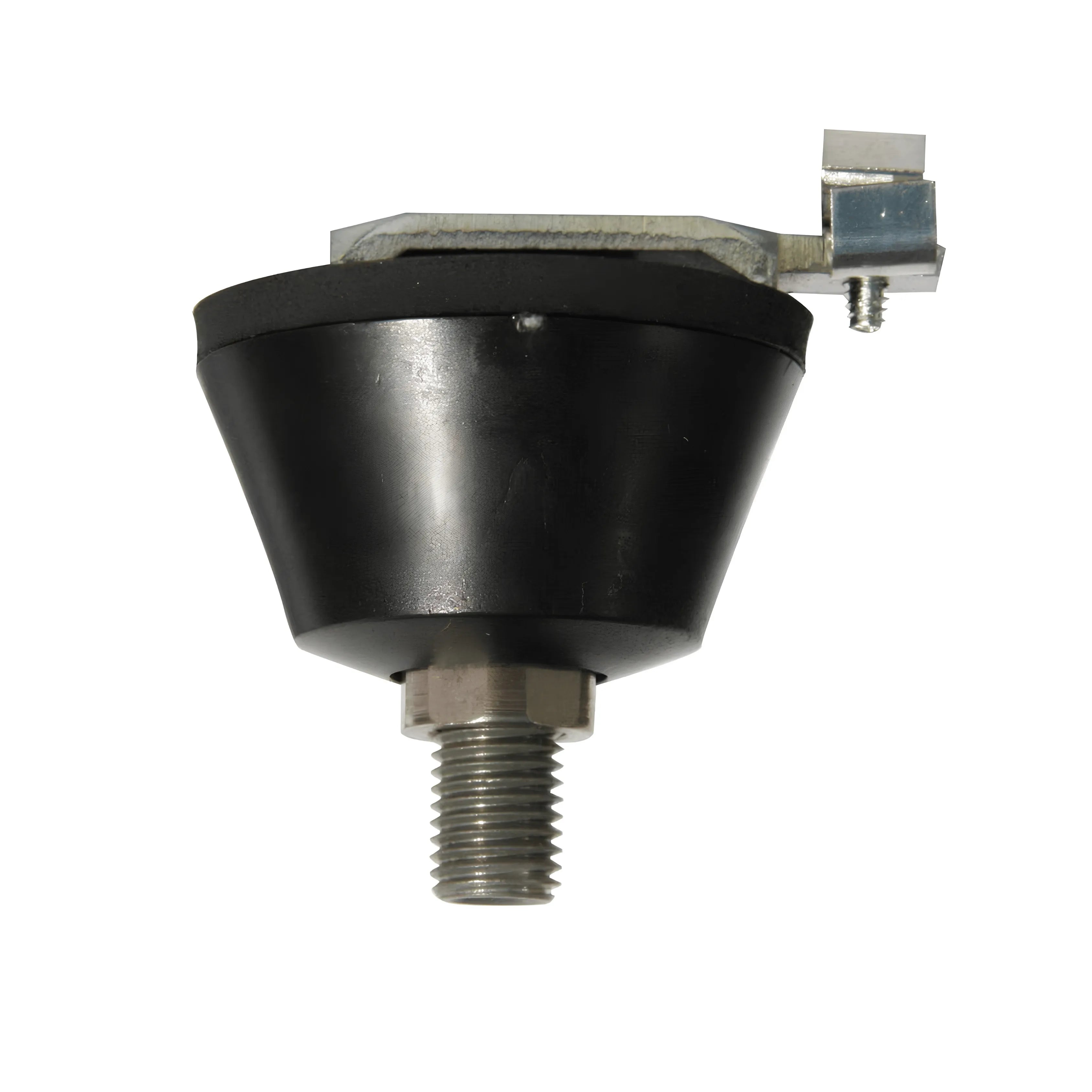

RFI MB10-00-23 UHF Antenna Base with 5m RG58C/U Cable

RFI MB10-00-23 UHF Antenna Base with 5m RG58C/U Cable - Professional 30mm Diameter Roof or Bracket Mount UHF CB Antenna Base with Blind Hole Mounting and Unterminated Cable

Achieve professional UHF CB antenna installation with RFI MB10-00-23 UHF Antenna Base featuring included cable—featuring compact 30mm diameter design maintaining minimal roof profile while providing secure antenna mounting platform, versatile mounting options accommodating bracket installation or direct roof mounting based on vehicle configuration and installer preferences, blind hole mounting capability requiring only 20mm hole eliminating need for interior access or visible mounting hardware, included 5m RG58C/U coaxial cable providing adequate length for routing from roof to radio installation, unterminated cable configuration allowing professional custom connector installation matching specific radio requirements, popular MB10 design proven across thousands of Australian vehicle installations, professional-grade construction resisting environmental degradation and maintaining reliable antenna connection, universal UHF CB antenna compatibility accommodating spring bases and fixed-mount antennas with standard PL259 thread configurations, suitable for sedans, wagons, hatchbacks, utes, and 4WD vehicles requiring professional roof-mounted or bracket-mounted antenna installations, and proven RFI quality engineering delivering reliable antenna base solution for mobile UHF CB communication systems.

Product Overview

RFI MB10 UHF Base with 5m RG58C/U cable - no connector.

UHF mobile base mounts on a bracket or through the roof. A popular model measuring only 30mm diameter. 20mm hole required for blind hole mounting. Available with or without cable.

Key Features

Compact 30mm Diameter Design - Popular compact profile measuring only 30mm diameter maintaining minimal roof visual impact while providing secure UHF antenna mounting platform.

Versatile Mounting Options - Accommodates bracket installation or direct roof mounting providing installation flexibility based on vehicle configuration and mounting preferences.

Blind Hole Mounting Capability - Requires only 20mm hole for blind hole installation eliminating need for interior access or visible mounting hardware inside vehicle.

Included 5m RG58C/U Coaxial Cable - Complete with 5-meter RG58C/U coax cable providing adequate length for routing from roof mounting location to radio installation.

Unterminated Cable for Custom Installation - Cable supplied without connector allowing professional custom termination matching specific radio connector requirements and installation preferences.

Universal UHF CB Antenna Compatibility - Standard mounting configuration accommodates most UHF CB antennas with conventional PL259 thread configurations including spring bases and fixed mounts.

Technical Specifications

Frequently Asked Questions

Q: What does "no connector" mean for MB10-00-23?

A: MB10-00-23 includes 5m RG58C/U cable without connector termination—cable ends unterminated allowing professional custom connector installation. Installer terminates cable with appropriate connector matching specific radio requirements (typically PL259 male connector for UHF radios). Benefits: custom cable length adjustment by trimming excess, professional connector installation ensuring proper termination, flexibility matching various radio connector types. Requires connector crimping or soldering skills and appropriate connectors purchased separately.

Q: What is blind hole mounting and how does it work?

A: Blind hole mounting installs antenna base through single 20mm hole drilled in roof without interior access required. Base mounts from exterior with internal threads or retention mechanism securing from topside only. Benefits: no interior headliner removal required, no visible mounting hardware inside vehicle, simplified installation process. Drill 20mm hole at desired roof location, install MB10 base from exterior, tighten securing mechanism, mount antenna. Verify roof structure at mounting location adequate without underlying obstructions.

Q: Can MB10-00-23 be bracket mounted instead of roof mounted?

A: Yes—MB10 accommodates bracket mounting as alternative to direct roof installation. Mount MB10 base on suitable bracket (fender bracket, mirror bracket, bull bar bracket) using appropriate hardware. 30mm diameter base requires bracket with corresponding mounting provision. Bracket mounting benefits: avoids roof drilling, relocatable antenna positioning, suitable for vehicles where roof mounting impractical. Verify bracket provides adequate antenna height and ground plane for optimal UHF performance.

Q: Is 5m cable length adequate for roof to radio installation?

A: 5m (approximately 16 feet) cable length adequate for most vehicle roof to dashboard radio installations including sedans, wagons, hatchbacks, and utes. Measure routing path from proposed roof mounting location through A-pillar or other entry point to radio position confirming 5m sufficient with adequate slack for connections. Larger vehicles or complex routing may require longer cable—RFI offers MB10 versions with different cable lengths or consider cable extension.

Q: What connector do I need to terminate the cable?

A: Terminate 5m RG58C/U cable with PL259 male connector (UHF plug) matching most mobile UHF CB radios. Purchase quality PL259 connector appropriate for RG58 cable from automotive or radio electronics supplier. Installation requires: cable stripping tools, soldering iron (for solder-type connectors) or crimping tool (for crimp-type), connector assembly following manufacturer instructions. Consider professional installation if unfamiliar with coax connector termination ensuring proper connection and preventing signal loss.
