RFI CDX8194-B-Toyota-BHMB-518 Cellular Hilux N90 2026+ RHS
Click to open expanded view

RFI CDX8194-B-Toyota-BHMB-518 Cellular Hilux N90 2026+ RHS

SKU: CDX8194BTOYOTABHMB518
Price
$545
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

RFI CDX8194-B-Toyota-BHMB-518 CDX-TREME Compact Cellular Antenna with Bonnet Hinge Mounting Bracket Toyota Hilux N90 2026+ RHS Australian Driver Side 698-3800MHz 0.6m 5m RG58 SMA(M) Cable 10W Omni-Directional Australian Made Bracket

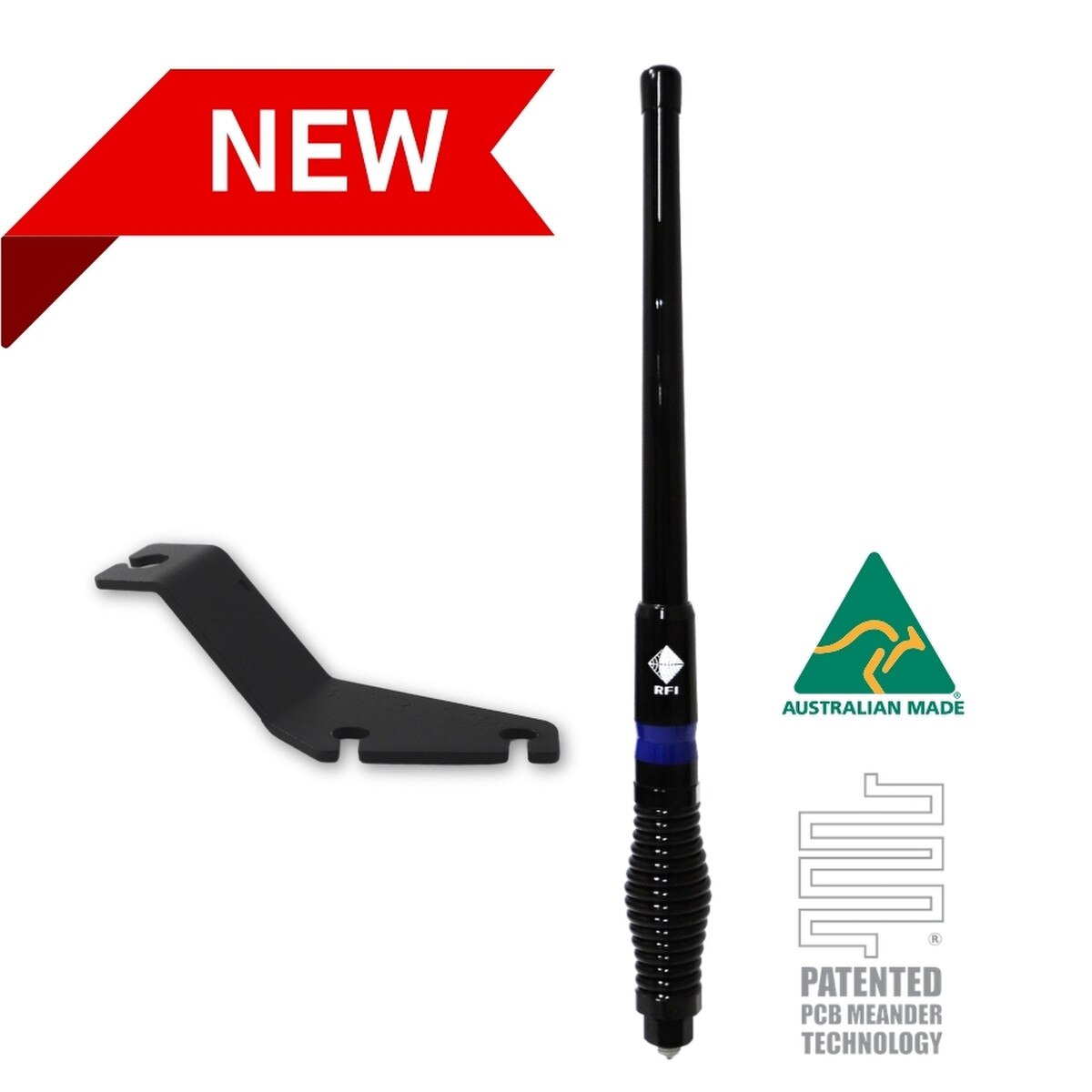

The RFI CDX8194-B-Toyota-BHMB-518 is a kit pairing the CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B) with the BHMB-518 bonnet hinge mounting bracket for the Toyota Hilux N90 (2026+), right-hand side (Australian driver side). The antenna covers 698-3800 MHz, is 0.6m full length, and is terminated with an SMA(M) straight plug on 5m RG58 coaxial cable. The bracket is Australian made from 4mm mild steel with a matte black finish.

Product overview

Backed by over 45 years of RFI antenna engineering, the CDX-TREME CDX8194-B is a compact cellular collinear antenna covering the full cellular spectrum from 698MHz through to 3800MHz. Its 0.6m full length and bottom-fix spring base with large nut and star washer provide a secure, road-ready mount. The black whip and spring carry a subtle blue band at the base, a nod to RFI's Australian engineering team. The SMA(M) straight plug terminates a 5m RG58 low-loss coaxial cable, giving flexible routing through the vehicle. The included BHMB-518 bonnet hinge bracket mounts the antenna to the right-hand bonnet hinge of the Toyota Hilux N90 (2026+), using the 16mm antenna mounting hole. The bracket is Australian made from 4mm mild steel with a matte black finish and is supplied in installer packaging.

What's in the box

  • CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B)
  • Bonnet Hinge Mounting Bracket for Toyota Hilux N90 2026+ RHS (BHMB-518)

Features and benefits

CDX-TREME CDX8194-B cellular antenna: 698-3800 MHz coverage across all Australian cellular bands.

0.6m full length with bottom-fix spring base: Large nut and star washer for secure mounting.

SMA(M) straight plug on 5m RG58 low-loss coaxial cable: Flexible cable routing within the vehicle.

10W power rating.

Omni-directional, vertical polarisation.

Black whip and spring with subtle blue band.

BHMB-518 bonnet hinge bracket: 4mm mild steel, matte black, 16mm antenna hole, Australian made.

Vehicle-specific fit for Toyota Hilux N90 2026+, right-hand side (Australian driver side).

Installer packaging.

Technical specs

Specification Detail
SKU CDX8194-B-Toyota-BHMB-518
Brand RFI
Kit Contents CDX8194-B antenna, BHMB-518 bracket
Antenna Type Compact cellular collinear
Frequency Range 698-960 / 1710-2170 / 2300-2700 / 3400-3819 MHz
Full Length 0.6m
Power 10W
Connector SMA(M) straight plug
Cable 5m RG58 low-loss coaxial
Radome Diameter 29-25mm
Horizontal Beamwidth Omni-directional
Polarisation Vertical
Antenna Configuration SISO
Mounting Hole 16mm
Bracket Material 4mm mild steel
Bracket Finish Matte black
Bracket Side RHS (Australian driver side / USA passenger side)
Bracket Origin Australian made

Compatible with

Make Model Variant Years
Toyota Hilux N90 2026 onwards

Frequently asked questions

What frequency bands does the CDX8194-B antenna cover? The CDX8194-B covers 698-960MHz, 1710-2170MHz, 2300-2700MHz, and 3400-3819MHz, covering all Australian 4G and 5G cellular bands.

What connector does the CDX8194-B use? The CDX8194-B terminates with an SMA(M) straight plug on a 5m RG58 low-loss coaxial cable.

What side does this kit suit? This kit suits the right-hand side, which is the Australian driver side (or USA passenger side).

Is a left-hand side version of this kit available? Contact us to confirm availability of a left-hand side version for the Toyota Hilux N90 2026+.

Is the bracket retail packaged? No. The BHMB-518 bracket is supplied in installer packaging and is not retail hang sell.
