Product features

RFI CDX8194-B-Ford-BHMB-509 CDX-TREME Compact Cellular Antenna with Bonnet Hinge Mounting Bracket Ford Ranger PX and Everest 2011 to 2021 LHS Australian Passenger Side 698-3800MHz 0.6m 5m RG58 SMA(M) Cable 10W Omni-Directional Australian Made Bracket

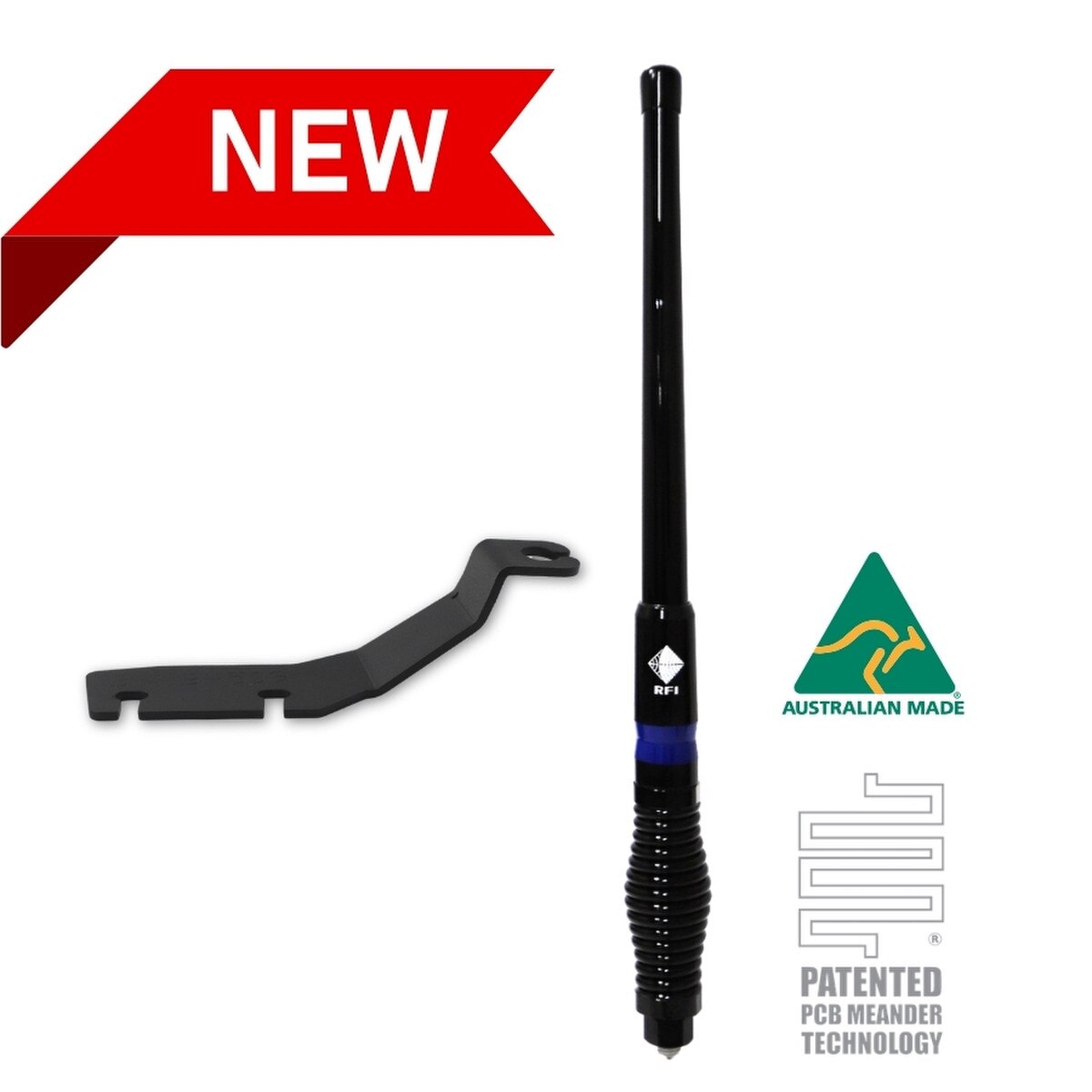

The RFI CDX8194-B-Ford-BHMB-509 is a kit pairing the CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B) with the BHMB-509 bonnet hinge mounting bracket for the Ford Ranger PX (2011 to 2021) and Ford Everest (2011 to 2021), left-hand side (Australian passenger side). The antenna covers 698-3800 MHz, is 0.6m full length, and is terminated with an SMA(M) straight plug on 5m RG58 coaxial cable. The bracket is Australian made from 4mm mild steel with a matte black finish.

Product overview

Backed by over 45 years of RFI antenna engineering, the CDX-TREME CDX8194-B is a compact cellular collinear antenna covering the full cellular spectrum from 698MHz through to 3800MHz. Its 0.6m full length and bottom-fix spring base with large nut and star washer provide a secure, road-ready mount. The black whip and spring carry a subtle blue band at the base, a nod to RFI's Australian engineering team. The SMA(M) straight plug terminates a 5m RG58 low-loss coaxial cable, giving flexible routing through the vehicle. The included BHMB-509 bonnet hinge bracket mounts the antenna to the left-hand bonnet hinge of the Ford Ranger PX and Ford Everest (2011 to 2021), using the 16mm antenna mounting hole. The bracket is Australian made from 4mm mild steel with a matte black finish and is supplied in installer packaging.

What's in the box

  • CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B)
  • Bonnet Hinge Mounting Bracket for Ford Ranger PX and Everest 2011-2021 LHS (BHMB-509)

Features and benefits

CDX-TREME CDX8194-B cellular antenna: 698-3800 MHz coverage across all Australian cellular bands.

0.6m full length with bottom-fix spring base: Large nut and star washer for secure mounting.

SMA(M) straight plug on 5m RG58 low-loss coaxial cable: Flexible cable routing within the vehicle.

10W power rating.

Omni-directional, vertical polarisation.

Black whip and spring with subtle blue band.

BHMB-509 bonnet hinge bracket: 4mm mild steel, matte black, 16mm antenna hole, Australian made.

Suits Ford Ranger PX and Ford Everest 2011 to 2021, left-hand side (Australian passenger side).

Installer packaging.

Technical specs

Specification Detail
SKU CDX8194-B-Ford-BHMB-509
Brand RFI
Kit Contents CDX8194-B antenna, BHMB-509 bracket
Antenna Type Compact cellular collinear
Frequency Range 698-960 / 1710-2170 / 2300-2700 / 3400-3806 MHz
Full Length 0.6m
Power 10W
Connector SMA(M) straight plug
Cable 5m RG58 low-loss coaxial
Radome Diameter 29-25mm
Horizontal Beamwidth Omni-directional
Polarisation Vertical
Antenna Configuration SISO
Mounting Hole 16mm
Bracket Material 4mm mild steel
Bracket Finish Matte black
Bracket Side LHS (Australian passenger side / USA driver side)
Bracket Origin Australian made

Compatible with

Make Model Variant Years
Ford Ranger PX 2011 to 2021
Ford Everest All 2011 to 2021

Frequently asked questions

What frequency bands does the CDX8194-B antenna cover? The CDX8194-B covers 698-960MHz, 1710-2170MHz, 2300-2700MHz, and 3400-3806MHz, covering all Australian 4G and 5G cellular bands.

What connector does the CDX8194-B use? The CDX8194-B terminates with an SMA(M) straight plug on a 5m RG58 low-loss coaxial cable.

What is the difference between this kit and the CDX8194-B-Ford-BHMB-510? The CDX8194-B-Ford-BHMB-509 includes the BHMB-509 bracket for the left-hand side (Australian passenger side). The CDX8194-B-Ford-BHMB-510 includes the BHMB-510 bracket for the right-hand side (Australian driver side). Both suit the Ford Ranger PX and Everest 2011 to 2021.

What side does this kit suit? This kit suits the left-hand side, which is the Australian passenger side (or USA driver side).

Is the bracket retail packaged? No. The BHMB-509 bracket is supplied in installer packaging and is not retail hang sell.
