Product features

RFI CDX8194-B-Ford-BHMB-505 CDX-TREME Compact Cellular Antenna with Bonnet Hinge Mounting Bracket Ford Ranger Raptor Next Gen RA 2023+ LHS Australian Passenger Side 698-3800MHz 0.6m 5m RG58 SMA(M) Cable 10W Omni-Directional Australian Made Bracket

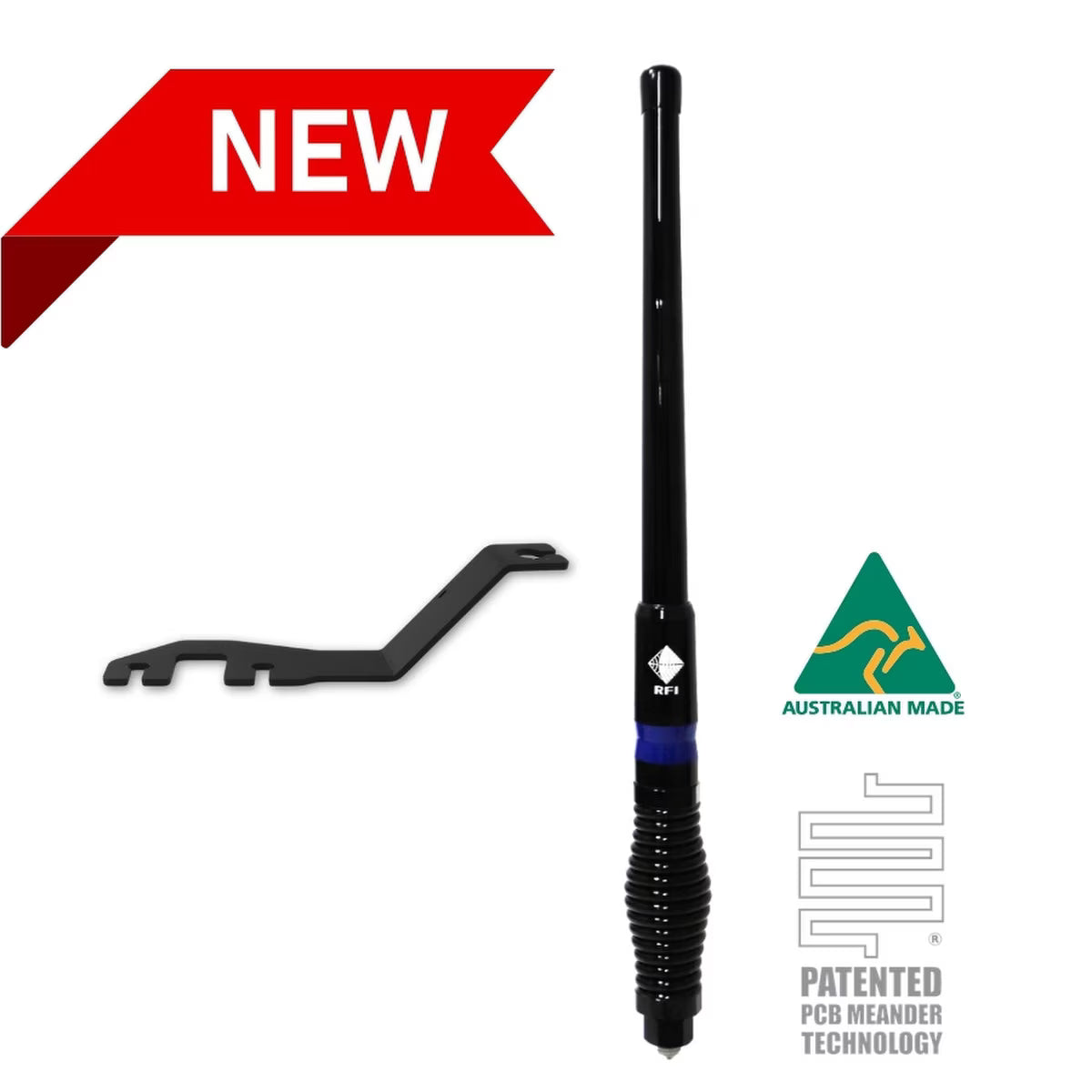

The RFI CDX8194-B-Ford-BHMB-505 is a kit pairing the CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B) with the BHMB-505 bonnet hinge mounting bracket for the Ford Ranger Raptor Next Gen RA (2023+), left-hand side (Australian passenger side). The antenna covers 698-3800 MHz, is 0.6m full length, and is terminated with an SMA(M) straight plug on 5m RG58 coaxial cable. The bracket is Australian made from 4mm mild steel with a matte black finish.

Product overview

Backed by over 45 years of RFI antenna engineering, the CDX-TREME CDX8194-B is a compact cellular collinear antenna covering the full cellular spectrum from 698MHz through to 3800MHz. Its 0.6m full length and bottom-fix spring base with large nut and star washer provide a secure, road-ready mount. The black whip and spring carry a subtle blue band at the base, a nod to RFI's Australian engineering team. The SMA(M) straight plug terminates a 5m RG58 low-loss coaxial cable, giving flexible routing through the vehicle. The included BHMB-505 bonnet hinge bracket mounts the antenna to the left-hand bonnet hinge of the Ford Ranger Raptor Next Gen RA (2023+), using the 16mm antenna mounting hole. The bracket is Australian made from 4mm mild steel with a matte black finish and is supplied in installer packaging.

What's in the box

  • CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B)
  • Bonnet Hinge Mounting Bracket for Ford Ranger Raptor Next Gen RA 2023+ LHS (BHMB-505)

Features and benefits

CDX-TREME CDX8194-B cellular antenna: 698-3800 MHz coverage across all Australian cellular bands.

0.6m full length with bottom-fix spring base: Large nut and star washer for secure mounting.

SMA(M) straight plug on 5m RG58 low-loss coaxial cable: Flexible cable routing within the vehicle.

10W power rating.

Omni-directional, vertical polarisation.

Black whip and spring with subtle blue band.

BHMB-505 bonnet hinge bracket: 4mm mild steel, matte black, 16mm antenna hole, Australian made.

Vehicle-specific fit for Ford Ranger Raptor Next Gen RA 2023+, left-hand side (Australian passenger side).

Installer packaging.

Technical specs

Specification Detail
SKU CDX8194-B-Ford-BHMB-505
Brand RFI
Kit Contents CDX8194-B antenna, BHMB-505 bracket
Antenna Type Compact cellular collinear
Frequency Range 698-960 / 1710-2170 / 2300-2700 / 3400-3804 MHz
Full Length 0.6m
Power 10W
Connector SMA(M) straight plug
Cable 5m RG58 low-loss coaxial
Radome Diameter 29-25mm
Horizontal Beamwidth Omni-directional
Polarisation Vertical
Antenna Configuration SISO
Mounting Hole 16mm
Bracket Material 4mm mild steel
Bracket Finish Matte black
Bracket Side LHS (Australian passenger side / USA driver side)
Bracket Origin Australian made

Compatible with

Make Model Variant Years
Ford Ranger Raptor Next Gen RA 2023 onwards

Frequently asked questions

What frequency bands does the CDX8194-B antenna cover? The CDX8194-B covers 698-960MHz, 1710-2170MHz, 2300-2700MHz, and 3400-3804MHz, covering all Australian 4G and 5G cellular bands.

What connector does the CDX8194-B use? The CDX8194-B terminates with an SMA(M) straight plug on a 5m RG58 low-loss coaxial cable.

What is the difference between this kit and the CDX8194-B-Ford-BHMB-506? The CDX8194-B-Ford-BHMB-505 includes the BHMB-505 bracket for the left-hand side (Australian passenger side). The CDX8194-B-Ford-BHMB-506 includes the BHMB-506 bracket for the right-hand side (Australian driver side). Both suit the Ford Ranger Raptor Next Gen RA 2023+.

Does this kit suit the standard Ford Ranger Next Gen? This kit is specific to the Ford Ranger Raptor Next Gen RA (2023+). Contact us to confirm compatibility with the standard Ranger Next Gen before purchasing.

Is the bracket retail packaged? No. The BHMB-505 bracket is supplied in installer packaging and is not retail hang sell.
