RFI CDX3000-B-VW-BHMB-504 UHF CB Antenna Bracket VW Amarok RHS
Click to open expanded view

RFI CDX3000-B-VW-BHMB-504 UHF CB Antenna Bracket VW Amarok RHS

SKU: CDX3000BVWBHMB504
Price
$558.20
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

RFI CDX3000-B-VW-BHMB-504 CDX-TREME Compact UHF CB Antenna with Bonnet Hinge Mounting Bracket Volkswagen Amarok 2023+ RHS Australian Driver Side 477MHz 0.6m 5m RG58 FME(F) Cable UHF(M) Adaptor Included 10W Omni-Directional Australian Made Bracket

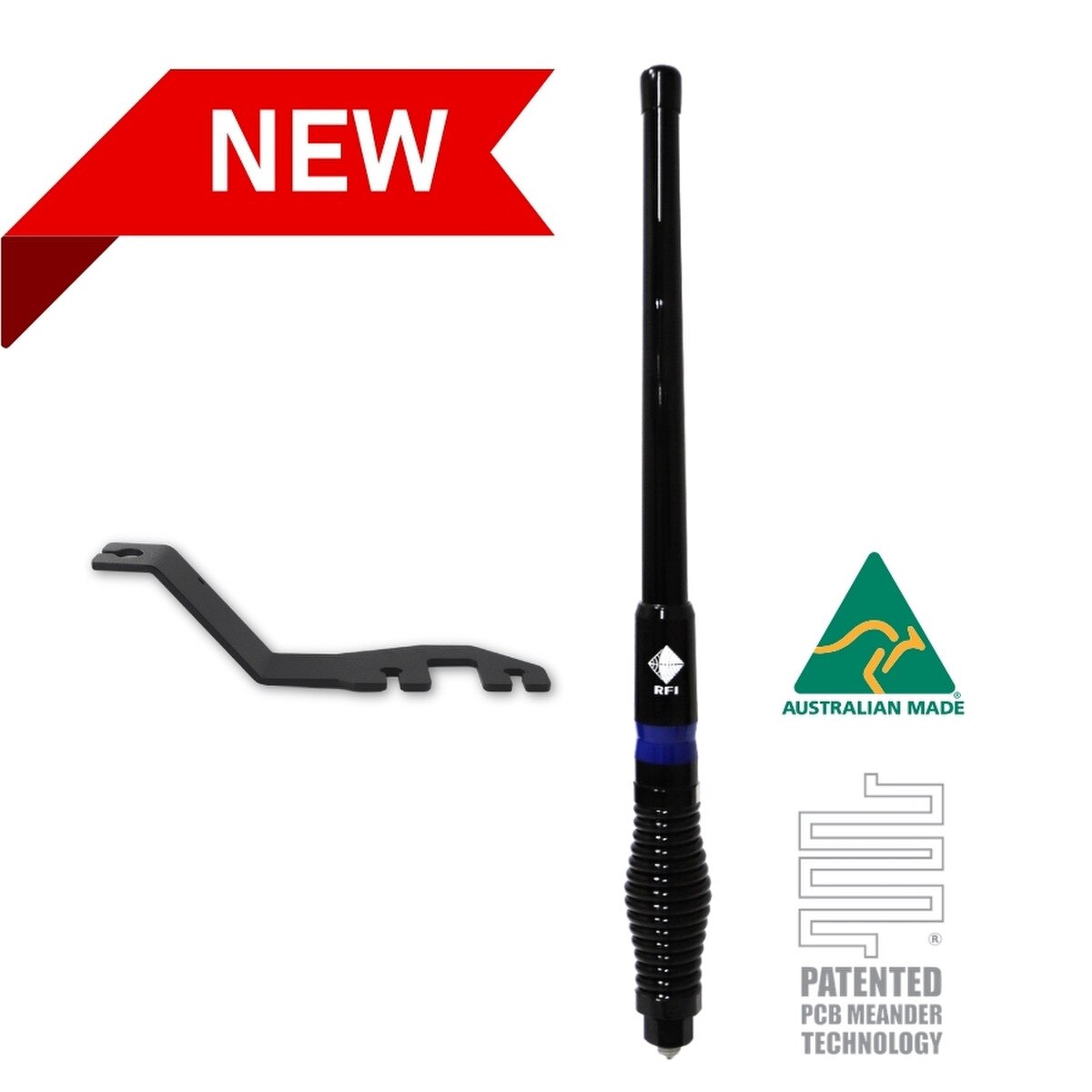

The RFI CDX3000-B-VW-BHMB-504 is a kit pairing the CDX-TREME Compact UHF CB Collinear Antenna (CDX3000-B) with the BHMB-504 bonnet hinge mounting bracket for the Volkswagen Amarok (2023+), right-hand side (Australian driver side). The antenna operates at 477MHz, is 0.6m full length, and is terminated with an FME(F) straight plug on 5m RG58 coaxial cable. A UHF(M) adaptor is included. The bracket is Australian made from 4mm mild steel with a matte black finish.

Product overview

Backed by over 45 years of RFI antenna engineering, the CDX-TREME CDX3000-B is a compact UHF CB collinear antenna for 477MHz operation. Its 0.6m full length and bottom-fix spring base with large nut and star washer provide a secure, road-ready mount. The black whip and spring carry a subtle blue band at the base, a nod to RFI's Australian engineering team. The FME(F) straight plug terminates a 5m RG58 low-loss coaxial cable, and a UHF(M) adaptor is included for connection to standard UHF CB radios. The included BHMB-504 bonnet hinge bracket mounts the antenna to the right-hand bonnet hinge of the Volkswagen Amarok 2023+, using the 16mm antenna mounting hole. The bracket is Australian made from 4mm mild steel with a matte black finish and is supplied in installer packaging.

What's in the box

  • CDX-TREME Compact UHF CB Collinear Antenna (CDX3000-B)
  • UHF(M) adaptor
  • Bonnet Hinge Mounting Bracket for VW Amarok 2023+ RHS (BHMB-504)

Features and benefits

CDX-TREME CDX3000-B UHF CB antenna: 477MHz operation for Australian UHF CB radio.

0.6m full length with bottom-fix spring base: Large nut and star washer for secure mounting.

FME(F) straight plug on 5m RG58 low-loss coaxial cable.

UHF(M) adaptor included: Ready to connect to standard UHF CB radios.

10W power rating.

Omni-directional, vertical polarisation.

Black whip and spring with subtle blue band.

BHMB-504 bonnet hinge bracket: 4mm mild steel, matte black, 16mm antenna hole, Australian made.

Vehicle-specific fit for Volkswagen Amarok 2023+, right-hand side (Australian driver side).

Installer packaging.

Technical specs

Specification Detail
SKU CDX3000-B-VW-BHMB-504
Brand RFI
Kit Contents CDX3000-B antenna, UHF(M) adaptor, BHMB-504 bracket
Antenna Type Compact UHF CB collinear
Frequency 477MHz
Full Length 0.6m
Power 10W
Connector FME(F) straight plug
Adaptor Included UHF(M)
Cable 5m RG58 low-loss coaxial
Radome Diameter 29-25mm
Horizontal Beamwidth Omni-directional
Polarisation Vertical
Antenna Configuration SISO
Mounting Hole 16mm
Bracket Material 4mm mild steel
Bracket Finish Matte black
Bracket Side RHS (Australian driver side / USA passenger side)
Bracket Origin Australian made

Compatible with

Make Model Variant Years
Volkswagen Amarok 2023+ 2023 onwards

Frequently asked questions

What frequency does the CDX3000-B operate on? The CDX3000-B operates at 477MHz, which is the Australian UHF CB radio frequency.

What connector does the CDX3000-B use? The CDX3000-B terminates with an FME(F) straight plug on a 5m RG58 low-loss coaxial cable. A UHF(M) adaptor is included for connecting to standard UHF CB radios.

Does the BHMB-504 bracket suit other vehicles? The BHMB-504 also suits the Ford Ranger (2023+) and Ford Everest (2023+). This bundle is configured for the Volkswagen Amarok 2023+ RHS. Contact us to confirm suitability for other applications.

What side does this kit suit? This kit suits the right-hand side, which is the Australian driver side (or USA passenger side).

Is the bracket retail packaged? No. The BHMB-504 bracket is supplied in installer packaging and is not retail hang sell.
