RFI CDX3000-B-MMC-BHMB-507 UHF CB Antenna Triton 2024+ LHS
RFI CDX3000-B-MMC-BHMB-507 UHF CB Antenna Triton 2024+ LHS
Click to open expanded view

RFI CDX3000-B-MMC-BHMB-507 UHF CB Antenna Triton 2024+ LHS

SKU: CDX3000BMMCBHMB507
Price
$558.20
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
RFI CDX3000-B-MMC-BHMB-507 UHF CB Antenna Triton 2024+ LHS

RFI CDX3000-B-MMC-BHMB-507 UHF CB Antenna Triton 2024+ LHS

$558.20

Product features

RFI CDX3000-B-MMC-BHMB-507 CDX-TREME Compact UHF CB Antenna with Bonnet Hinge Mounting Bracket Mitsubishi Triton 2024+ LHS Australian Passenger Side 477MHz 0.6m 5m RG58 FME(F) Cable UHF(M) Adaptor Included 10W Omni-Directional Australian Made Bracket

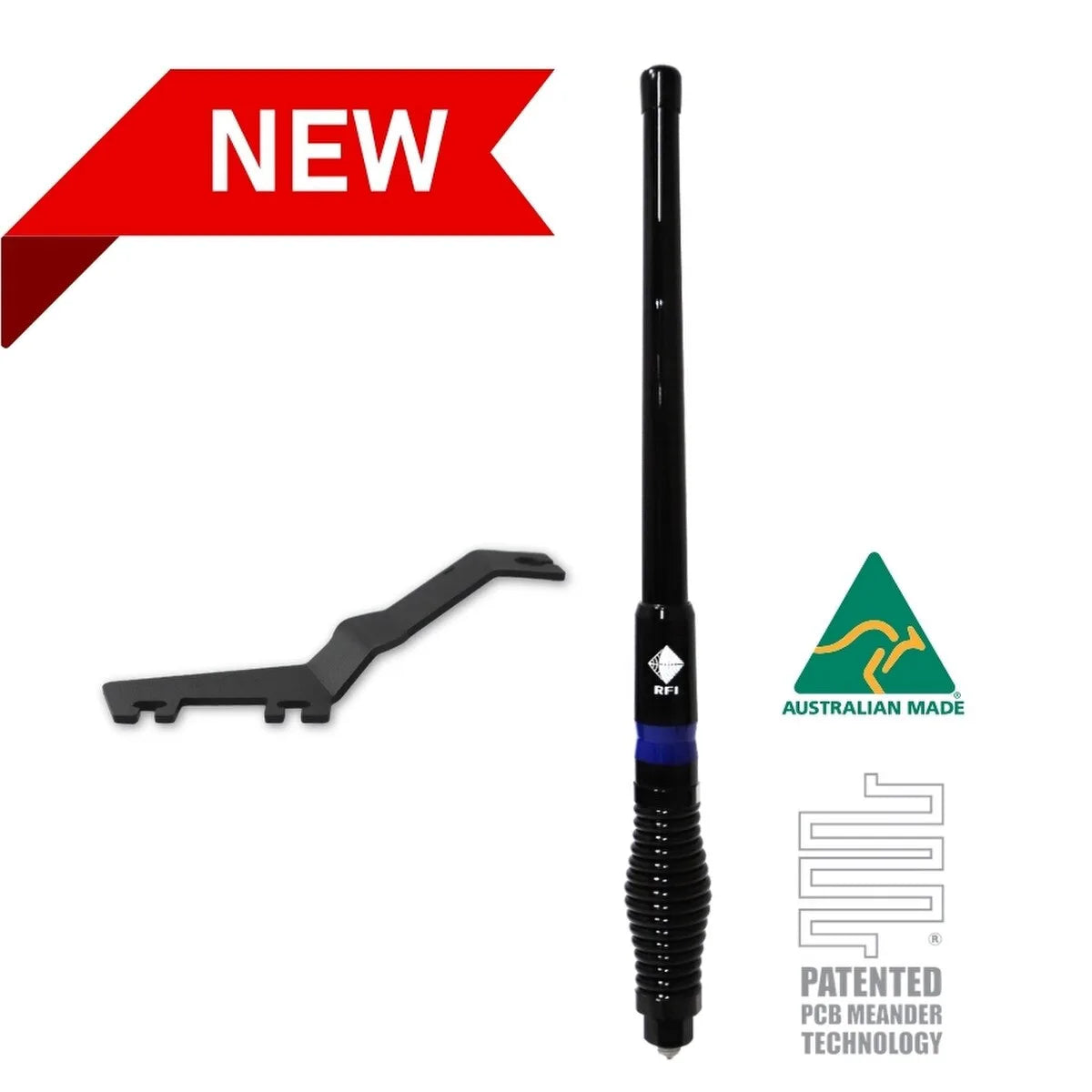

The RFI CDX3000-B-MMC-BHMB-507 is a kit pairing the CDX-TREME Compact UHF CB Collinear Antenna (CDX3000-B) with the BHMB-507 bonnet hinge mounting bracket for the Mitsubishi Triton (2024+), left-hand side (Australian passenger side). The antenna operates at 477MHz, is 0.6m full length, and is terminated with an FME(F) straight plug on 5m RG58 coaxial cable. A UHF(M) adaptor is included. The bracket is Australian made from 4mm mild steel with a matte black finish.

Product overview

Backed by over 45 years of RFI antenna engineering, the CDX-TREME CDX3000-B is a compact UHF CB collinear antenna for 477MHz operation. Its 0.6m full length and bottom-fix spring base with large nut and star washer provide a secure, road-ready mount. The black whip and spring carry a subtle blue band at the base, a nod to RFI's Australian engineering team. The FME(F) straight plug terminates a 5m RG58 low-loss coaxial cable, and a UHF(M) adaptor is included for connection to standard UHF CB radios. The included BHMB-507 bonnet hinge bracket mounts the antenna to the left-hand bonnet hinge of the Mitsubishi Triton 2024+, using the 16mm antenna mounting hole. The bracket is Australian made from 4mm mild steel with a matte black finish and is supplied in installer packaging.

What's in the box

  • CDX-TREME Compact UHF CB Collinear Antenna (CDX3000-B)
  • UHF(M) adaptor
  • Bonnet Hinge Mounting Bracket for Mitsubishi Triton 2024+ LHS (BHMB-507)

Features and benefits

CDX-TREME CDX3000-B UHF CB antenna: 477MHz operation for Australian UHF CB radio.

0.6m full length with bottom-fix spring base: Large nut and star washer for secure mounting.

FME(F) straight plug on 5m RG58 low-loss coaxial cable.

UHF(M) adaptor included: Ready to connect to standard UHF CB radios.

10W power rating.

Omni-directional, vertical polarisation.

Black whip and spring with subtle blue band.

BHMB-507 bonnet hinge bracket: 4mm mild steel, matte black, 16mm antenna hole, Australian made.

Vehicle-specific fit for Mitsubishi Triton 2024+, left-hand side (Australian passenger side).

Installer packaging.

Technical specs

Specification Detail
SKU CDX3000-B-MMC-BHMB-507
Brand RFI
Kit Contents CDX3000-B antenna, UHF(M) adaptor, BHMB-507 bracket
Antenna Type Compact UHF CB collinear
Frequency 477MHz
Full Length 0.6m
Power 10W
Connector FME(F) straight plug
Adaptor Included UHF(M)
Cable 5m RG58 low-loss coaxial
Radome Diameter 29-25mm
Horizontal Beamwidth Omni-directional
Polarisation Vertical
Antenna Configuration SISO
Mounting Hole 16mm
Bracket Material 4mm mild steel
Bracket Finish Matte black
Bracket Side LHS (Australian passenger side / USA driver side)
Bracket Origin Australian made

Compatible with

Make Model Variant Years
Mitsubishi Triton All 2024 onwards

Frequently asked questions

What frequency does the CDX3000-B operate on? The CDX3000-B operates at 477MHz, which is the Australian UHF CB radio frequency.

What connector does the CDX3000-B use? The CDX3000-B terminates with an FME(F) straight plug on a 5m RG58 low-loss coaxial cable. A UHF(M) adaptor is included for connecting to standard UHF CB radios.

What is the difference between this kit and the CDX3000-B-MMC-BHMB-508? The CDX3000-B-MMC-BHMB-507 includes the BHMB-507 bracket for the left-hand side (Australian passenger side). The CDX3000-B-MMC-BHMB-508 includes the BHMB-508 bracket for the right-hand side (Australian driver side). Both suit the Mitsubishi Triton 2024+.

What side does this kit suit? This kit suits the left-hand side, which is the Australian passenger side (or USA driver side).

Is the bracket retail packaged? No. The BHMB-507 bracket is supplied in installer packaging and is not retail hang sell.
