RFI CDX3000-B-Ford-BHMB-506 UHF CB Raptor Next Gen RA 2023+ RHS
Click to open expanded view

RFI CDX3000-B-Ford-BHMB-506 UHF CB Raptor Next Gen RA 2023+ RHS

SKU: CDX3000BFORDBHMB506
Price
$558.20
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
RFI CDX3000-B-Ford-BHMB-506 UHF CB Raptor Next Gen RA 2023+ RHS

RFI CDX3000-B-Ford-BHMB-506 UHF CB Raptor Next Gen RA 2023+ RHS

$558.20

Product features

RFI CDX3000-B-Ford-BHMB-506 CDX-TREME Compact UHF CB Antenna with Bonnet Hinge Mounting Bracket Ford Ranger Raptor Next Gen RA 2023+ RHS Australian Driver Side 477MHz 0.6m 5m RG58 FME(F) Cable UHF(M) Adaptor Included 10W Omni-Directional Australian Made Bracket

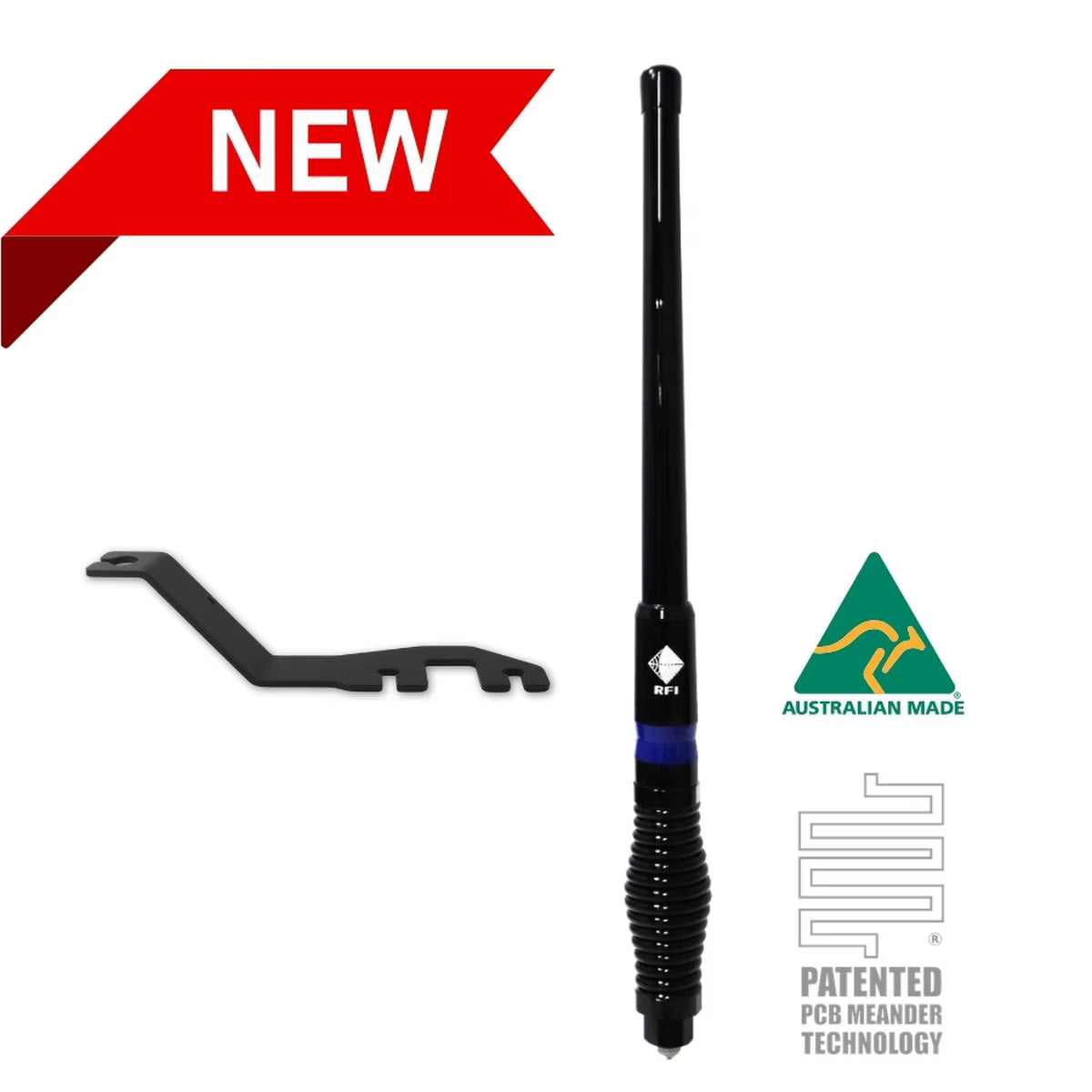

The RFI CDX3000-B-Ford-BHMB-506 is a kit pairing the CDX-TREME Compact UHF CB Collinear Antenna (CDX3000-B) with the BHMB-506 bonnet hinge mounting bracket for the Ford Ranger Raptor Next Gen RA (2023+), right-hand side (Australian driver side). The antenna operates at 477MHz, is 0.6m full length, and is terminated with an FME(F) straight plug on 5m RG58 coaxial cable. A UHF(M) adaptor is included. The bracket is Australian made from 4mm mild steel with a matte black finish.

Product overview

Backed by over 45 years of RFI antenna engineering, the CDX-TREME CDX3000-B is a compact UHF CB collinear antenna for 477MHz operation. Its 0.6m full length and bottom-fix spring base with large nut and star washer provide a secure, road-ready mount. The black whip and spring carry a subtle blue band at the base, a nod to RFI's Australian engineering team. The FME(F) straight plug terminates a 5m RG58 low-loss coaxial cable, and a UHF(M) adaptor is included for connection to standard UHF CB radios. The included BHMB-506 bonnet hinge bracket mounts the antenna to the right-hand bonnet hinge of the Ford Ranger Raptor Next Gen RA (2023+), using the 16mm antenna mounting hole. The bracket is Australian made from 4mm mild steel with a matte black finish and is supplied in installer packaging.

What's in the box

  • CDX-TREME Compact UHF CB Collinear Antenna (CDX3000-B)
  • UHF(M) adaptor
  • Bonnet Hinge Mounting Bracket for Ford Ranger Raptor Next Gen RA 2023+ RHS (BHMB-506)

Features and benefits

CDX-TREME CDX3000-B UHF CB antenna: 477MHz operation for Australian UHF CB radio.

0.6m full length with bottom-fix spring base: Large nut and star washer for secure mounting.

FME(F) straight plug on 5m RG58 low-loss coaxial cable.

UHF(M) adaptor included: Ready to connect to standard UHF CB radios.

10W power rating.

Omni-directional, vertical polarisation.

Black whip and spring with subtle blue band.

BHMB-506 bonnet hinge bracket: 4mm mild steel, matte black, 16mm antenna hole, Australian made.

Vehicle-specific fit for Ford Ranger Raptor Next Gen RA 2023+, right-hand side (Australian driver side).

Installer packaging.

Technical specs

Specification Detail
SKU CDX3000-B-Ford-BHMB-506
Brand RFI
Kit Contents CDX3000-B antenna, UHF(M) adaptor, BHMB-506 bracket
Antenna Type Compact UHF CB collinear
Frequency 477MHz
Full Length 0.6m
Power 10W
Connector FME(F) straight plug
Adaptor Included UHF(M)
Cable 5m RG58 low-loss coaxial
Radome Diameter 29-25mm
Horizontal Beamwidth Omni-directional
Polarisation Vertical
Antenna Configuration SISO
Mounting Hole 16mm
Bracket Material 4mm mild steel
Bracket Finish Matte black
Bracket Side RHS (Australian driver side / USA passenger side)
Bracket Origin Australian made

Compatible with

Make Model Variant Years
Ford Ranger Raptor Next Gen RA 2023 onwards

Frequently asked questions

What frequency does the CDX3000-B operate on? The CDX3000-B operates at 477MHz, which is the Australian UHF CB radio frequency.

What connector does the CDX3000-B use? The CDX3000-B terminates with an FME(F) straight plug on a 5m RG58 low-loss coaxial cable. A UHF(M) adaptor is included for connecting to standard UHF CB radios.

Does this kit suit the standard Ford Ranger Next Gen? This kit is specific to the Ford Ranger Raptor Next Gen RA (2023+). Contact us to confirm compatibility with the standard Ranger Next Gen before purchasing.

What side does this kit suit? This kit suits the right-hand side, which is the Australian driver side (or USA passenger side).

Is the bracket retail packaged? No. The BHMB-506 bracket is supplied in installer packaging and is not retail hang sell.
