RFI CDX3000-B-Ford-BHMB-503 CDX-Treme UHF CB Ranger Everest LHS

RFI CDX3000-B-Ford-BHMB-503 CDX-Treme Compact UHF CB Antenna with Bonnet Hinge Bracket for Ford Ranger and Everest 2023+ LHS

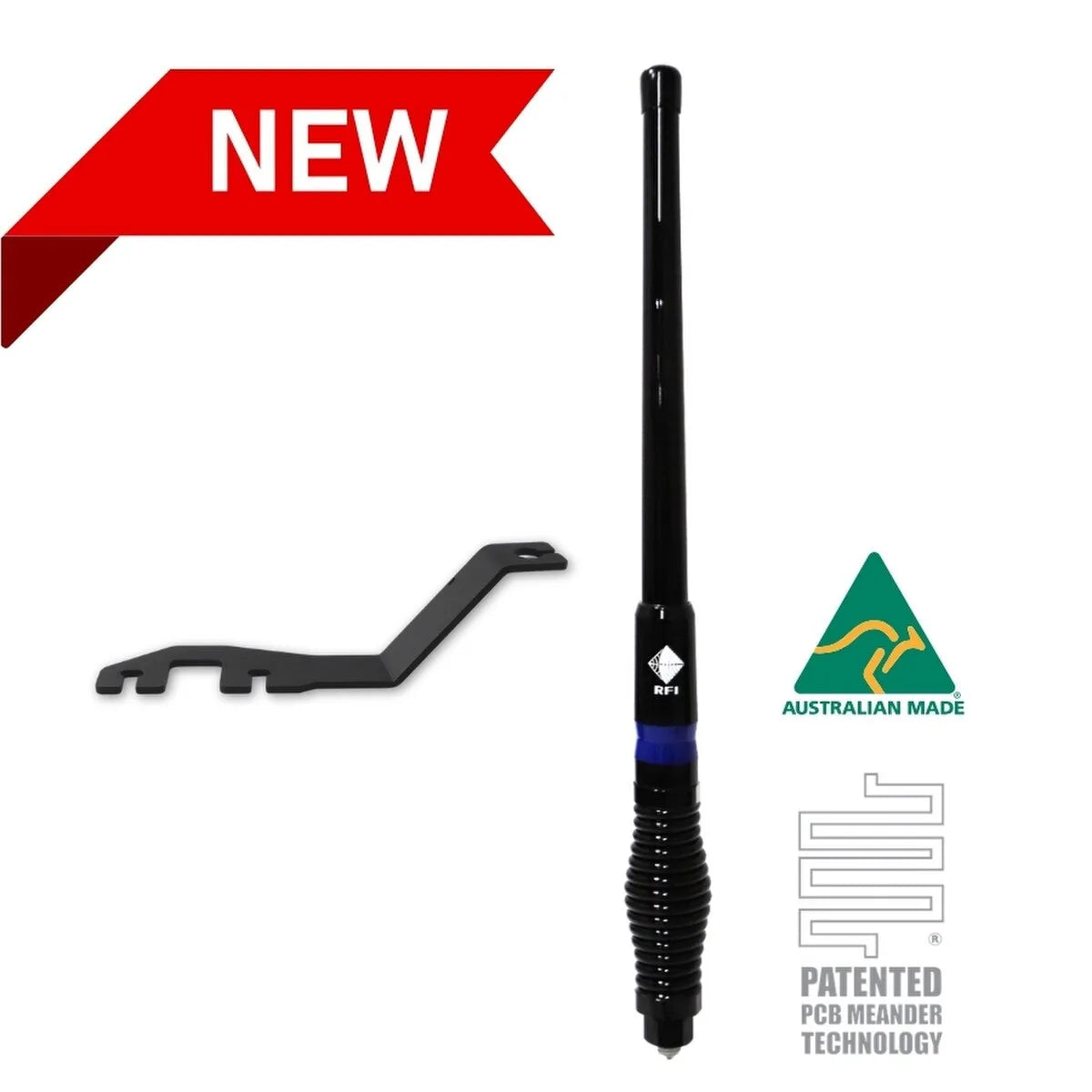

The CDX3000-B-Ford-BHMB-503 is a complete UHF CB antenna and mounting bracket kit combining the RFI CDX-Treme compact collinear antenna with the BHMB-503 bonnet hinge mounting bracket. Designed for the Ford Ranger and Everest (2023+) left-hand side bonnet hinge, it operates on 477MHz with a 0.6m overall length, 10W power rating, and 5m RG58 coaxial cable terminated with an FME female connector.

Product overview

The RFI CDX-Treme is a compact ground-independent collinear UHF CB antenna operating at 477MHz, designed for vehicle installations where a full-length antenna is not practical. The 0.6m overall length and spring base mount provide a lower profile than standard UHF CB antennas while maintaining omni-directional coverage and vertical polarisation for reliable communications performance.

The BHMB-503 bonnet hinge mounting bracket is Australian made from 4mm mild steel with a matte black finish, designed specifically for the Ford Ranger and Everest (2023+) left-hand bonnet hinge position. In Australian vehicles, the left-hand side is the passenger side. The bracket provides a secure, vehicle-specific mounting point without requiring drilling or permanent modification to the vehicle body.

The antenna connects via a 5m RG58 low loss coaxial cable terminated with an FME female connector. A UHF male adaptor is also included for direct connection to radios with a UHF female input. The black antenna whip and spring feature a subtle blue band at the base, a detail specific to RFI's CDX-Treme range.

Features and benefits

RFI CDX-Treme compact collinear at 477MHz: The CDX-Treme operates on the 477MHz UHF CB frequency band with a compact 0.6m overall length, providing a lower-profile alternative to full-length UHF CB antennas for vehicles where height clearance or aesthetics are a consideration.

Ground-independent design: The CDX-Treme is a ground-independent antenna and does not require a ground plane for correct operation, making it suitable for bonnet hinge and other body-mounted positions where a ground plane is not available.

BHMB-503 vehicle-specific bonnet hinge bracket for Ford Ranger and Everest 2023+: The BHMB-503 is Australian made from 4mm mild steel with a matte black finish, engineered specifically for the left-hand bonnet hinge of the Ford Ranger and Everest (2023+) for a secure, vehicle-specific fit without drilling.

Left-hand side fitment: The BHMB-503 bracket in this kit suits the left-hand side bonnet hinge of the Ford Ranger and Everest (2023+). In Australia, the left-hand side is the passenger side. In the USA, the left-hand side is the driver side.

5m RG58 low loss coaxial cable: The 5m cable length provides sufficient reach from the bonnet hinge mounting position to the radio inside the vehicle cabin, with low loss construction to maintain signal quality across the cable run.

FME female connector with UHF male adaptor: The cable terminates in an FME female connector, with a UHF male adaptor also included for direct connection to radios with a UHF female input, covering both FME and UHF radio connector configurations.

Bottom fix spring base: The bottom fix spring base with large nut and star washer provides a secure antenna mounting point on the bracket, with the spring allowing the antenna to deflect on impact and return to position.

Omni-directional coverage with vertical polarisation: Omni-directional horizontal beamwidth ensures consistent UHF CB signal coverage regardless of vehicle orientation, with vertical polarisation matching standard UHF CB base station antenna configurations.

Australian made bracket: The BHMB-503 bracket is manufactured in Australia from 4mm mild steel, confirming local engineering and quality construction suited to Australian conditions.

What's in the box

• RFI CDX-Treme compact UHF CB collinear antenna (CDX3000-B)
• Ford Ranger and Everest 2023+ LHS bonnet hinge mounting bracket (BHMB-503)
• 5m RG58 low loss coaxial cable with FME female connector
• UHF male adaptor

Technical specs

Compatible with

Frequently asked questions

Which side of the Ford Ranger and Everest does this bracket suit?
The BHMB-503 bracket in this kit suits the left-hand side bonnet hinge of the Ford Ranger and Everest (2023+). In Australia, the left-hand side is the passenger side. A right-hand side variant may be available separately. Contact us to confirm the correct bracket side for your installation preference.

Does the CDX-Treme antenna require a ground plane?
No. The CDX-Treme is a ground-independent antenna and does not require a ground plane for correct operation, making it suitable for bonnet hinge mounting positions where a ground plane is not available.

What connector does my UHF CB radio need to connect to this antenna?
The antenna cable terminates in an FME female connector. A UHF male adaptor is also included in the kit for radios with a UHF female input. Contact us if your radio uses a different connector type before purchasing.

Is the BHMB-503 bracket confirmed for both the Ford Ranger and the Ford Everest?
Yes. The BHMB-503 bracket is confirmed for both the Ford Ranger and the Ford Everest (2023+) left-hand side bonnet hinge. Contact us to confirm fitment for your specific Ford Ranger or Everest variant before purchasing.

Is this bracket compatible with Ford Ranger models before 2023?
The BHMB-503 bracket is confirmed for the Ford Ranger and Everest (2023+). Compatibility with earlier Ranger generations has not been confirmed in the available source data. Contact us to confirm bracket fitment for your specific vehicle build date before purchasing.
