Redarc TVMSKIT07-AU Rogue RedVision Power Management Kit

Redarc Rogue RedVision System TVMSKIT07-AU Includes TVMS Rogue Control Module Manager30 Battery Management System with Smart Battery Monitor and RedVision Pro Display 10x Dimmable Outputs 8 Switch Inputs 2 Analogue Inputs AC DC and Solar Charging Made in Australia 2-Year Warranty

The Redarc TVMSKIT07-AU Rogue RedVision System is a complete power management kit for caravans and 4WDs, combining smart battery charging, accessory control, and advanced monitoring in one package. Includes the TVMS Rogue control module (TVMS1240), Manager30 battery management system with Smart Battery Monitor (BMS1230S4R), and RedVision Pro display (DISP4300). 10 dimmable outputs, 8 switch inputs, 2 analogue sensor inputs. Made in Australia. 2-year warranty.

Product overview

The Rogue RedVision System brings together three core components for a fully integrated caravan and 4WD power management build. The Manager30 handles 30A multi-stage AC, DC, and solar charging with Green Power Priority, keeping secondary batteries charged from any source. The TVMS Rogue control module at just 25mm thick provides 10 dimmable 10A output channels ideal for lighting, fridges, fans, and pumps, with 8 physical switch inputs for room-by-room lighting control or reed switch door triggering. Two analogue sensor inputs support ambient temperature, water tank level, and voltage monitoring. The RedVision Pro display presents state of charge, charge remaining, charge and discharge current, and battery temperature in real time, with the same data and control available via the RedVision smartphone app. Automation features allow non-essential loads to be powered down when batteries run low or everything except the fridge to be switched off with a single press. Fully programmable via the RedVision configurator app (required for initial setup only). Made in Australia. Just add batteries, cables, and fuses.

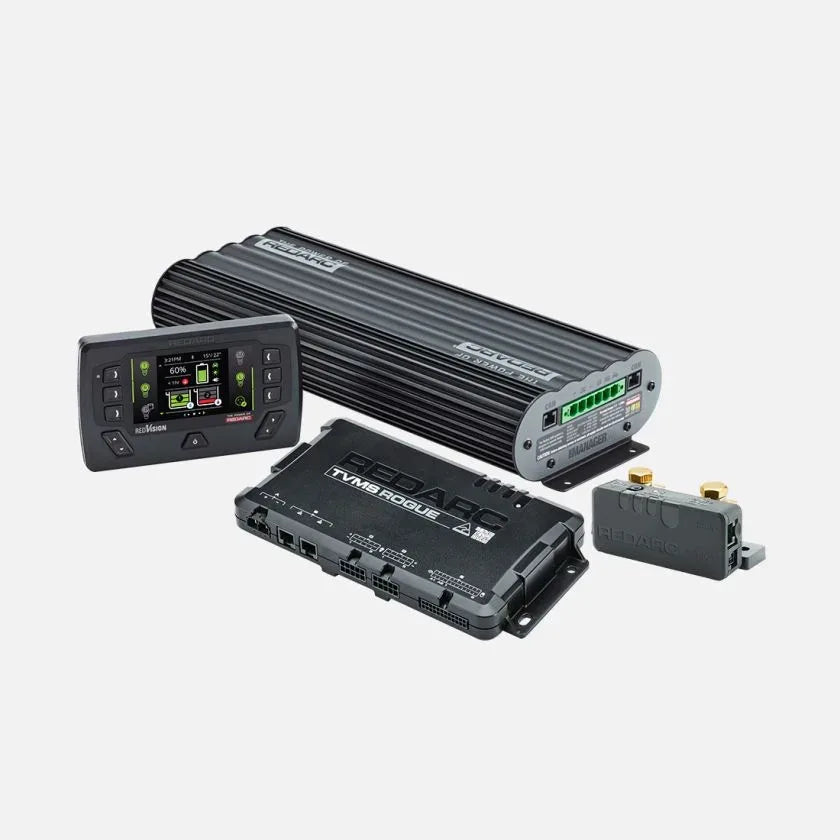

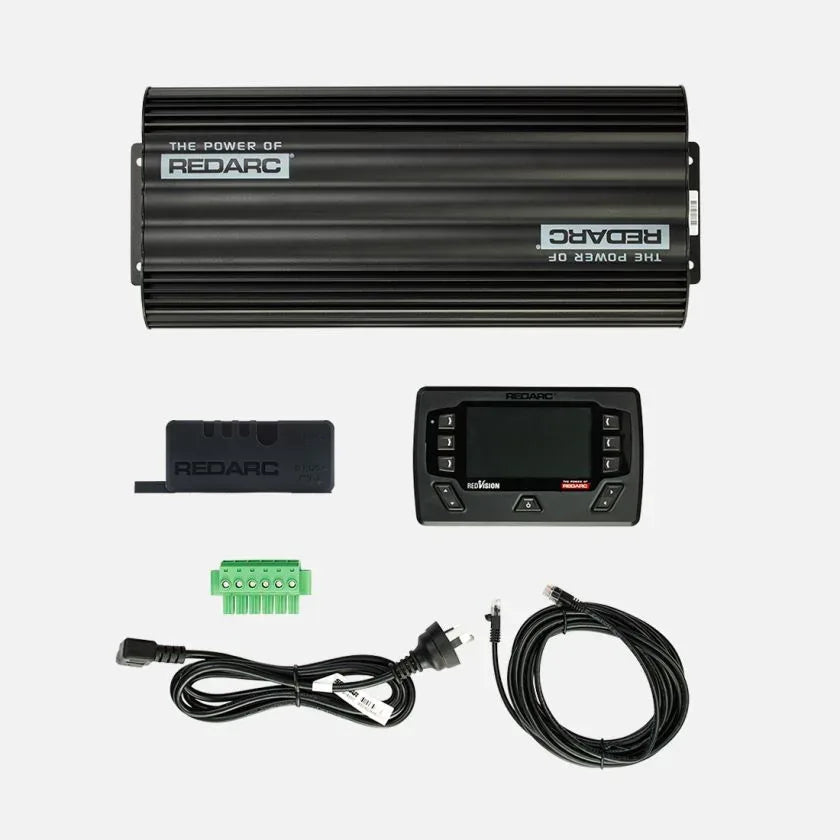

What's in the box

• TVMS Rogue RedVision Control Module (TVMS1240)
• Manager30 Battery Management System with Smart Battery Monitor (BMS1230S4R)
• RedVision Pro Display (DISP4300)

Features and benefits

Complete power management kit: Charging, control, and monitoring in one package — just add batteries, cables, and fuses.

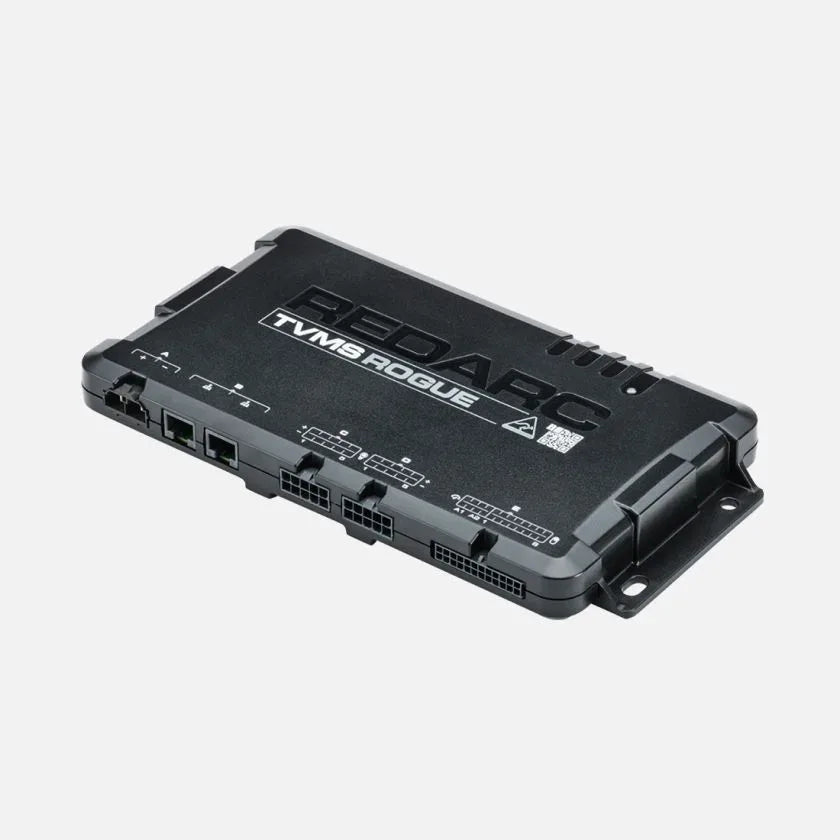

TVMS Rogue control module: 10 x 10A dimmable output channels, 8 switch inputs, 2 analogue sensor inputs, on-board smart fuses, 25mm compact thickness.

10 dimmable outputs: Ideal for lighting, fridges, fans, and pumps.

8 switch inputs: Physical switch control from multiple locations including room-by-room caravan lighting or reed switch door triggers.

2 analogue sensor inputs: Measures ambient temperature, water tank levels, and voltage.

Manager30 30A battery management system: Multi-stage AC-DC, DC-DC, and MPPT solar charging with Green Power Priority, dual battery isolator, and load disconnect controller.

Charges AGM, gel, calcium, VRLA, standard lead acid, and lithium (LiFePO4) batteries.

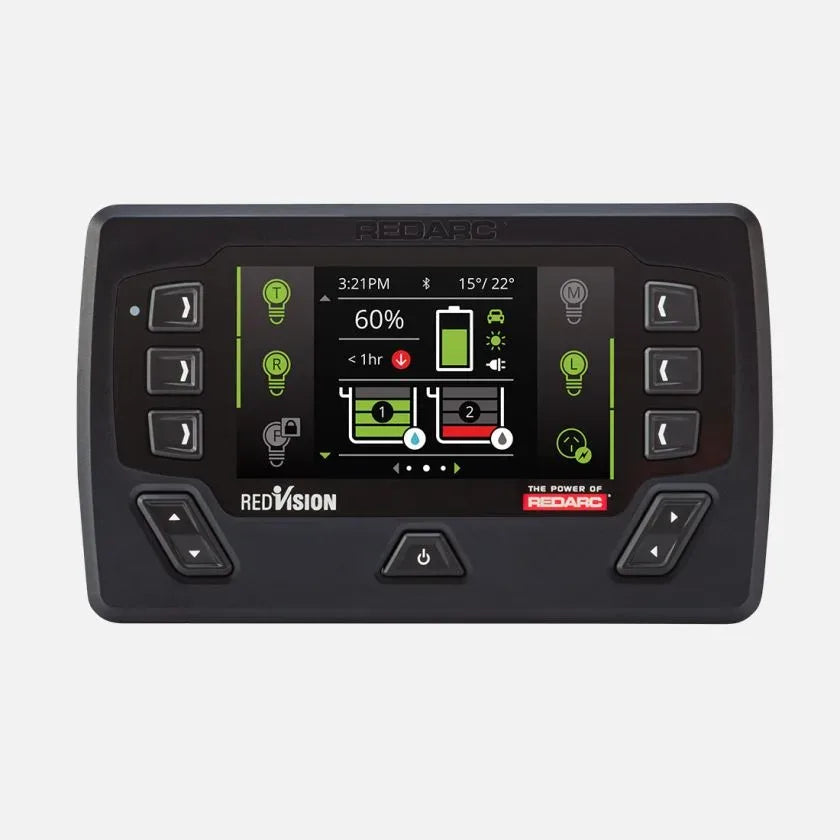

RedVision Pro display: Live state of charge, charge remaining, current, and battery temperature — also available via the RedVision smartphone app.

Automation: Power down non-essential loads automatically when batteries run low.

Fully programmable via RedVision configurator app (required for initial setup only; user app available on iOS and Android).

Tested to Australian mains power safety standards.

Made in Australia.

2-year warranty.

Technical specs

Frequently asked questions

What does the Rogue RedVision System include? The TVMSKIT07-AU includes the TVMS Rogue RedVision Control Module (TVMS1240), the Manager30 Battery Management System with Smart Battery Monitor (BMS1230S4R), and the RedVision Pro Display (DISP4300). Batteries, cables, and fuses are not included.

Can the Rogue RedVision System control lighting from multiple rooms? Yes. The TVMS Rogue supports 8 physical switch inputs, allowing lights to be controlled from each room of a caravan. Reed switches can also be connected to trigger lights automatically when opening a door.

Does the Rogue RedVision System support automation? Yes. The system can automate tasks such as powering down non-essential loads when batteries run low, or switching off everything except the fridge with a single press via the RedVision app.

Is the configurator app required to use the Rogue RedVision System? The configurator app is required for initial setup and installation only. Day-to-day monitoring and control is available through the RedVision user app, which is available for both iOS and Android.

What battery chemistries does the Manager30 charge in the Rogue RedVision System? The Manager30 charges AGM, gel, calcium, VRLA, standard lead acid, and lithium (LiFePO4) batteries.
