Redarc TVMSKIT06-AU TVMS Prime RedVision Power Management Kit

Redarc TVMS Prime RedVision System TVMSKIT06-AU Includes TVMS Prime Control Module Manager30 Battery Management System with Smart Battery Monitor and RedVision Pro Display 5x30A and 5x10A Outputs 80A Maximum Current 6 Tank Sensor Inputs Dedicated Inverter Channel AC DC and Solar Charging Made in Australia 2-Year Warranty

The Redarc TVMSKIT06-AU TVMS Prime RedVision System is a complete power management kit for camper trailers and mid-sized caravans. It includes the TVMS Prime control module (TVMS1280), Manager30 battery management system with Smart Battery Monitor (BMS1230S4R), and RedVision Pro display (DISP4300). 5x30A and 5x10A outputs (80A maximum current), dedicated inverter channel, 6 tank sensor inputs, 2 temperature sensor inputs, and 1 voltage sensor input. Made in Australia. 2-year warranty.

Product overview

The Prime RedVision System steps up from the Rogue with higher output current capacity and more sensor inputs for larger and more complex builds. Five 30A channels handle high-powered loads — inverters, compressor fridges, air compressors while five 10A channels manage lighting, fans, and low-draw devices. A dedicated inverter output brings the total to 11 channels. At 80A maximum current, the Prime handles the full load of a well-equipped mid-sized caravan without restriction. Six dedicated tank level sensor inputs and two ambient temperature inputs plus a voltage sensor input give a complete picture of the system at all times. The Manager30 provides 30A multi-stage AC, DC, and MPPT solar charging with Green Power Priority, keeping secondary batteries charged from any source. The included RedVision Pro display shows state of charge, charge remaining, current, and battery temperature in real time, with the same data and control available via the RedVision smartphone app. Automation lets users power down non-essential loads when batteries run low. Fully programmable. Made in Australia.

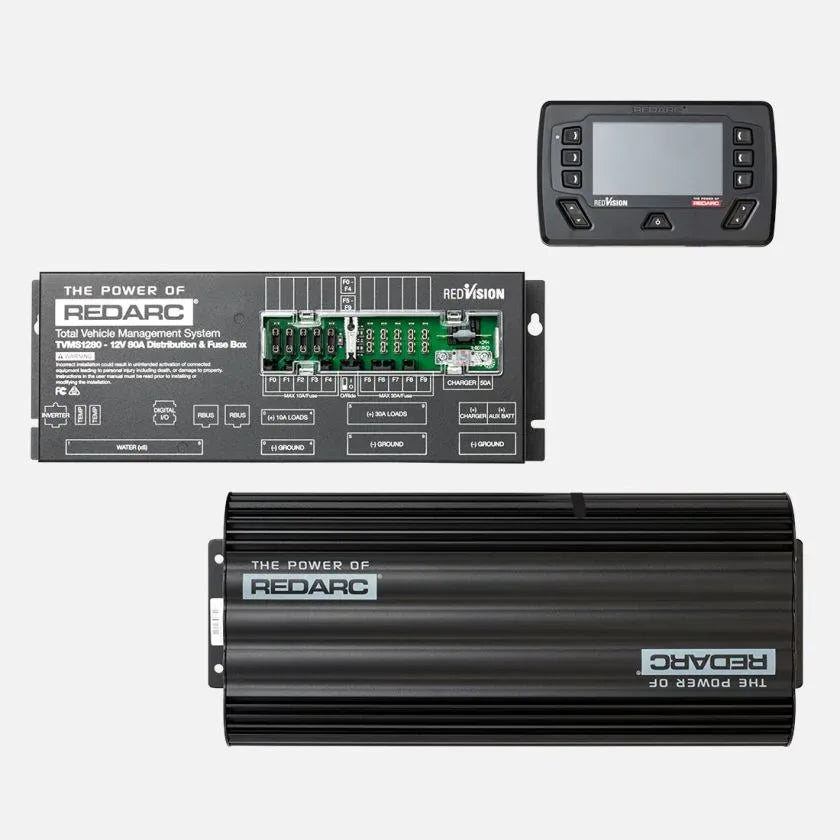

What's in the box

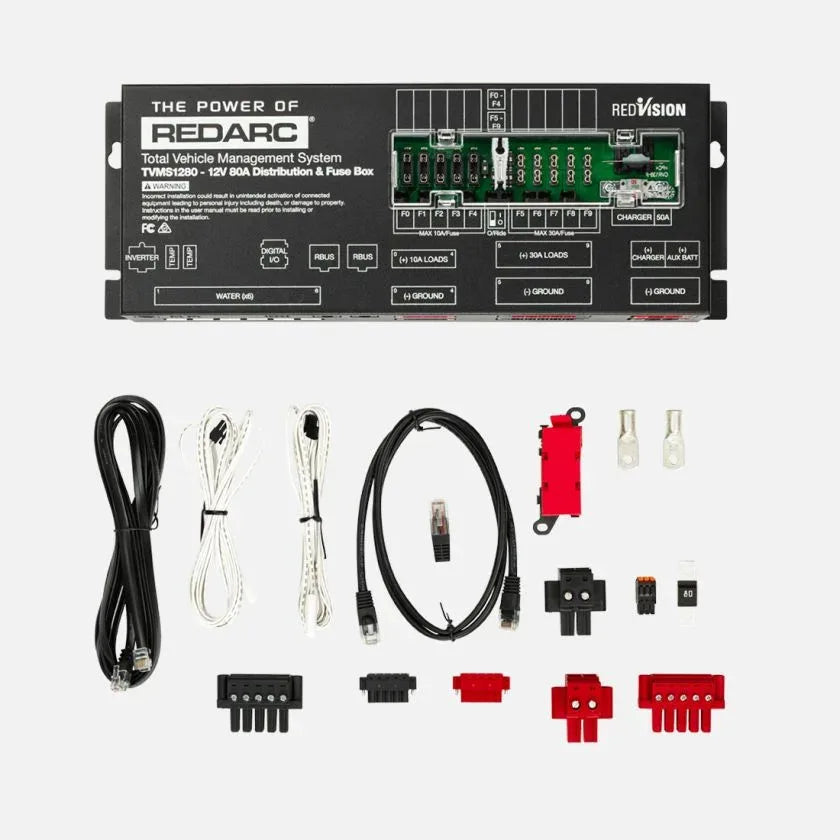

• TVMS Prime RedVision Control Module (TVMS1280)

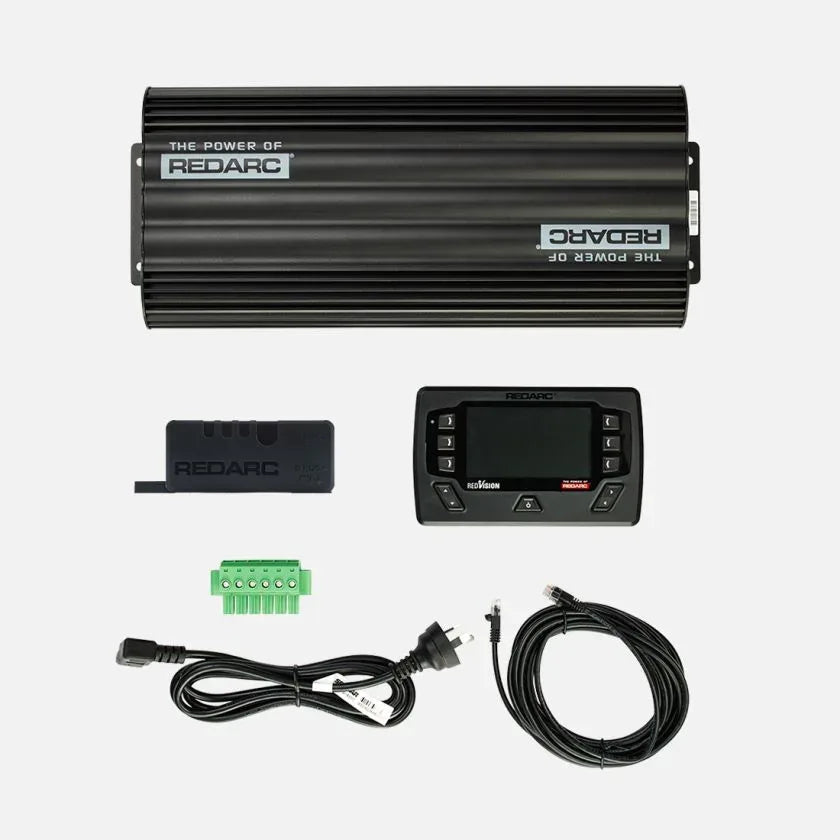

• Manager30 Battery Management System with Smart Battery Monitor (BMS1230S4R)
• RedVision Pro Display (DISP4300)

Features and benefits

5x30A and 5x10A outputs (80A maximum current): Mix of high and low-powered device control in a single system.

Dedicated inverter output: 11 total channels including one inverter-specific output.

6 tank sensor inputs: Suitable for setups with more than two water tanks.

2 temperature sensor inputs and 1 voltage sensor input.

Manager30 30A battery management system: Multi-stage AC-DC, DC-DC, and MPPT solar charging with Green Power Priority, dual battery isolator, and load disconnect controller.

Charges AGM, gel, calcium, VRLA, standard lead acid, and lithium (LiFePO4) batteries.

Smart Battery Monitor included: State of charge, time remaining, and current flow with industry-leading accuracy.

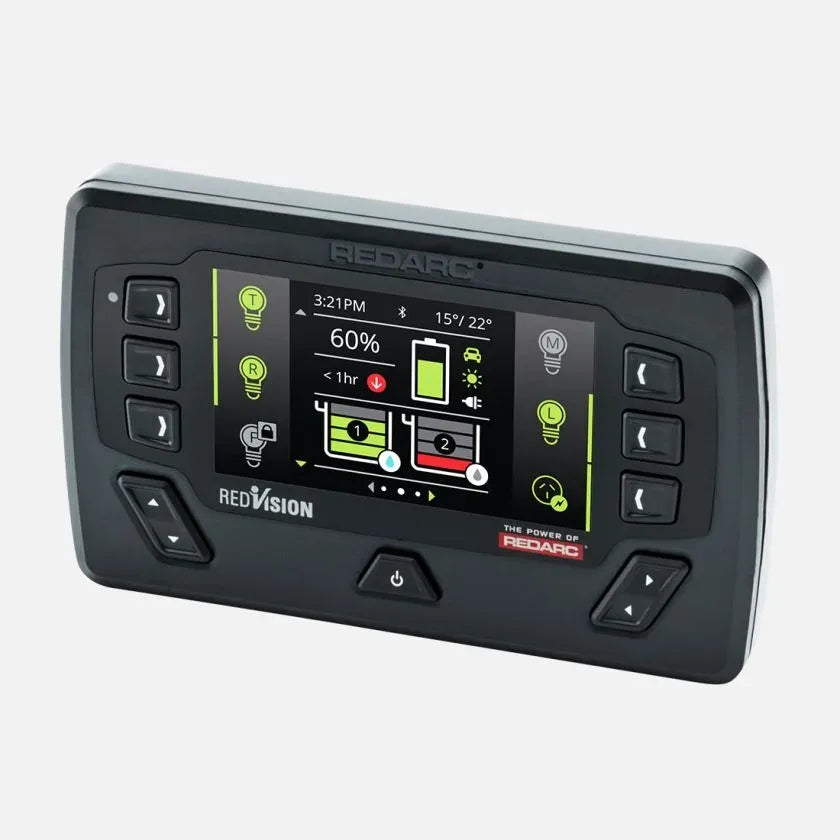

RedVision Pro display: Live battery and system data also available via the RedVision smartphone app.

Automation: Power down non-essential loads automatically when batteries run low.

Fully programmable.

Easy accessible fuses.

Solar input voltage: 9-30V.

12V system voltage.

Tested to Australian mains power safety standards.

Made in Australia.

2-year warranty.

Technical specs

Frequently asked questions

What is the difference between the Rogue and Prime RedVision Systems? The Prime RedVision System has 5x30A and 5x10A outputs (80A max), a dedicated inverter channel, 6 tank sensor inputs, and 2 temperature inputs suited to mid-sized caravans with more than two water tanks and a mix of high and low-powered devices. The Rogue has 10x10A dimmable outputs, 8 switch inputs, and 2 analogue inputs suited to smaller builds with lighting and low-powered devices. Both include the Manager30 BMS and RedVision Pro display.

What does the dedicated inverter output do? The dedicated inverter channel is a separate output designed specifically for controlling an inverter, bringing the total outputs to 11. It is distinct from the standard 10A and 30A channels.

How many water tanks can the Prime RedVision System monitor? The TVMS Prime has 6 dedicated tank level sensor inputs, supporting builds with more than two water tanks.

Does the Prime RedVision System support automation? Yes. The system can power down non-essential loads when batteries run low, or switch off everything except the fridge with a single press via the RedVision app.

What battery chemistries does the Manager30 charge in the Prime RedVision System? The Manager30 charges AGM, gel, calcium, VRLA, standard lead acid, and lithium (LiFePO4) batteries.
