Redarc TVMS1240COMBO-1 TVMS Rogue RedVision Pro Display Bundle

Redarc TVMS Rogue with RedVision Pro Display TVMS1240COMBO-1 Online Exclusive Bundle 10x Dimmable 10A Outputs 8 Switch Inputs 2 Analogue Tank Inputs 40A Maximum Output 250mm x 130mm x 25mm Manager30 Sold Separately 2-Year Warranty

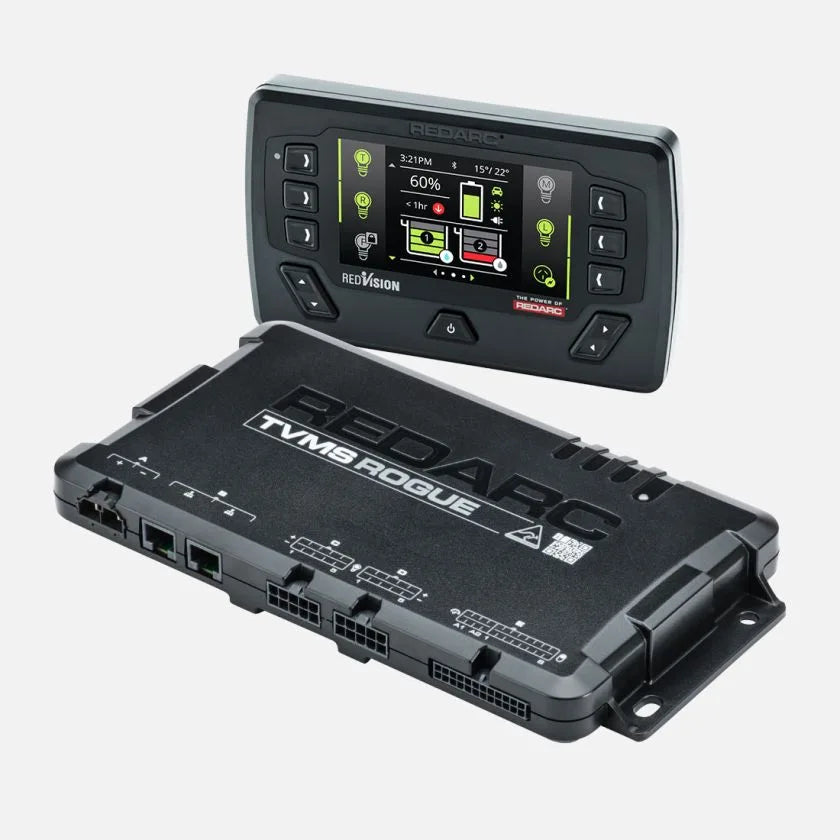

The Redarc TVMS1240COMBO-1 is an online exclusive bundle pairing the TVMS Rogue control module with the RedVision Pro display. It includes 10 dimmable 10A output channels, 8 physical switch inputs, 2 analogue tank level inputs, and on-board smart fuses. 250mm x 130mm x 25mm, 0.43kg. 9-16V input, 40A maximum rated output current. Manager30 battery management system sold separately. 2-year warranty.

Note: This bundle includes the TVMS Rogue module and RedVision Pro display only. The Manager30 battery management system is sold separately and is required for battery charging and full RedVision monitoring capability.

Product overview

The TVMS Rogue is a compact 25mm-thin power control module for caravans, camper trailers, and 4WDs. Its 10 dimmable 10A output channels cover lighting, fridges, fans, and pumps, while 8 physical switch inputs allow room-by-room control or reed switch door triggering. Two analogue tank level inputs support monitoring of water, fuel, or wastewater tanks using most common tank sensors. When paired with the RedVision Pro display included in this bundle, real-time state of charge, power input and output, and ambient temperature data are displayed on screen. The RedVision app on a smartphone provides the same data and control. Automation allows non-essential loads to be powered down when batteries are low or a single button press to shut off everything except the fridge. Fully programmable via the RedVision configurator app (required for initial setup only). The Manager30 battery management system must be purchased separately for complete battery charging and monitoring functionality.

What's in the box

• TVMS Rogue control module (TVMS1240)
• RedVision Pro display (DISP4300)

Features and benefits

10x 10A dimmable outputs: Full dimming control for lighting, fridges, fans, and pumps.

8 switch inputs: Physical switch control from multiple locations including room-by-room caravan lighting or reed switch door triggers.

2 analogue tank level inputs: Accurate monitoring of water, fuel, or wastewater tanks — compatible with most common tank sensors.

On-board smart fuses.

Compact 25mm thickness: Small footprint for vehicles with limited space.

40A maximum rated output current.

9-16V input voltage.

RedVision Pro display included: Real-time state of charge, power input and output, and ambient temperature.

RedVision smartphone app (iOS and Android) for monitoring and control.

Automation: Power down non-essential loads automatically when batteries run low.

Fully programmable via RedVision configurator app (required for initial setup only).

Manager30 sold separately for battery charging and full monitoring capability.

2-year warranty.

Technical specs

Frequently asked questions

Does the TVMS1240COMBO-1 include the Manager30? No. This bundle includes the TVMS Rogue control module and RedVision Pro display only. The Manager30 battery management system is sold separately and is required for battery charging and full RedVision monitoring. See the TVMSKIT07-AU Rogue RedVision System for the complete kit.

How many devices can the TVMS Rogue control? The TVMS Rogue has 10 dimmable 10A output channels with a 40A maximum rated output current, allowing control of lighting, fridges, fans, pumps, and other on-board devices simultaneously.

Can the TVMS Rogue control lighting from multiple rooms? Yes. The 8 switch inputs allow lighting to be controlled from each room of a caravan independently, or reed switches can be used to trigger lights when a door is opened.

What tank types are compatible with the TVMS Rogue? The two analogue tank level inputs are compatible with most common tank sensors and suit water, fuel, and wastewater tanks.

Is the configurator app required to use the TVMS Rogue? The configurator app is required for initial installation and setup only. Day-to-day monitoring and control uses the RedVision user app, available on iOS and Android.
