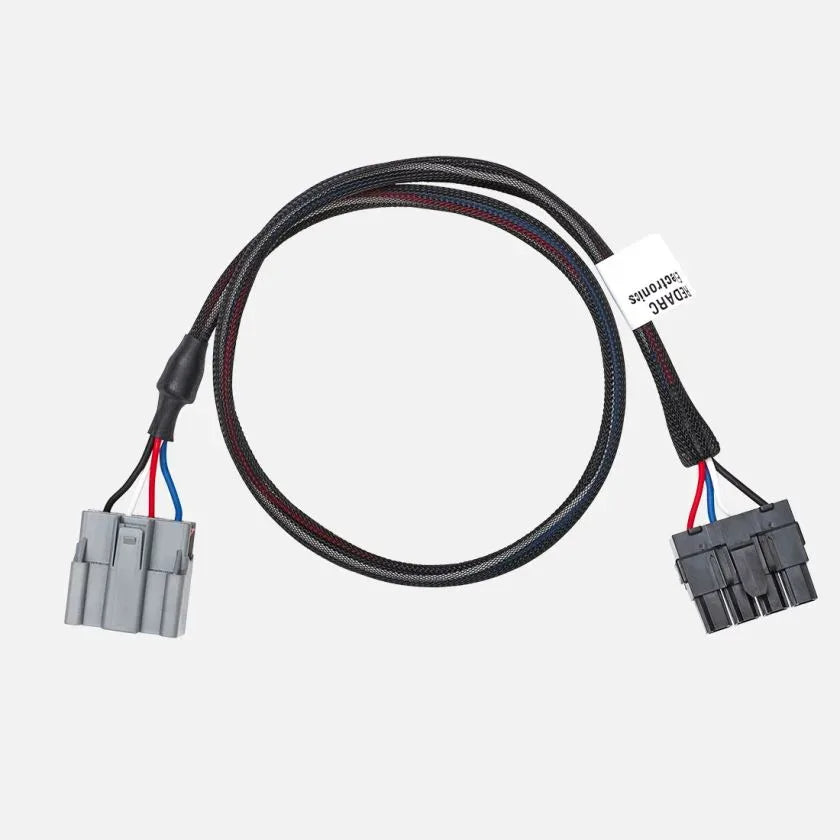

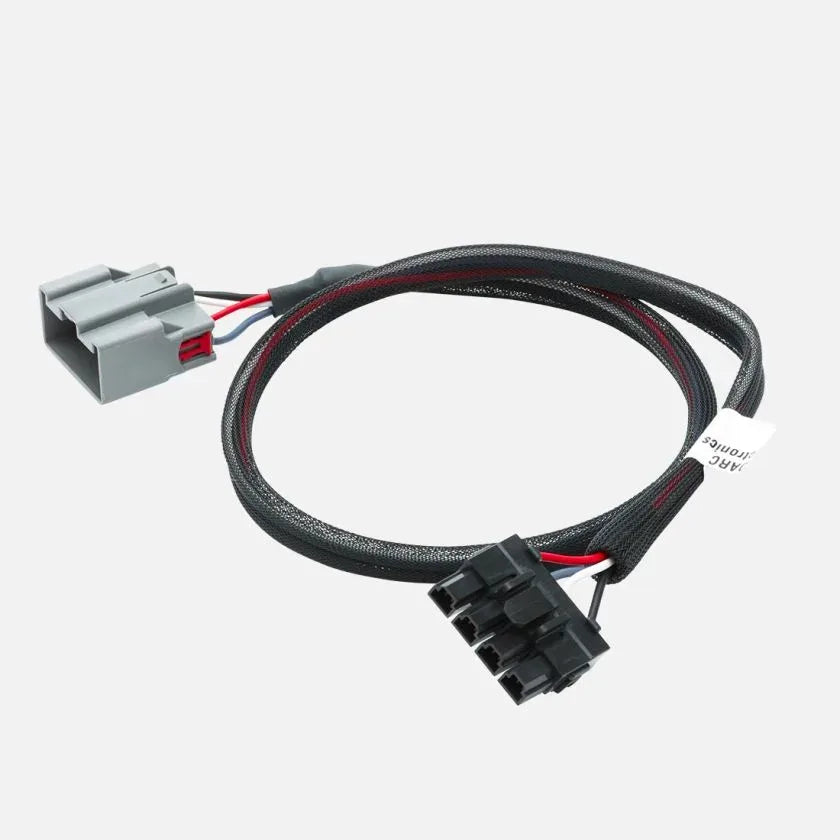

Redarc TPH-007 Tow-Pro Wiring Harness Ford Lincoln US Models

Redarc TPH-007 Tow-Pro Elite and Classic Wiring Harness for US-Specification Ford and Lincoln Vehicles Multiple Configurations Plug and Play Factory Towing Package Connector 812.8mm 95g 2-Year Warranty

The Redarc TPH-007 is a vehicle-specific wiring harness for connecting the Tow-Pro Elite or Tow-Pro Classic electric brake controller to the factory towing package connector in US-specification Ford and Lincoln vehicles. Available in multiple configurations (location codes A, B, and D) to suit a wide range of models. 812.8mm cable length, 95g. 2-year warranty.

Important: This harness is designed for imported US-specification vehicles. Most Australian-market models do not have this factory plug/connector. Consult your local OEM dealership to confirm whether your Australian-model vehicle has a compatible factory connector before purchasing.

Product overview

The TPH-007 connects directly to the factory towing package connector behind the vehicle's dash in supported US-specification Ford and Lincoln models. One end plugs into the Tow-Pro brake controller connector and the other connects to the factory-fitted connector. No cutting or splicing is required for Tow-Pro Elite installations. The harness is also compatible with the Tow-Pro Classic, though a small modification is required as the Tow-Pro Classic does not have a mating connector and needs bare wires inserted into the brake controller. The harness is available in multiple configurations with location codes A, B, and D to suit different model variants. Fitting instructions and the compatible loom are included.

Features and benefits

Suits Tow-Pro Elite and Tow-Pro Classic: Direct plug and play for Elite; small modification required for Classic.

Multiple configurations: Available in location codes A, B, and D to cover a wide range of Ford and Lincoln models.

Connects to factory towing package connector: No cutting or splicing required for Elite installations.

Supplied with fitting instructions and compatible loom.

812.8mm cable length.

Wide vehicle coverage: Suits Ford F-Series, Expedition, Flex, and Lincoln MKT and Navigator US-specification models.

2-year warranty.

Technical specs

Compatible with

Frequently asked questions

Is the TPH-007 compatible with Australian-market Ford and Lincoln vehicles? The TPH-007 is designed for imported US-specification vehicles. Most older Australian-market models do not have the factory towing package connector this harness requires. Some late or current Australian-model vehicles may have a compatible connector but this has not been validated by Redarc. Consult your local OEM dealership to confirm before purchasing.

Does the TPH-007 work with the Tow-Pro Classic? Yes, but a small modification is required. The Tow-Pro Classic does not have a mating connector, so bare wires from the harness need to be inserted directly into the brake controller. The Tow-Pro Elite connects without modification.

What are the location codes A, B, and D? The location codes refer to different harness configurations that suit different connector positions across the supported Ford and Lincoln model range. Contact us to confirm which configuration suits your specific vehicle before purchasing.

How is the TPH-007 installed? Plug one end of the harness into the Tow-Pro brake controller connector and the other end into the factory towing package connector behind the vehicle's dashboard. Fitting instructions are included.

What warranty does the TPH-007 carry? The TPH-007 is backed by a 2-year warranty.
