Redarc TPH-006 Tow-Pro Harness Ford Lincoln Land Rover US

Redarc TPH-006 Tow-Pro Elite Wiring Harness for US-Specification Ford Lincoln Land Rover and Mercury Vehicles Plug and Play Factory Connector 812.8mm 95g 39 Models Covered 2-Year Warranty

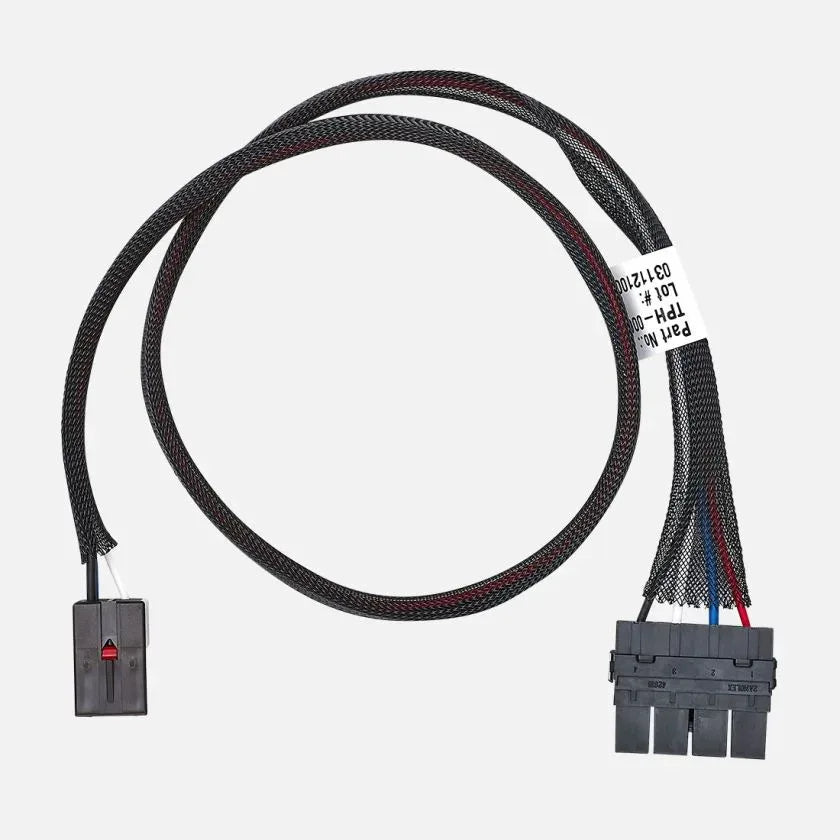

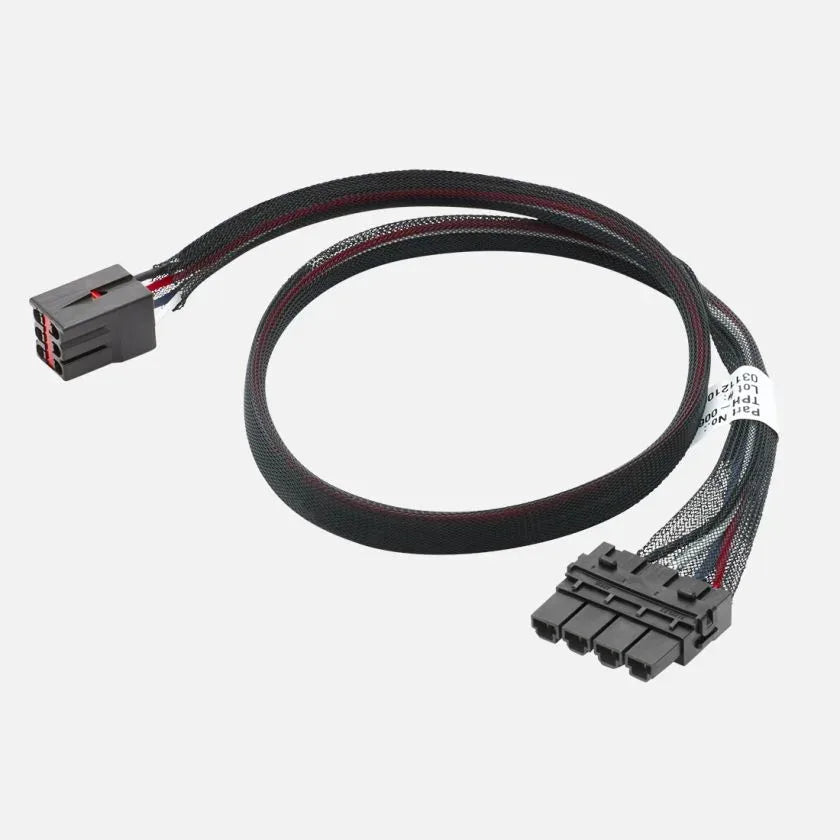

The Redarc TPH-006 is a vehicle-specific wiring harness for connecting the Tow-Pro Elite electric brake controller to the factory-fitted connector in US-specification Ford, Lincoln, Land Rover, and Mercury vehicles. Plug and play design, no cutting or splicing required. 812.8mm cable length, 95g. Covers 39 models. 2-year warranty.

Important: This harness is designed for imported US-specification vehicles. Most Australian-market models do not have this factory plug/connector. Consult your local OEM dealership to confirm whether your Australian-model vehicle has a compatible factory connector before purchasing.

Product overview

The TPH-006 connects to the factory-fitted electric brake connector behind the vehicle's dash across a wide range of US-specification Ford, Lincoln, Land Rover, and Mercury models spanning production years from 1992 through to 2026. One end plugs into the Tow-Pro Elite connector and the other connects to the factory connector behind the dash. No cutting or splicing is required. The harness is supplied with fitting instructions and the compatible loom. Coverage includes Ford F-Series, E-Series, Explorer, Expedition, Bronco, Excursion, and Flex, as well as Lincoln Navigator, Aviator, Mark LT and MKT, Land Rover LR3, LR4, Range Rover, Range Rover Sport, and Range Rover Evoque, and Mercury Mountaineer.

Features and benefits

Suits Tow-Pro Elite: Direct plug and play connection to the factory-fitted connector.

No cutting or splicing required.

Supplied with fitting instructions and compatible loom.

812.8mm cable length.

Wide vehicle coverage: 39 US-specification models across Ford, Lincoln, Land Rover, and Mercury.

2-year warranty.

Technical specs

Compatible with

Frequently asked questions

Is the TPH-006 compatible with Australian-market vehicles? The TPH-006 is designed for imported US-specification vehicles. Most older Australian-market models do not have the factory connector this harness requires. Some late or current Australian-model vehicles may have a compatible connector but this has not been validated by Redarc. Consult your local OEM dealership to confirm before purchasing.

Which brake controller does the TPH-006 work with? The TPH-006 is designed for the Redarc Tow-Pro Elite electric brake controller.

How is the TPH-006 installed? Plug one end of the harness into the Tow-Pro Elite connector and the other end into the factory-fitted connector behind the vehicle's dashboard. No cutting or splicing is required. Fitting instructions are included.

Does the TPH-006 cover Land Rover models? Yes. The TPH-006 covers US-specification Land Rover LR3 (2005 to 2009), LR4 (2010 to 2015), Range Rover (2005 to 2018), Range Rover Sport (2006 to 2024), and Range Rover Evoque (2012 to 2019).

What warranty does the TPH-006 carry? The TPH-006 is backed by a 2-year warranty.
