Redarc TPH-004 Tow-Pro Harness Chrysler Dodge Jeep RAM US

Redarc TPH-004 Tow-Pro Elite Wiring Harness for US-Specification Chrysler Dodge Jeep and RAM Vehicles Plug and Play Factory Connector 812.8mm 95g 12 Models Covered 2-Year Warranty

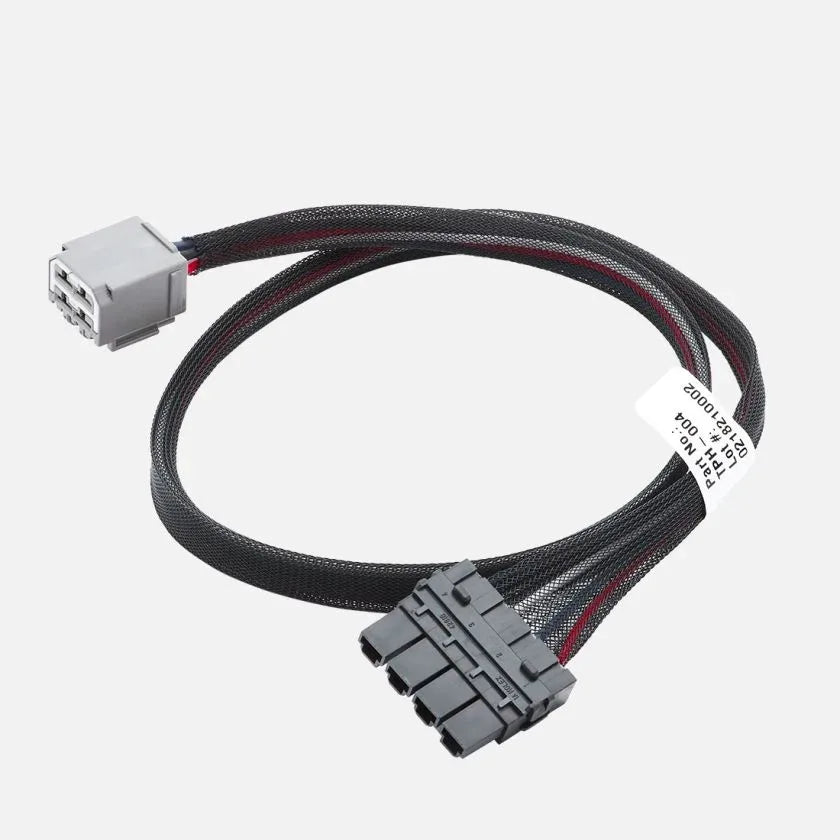

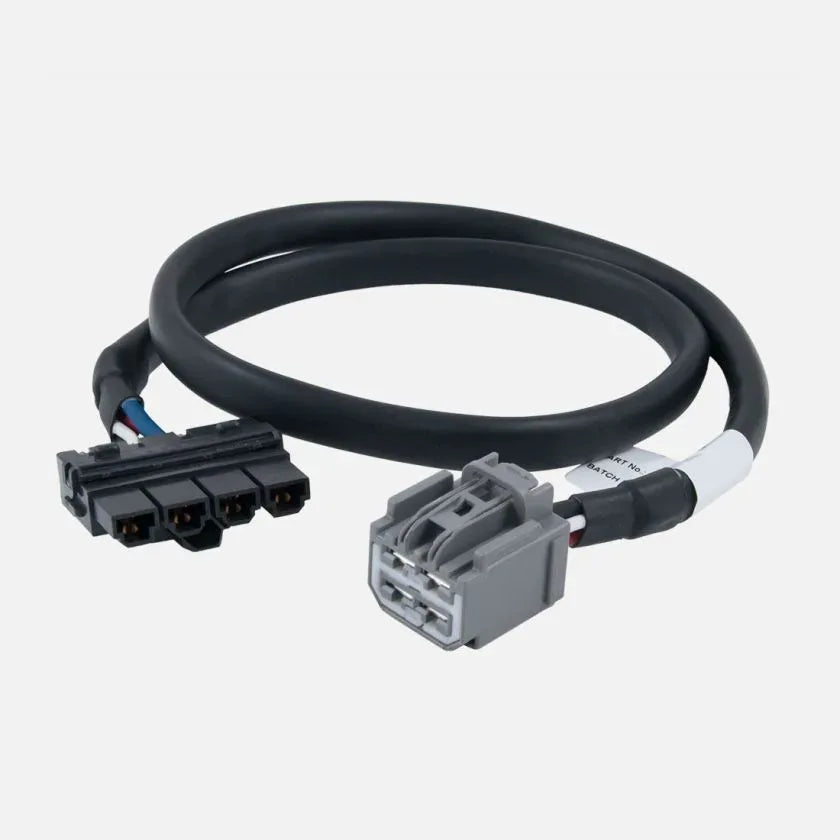

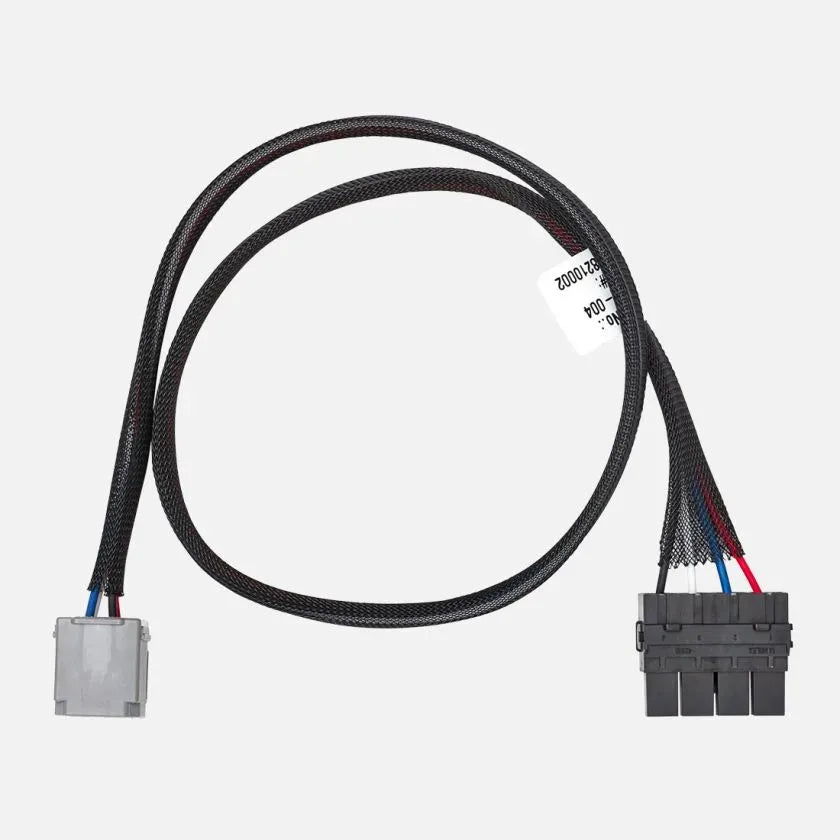

The Redarc TPH-004 is a vehicle-specific wiring harness for connecting the Tow-Pro Elite electric brake controller to the factory-fitted connector in US-specification Chrysler, Dodge, Jeep, and RAM vehicles. Plug and play, no cutting or splicing required. 812.8mm cable length, 95g. Covers 12 models. 2-year warranty.

Important: This harness is designed for imported US-specification vehicles. Most Australian-market models do not have this factory plug/connector. Consult your local OEM dealership to confirm whether your Australian-model vehicle has a compatible factory connector before purchasing.

Product overview

The TPH-004 connects the Tow-Pro Elite directly to the factory-fitted electric brake connector behind the dash of supported US-specification Chrysler, Dodge, Jeep, and RAM vehicles. One end plugs into the Tow-Pro Elite connector and the other connects to the factory connector behind the dash. No cutting or splicing is required. Coverage includes Jeep Grand Cherokee, Grand Cherokee L, Wagoneer, and Grand Wagoneer, Dodge Durango, Chrysler Pacifica and Voyager, and RAM 1500 through to 5500 from the 2025 and 2026 model years. Fitting instructions and the compatible loom are included.

Features and benefits

Suits Tow-Pro Elite: Direct plug and play connection to the factory-fitted connector.

No cutting or splicing required.

Supplied with fitting instructions and compatible loom.

812.8mm cable length.

Covers 12 models: Chrysler, Dodge, Jeep, and RAM US-specification vehicles.

2-year warranty.

Technical specs

Compatible with

Frequently asked questions

Is the TPH-004 compatible with Australian-market Jeep, Dodge, or Chrysler vehicles? The TPH-004 is designed for imported US-specification vehicles. Most Australian-market models do not have the factory connector this harness requires. Some late or current Australian-model vehicles may have a compatible connector but this has not been validated by Redarc. Consult your local OEM dealership to confirm before purchasing.

Which brake controller does the TPH-004 work with? The TPH-004 is designed for the Redarc Tow-Pro Elite electric brake controller.

How is the TPH-004 installed? Plug one end of the harness into the Tow-Pro Elite connector and the other end into the factory-fitted connector behind the vehicle's dashboard. No cutting or splicing is required. Fitting instructions are included.

Does the TPH-004 cover RAM trucks? Yes. The TPH-004 covers US-specification RAM 1500, 2500, 3500, 4500, and 5500 for the 2025 and 2026 model years.

What warranty does the TPH-004 carry? The TPH-004 is backed by a 2-year warranty.
