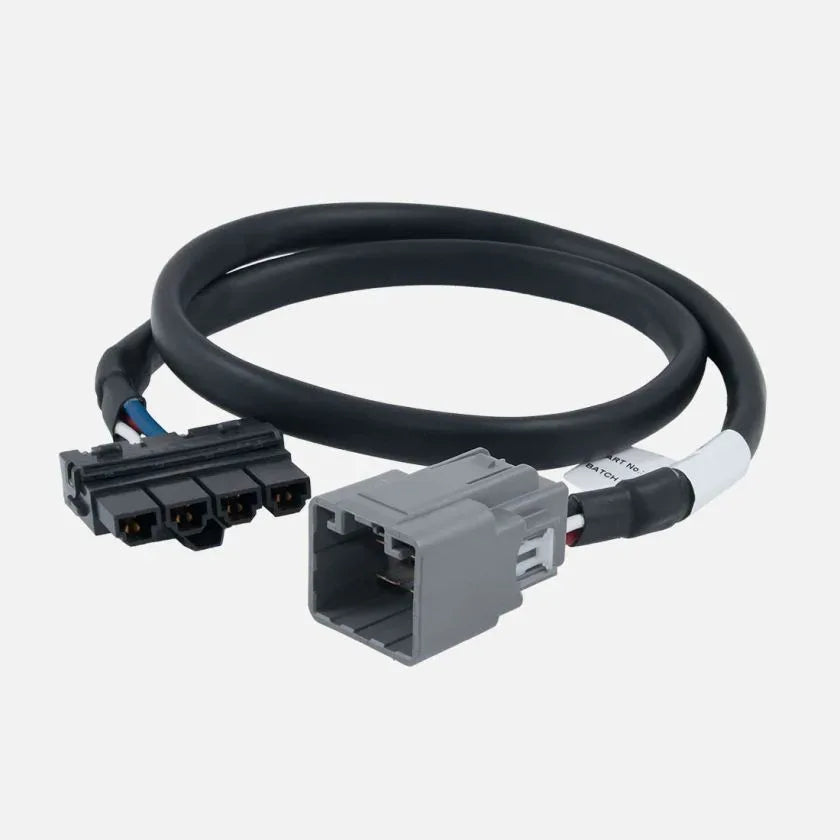

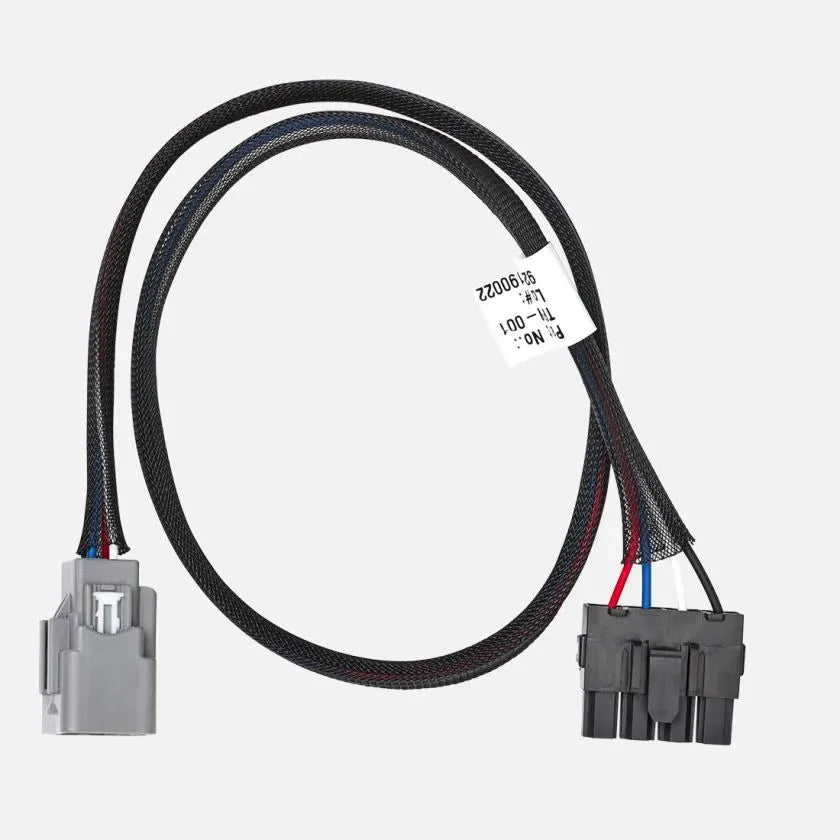

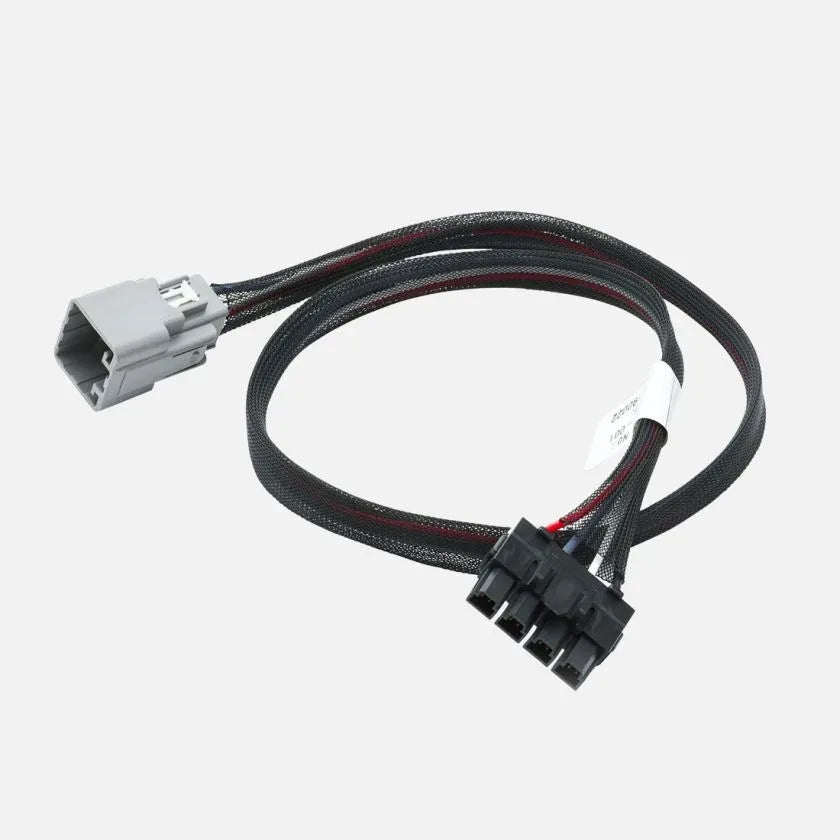

Redarc TPH-001 Tow-Pro Wiring Harness Jeep Cherokee US

Redarc TPH-001 Tow-Pro Elite Wiring Harness for US-Specification Jeep Cherokee 2014 to 2024 Plug and Play Factory Connector 812.8mm 95g 2-Year Warranty

The Redarc TPH-001 is a vehicle-specific wiring harness for connecting the Tow-Pro Elite electric brake controller to the factory-fitted connector in US-specification Jeep Cherokee vehicles (2014 to 2024). Plug and play, no cutting or splicing required. 812.8mm cable length, 95g. 2-year warranty.

Important: This harness is designed for imported US-specification Jeep Cherokee vehicles. Most Australian-market models do not have this factory plug/connector. Consult your local OEM dealership to confirm whether your Australian-model vehicle has a compatible factory connector before purchasing.

Product overview

The TPH-001 connects the Tow-Pro Elite directly to the factory-fitted electric brake connector behind the dash of the US-specification Jeep Cherokee (2014 to 2024). One end plugs into the Tow-Pro Elite connector and the other connects to the factory connector behind the dash. No cutting or splicing is required. Fitting instructions and the compatible loom are included.

Features and benefits

Suits Tow-Pro Elite: Direct plug and play connection to the factory-fitted connector.

No cutting or splicing required.

Supplied with fitting instructions and compatible loom.

812.8mm cable length.

2-year warranty.

Technical specs

Compatible with

Frequently asked questions

Is the TPH-001 compatible with Australian-market Jeep Cherokee vehicles? The TPH-001 is designed for imported US-specification Jeep Cherokee vehicles. Most Australian-market models do not have the factory connector this harness requires. Some late or current Australian-model vehicles may have a compatible connector but this has not been validated by Redarc. Consult your local OEM dealership to confirm before purchasing.

Which brake controller does the TPH-001 work with? The TPH-001 is designed for the Redarc Tow-Pro Elite electric brake controller.

What years of Jeep Cherokee does the TPH-001 cover? The TPH-001 covers US-specification Jeep Cherokee from 2014 to 2024.

How is the TPH-001 installed? Plug one end of the harness into the Tow-Pro Elite connector and the other end into the factory-fitted connector behind the vehicle's dashboard. No cutting or splicing is required. Fitting instructions are included.

What warranty does the TPH-001 carry? The TPH-001 is backed by a 2-year warranty.
