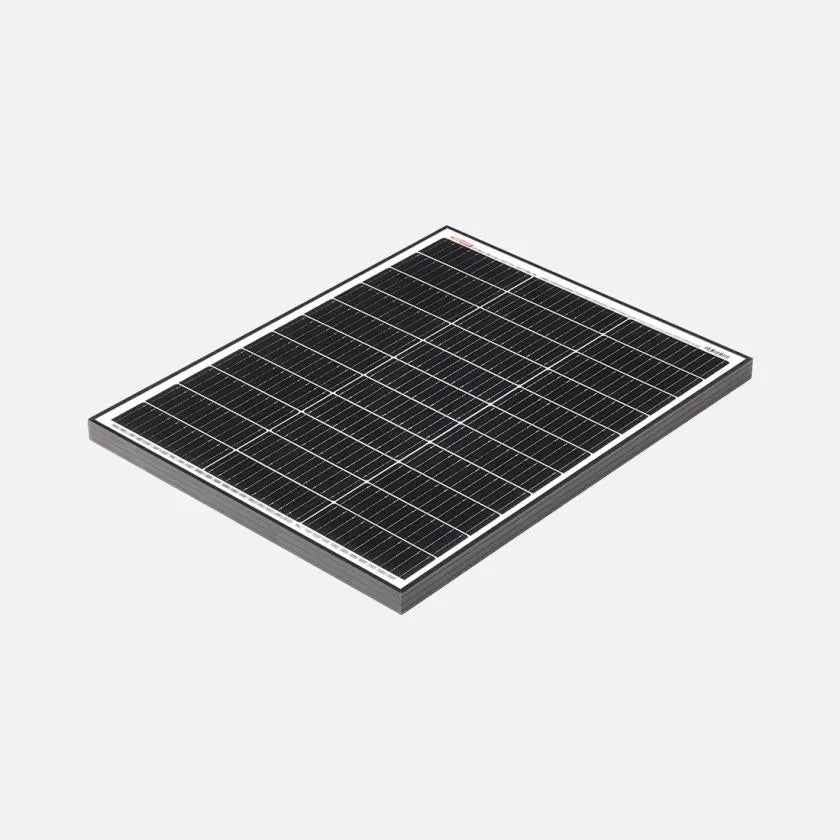

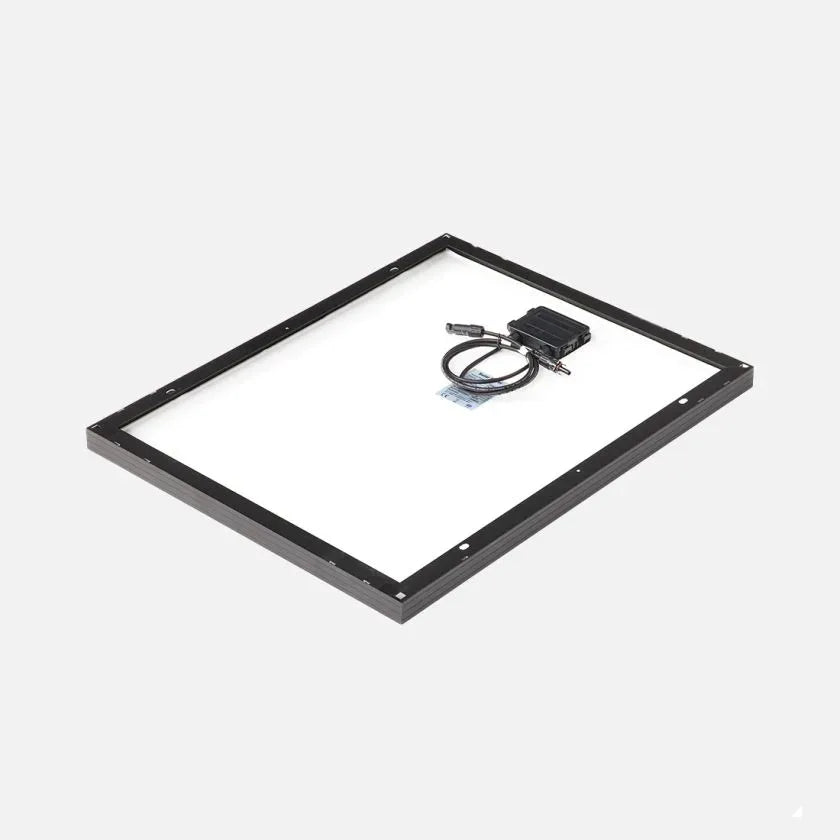

Redarc SMRP1080B 80W Mono Solar Panel Black Frame MC4 Fixed

Redarc SMRP1080B 80W Monocrystalline Solar Panel Black Anodised Aluminium Frame Tempered Glass MC4-Style Connectors 740mm x 590mm x 35mm 900mm Cable Fixed Installation Caravan RV Motorhome 4WD CE Tested 2-Year Warranty

The Redarc SMRP1080B is an 80W monocrystalline flat solar panel with black anodised aluminium frame, tempered glass coating, and MC4-style connectors. Designed for fixed roof installation on caravans, RVs, motorhomes, camper trailers, and 4WDs. 740mm x 590mm x 35mm, 4.8kg, 900mm cable. CE tested at manufacture. 2-year warranty.

Note: REDARC solar panels cannot be shipped to a PO Box. Contact us to discuss shipping options if required.

Product overview

The SMRP1080B is a fixed installation 80W monocrystalline solar panel suited to roof mounting on caravans, motorhomes, RVs, and some camper trailer and 4WD applications. Monocrystalline construction delivers high cell efficiency in a lighter and smaller footprint than equivalent wattage polycrystalline panels. The black anodised aluminium frame and tempered glass coating provide robust protection against harsh road conditions and extreme weather, rated to -40°C to +85°C. MC4-style connectors simplify integration with compatible solar regulators and accessories. Each panel is CE tested at manufacture to confirm output matches specification. Compatible with the Redarc solar regulator and solar accessory range.

Features and benefits

80W monocrystalline construction: High cell efficiency in a compact, lightweight form factor.

Black anodised aluminium frame: Robust construction for harsh outdoor and road conditions.

Tempered glass coating: Protects the panel surface against impact and weather.

MC4-style connectors: Easy installation and compatibility with standard solar wiring.

900mm cable.

Fixed installation: Designed for roof mounting on caravans, RVs, motorhomes, camper trailers, and 4WDs.

CE tested at manufacture: Output confirmed to match specification.

Operating temperature -40°C to +85°C.

Compatible with Redarc solar regulators and accessories.

2-year warranty.

Technical specs

Frequently asked questions

What is the difference between the SMRP1080B and the SMRP1060B? The SMRP1080B delivers 80W and measures 740mm x 590mm x 35mm at 4.8kg. The SMRP1060B delivers 60W and measures 805mm x 395mm x 35mm at 3.7kg. Both share the same black anodised aluminium frame, tempered glass, MC4-style connectors, 900mm cable, CE testing, and 2-year warranty.

What applications is the SMRP1080B suited to? The SMRP1080B is designed for fixed roof installation on caravans, motorhomes, RVs, camper trailers, and 4WDs. It is not a portable folding panel.

What connector type does the SMRP1080B use? The SMRP1080B uses MC4-style connectors, compatible with standard solar wiring and Redarc solar regulators and accessories.

How is the panel output verified? Each panel is CE tested at the time of manufacture to confirm that output matches the published specification.

What warranty does the SMRP1080B carry? The SMRP1080B is backed by a 2-year warranty.
