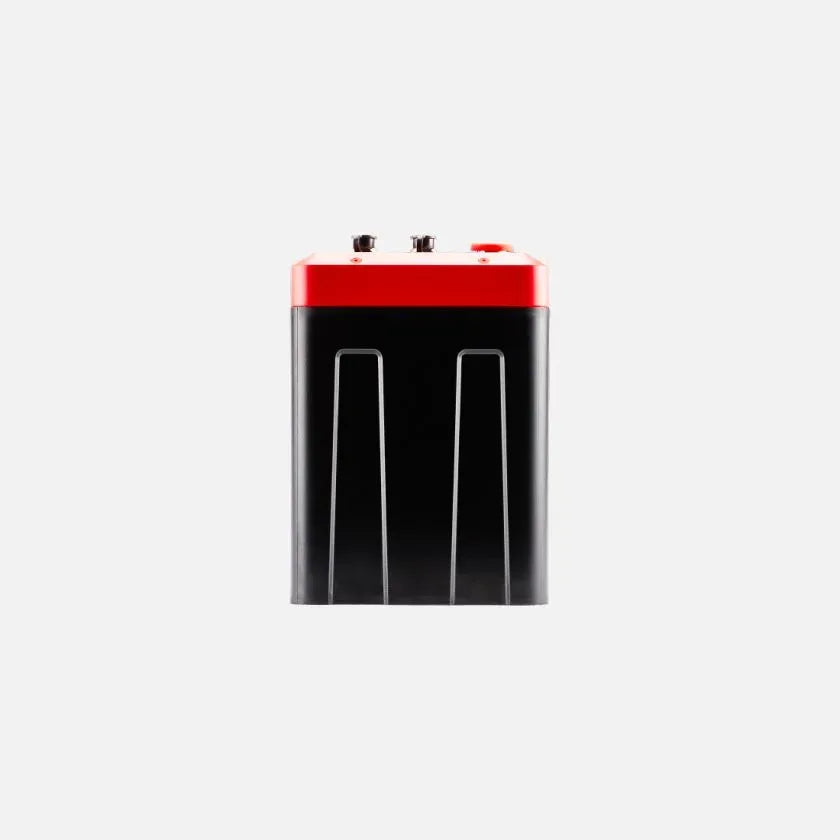

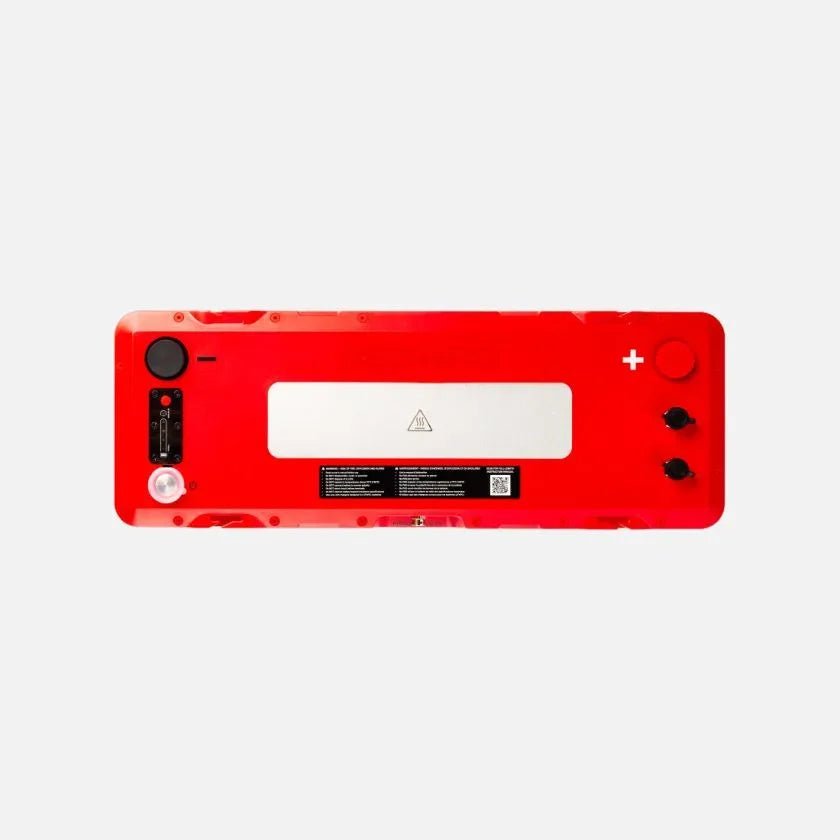

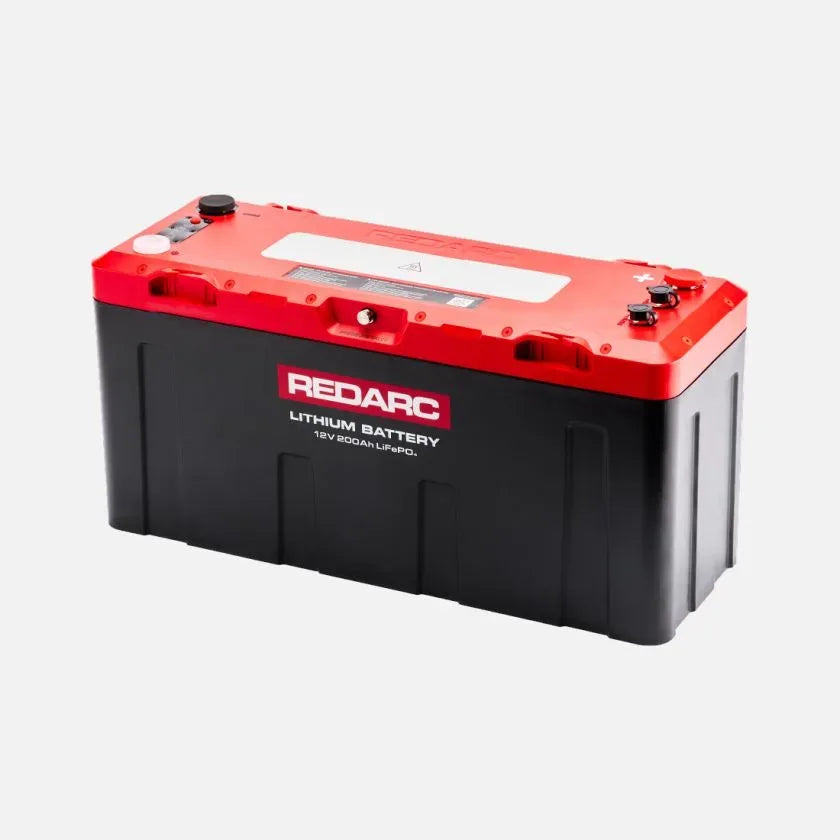

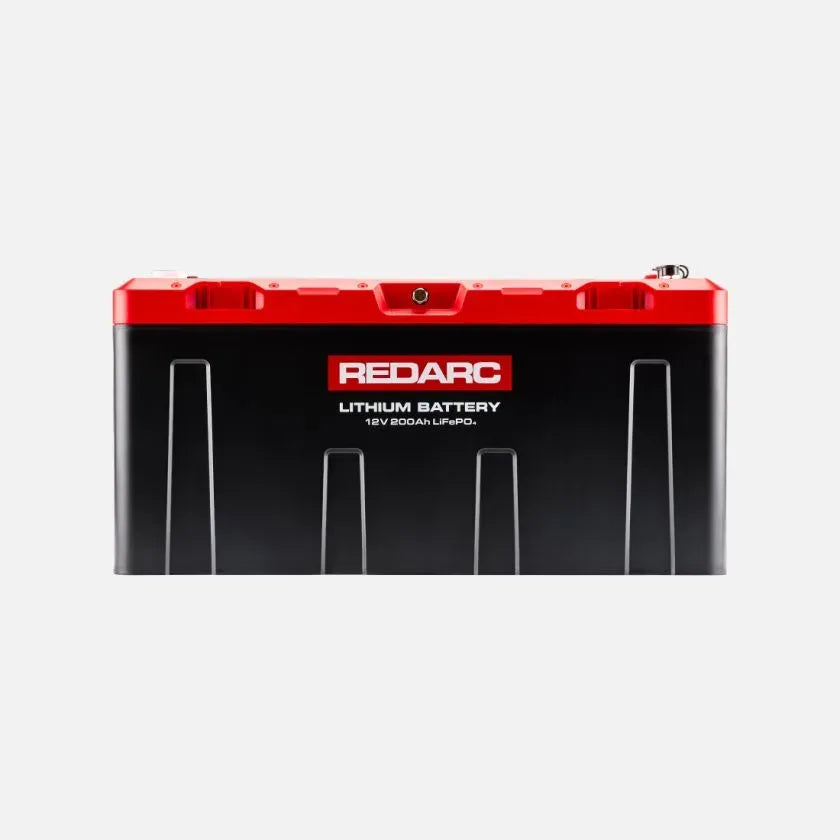

Redarc LBATN12200 REDLAB Icon 200Ah 12V Lithium Battery IP67

Redarc REDLAB Icon LBATN12200 200Ah 12V Lithium Battery IP67 200A Charge and Discharge Built-in Heater Built-in Display Isolation Switch 6000-Plus Cycles IEC 62619:2022 Certified Series and Parallel Compatible 485mm x 232mm x 172mm 23kg 3-Year Warranty

The Redarc LBATN12200 is a 200Ah 12V lithium battery with IP67 rating, built-in heater for sub-zero charging, built-in state of charge display, integrated isolation switch, and 200A charge and continuous discharge current. 6000+ cycle rating. IEC 62619:2022 safety certified. Series and parallel compatible. 485mm x 232mm x 172mm, 23kg. 3-year warranty.

Note: REDARC lithium batteries cannot be shipped to a PO Box. Contact us to discuss shipping options if required.

Product overview

The REDLAB Icon 200Ah doubles the capacity of the LBATN12100, delivering 200Ah with 200A charge and 200A continuous discharge current supporting high-current Redarc chargers and inverters from a single battery. IP67 rating and vibration-proof construction allow unsealed or exterior mounting. The built-in heater enables charging in temperatures down to -20°C. The built-in display shows state of charge and fault status at a glance, and the integrated isolation switch isolates the terminals, clears faults, and resets the unit. Series and parallel compatibility supports up to four batteries in parallel and two in series for 24V applications. IEC 62619:2022 safety certification confirms suitability for AS3001.2:2022 compliant installations. Works with Redarc BCDC and Manager chargers.

Features and benefits

200Ah usable capacity.

200A charge current and 200A continuous discharge current: Supports high-current chargers and inverters from a single battery.

IP67 and vibration-proof: Suitable for unsealed or exterior mounting in harsh conditions.

Built-in heater: Enables charging in sub-zero temperatures down to -20°C.

Built-in display: Shows state of charge and fault status at a glance.

Integrated isolation switch: Isolates terminals, clears faults, and resets the unit.

6000+ cycle rating.

Series and parallel compatible: Up to 4 in parallel, or 2 in series for 24V applications.

IEC 62619:2022 safety certified: Suitable for AS3001.2:2022 compliant installations.

Compatible with Redarc BCDC and Manager chargers.

Operating temperature -20°C to 60°C.

3-year warranty.

Technical specs

Frequently asked questions

What is the difference between the LBATN12200 and the LBATN12100? The LBATN12200 provides 200Ah capacity with 200A charge and discharge current, and measures 485mm x 232mm x 172mm at 23kg. The LBATN12100 provides 100Ah with 100A charge and discharge current, and measures 308mm x 211mm x 168mm at 12kg. Both share IP67 rating, built-in heater, built-in display, isolation switch, 6000+ cycle rating, and 3-year warranty.

Can the LBATN12200 charge in sub-zero temperatures? Yes. The built-in heater allows the LBATN12200 to charge in temperatures down to -20°C where standard lithium batteries cannot accept charge.

How many LBATN12200 batteries can be connected in parallel or series? Up to four batteries can be connected in parallel. Two batteries can be connected in series for 24V applications.

Is the LBATN12200 suitable for exterior mounting? Yes. The IP67 rating and vibration-proof construction allow the LBATN12200 to be mounted in unsealed or exterior positions.

What safety certifications does the LBATN12200 hold? The LBATN12200 is independently verified to IEC 62619:2022 safety standard, confirming suitability for AS3001.2:2022 compliant installations.
