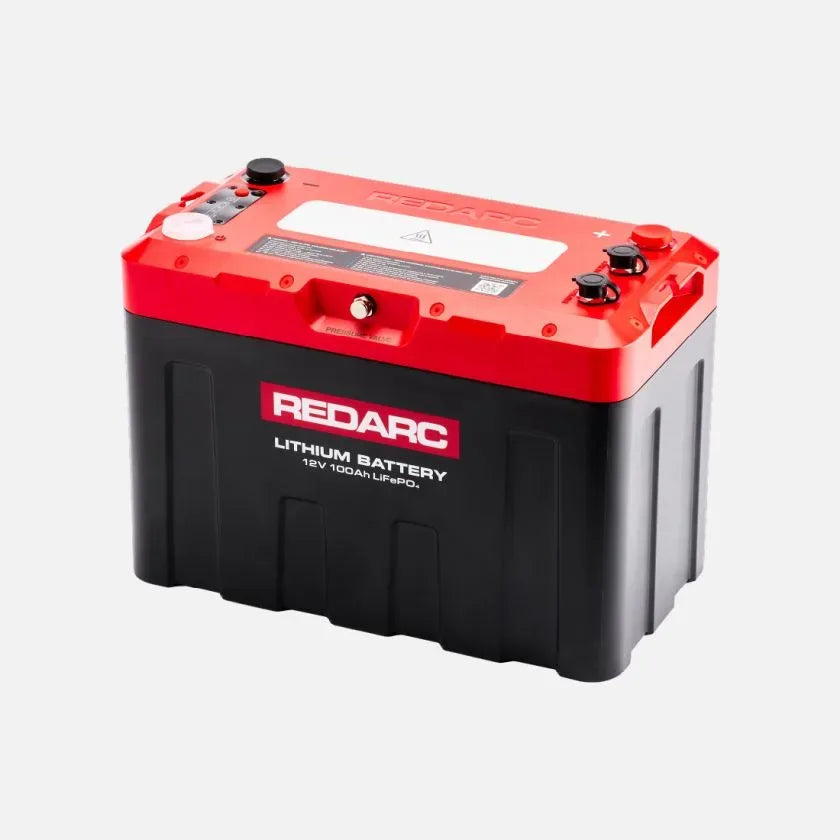

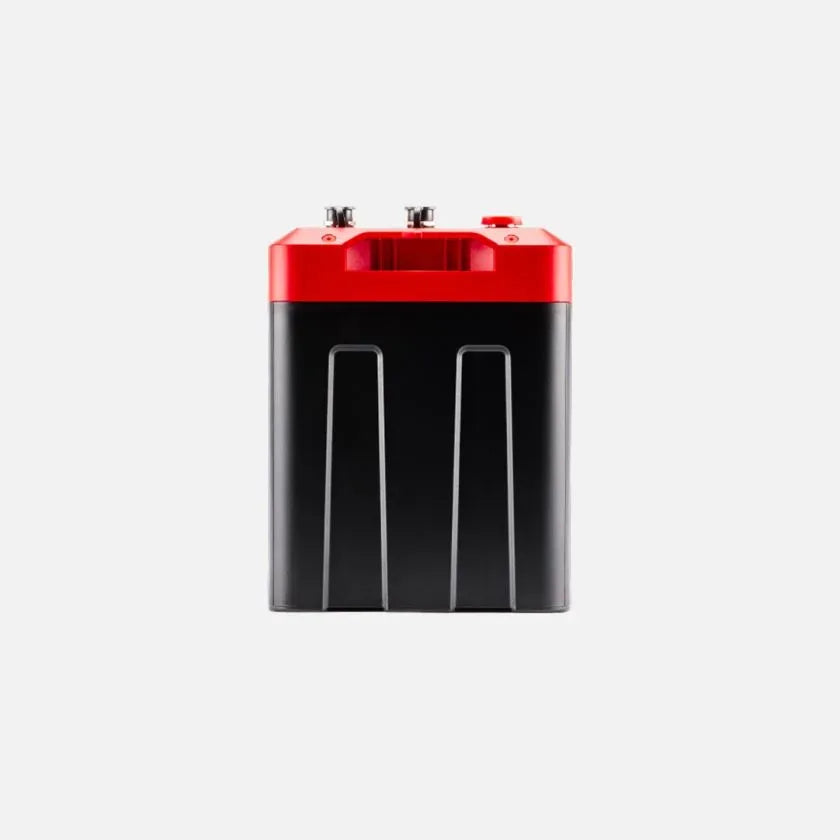

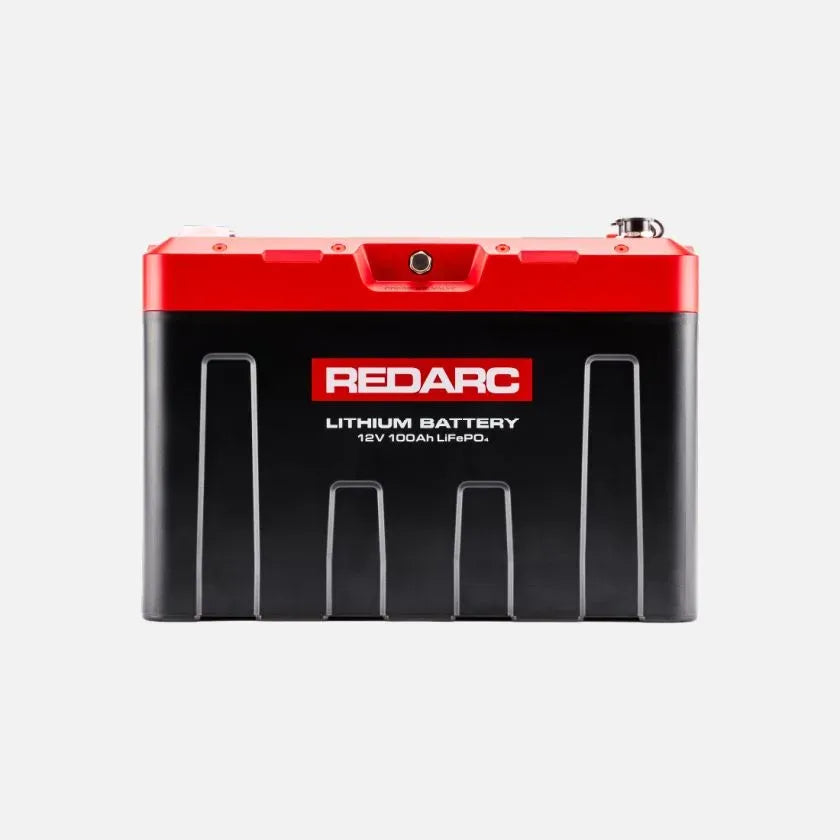

Redarc LBATN12100 REDLAB Icon 100Ah 12V Lithium Battery IP67

Redarc REDLAB Icon LBATN12100 100Ah 12V Lithium Battery IP67 100A Charge and Discharge Built-in Heater Built-in Display Isolation Switch 6000-Plus Cycles IEC 62619:2022 Certified Series and Parallel Compatible 308mm x 211mm x 168mm 12kg 3-Year Warranty

The Redarc LBATN12100 is a 100Ah 12V lithium battery with IP67 rating, built-in heater for sub-zero charging, built-in state of charge display, integrated isolation switch, and 100A charge and continuous discharge current. 6000+ cycle rating. IEC 62619:2022 safety certified. Series and parallel compatible. 308mm x 211mm x 168mm, 12kg. 3-year warranty.

Note: REDARC lithium batteries cannot be shipped to a PO Box. Contact us to discuss shipping options if required.

Product overview

The REDLAB Icon 100Ah is a full-featured lithium battery built for 4WD, outdoor, and off-grid applications demanding high power, durability, and safety. The 100A charge and 100A continuous discharge current supports high-current Redarc chargers and inverters from a single battery, reducing weight and space requirements compared to stacking lower-rated batteries. IP67 rating and vibration-proof construction allow unsealed or exterior mounting. The built-in heater enables charging in temperatures down to -20°C where standard lithium batteries cannot accept charge. The built-in display shows state of charge and fault status at a glance, and the integrated isolation switch isolates the terminals, clears faults, and resets the unit. Series and parallel compatibility supports up to four batteries in parallel and two in series for 24V applications. IEC 62619:2022 safety certification confirms suitability for AS3001.2:2022 compliant installations. Works with Redarc BCDC and Manager chargers.

Features and benefits

100Ah usable capacity.

100A charge current and 100A continuous discharge current: Supports high-current chargers and inverters from a single battery.

IP67 and vibration-proof: Suitable for unsealed or exterior mounting in harsh conditions.

Built-in heater: Enables charging in sub-zero temperatures down to -20°C.

Built-in display: Shows state of charge and fault status at a glance.

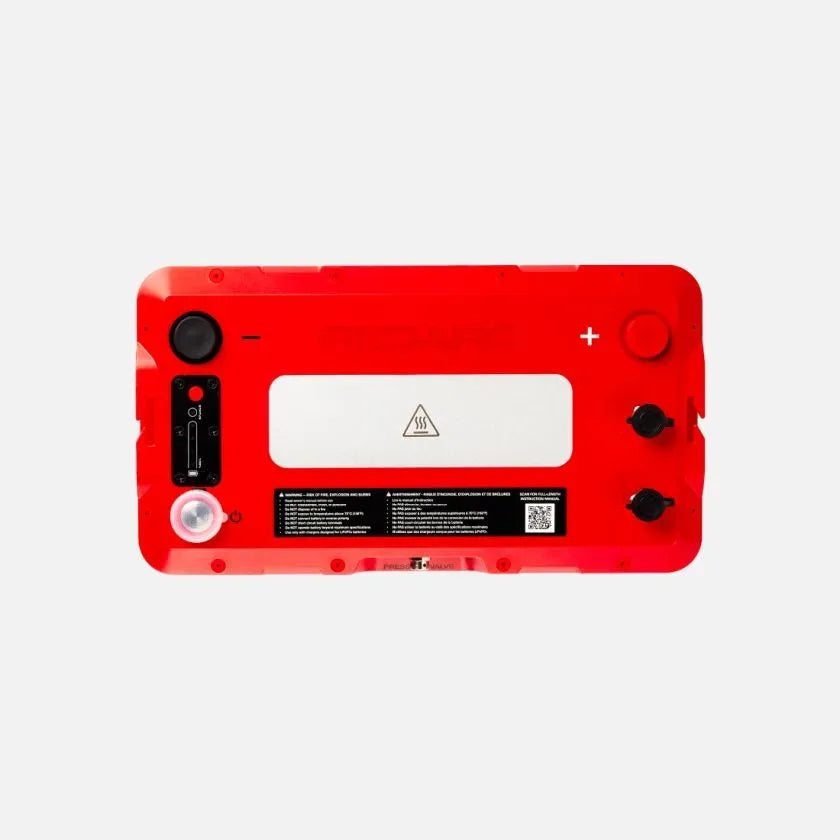

Integrated isolation switch: Isolates terminals, clears faults, and resets the unit.

6000+ cycle rating.

Series and parallel compatible: Up to 4 in parallel, or 2 in series for 24V applications.

IEC 62619:2022 safety certified: Suitable for AS3001.2:2022 compliant installations.

Compatible with Redarc BCDC and Manager chargers.

Operating temperature -20°C to 60°C.

3-year warranty.

Technical specs

Frequently asked questions

What is the difference between the REDLAB Icon and the REDLAB Icon Slim? The REDLAB Icon (LBATN12100) has a standard profile at 308mm x 211mm x 168mm with IP67 rating, a built-in heater, built-in display, and isolation switch suited to applications requiring exterior mounting, high discharge rates, and sub-zero charging. The REDLAB Icon Slim (LBATS12100) is 62mm wide at 525mm x 300mm x 62mm and is designed for ultra-tight spaces like under seats and canopies but without the heater, isolation switch, or built-in display. The Icon carries a 3-year warranty; the Icon Slim carries a 5-year warranty.

Can the LBATN12100 charge in sub-zero temperatures? Yes. The built-in heater allows the LBATN12100 to charge in temperatures down to -20°C where standard lithium batteries cannot accept charge.

How many LBATN12100 batteries can be connected in parallel or series? Up to four batteries can be connected in parallel. Two batteries can be connected in series for 24V applications.

Is the LBATN12100 suitable for exterior mounting? Yes. The IP67 rating and vibration-proof construction allow the LBATN12100 to be mounted in unsealed or exterior positions.

What safety certifications does the LBATN12100 hold? The LBATN12100 is independently verified to IEC 62619:2022 safety standard, confirming suitability for AS3001.2:2022 compliant installations.
