Redarc HMOD1000 GPS Trailer Odometer Colour LCD 9-32V

Redarc Hummingbird HMOD1000 GPS Trailer Odometer Colour Digital LCD Programmable Service Intervals Resettable Trip A and B GPS and GLONASS Password Protected 9-32V Australian Designed and Manufactured 2-Year Warranty

The Redarc Hummingbird HMOD1000 is a GPS trailer odometer permanently mounted to a trailer to record distance travelled. It features a colour digital LCD display, programmable service intervals by distance and date, resettable trip A and B, GPS and GLONASS measurement, and an internal buzzer for audible distance alerts. Supplied with a standard GPS bulkhead antenna. 70mm x 50mm x 18mm. 9-32V. Australian designed and manufactured. 2-year warranty.

Product overview

The HMOD1000 is designed for permanent mounting on camper trailers and caravans where recording accumulated distance is needed for service scheduling and trip management. Service intervals can be set by date, by distance, or both, with distance adjustment steps of 100km, 500km, 1,000km, and 10,000km. The colour LCD screen notifies the user when a service interval has been reached. An internal buzzer provides an audible alert when a defined distance is hit. Trip A and B can each be reset independently to record individual trips alongside the total accumulated distance. The unit is password protected to prevent accidental resets. GPS and GLONASS dual-system measurement provides accurate distance recording regardless of GPS signal conditions. 9-32V operation covers both 12V and 24V trailer electrical systems.

Features and benefits

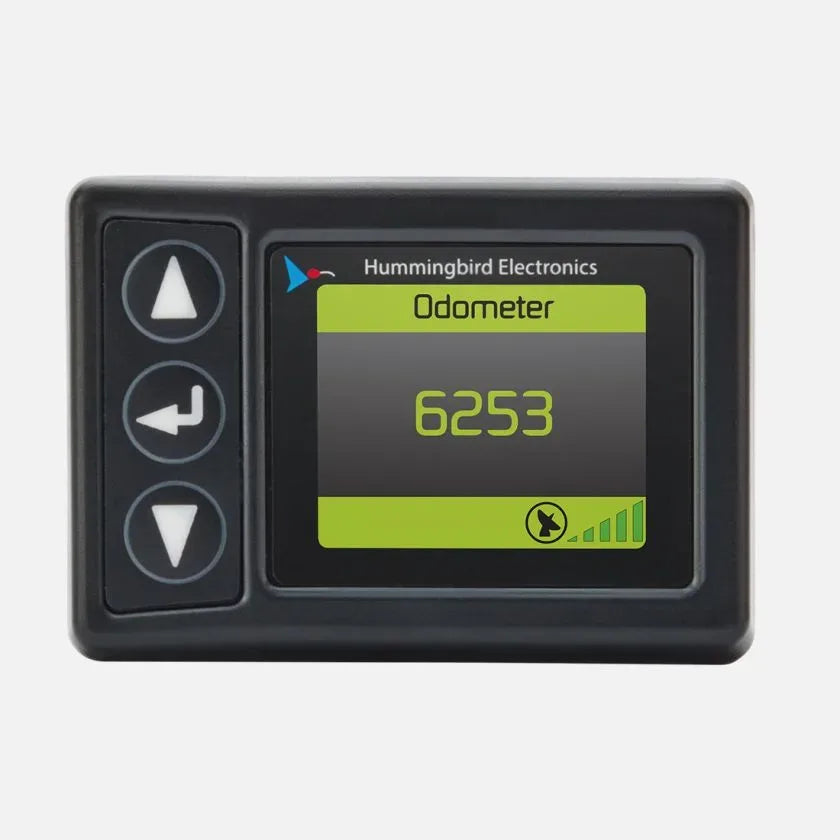

Colour digital LCD display: Clear, easy-to-read screen shows current distance, trip data, and service interval status.

Programmable service intervals by distance and date: Set reminders at 100km, 500km, 1,000km, or 10,000km steps, by date, or both.

Resettable trip A and B: Two independent trip counters for recording individual journeys alongside total accumulated distance.

Internal audible buzzer: Sounds when a defined distance has been reached.

GPS and GLONASS dual-system measurement: Accurate distance recording using both GPS and GLONASS satellite networks.

Password protected: Prevents accidental resets of recorded distances and service interval settings.

Standard GPS bulkhead antenna included.

9-32V multi-voltage: Suits 12V and 24V trailer electrical systems.

Australian designed and manufactured.

2-year warranty.

Technical specs

Frequently asked questions

What is the HMOD1000 used for? The HMOD1000 is a GPS trailer odometer permanently mounted to a camper trailer or caravan to record the total distance travelled and manage service intervals. It is not a vehicle speedometer or navigation device.

How are service intervals set on the HMOD1000? Service intervals can be programmed by distance in steps of 100km, 500km, 1,000km, or 10,000km, by date, or by a combination of both. The colour LCD screen notifies the user when an interval has been reached, and the internal buzzer provides an audible alert.

Can the HMOD1000 record individual trips separately from total distance? Yes. The HMOD1000 has two resettable trip counters, Trip A and Trip B, which can each be reset independently to record individual journeys while the total accumulated distance continues to record separately.

What satellite systems does the HMOD1000 use? The HMOD1000 uses both GPS and GLONASS satellite networks for accurate distance measurement.

What voltage does the HMOD1000 operate on? The HMOD1000 operates on 9-32V DC, covering both 12V and 24V trailer electrical systems.
