Redarc EBMK-001 Tow-Pro Elite Under-Dash Mounting Kit M6

Redarc EBMK-001 Tow-Pro Elite Under-Dash Mounting Bracket Kit M6 Slot 150mm x 15mm Rigid Bendable Bracket Suits Tow-Pro Elite Brake Controller 2-Year Warranty

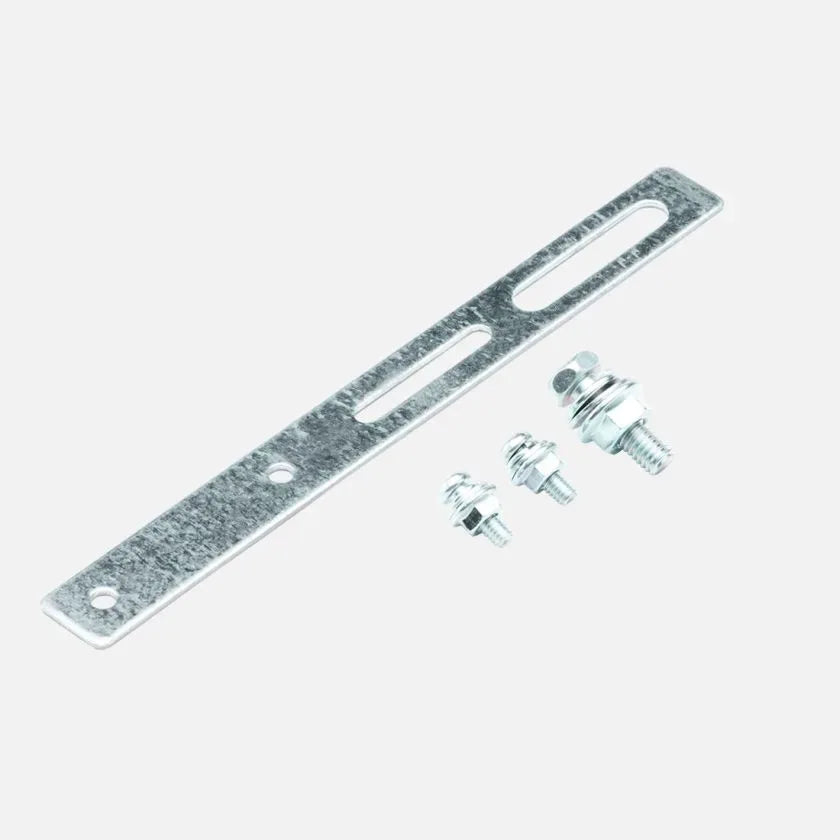

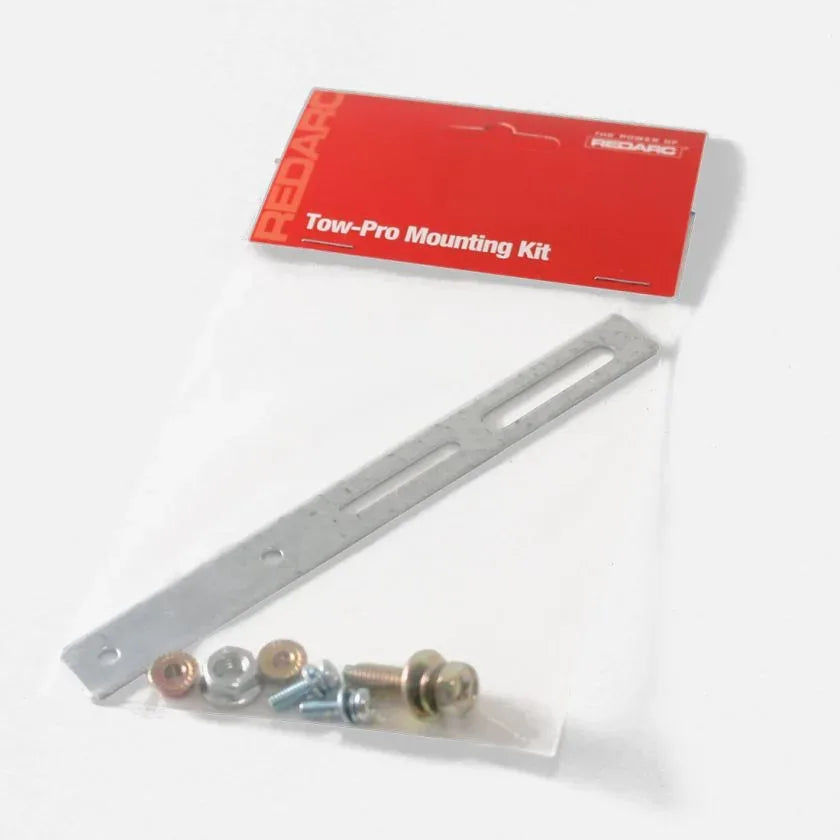

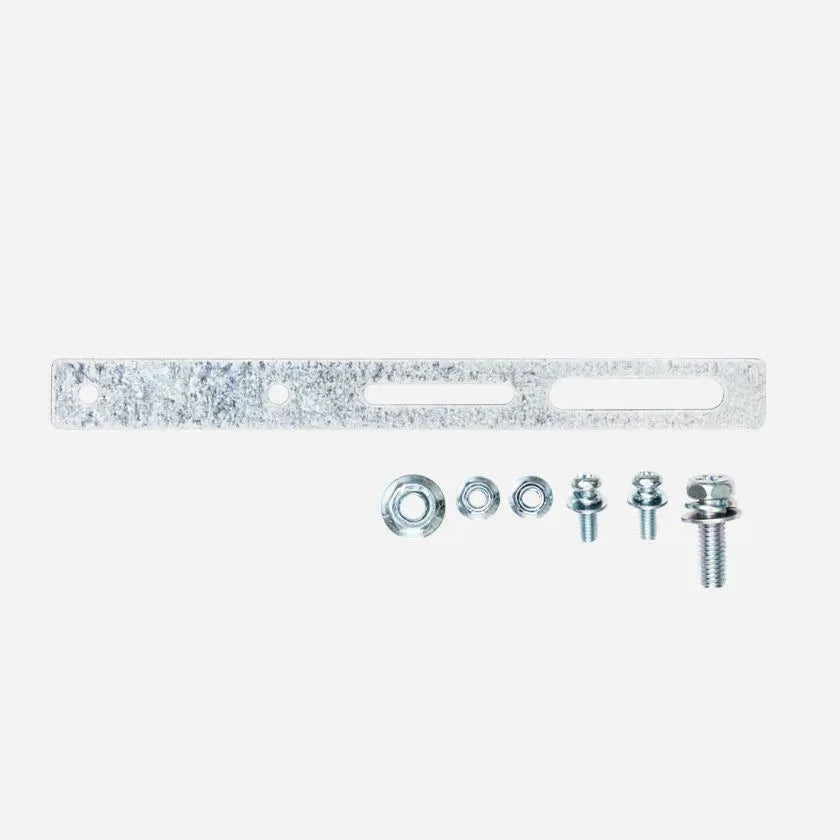

The Redarc EBMK-001 is a mounting kit that simplifies under-dash installation of the Tow-Pro Elite electric trailer brake controller main unit. The bracket uses an M6 slot and nut/bolt for connection to the vehicle, and mounts to the main unit with 2 x M4 bolts in right-angle, in-line, or diagonal orientation. 150mm x 15mm. 2-year warranty.

Product overview

The EBMK-001 bracket is designed specifically for securing the Tow-Pro Elite main unit under the dash of a vehicle where a clean, supported installation is required. The M4 bolt mounting to the main unit can be positioned at right angles, in-line, or diagonally across the unit to suit the available space. The M6 slot allows connection to a suitable M6 stud or M6 hole in the vehicle. The bracket material is rigid enough to support the main unit in position but can be bent where the installation requires adjustment to fit the available mounting point. 150mm x 15mm.

Features and benefits

Designed for Tow-Pro Elite under-dash installation: Simplifies mounting of the Tow-Pro Elite main unit to the vehicle structure.

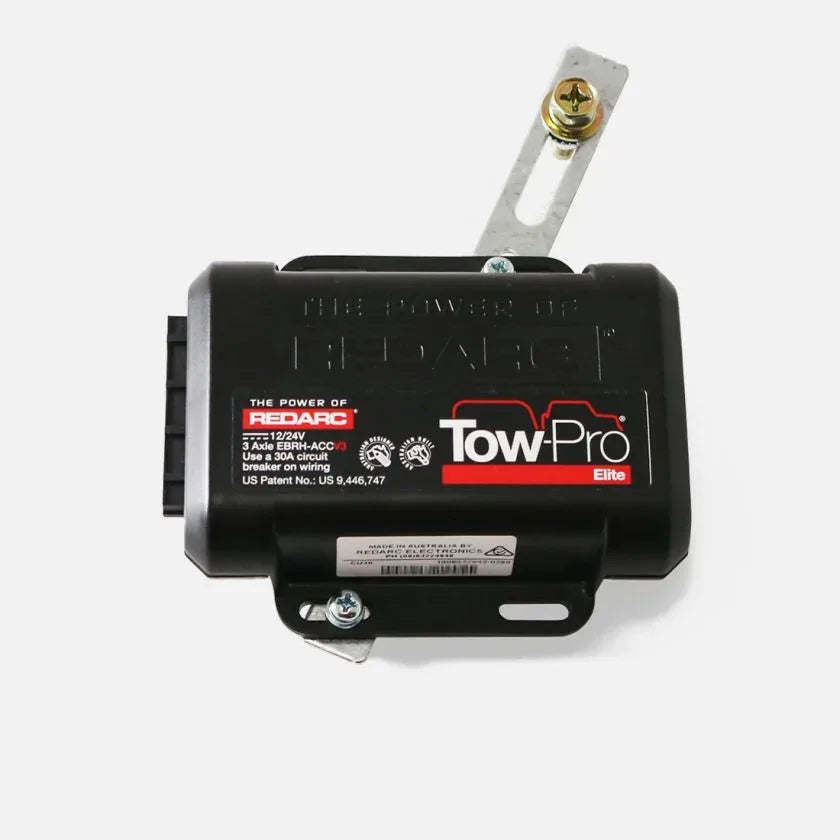

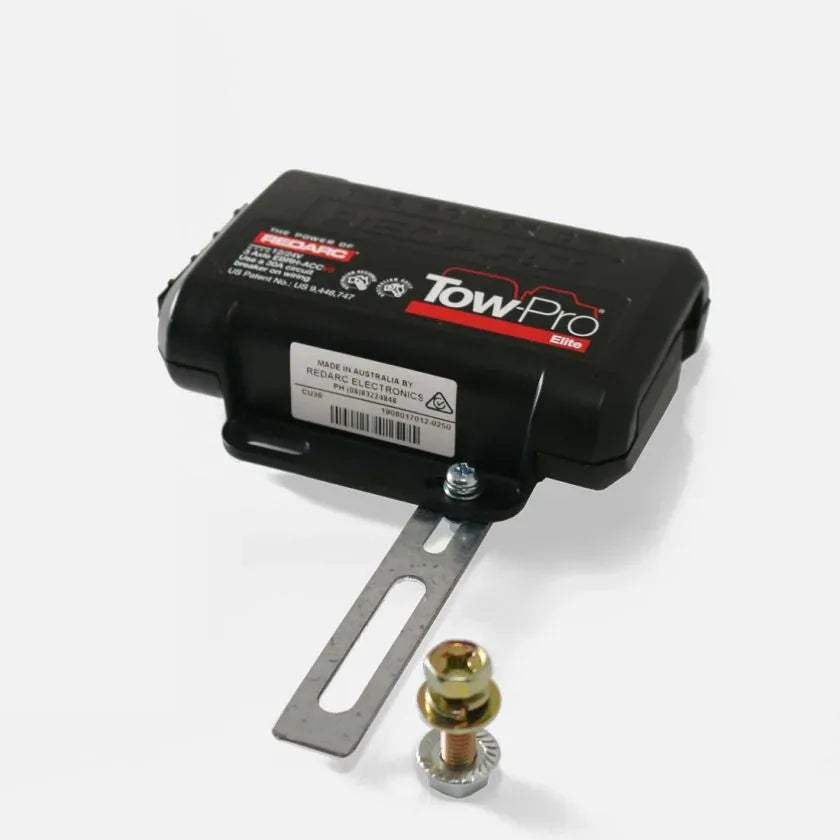

Three mounting orientations: The bracket fastens to the main unit with 2 x M4 bolts at right angles, in-line, or diagonally across the unit.

M6 slot with nut/bolt: Connects to a suitable M6 stud or M6 hole in the vehicle.

Rigid but bendable: Stiff enough to support the main unit, with the ability to be bent where the installation requires it.

150mm x 15mm.

2-year warranty.

Technical specs

Frequently asked questions

What does the EBMK-001 suit? The EBMK-001 is designed for under-dash installation of the Redarc Tow-Pro Elite electric trailer brake controller main unit. Contact us to confirm compatibility with other Tow-Pro models before purchasing.

How does the EBMK-001 attach to the Tow-Pro Elite main unit? The bracket fastens to the main unit using 2 x M4 bolts. It can be positioned at right angles, in-line, or diagonally across the unit to suit the available mounting space.

How does the EBMK-001 connect to the vehicle? The bracket features an M6 slot and nut/bolt that connects to a suitable M6 stud or M6 hole in the vehicle's under-dash structure.

Can the EBMK-001 bracket be bent to fit? Yes. While the bracket material is rigid enough to support the Tow-Pro Elite main unit, it can be bent where the installation requires adjustment to suit the available mounting point.

What warranty does the EBMK-001 carry? The EBMK-001 is backed by a 2-year warranty.
