Redarc BSEN500 Smart Battery Monitor 500A Bluetooth 5.1 12V

Redarc Smart Battery Monitor BSEN500 500A 1250Ah Maximum Capacity Bluetooth 5.1 42m Range RedVision App State of Charge Time Remaining Current Flow 3 Connection Points 9-32V Australian Designed and Manufactured 2-Year Warranty

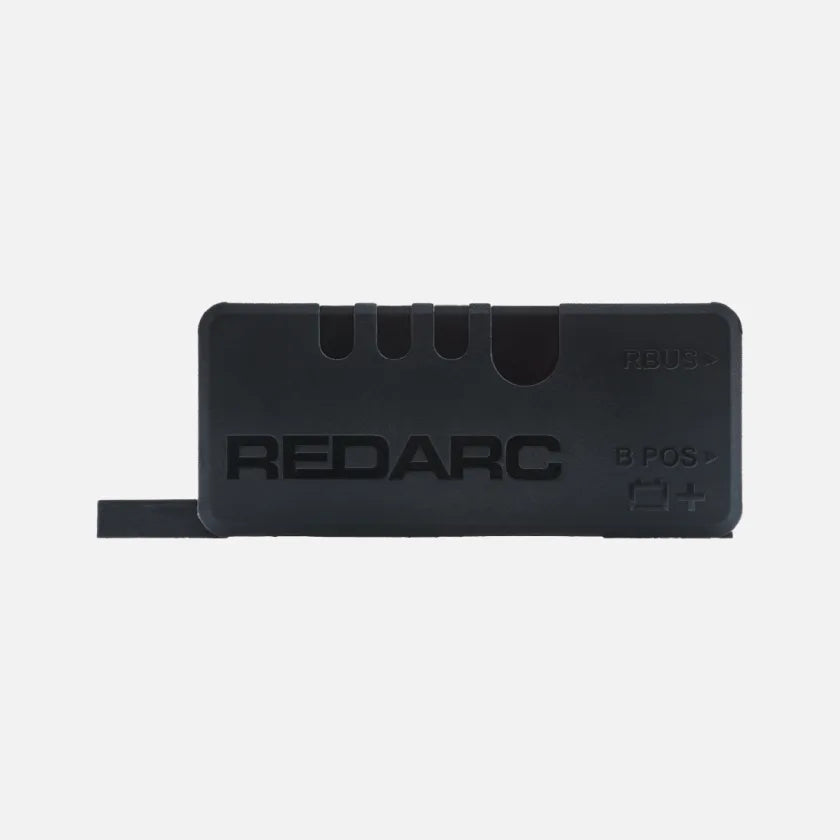

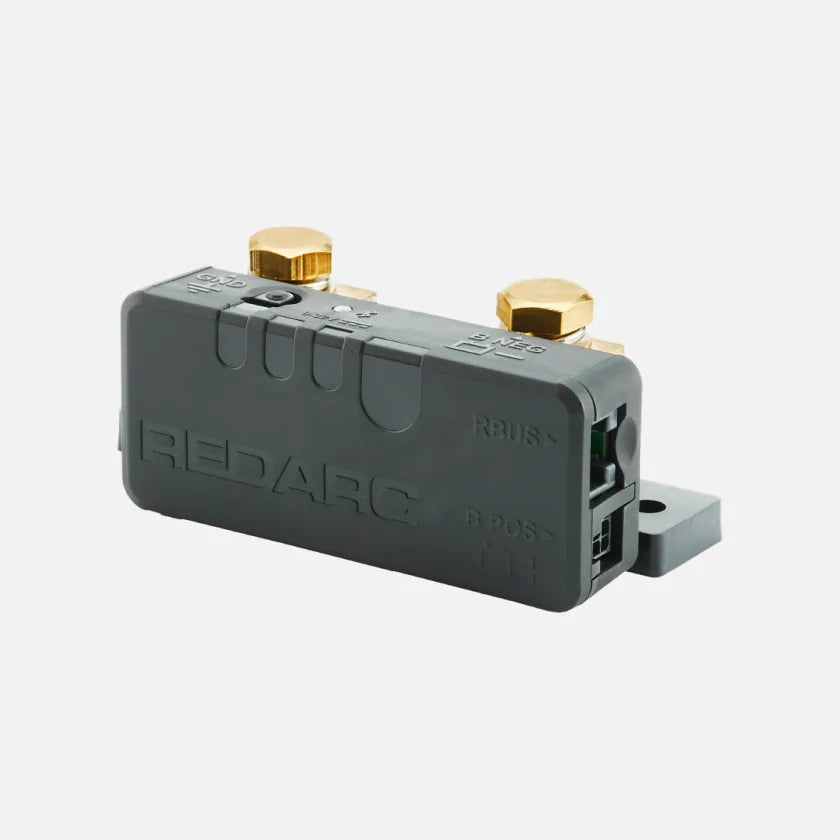

The Redarc BSEN500 Smart Battery Monitor is a Bluetooth 5.1 battery monitor that delivers state of charge, time remaining, and current flow to your smartphone via the RedVision app. 500A maximum continuous current rating, 1250Ah maximum battery capacity. Three connection points for quick setup. Up to 42m Bluetooth range. 52mm x 120mm x 45mm, 0.35kg. Not suitable for engine bay or external mounting. Australian designed and manufactured. 2-year warranty.

Important: The Smart Battery Monitor is not suitable for engine bay or external mounting. It is not for standalone use with the DISP4300.

Product overview

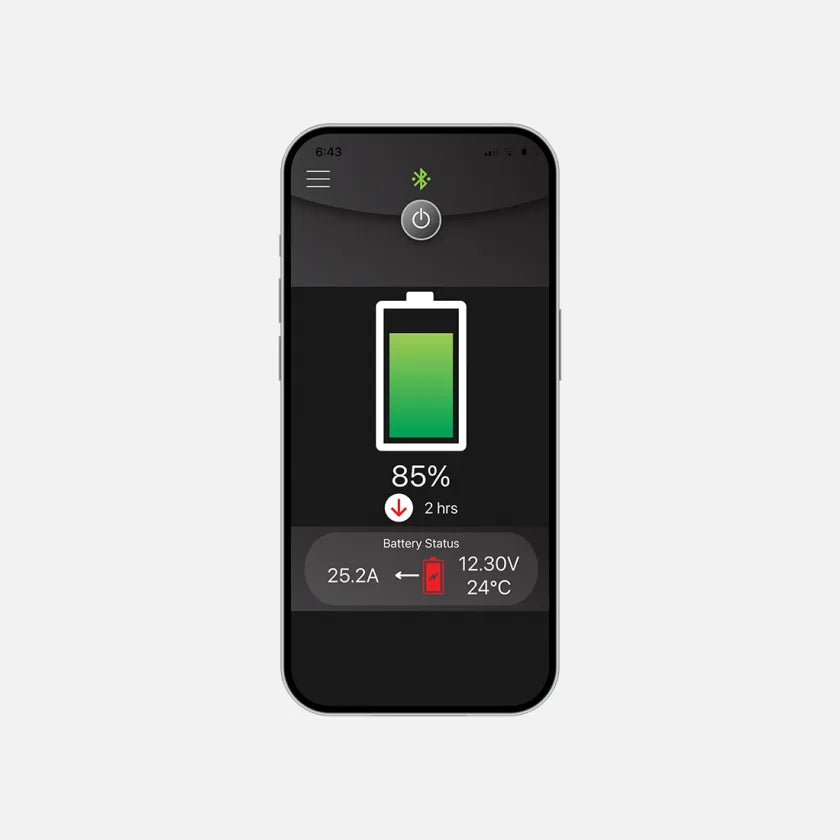

The BSEN500 Smart Battery Monitor connects a 12V power system to a smartphone via Bluetooth 5.1 for real-time battery monitoring without guesswork. State of charge, an estimate of days or hours of power remaining, and current flow are all displayed in the RedVision app. Redarc claims up to five times more accuracy than leading competitors, so time-remaining figures reflect actual battery state rather than approximate estimates. Bluetooth 5.1 delivers a connection range of up to 42m, approximately 1.5 times further than competing monitors. Setup requires only three connection points and configuration through the app. The 500A continuous current rating and 1250Ah maximum capacity cover a wide range of 12V auxiliary power systems. Not suitable for engine bay or external mounting. Not for standalone use with the DISP4300. Australian designed, tested, and manufactured.

Features and benefits

State of charge, time remaining, and current flow via RedVision app: Real-time battery information on your smartphone.

Bluetooth 5.1 with 42m range: Up to 1.5 times further connection range than competing battery monitors.

500A maximum continuous current rating.

1250Ah maximum battery capacity.

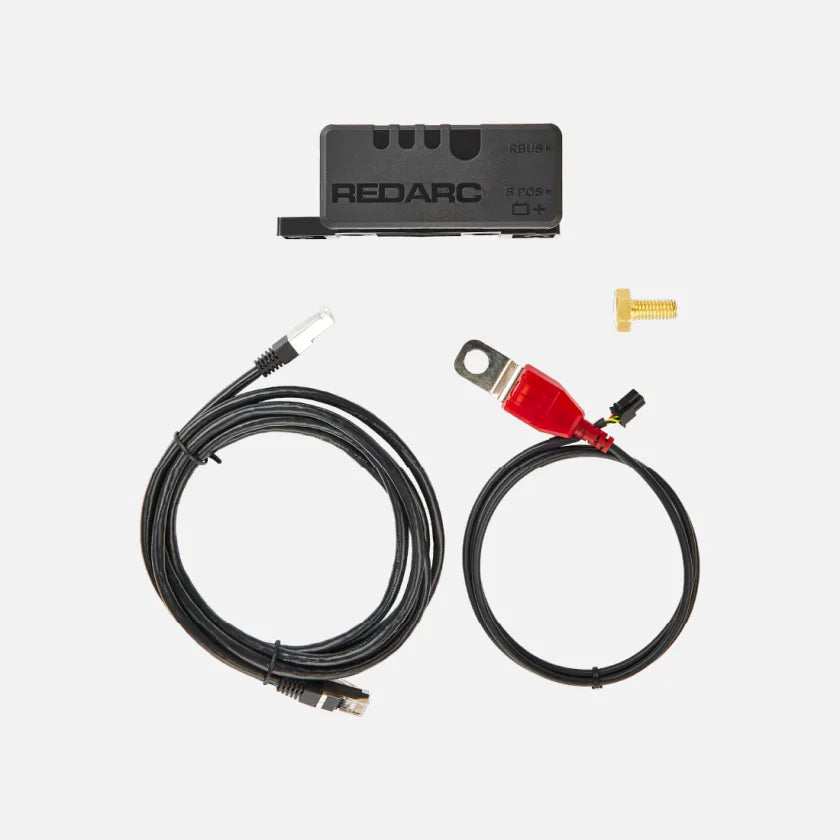

Three connection points for quick setup.

Compatible battery chemistries: AGM, gel, lithium, standard lead acid, and calcium.

9-32V operating voltage: Suits 12V and 24V systems.

Not suitable for engine bay or external mounting.

Not for standalone use with the DISP4300.

Australian designed, tested, and manufactured.

2-year warranty.

Technical specs

Frequently asked questions

How accurate is the BSEN500 Smart Battery Monitor? Redarc states the Smart Battery Monitor is up to five times more accurate than leading competitors. Time-remaining figures such as "2 hours left" reflect actual battery state based on real-time measurements rather than approximate calculations.

How far does the Bluetooth connection reach on the BSEN500? The BSEN500 uses Bluetooth 5.1 with a connection range of up to 42m, approximately 1.5 times further than competing battery monitors.

What battery chemistries does the BSEN500 support? The BSEN500 supports AGM, gel, lithium, standard lead acid, and calcium battery chemistries.

Can the BSEN500 be mounted in the engine bay or externally? No. The Smart Battery Monitor is not suitable for engine bay or external mounting. It must be installed in a protected in-cabin or enclosed location.

Is the BSEN500 compatible with the DISP4300? The Smart Battery Monitor is not suitable for standalone use with the DISP4300. Contact us for further compatibility guidance before purchasing.
