Redarc BMS1230S4R-AU Manager30 30A Battery Management System

Redarc Manager30 BMS1230S4R-AU 30A 6-in-1 Battery Management System 240V AC DC and Solar Input MPPT Green Power Priority 4.3" RedVision Pro Display Smart Battery Monitor Dual Battery Isolator Load Disconnect 445mm x 186mm x 78mm 5.5kg 2-Year Warranty

The Redarc Manager30 is a 30A battery management system combining AC, DC, and solar charging with a dual battery isolator and load disconnect controller in a single unit. Includes the 4.3" colour RedVision Pro display and Smart Battery Monitor for advanced monitoring and control. MPPT solar regulator with Green Power Priority. 240V AC and 9-30V DC input. 12V DC output. 445mm x 186mm x 78mm, 5.5kg. Tested to Australian mains power safety standards. 2-year warranty.

Product overview

The Manager30 functions as six separate products in one: a 240V AC-DC multi-stage battery charger, a DC-DC multi-stage battery charger, an MPPT solar regulator, a dual battery isolator, a load disconnect controller, and a remote monitoring system. Green Power Priority prioritises solar input when available to minimise alternator load and reduce fuel consumption. The built-in MPPT solar regulator maximises solar power delivery from portable panels, including in low light conditions. The included 4.3" colour RedVision Pro display shows live battery information, charge status, and system information in real time, with customisable charging settings and power source monitoring. A Bluetooth 5.1 connection via the RedVision app replicates the full display data and control on a smartphone. The included Smart Battery Monitor delivers unrivalled accuracy for state of charge, time remaining, and current flow monitoring. Compatible with all vehicles and alternator systems including variable voltage alternators. Charges all common battery chemistries including lithium (LiFePO4) with a dedicated lithium charging profile requiring an in-built battery cell management system. Tested to mains power safety standards in Australia. An output fuse rated at 40A is required for installation but is not supplied, Redarc recommends the FK40.

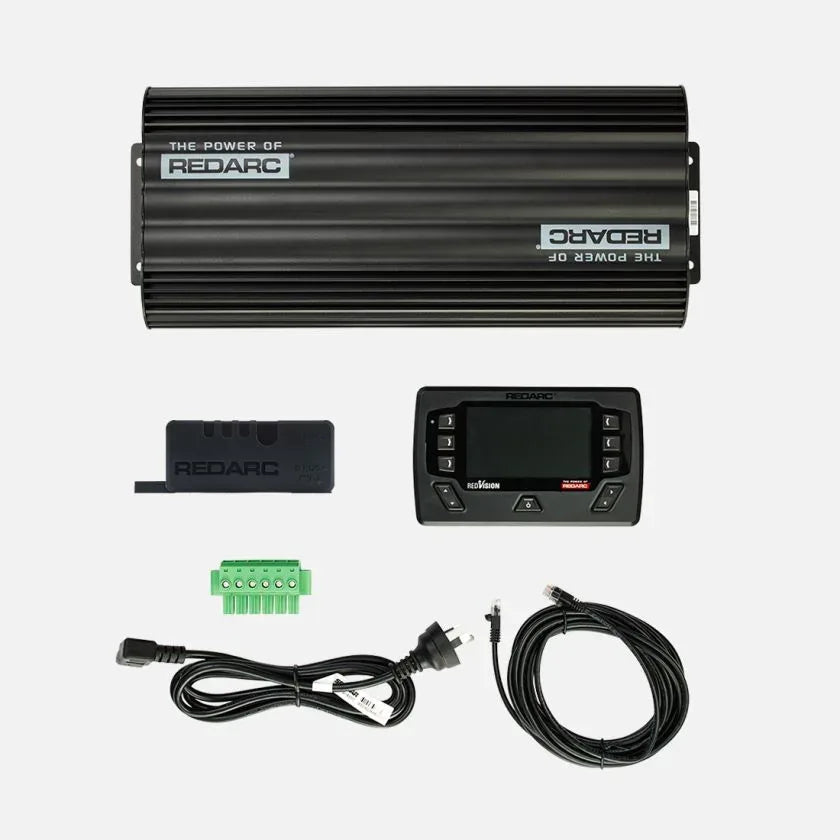

What's in the box

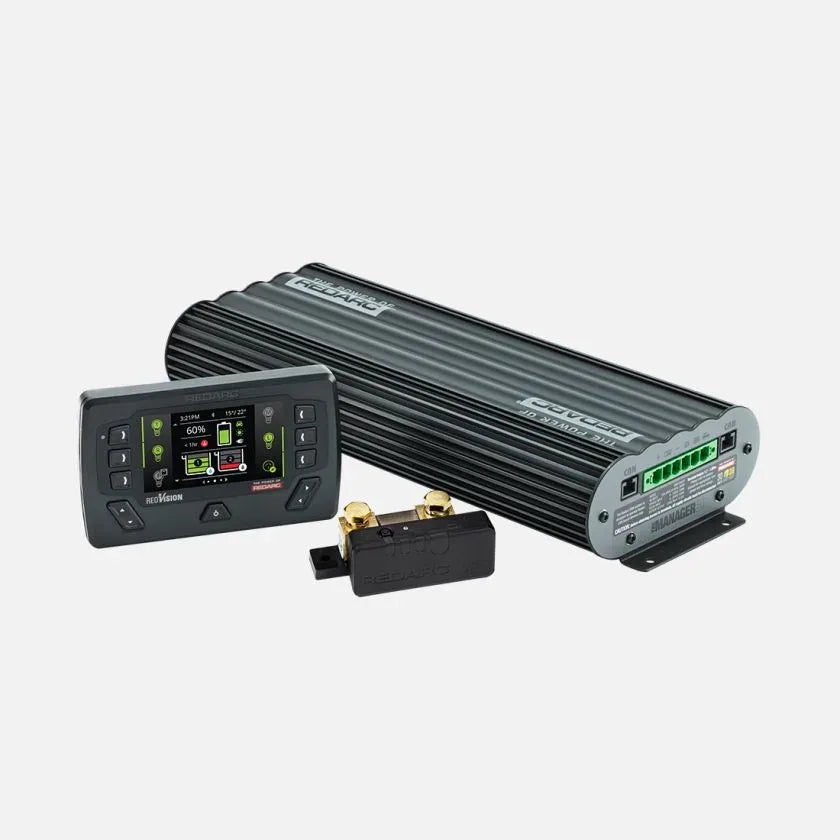

• Manager30 battery management system (BMS1230S4R-AU)
• RedVision Pro display (4.3" colour)
• Smart Battery Monitor (BSEN500)

Features and benefits

6-in-1 battery management system: Multi-stage AC-DC charger, DC-DC charger, MPPT solar regulator, dual battery isolator, load disconnect controller, and remote monitoring in a single unit.

30A continuous rating.

240V AC and 9-30V DC input: Charges from mains power, vehicle alternator, and solar simultaneously.

Green Power Priority: Prioritises solar input when available to minimise alternator load and reduce fuel consumption.

MPPT solar regulator: Maximises solar power delivery including in low light conditions.

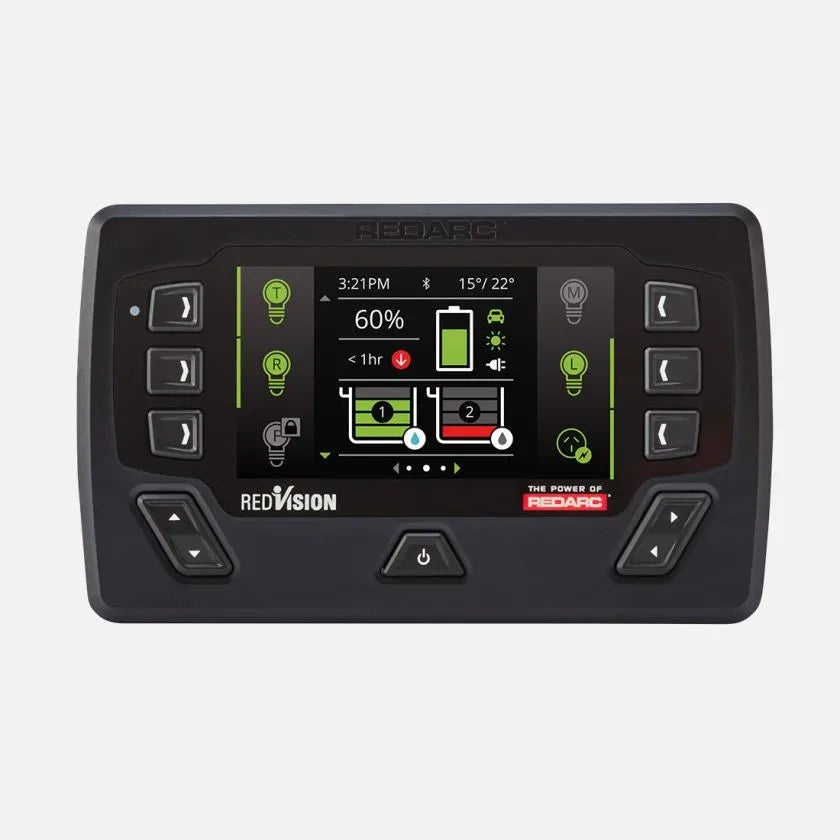

4.3" colour RedVision Pro display: Live battery information, charge status, customisable charging settings, and power source monitoring.

Smart Battery Monitor included: Industry-leading accuracy for state of charge, time remaining, and current flow.

Bluetooth 5.1 via RedVision app: Full display data and control available on a smartphone.

Dual battery isolator.

Load disconnect controller.

Compatible with all vehicles and alternator systems: Including variable voltage alternators.

Charges AGM, gel, calcium, VRLA, standard lead acid, and lithium (LiFePO4) batteries.

Quiet operation.

Tested to Australian mains power safety standards.

2-year warranty.

Technical specs

Frequently asked questions

What does the Manager30 do in a single unit? The Manager30 combines a 240V AC-DC multi-stage battery charger, a DC-DC multi-stage battery charger, an MPPT solar regulator, a dual battery isolator, a load disconnect controller, and a monitoring system with RedVision Pro display and Smart Battery Monitor six functions in one unit.

Does the Manager30 work with lithium batteries? Yes. The Manager30 has a dedicated lithium (LiFePO4) charging profile. The lithium battery must have an in-built cell management system for the Manager30 to complement it correctly.

Does the Manager30 include a fuse? The input fuse (50A) is included. The output fuse (40A) is not supplied, Redarc recommends the FK40. Always confirm fuse requirements with a certified installer before installation.

Can the Manager30 charge from solar and AC at the same time? Yes. The Manager30 charges from AC, DC, and solar simultaneously. Green Power Priority ensures solar input is prioritised when available to minimise alternator load.

Is the Manager30 compatible with variable voltage alternators? Yes. The Manager30 is compatible with all vehicles and alternator systems including variable voltage alternators.
