Redarc BMK500 RedVision Essentials Display Kit Smart Monitor

Redarc RedVision Essentials Display Kit BMK500 Includes Smart Battery Monitor BSEN500 and RedVision Essentials Display DISP4000 10-Bar State of Charge Bluetooth 5.1 51mm Panel Mount Australian Designed and Manufactured 2-Year Warranty

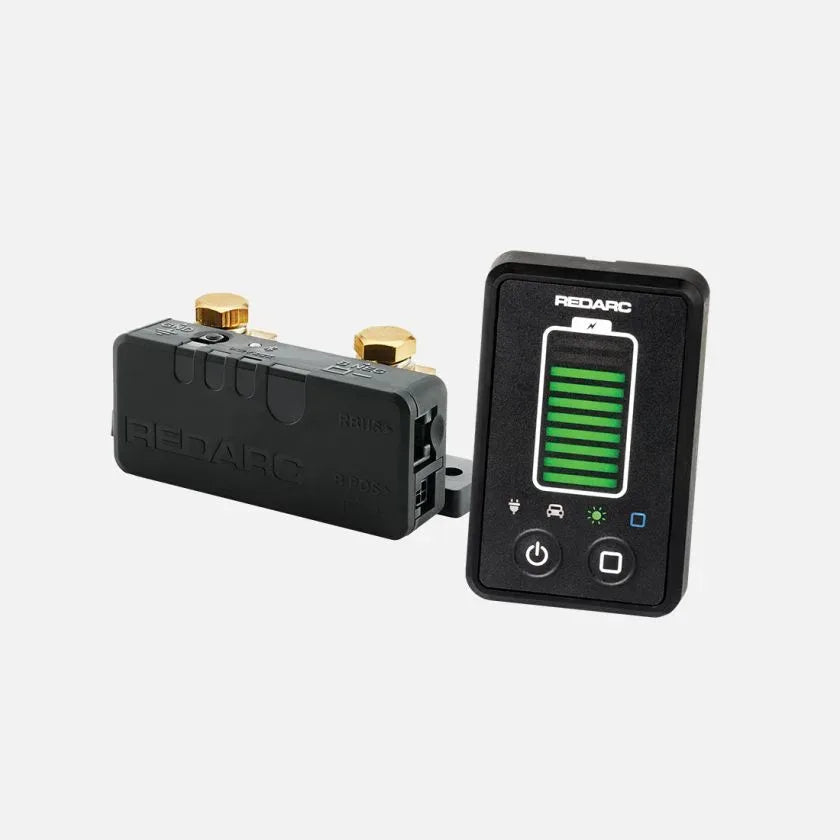

The Redarc BMK500 RedVision Essentials Display Kit includes the Smart Battery Monitor (BSEN500) and the RedVision Essentials Display (DISP4000). The display shows battery state of charge in clear 10-bar increments at a glance, while the Smart Battery Monitor delivers advanced real-time battery data via the RedVision Bluetooth app. 51mm panel cutout, two screws. Australian designed and manufactured. 2-year warranty.

Product overview

The RedVision Essentials Display Kit pairs the BSEN500 Smart Battery Monitor with the DISP4000 Essentials Display for a complete in-vehicle battery monitoring system. The display presents battery state of charge in a simple 10-bar layout with no unnecessary data no watts, volts, or amps to interpret, just a clear view of how much power remains and where charge is coming from, including vehicle alternator, solar, and AC sources. For users who want deeper insight, the Smart Battery Monitor connects via Bluetooth 5.1 to the RedVision app on a smartphone, providing state of charge percentage, time remaining, and current flow. The Smart Battery Monitor requires three connection points. The DISP4000 installs through a 51mm hole secured with two screws. Bluetooth pairing, brightness adjustment, and Start Battery Recovery on compatible products can all be initiated directly from the display. Industry-leading accuracy — Redarc claims it is the most accurate battery monitor available. Australian designed, tested, and manufactured.

What's in the box

• Smart Battery Monitor (BSEN500)
• RedVision Essentials Display (DISP4000)

Features and benefits

10-bar state of charge display: Clear, instant battery level visibility with no unnecessary data or distractions.

View connected and active power sources: Displays vehicle, solar, and AC charge sources on the DISP4000.

Smart Battery Monitor (BSEN500) with Bluetooth 5.1: Advanced real-time battery data including state of charge, time remaining, and current flow via the RedVision app.

Industry-leading accuracy: Redarc claims the most accurate battery monitor on the market.

Display controls: Bluetooth pairing, brightness adjustment, and Start Battery Recovery on compatible products initiated directly from the DISP4000.

Simple installation: Smart Battery Monitor requires three connection points. DISP4000 installs through a 51mm hole with two screws.

Australian designed, tested, and manufactured.

2-year warranty.

Technical specs

Frequently asked questions

What does the BMK500 kit include? The BMK500 includes the Smart Battery Monitor (BSEN500) and the RedVision Essentials Display (DISP4000). Both are required to use the full display kit.

Do I need a smartphone to use the RedVision Essentials Display Kit? No. The DISP4000 display shows battery state of charge in 10-bar increments without a phone. The RedVision app on a smartphone provides additional detail including state of charge percentage, time remaining, and current flow via the BSEN500 Smart Battery Monitor.

How is the DISP4000 display installed? The DISP4000 installs through a 51mm panel cutout and is secured with two screws.

Can the BMK500 display solar and alternator charging status? Yes. The DISP4000 displays connected and active power sources including vehicle alternator, solar, and AC.

What warranty does the BMK500 kit carry? The BMK500 is backed by a 2-year warranty.
