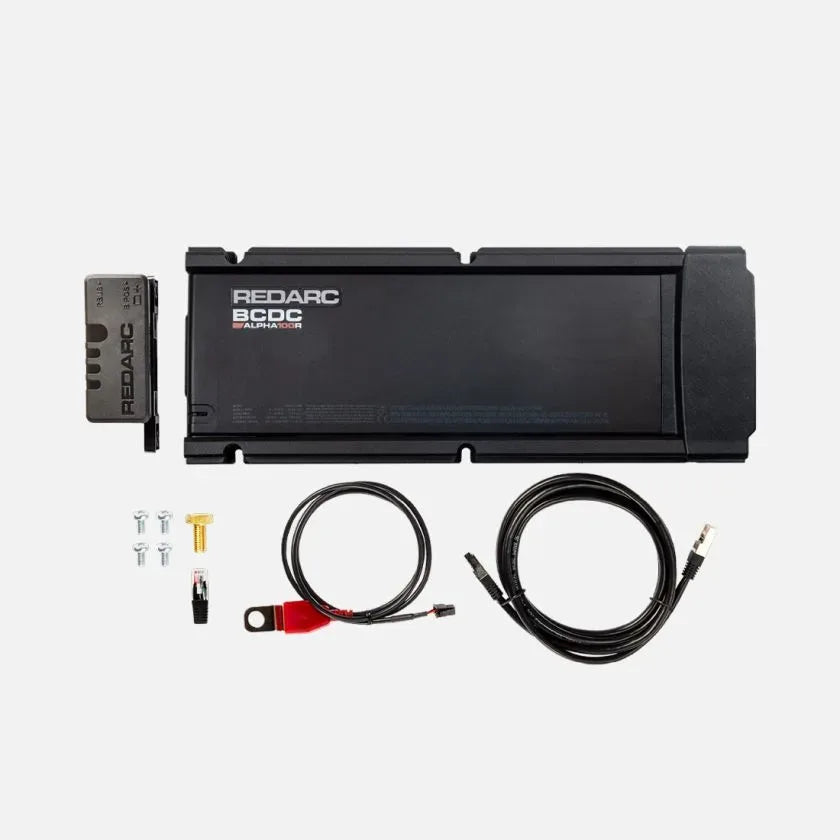

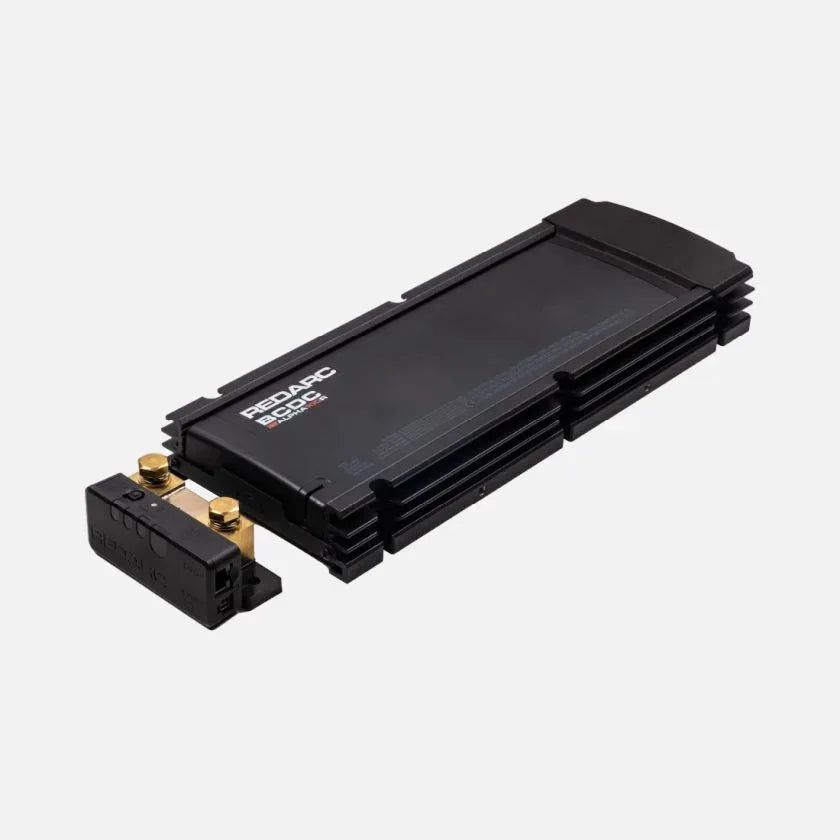

Redarc BCDC12100R Alpha100 R 100A DC-DC Battery Charger 12V

Redarc BCDC Alpha100 R BCDC12100R 12V 100A DC-DC Battery Charger and Manager Solar and DC Input Green Power Priority Smart Battery Monitor Included Bluetooth RedVision App Over-the-Air Updates 385mm x 146mm x 50mm 2-Year Warranty

The Redarc BCDC Alpha100 R is a 12V 100A DC-DC battery charger and manager for caravans, camper trailers, and 4WDs. It charges from DC (alternator) and solar simultaneously, features built-in Green Power Priority that prioritises solar to minimise alternator load, and includes a Smart Battery Monitor. Remote monitoring and control via the RedVision Bluetooth app. 385mm x 146mm x 50mm, 2.2kg. Not suitable for engine bay installation. 2-year warranty.

Product overview

The BCDC Alpha100 R functions as a true battery manager rather than a standard DC charger. It adjusts its charge mode in real time to match the battery's needs, extending battery lifespan and maximising charging efficiency. Green Power Priority minimises alternator load by prioritising solar input first, reducing fuel consumption. When paired with the included Smart Battery Monitor, the BCDC Alpha100 R can distinguish between current delivered to the battery and current consumed by system loads. If the charge current is set below maximum, the charger directs unused current to supply system loads directly, reducing reliance on the battery. The BCDC Alpha100 R can also revive a fully flattened lithium battery and recover a flat start battery, returning enough charge to start the vehicle in approximately 15 minutes via the smartphone app. Excess solar capacity automatically tops up the start battery once the secondary battery is full. Screw terminal connections simplify installation. Over-the-air updates keep the charger's firmware current. Compatible with the TVMS Rogue and TVMS Prime for full RedVision integration.

Features and benefits

100A charging from DC and solar simultaneously.

Green Power Priority: Prioritises solar input over alternator charging to minimise alternator load and reduce fuel consumption.

Smart Battery Monitor included: Distinguishes between charge current to the battery and current supplied directly to system loads.

Direct load supply from unused charge current: When charge current is set below maximum, unused current supplies system loads directly, reducing battery demand and extending battery lifespan.

Charges all common automotive battery types: Including standard and heated lithium (LiFePO4), AGM, gel, calcium, and flooded.

Revives fully flattened lithium batteries.

Flat start battery recovery: Recovers a flat start battery in approximately 15 minutes via the smartphone app.

Solar to start battery top-up: Excess solar automatically charges the start battery once the secondary battery is full.

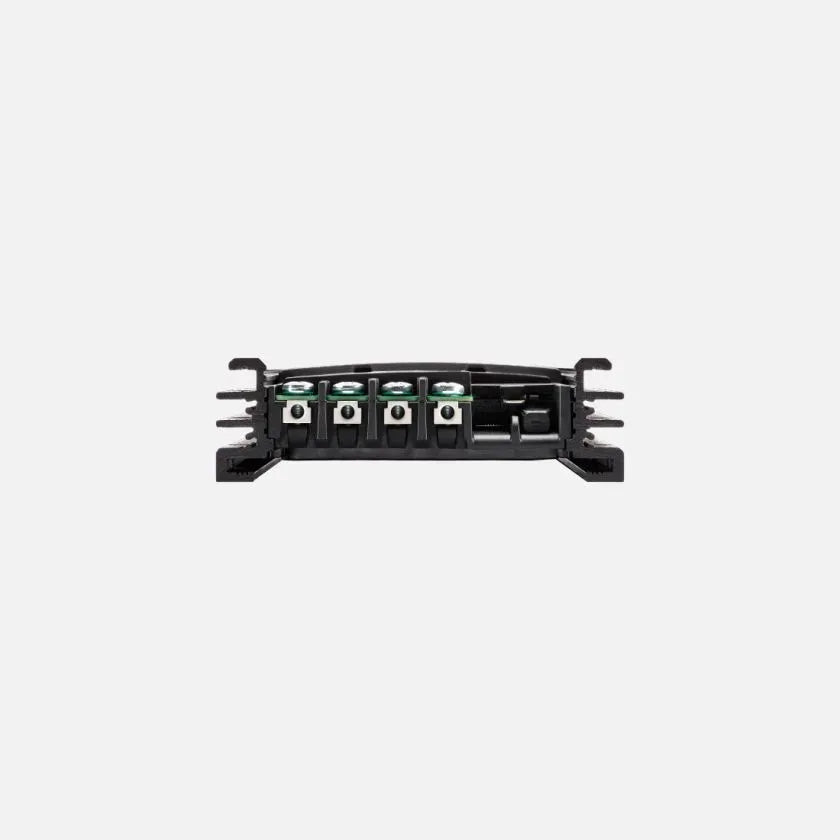

Screw terminal connections: No soldering or complex wiring required.

Remote monitoring and control via RedVision Bluetooth app: State of charge percentage, time remaining, and charger performance on your mobile device.

Limits input current: Protects vehicle alternators, making it suitable for hybrid and electric vehicles with low surplus current or small DC converters.

Over-the-air updates: Firmware kept current without returning the unit.

Compatible with TVMS Rogue and TVMS Prime for full RedVision system integration.

Not suitable for engine bay installation.

2-year warranty.

Technical specs

Frequently asked questions

What is Green Power Priority on the BCDC Alpha100 R? Green Power Priority is a built-in feature that prioritises solar input over alternator charging. When solar power is available, the charger draws from solar first to minimise the load placed on the vehicle's alternator and reduce fuel consumption.

Can the BCDC Alpha100 R charge lithium batteries? Yes. The BCDC Alpha100 R charges all common automotive battery types including standard and heated lithium (LiFePO4), as well as AGM, gel, calcium, and flooded batteries. It can also revive a fully flattened lithium battery.

What does the included Smart Battery Monitor do? The Smart Battery Monitor allows the BCDC Alpha100 R to distinguish between current delivered to the battery and current consumed by system loads. This enables the charger to supply loads directly from unused charge current when the charge current is set below maximum, reducing demand on the battery.

Is the BCDC Alpha100 R suitable for hybrid or electric vehicles? Yes. The ability to limit input current protects vehicle alternators with low surplus current, making the BCDC Alpha100 R suitable for hybrid and electric vehicles as well as vehicles with small DC converters.

Can the BCDC Alpha100 R be installed in the engine bay? No. The BCDC Alpha100 R is not suitable for engine bay installation.
