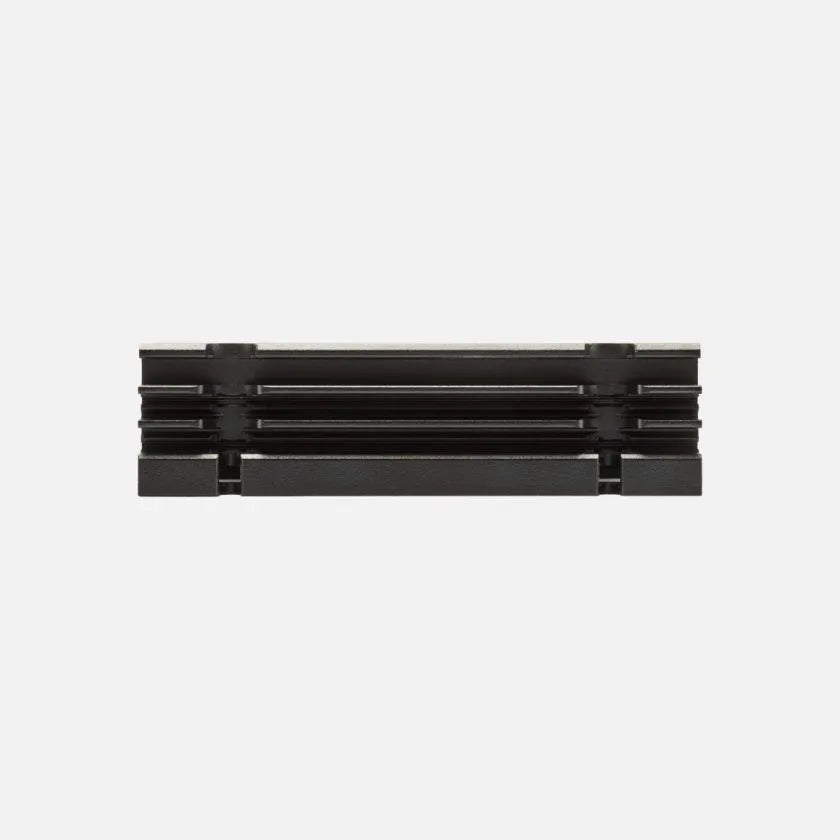

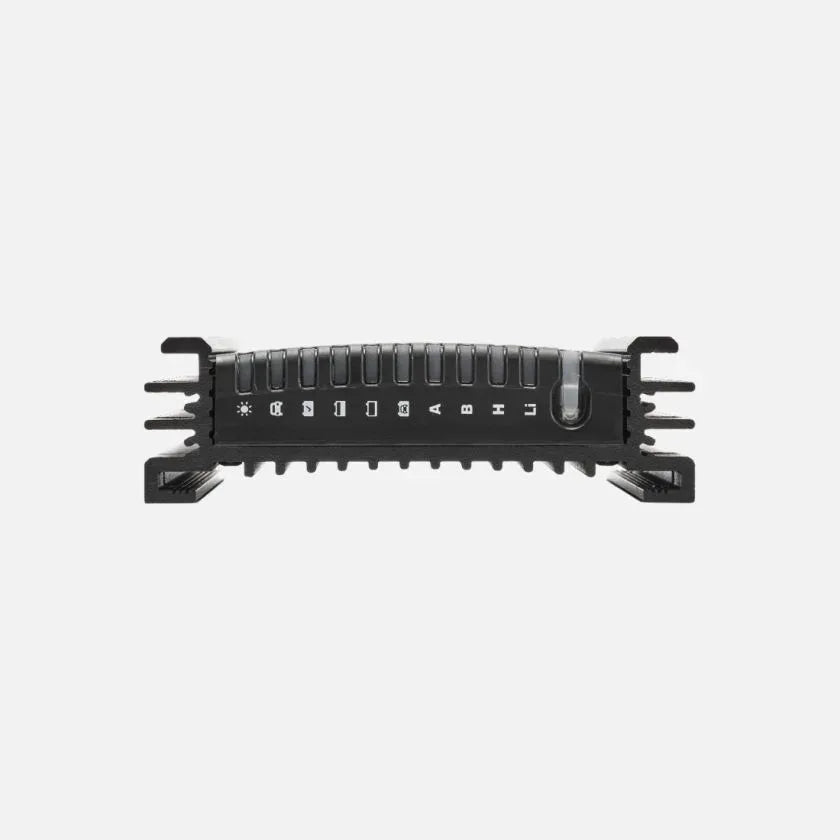

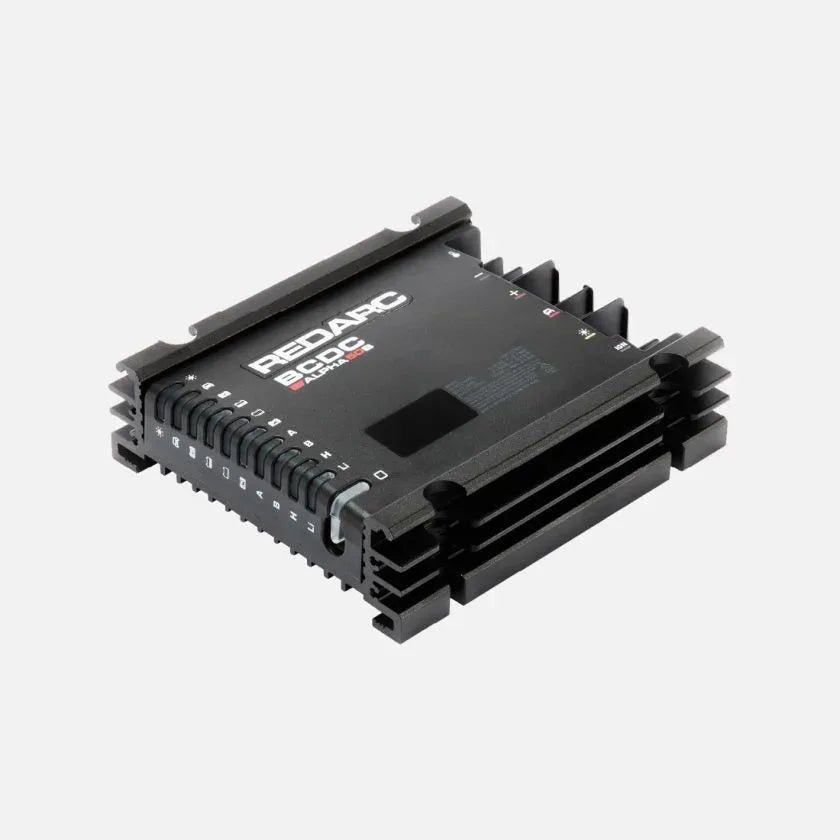

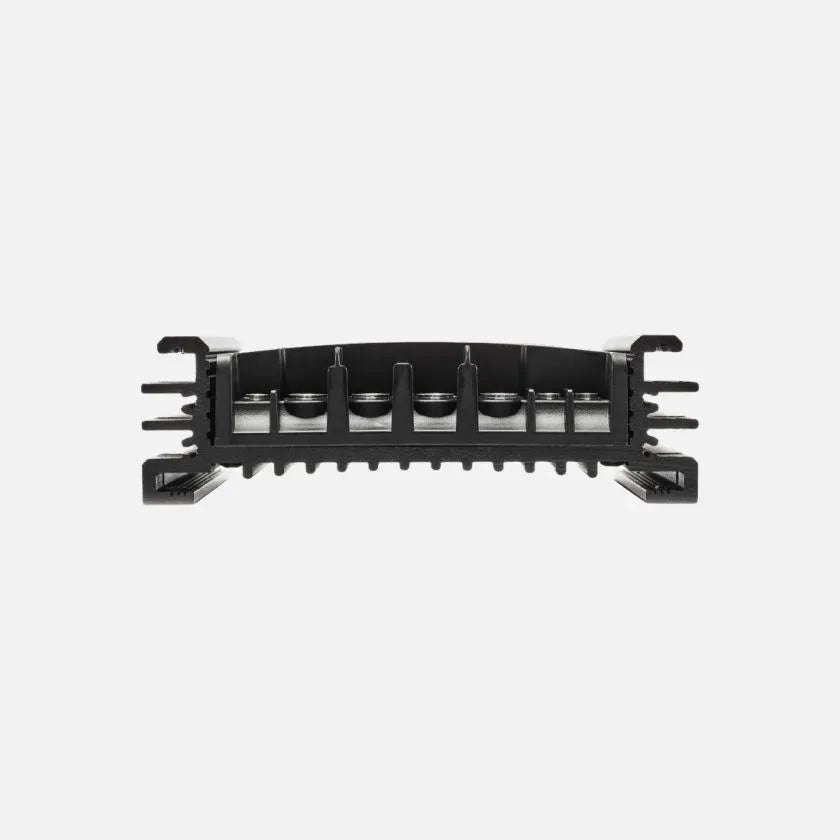

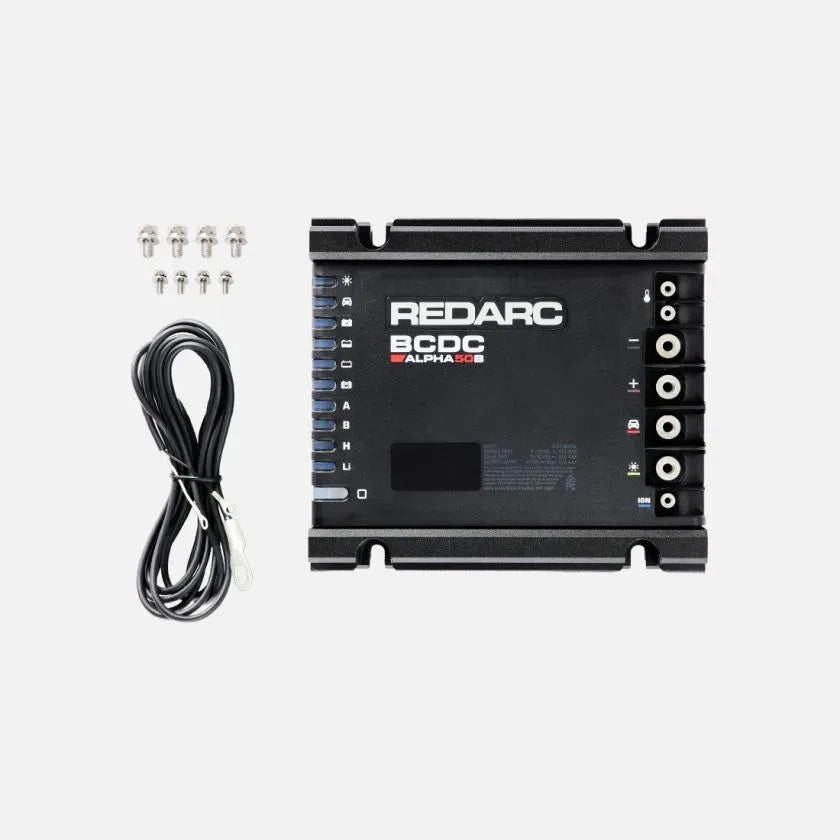

Redarc BCDC12050B Alpha50 50A DC-DC Battery Charger IP67/69K

Redarc BCDC Alpha50 BCDC12050B 12V 50A DC-DC Battery Charger Solar and DC Input Green Power Priority IP67/69K Engine Bay Suitable Pushbutton Interface RedVision Bluetooth App -40°C to 85°C Australian Designed and Manufactured 2-Year Warranty

The Redarc BCDC Alpha50 is a rugged 12V 50A DC-DC battery charger for recreational vehicles and 4WDs. It charges from DC (alternator) and solar, features Green Power Priority that prioritises solar to minimise alternator load, and carries IP67/69K dust and moisture protection. Suitable for engine bay installation. Pushbutton interface and screw connections. Remote monitoring via the RedVision Bluetooth app. 146mm x 164mm x 44mm, 0.96kg. Australian designed and manufactured. 2-year warranty.

Product overview

The BCDC Alpha50 delivers 50A of DC-to-DC and solar charging with Green Power Priority, prioritising solar input over alternator charging to reduce fuel consumption and alternator load. Flat start battery recovery takes as little as 15 minutes via pushbutton, and excess solar automatically tops up the start battery once the secondary battery is full. Configurable input current limits protect the vehicle's alternator. IP67/69K dust and moisture protection and a -40°C to 85°C operating temperature range make the BCDC Alpha50 suitable for engine bay installation and harsh environments. Screw terminal connections and pushbutton interface simplify installation. The RedVision Bluetooth app provides real-time charge status and remote control from a smartphone. Over-the-air updates keep firmware current. Australian designed, tested, and manufactured.

Features and benefits

50A charging from DC and solar simultaneously.

Green Power Priority: Prioritises solar input over alternator charging to minimise alternator load and reduce fuel consumption.

IP67/69K dust and moisture protection: Suitable for engine bay and harsh outdoor installation environments.

Engine bay suitable.

Operating temperature range -40°C to 85°C.

Charges all common automotive battery types: AGM, gel, calcium, standard lead acid, standard lithium (LiFePO4), and heated lithium.

Flat start battery recovery: Recovers a flat start battery in as little as 15 minutes via pushbutton.

Solar to start battery top-up: Excess solar automatically charges the start battery once the secondary battery is full.

Adjustable input current limit: Protects vehicle alternators including those with low surplus current on hybrid and electric vehicles.

Pushbutton interface and screw terminal connections: No soldering or complex wiring required.

Remote monitoring and control via RedVision Bluetooth app: Real-time charge status and remote control from your mobile device.

Over-the-air updates: Firmware kept current without returning the unit.

Australian designed, tested, and manufactured.

2-year warranty.

Technical specs

Frequently asked questions

What is the difference between the BCDC Alpha50 and the BCDC Alpha50 R? The BCDC Alpha50 carries IP67/69K protection, is engine bay suitable, and has an operating range of -40°C to 85°C. The BCDC Alpha50 R is not engine bay suitable, has an operating range of -20°C to 60°C, and includes a Smart Battery Monitor for distinguishing charge current from load current. Both deliver 50A and share Green Power Priority and RedVision Bluetooth connectivity.

Is the BCDC Alpha50 suitable for engine bay installation? Yes. The BCDC Alpha50 is suitable for engine bay installation, supported by its IP67/69K protection rating and -40°C to 85°C operating temperature range.

Can the BCDC Alpha50 charge lithium batteries? Yes. The BCDC Alpha50 is compatible with standard lithium (LiFePO4) and heated lithium, as well as AGM, gel, calcium, and standard lead acid batteries.

Is the BCDC Alpha50 suitable for hybrid or electric vehicles? Yes. The adjustable input current limit protects vehicle alternators with low surplus current, making the BCDC Alpha50 suitable for hybrid and electric vehicles as well as vehicles with small DC converters.

What does IP67/69K mean on the BCDC Alpha50? IP67 means the unit is fully dust-tight and protected against temporary submersion in water up to 1 metre. IP69K adds protection against high-pressure, high-temperature water jets. Together they make the BCDC Alpha50 suitable for harsh and wet installation environments including the engine bay.
