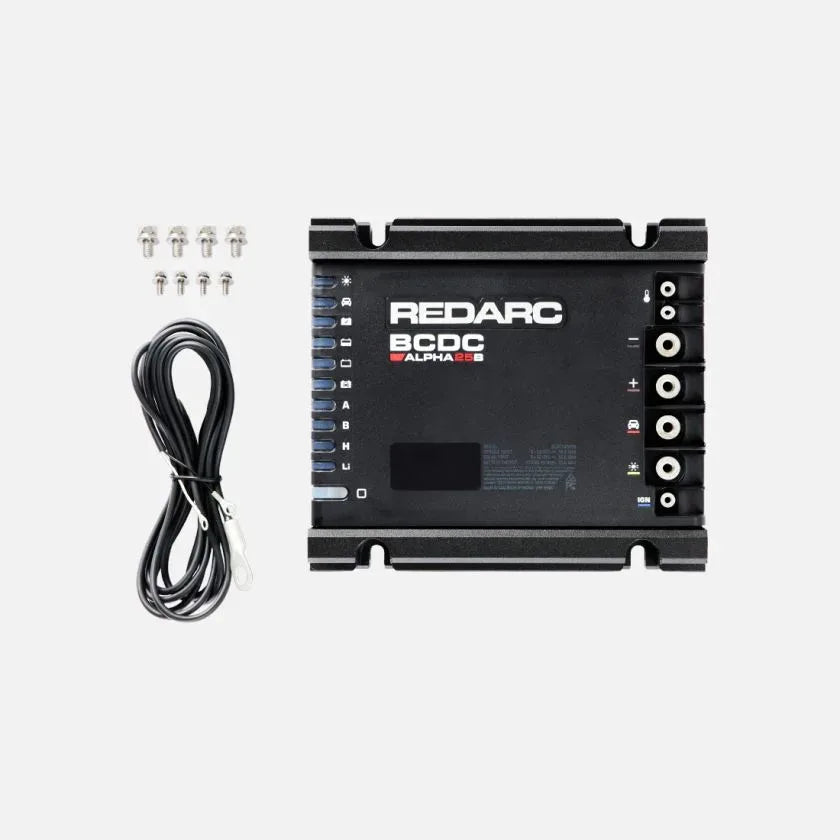

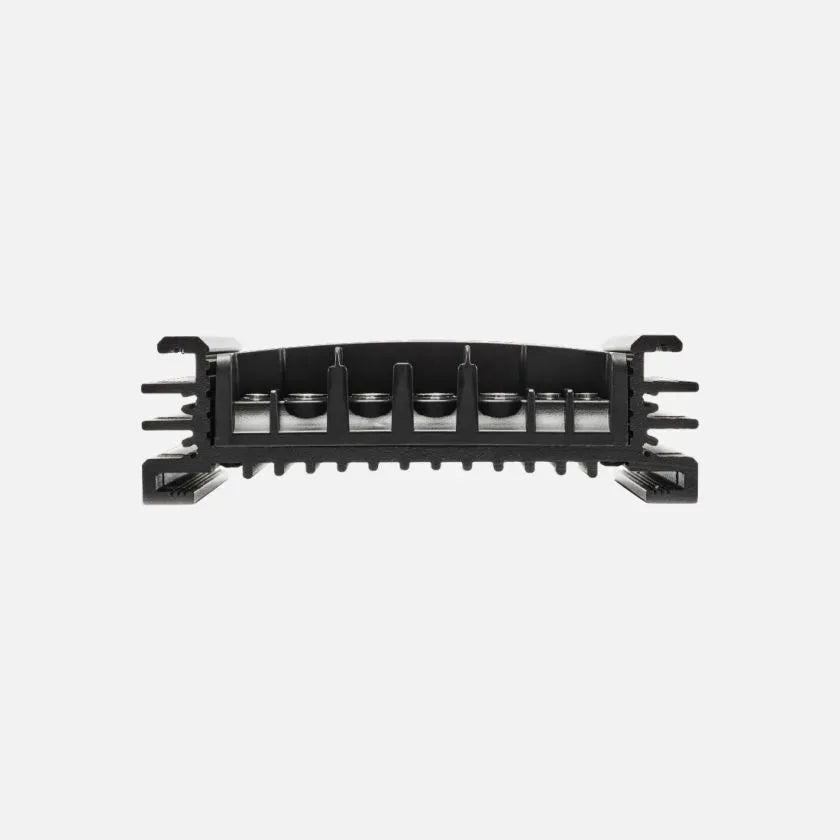

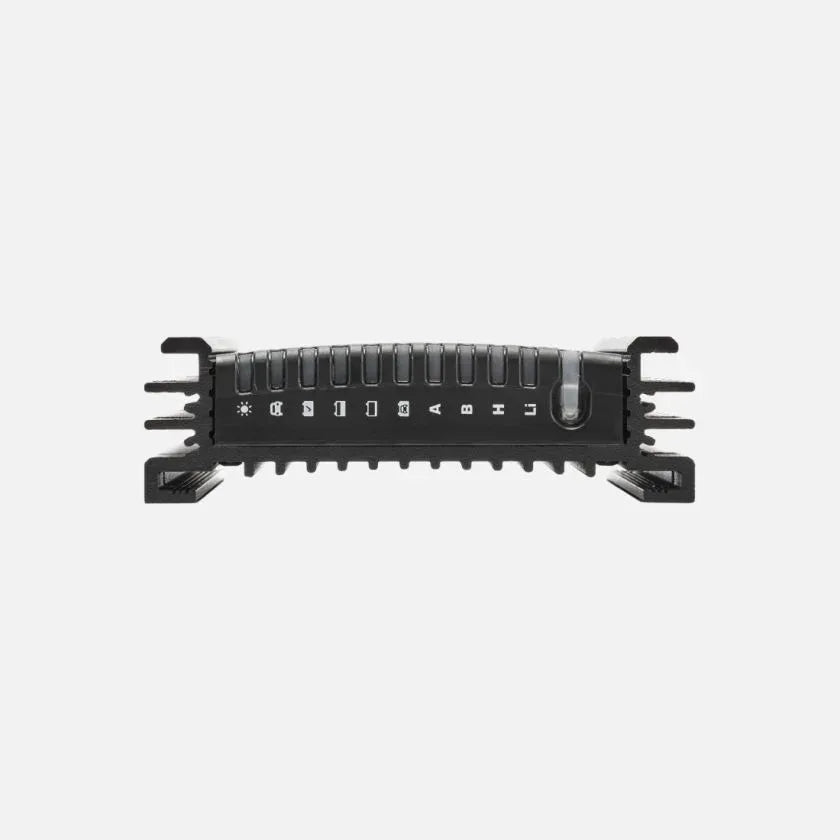

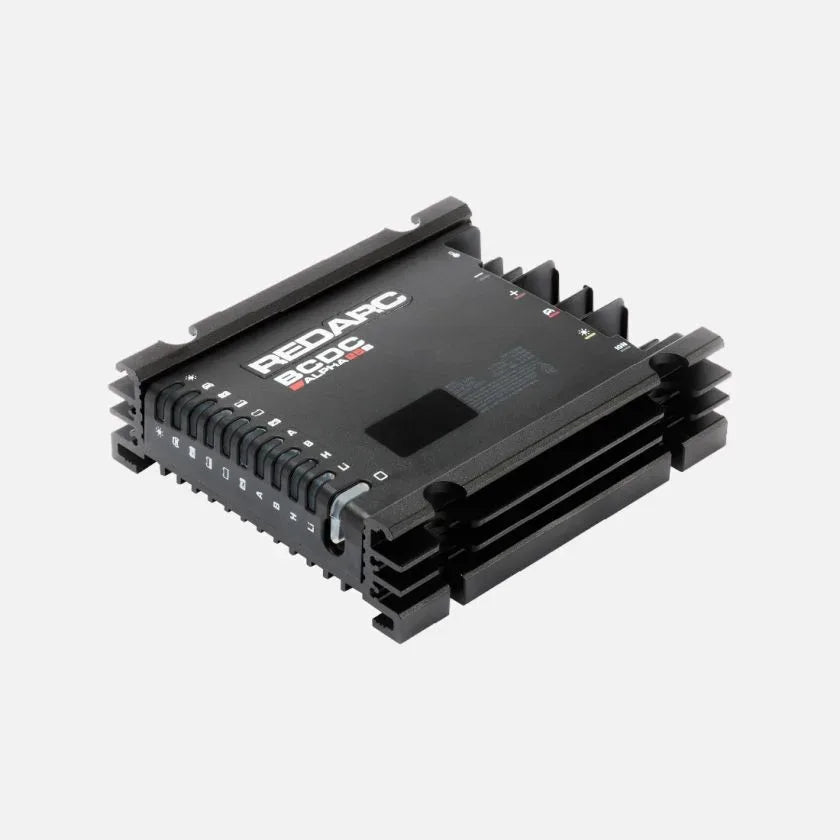

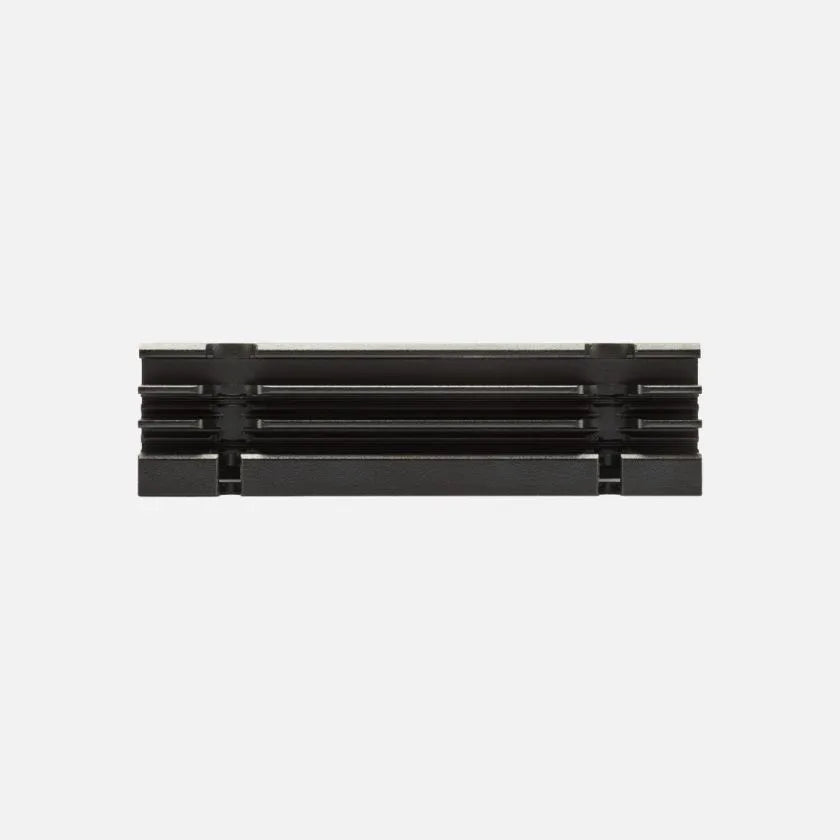

Redarc BCDC12025B Alpha25 25A DC-DC Battery Charger IP67/69K

Redarc BCDC Alpha25 BCDC12025B 12V 25A DC-DC Battery Charger Solar and DC Input Green Power Priority IP67/69K Engine Bay Suitable Pushbutton Interface RedVision Bluetooth App -40°C to 85°C Australian Designed and Manufactured 2-Year Warranty

The Redarc BCDC Alpha25 is a rugged 12V 25A DC-DC battery charger for recreational vehicles and 4WDs. It charges from DC (alternator) and solar, features Green Power Priority that prioritises solar to minimise alternator load, and carries IP67/69K dust and moisture protection. Suitable for engine bay installation. Pushbutton interface and screw connections. Remote monitoring via the RedVision Bluetooth app. 164mm x 146mm x 44mm, 0.925kg. Australian designed and manufactured. 2-year warranty.

Product overview

The BCDC Alpha25 delivers 25A of DC-to-DC and solar charging with Green Power Priority, prioritising solar input over alternator charging to reduce fuel consumption and alternator load. The pushbutton interface allows flat start battery recovery in as little as 15 minutes, and excess solar automatically tops up the start battery once the secondary battery is full. Configurable input current limits give full control over alternator protection. IP67/69K dust and moisture protection makes the BCDC Alpha25 the most robust option in the Alpha range, with engine bay suitability and an operating temperature range of -40°C to 85°C for demanding installation environments. Screw terminal connections and pushbutton interface simplify installation. The RedVision Bluetooth app provides real-time charge status, state of charge, and remote control from a smartphone. Compatible with the TVMS Rogue and TVMS Prime for full RedVision integration. Australian designed, tested, and manufactured.

Features and benefits

25A charging from DC and solar simultaneously.

Green Power Priority: Prioritises solar input over alternator charging to minimise alternator load and reduce fuel consumption.

IP67/69K dust and moisture protection: The most rugged protection rating in the BCDC Alpha range.

Engine bay suitable: Can be installed in the engine bay unlike the Alpha50 R and Alpha100 R.

Operating temperature range -40°C to 85°C: Built for demanding environments from alpine cold to high-heat engine bay installations.

Charges all common automotive battery types: AGM, gel, calcium, standard lead acid, standard lithium (LiFePO4), and heated lithium.

Flat start battery recovery: Recovers a flat start battery in as little as 15 minutes via pushbutton.

Solar to start battery top-up: Excess solar automatically charges the start battery once the secondary battery is full.

Adjustable input current limit: Protects vehicle alternators including those with low surplus current on hybrid and electric vehicles.

Pushbutton interface and screw terminal connections: No soldering or complex wiring required.

Remote monitoring and control via RedVision Bluetooth app: Real-time charge status, state of charge, and remote control from your mobile device.

Over-the-air updates: Firmware kept current without returning the unit.

Australian designed, tested, and manufactured.

2-year warranty.

Technical specs

Frequently asked questions

What is the difference between the BCDC Alpha25 and the BCDC Alpha50 R? The BCDC Alpha25 delivers 25A, carries IP67/69K protection, is engine bay suitable, and has an operating range of -40°C to 85°C. The BCDC Alpha50 R delivers 50A, includes a Smart Battery Monitor, is not engine bay suitable, and has an operating range of -20°C to 60°C. Both share Green Power Priority, RedVision Bluetooth connectivity, and over-the-air updates.

Is the BCDC Alpha25 suitable for engine bay installation? Yes. The BCDC Alpha25 is suitable for engine bay installation, supported by its IP67/69K protection rating and -40°C to 85°C operating temperature range.

Can the BCDC Alpha25 charge lithium batteries? Yes. The BCDC Alpha25 is compatible with standard lithium (LiFePO4) and heated lithium, as well as AGM, gel, calcium, and standard lead acid batteries.

Is the BCDC Alpha25 suitable for hybrid or electric vehicles? Yes. The adjustable input current limit protects vehicle alternators with low surplus current, making the BCDC Alpha25 suitable for hybrid and electric vehicles as well as vehicles with small DC converters.

What does IP67/69K mean on the BCDC Alpha25? IP67 means the unit is fully dust-tight and protected against temporary submersion in water up to 1 metre. IP69K adds protection against high-pressure, high-temperature water jets. Together they make the BCDC Alpha25 suitable for harsh and wet installation environments including the engine bay.
