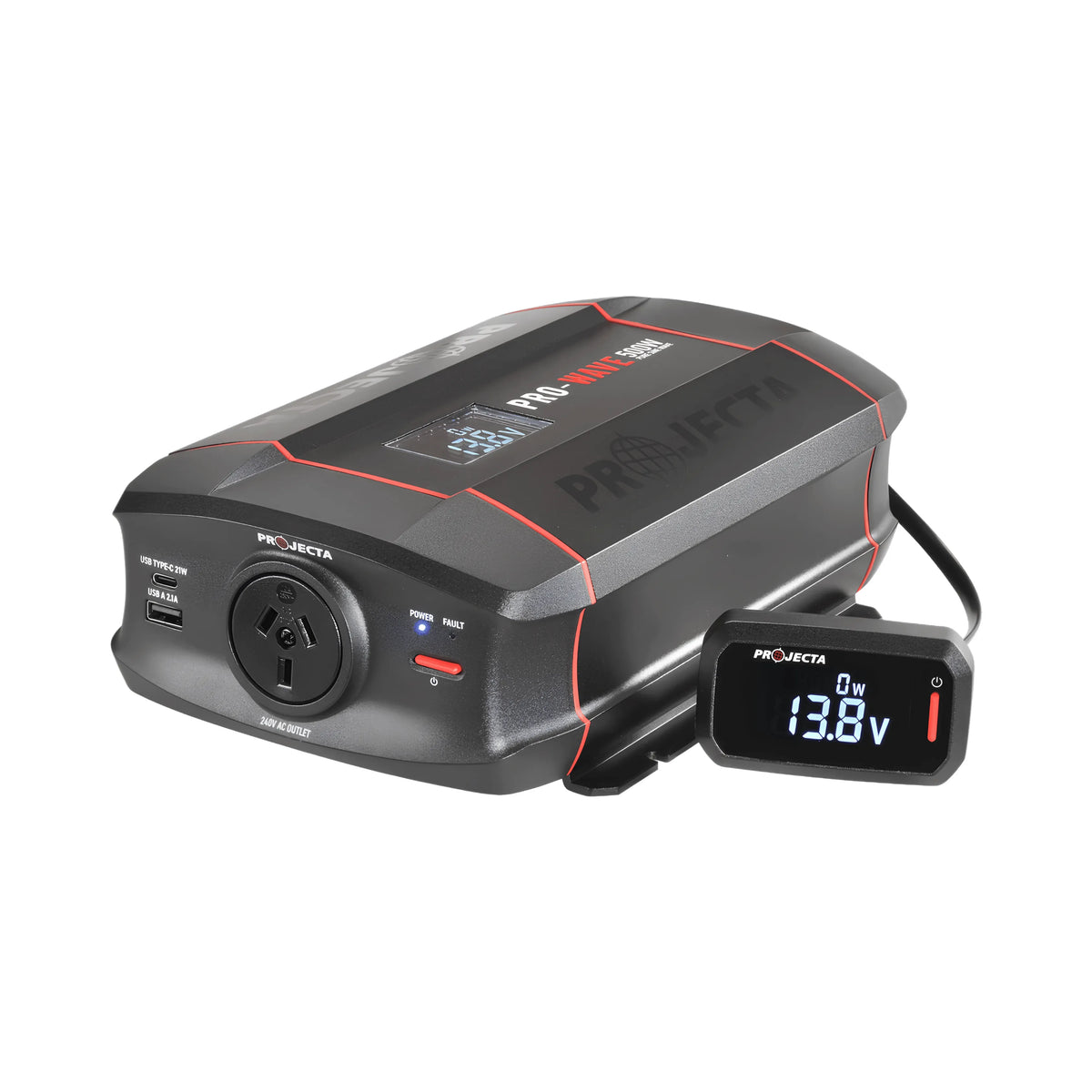

Projecta PW500 12V 500W Pro-Wave Pure Sine Wave Inverter

A 12V 500W pure sine wave inverter from Projecta, the PW500 features an LED display providing information on battery voltage, power usage, and load capacity, with USB-A and USB-C output ports for charging mobiles and portable devices.

Product overview

The Projecta PW500 delivers 500W continuous pure sine wave output, with the ability to handle a 600W 120% surge for up to 10 minutes and a 1000W 200% surge for up to 1 second. AS/NZS approved 240V sockets, with the inverter designed to Australian Standard AS4763.

Features and benefits

LED display: Provides information on battery voltage, power usage, and load capacity.

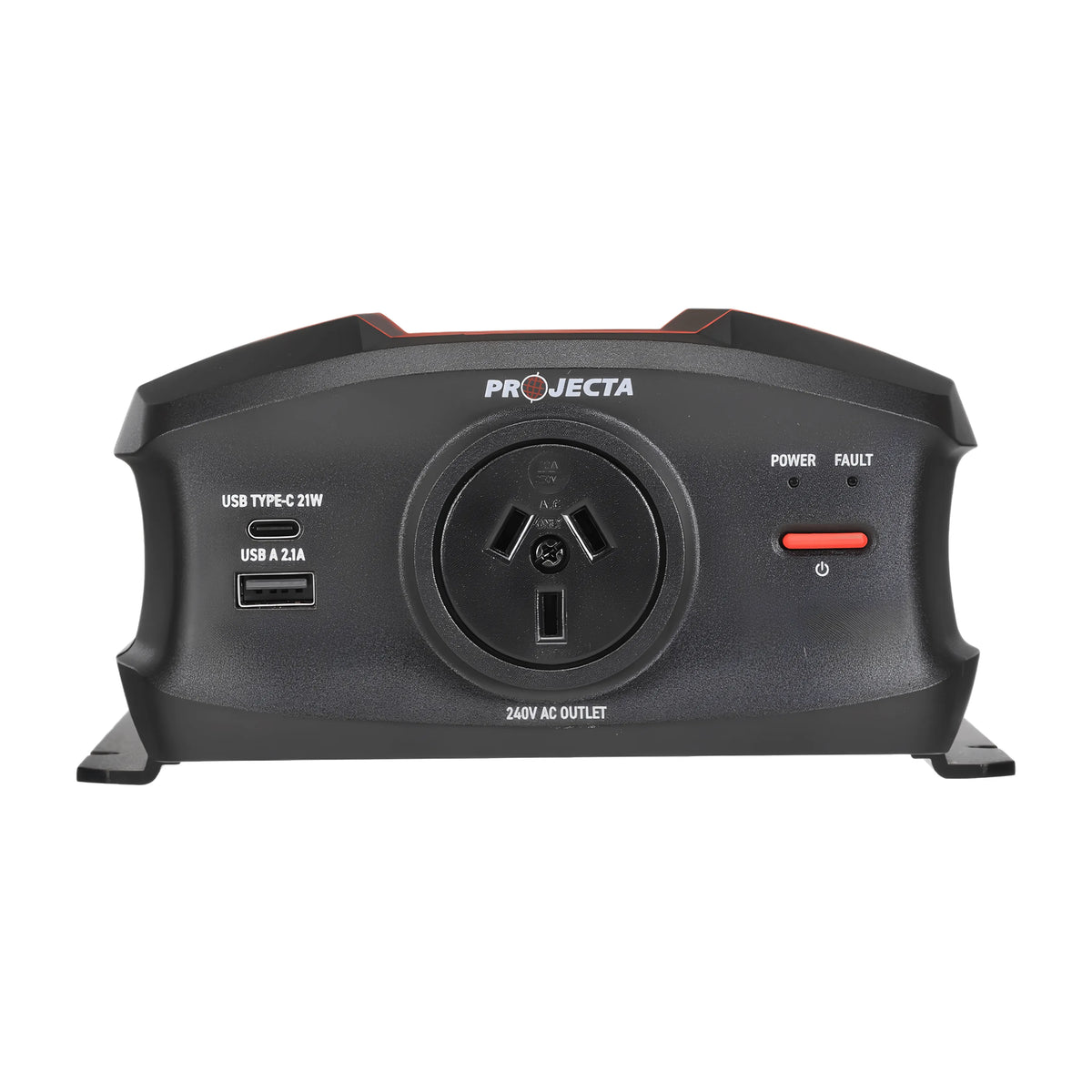

USB output socket: 2.1A USB-A and 21W USB-C ports for charging most mobiles and portable devices.

Wiring kit included: Battery lugs with 1100mm battery cable, mounting brackets for the remote, screws, rubber cable lugs, battery cables, 3M tape, and additional earthing cable.

Approved output socket: AS/NZS approved 240V sockets, with the inverter designed to Australian Standard AS4763.

Automatic cooling fan: Temperature and load controlled cooling fan manages internal temperature during operation.

Technical specs

Specification Detail
SKU PW500
Brand Projecta
Type Inverter
Output Power 500W Continuous, 600W 120% Surge (10 Minutes), 1000W 200% Surge (1 Second)
Output 240VAC, 50Hz (Pure Sine Wave)
Input 12V DC Battery/Vehicle (11V-14.5VDC)
Battery Alarm 10.5V (±0.3V)
Ideal Battery Size 35Ah and Above
Minimum Battery Size 25Ah
Run Time (500W on 25Ah Battery) 30 Minutes
Run Time (100W Globe on 25Ah Battery) 2.5 Hours
Standby Current Draw <0.9A
Cooling Fan Automatic Temperature and Load Controlled
Thermal Shutdown 65°C (±5°C)
Internal Fuse 80A
Recommended External Fuse 60A
Inverter Classification Equipotentially Bonded (EPB)
Efficiency 0.85
Shutdown 9.9V (±0.3V)
USB Output USB-C 21W, USB-A 2.1A
Dimensions 300 x 168.7 x 84.7mm
Weight 2.3kg
Warranty 3 Years

Compatible with

The PW500 is compatible with 12V battery systems with an ideal battery size of 35Ah and above, and a minimum battery size of 25Ah.

Frequently asked questions

What is the output power of the PW500?
The PW500 delivers 500W continuous output, with a 600W 120% surge capacity for up to 10 minutes and a 1000W 200% surge capacity for up to 1 second.

What battery size is recommended for the PW500?
The ideal battery size is 35Ah and above, with a minimum battery size of 25Ah.

Does the PW500 include a remote control?
Yes. The PW500 includes an LCD display and remote control unit providing information on battery voltage and power usage.

What run time can I expect from the PW500?
On a 25Ah battery, the PW500 provides approximately 30 minutes of run time at 500W load, or approximately 2.5 hours running a 100W globe.

What is included in the box with the PW500?
The PW500 includes the inverter, a remote control, installation hardware and accessories including battery lugs, cables, mounting brackets, and an instruction manual.
