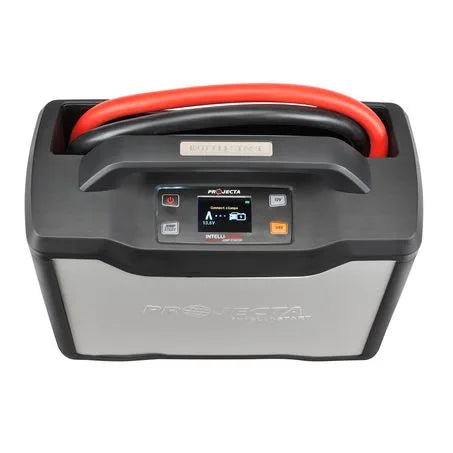

Projecta IS5000HD 12V 24V 5000A Heavy Duty Lithium Jump Starter

Projecta IS5000HD Heavy Duty 5000A Lithium Jump Starter with HD Multipole Plug

The Projecta IS5000HD is a heavy-duty lithium jump starter rated at 5000A, compatible with both 12V and 24V systems. Built with high-grade copper strand cabling, dual industrial-grade insulated leads, and an HD multipole plug connection, it is designed for demanding commercial and fleet applications. A two-year warranty is included.

Product overview

The IS5000HD delivers 5000A of jump start current through a high-conductivity copper strand cable with dual industrial-grade insulation rated for oil, water, and wear resistance. The HD multipole plug provides a secure and stable connection point, and the unit is compatible with both 12V and 24V vehicle systems, covering passenger vehicles, light commercial, and heavy-duty applications.

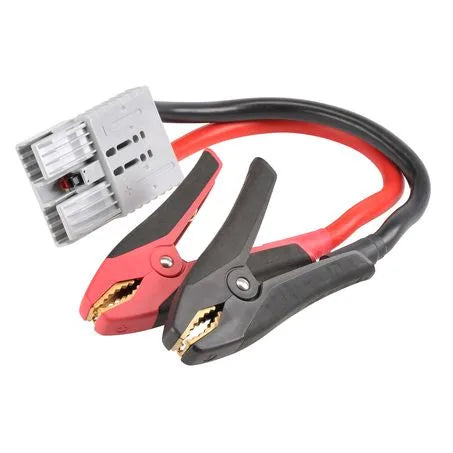

Integrated short-circuit and reverse-polarity protection is built into the unit, preventing excessive current from damaging either the vehicle or the jump starter during connection. Supplied clamps measure 0.5m, and the cable from the jump starter to the HD multipole connector is 1.5m in length.

Features and benefits

5000A jump start output: Delivers 5000A of peak current, providing the cranking power required for heavy-duty diesel and large petrol engines in commercial and fleet environments.

12V and 24V compatibility: Suits both 12V and 24V vehicle electrical systems, covering a wide range of passenger, commercial, and heavy-duty vehicles from a single unit.

High-conductivity copper strand cable: The cable core uses high-grade copper strands for efficient power delivery with minimal resistance during jump start operations.

Dual industrial-grade insulation: The outer cable layer uses two layers of industrial-grade insulation material that is oil-resistant, water-resistant, and wear-resistant, built to handle harsh workshop and field environments.

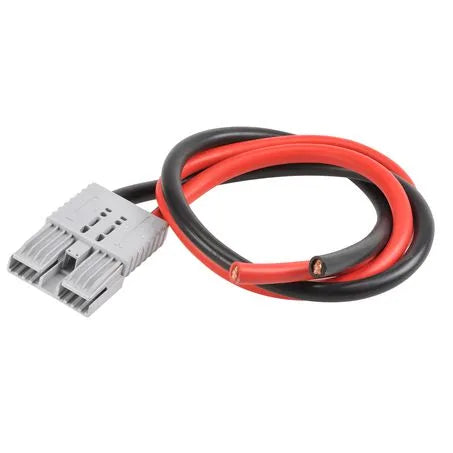

HD multipole plug connection: The heavy-duty multipole plug provides a secure, stable connection between the jump starter and the vehicle, suited to repeated commercial use.

Integrated short-circuit and reverse-polarity protection: Built-in protection prevents excessive current in the event of an incorrect or short-circuit connection, safeguarding both the vehicle and the jump starter.

Lithium battery technology: Lithium chemistry provides a high power-to-weight ratio and reliable performance across a range of operating temperatures compared to traditional lead-acid jump starter designs.

Technical specs

Frequently asked questions

Is the IS5000HD suitable for both petrol and diesel engines?
Yes. The 5000A output and 12V/24V compatibility make it suitable for a wide range of petrol and diesel engines including heavy-duty commercial applications. Contact us if you need guidance on suitability for a specific vehicle.

What protection does the IS5000HD have against incorrect connections?
The unit features integrated short-circuit and reverse-polarity protection, which prevents excessive current from flowing in the event of an incorrect connection, protecting both the vehicle and the jump starter.

What is the cable length supplied with the IS5000HD?
The supplied clamps measure 0.5m, and the cable from the jump starter to the HD multipole connector is 1.5m in length.

Does the IS5000HD come with a warranty?
Yes. The IS5000HD is covered by a two-year warranty. Contact us for further information on warranty terms and conditions.

Can the IS5000HD be used with extended length cables?
The source data references 1.3m and 5m cable length options available for compatible multipole connector models (ISHDMM13 and ISHDMM50), which are separate accessories. Contact us for further information on compatible cable options.
