Projecta IDC25XIQ 12 to 24V 25A DC to DC Charger with Intelli IQ

Projecta IDC25XIQ 12 to 24V 25A DC to DC Battery Charger with Intelli IQ Smart Display

The IDC25XIQ is a complete dual battery charging kit combining the Projecta IDC25X 12 to 24V 25A DC to DC battery charger with LINbus and the Intelli IQ Smart Display (IQD2). The Intelli IQ enables user defined charge profiles for any battery chemistry, remote software and firmware updates, comprehensive system monitoring, and seamless paralleling of up to 5 IDC25X units. Backed by a 5 year warranty.

Product overview

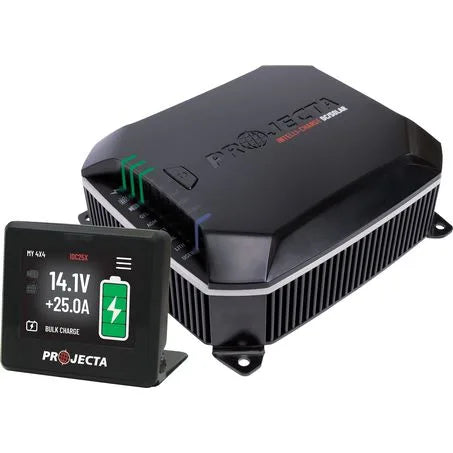

The Projecta IDC25XIQ bundles the IDC25X DC to DC battery charger with the Intelli IQ Smart Display, combining the charging capability of the IDC25X with the advanced control and monitoring features of the IQD2 display in a single kit. While the IDC25X standalone unit supports AGM, Gel, Wet, Calcium, and Lithium battery chemistries as standard, pairing it with the Intelli IQ unlocks a user defined profile that allows the IDC25X to charge any battery chemistry, providing complete flexibility for custom or emerging battery technologies.

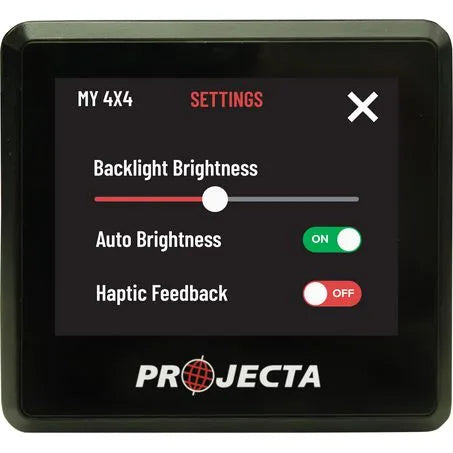

The Intelli IQ Smart Display provides comprehensive real time monitoring across solar input, alternator input, total current, and true battery voltage, giving the user a clear overview of the entire charging system from a single display. Remote software and firmware updates via the Intelli IQ keep the IDC25X current without requiring physical access to the charger unit, making the system future proof as network and battery technology evolves.

For larger auxiliary power systems, the IDC25XIQ supports seamless paralleling of up to 5 IDC25X units, allowing total charge current to be scaled up to meet the demands of high capacity battery banks in caravans, motorhomes, and commercial vehicle applications.

Features and benefits

Includes IDC25X and Intelli IQ Smart Display (IQD2): The IDC25XIQ bundles the 12 to 24V 25A DC to DC battery charger with LINbus and the Intelli IQ Smart Display into a single kit, providing both the charging hardware and the display and control interface in one purchase.

User defined charge profile for any battery chemistry: The Intelli IQ unlocks a user defined charge profile on the IDC25X, allowing it to charge any battery chemistry beyond the standard supported types, covering custom, specialist, and emerging battery technologies.

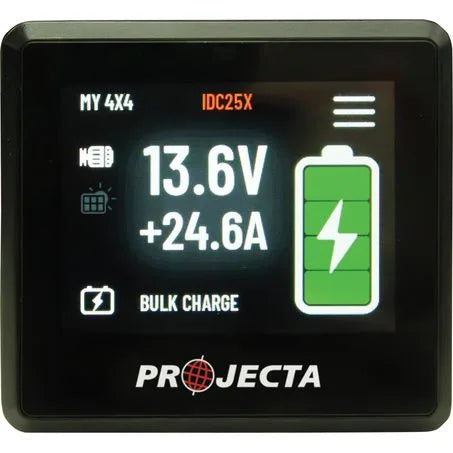

Comprehensive system monitoring via Intelli IQ display: The Intelli IQ Smart Display provides real time monitoring of solar input, alternator input, total current, and true battery voltage, giving a complete overview of charging system performance from a single interface.

Remote software and firmware updates: The Intelli IQ enables remote software and firmware updates to the IDC25X without requiring physical access to the charger, keeping the system current and compatible with future developments.

Seamless paralleling of up to 5 IDC25X units: Multiple IDC25X chargers can be paralleled seamlessly via the Intelli IQ, scaling total charge current output to match the demands of large auxiliary battery banks in high capacity mobile power systems.

5 year warranty: Backed by a 5 year warranty, providing long term confidence in the product's reliability and performance across its rated service life.

What's in the box

• Projecta IDC25X 12 to 24V 25A DC to DC battery charger with LINbus
• Projecta Intelli IQ Smart Display (IQD2)

Technical specs

Frequently asked questions

What is the difference between the IDC25XIQ and the IDC25X?
The IDC25X is the standalone DC to DC battery charger with LINbus. The IDC25XIQ bundles the IDC25X with the Intelli IQ Smart Display (IQD2), adding a user defined charge profile for any battery chemistry, comprehensive system monitoring, remote software and firmware updates, and seamless paralleling of up to 5 units. The IDC25XIQ is the complete kit; the IDC25X is the charger alone.

Can the IDC25XIQ charge a lithium battery?
Yes. The IDC25X supports Lithium battery chemistry as standard. When paired with the Intelli IQ, a user defined charge profile can also be configured for any battery chemistry including specialist or emerging lithium variants. Contact us for guidance on setting up the correct charge profile for your specific battery.

How many IDC25X chargers can be paralleled using the Intelli IQ?
The Intelli IQ supports seamless paralleling of up to 5 IDC25X units, allowing total charge current to be scaled significantly for high capacity auxiliary battery bank applications. Contact us for guidance on configuring a multi unit parallel system for your specific setup.

Does the Intelli IQ display show solar input separately from alternator input?
Yes. The Intelli IQ Smart Display monitors and displays solar input, alternator input, total current, and true battery voltage as separate readings, providing a complete and detailed overview of the entire charging system in real time.

Can the IDC25XIQ receive firmware updates without physically accessing the charger?
Yes. The Intelli IQ enables remote software and firmware updates to the IDC25X without requiring physical access to the charger unit, keeping the system current as updates are released by Projecta.

Questions and answers

What is the Projecta IDC25XIQ? Projecta lists it as: 12 to 24V 25A DC to DC Battery Charger With Intelli IQ Display.

What warranty applies? Projecta states a five year warranty for this part.
