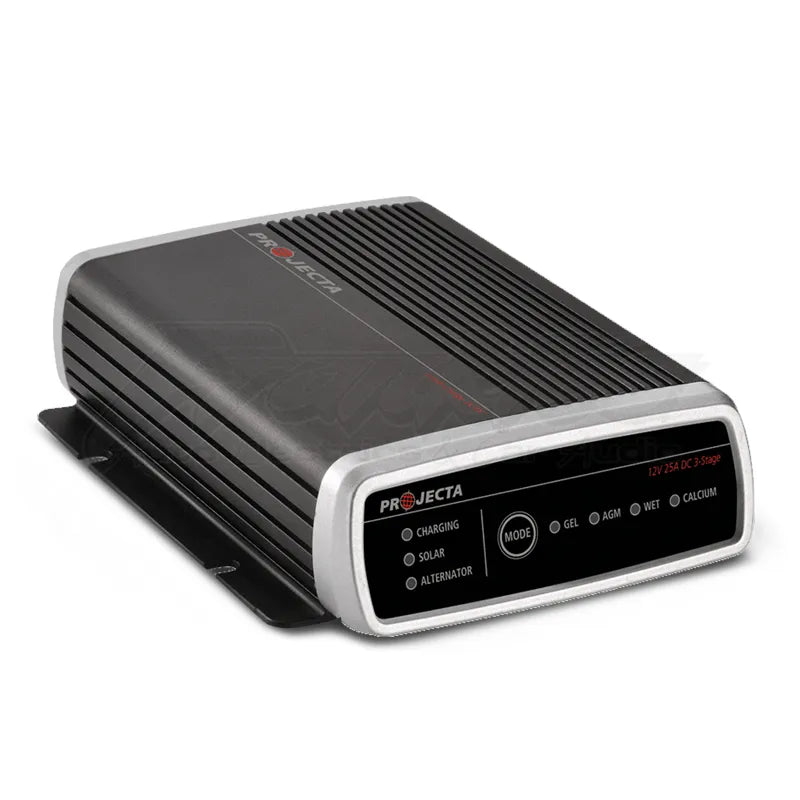

PROJECTA IDC25 25A 3 Stage Intelli-Charge 9-32V Deep Cycle Dual Battery Charger

PROJECTA IDC25: Making Tracks for Others to Follow!

Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger
Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.

Dual Charging Modes / Dual Input Operation
Simultaneous dual battery charging from both solar and alternator inputs.

Engine Bay Installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C.

Multi-Chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel.

Dual Input Operation
Simultaneous dual battery charging from both solar and alternator inputs.

Total Safeguard Protection
Over temperature, reverse connection, over/under and spark free protection.

PROJECTA IDC25 Features:

• 25A Solar MPPT
• Temperature Compensation
• Multi-Chemistry
• Simultaneous Solar & Alternator Charging
• Dual Charging Modes for Smart/ Conventional Alternators
• Ideal for Under Bonnet Installation
• Pre-Wired Cabling, Labelled for Ease of Installation

Specifications:

• Charge Type: 3 Stage
• Alternator Input Voltage: 9-32V DC
• Max Solar Input: 23V DC, 385W
• Output Current:
  • Input 9-11V DC 20A
  • Input 11-32V DC 25A
• Back Drain On AUX Battery: 9.5-10.5mA
• Charger Control:
  • Gel: 14.1V
  • AGM: 14.4V
  • Wet: 14.7V
  • Calcium: 15.4
• Battery Capacity: 75-300Ah
• Batteries Supported: Gel, AGM, Wet & Calcium
• Smart Alternator:
  • 12V: Turn On: 12.2-20V - Turn Off: <11.9V
  • 24V: Turn On: 24.4-32V - Turn Off: <24V
• Conventional Alternator:
  • 12V: Turn On: 13.4-20V - Turn Off: <12.8V
  • 24V: Turn On: 26.8-32V - Turn Off: <25.6V
• Operating Temperature: -10°C to +80°C
