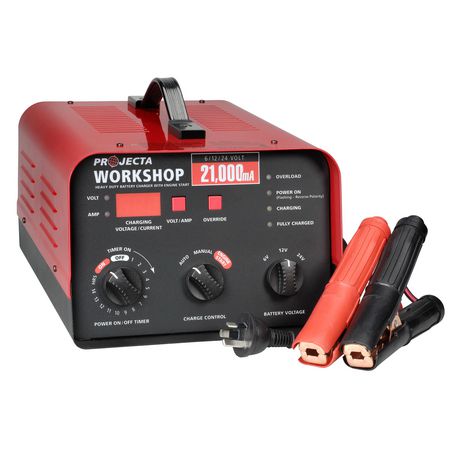

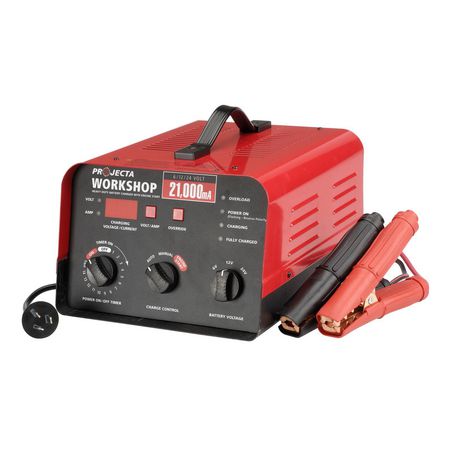

Projecta HDBC35 6/12/24V Automatic and Manual 21 Amp 2 Stage Battery Charger
Projecta HDBC35 6/12/24V Automatic and Manual 21 Amp 2 Stage Battery Charger
Projecta HDBC35 6/12/24V Automatic and Manual 21 Amp 2 Stage Battery Charger
Projecta HDBC35 6/12/24V Automatic and Manual 21 Amp 2 Stage Battery Charger
Click to open expanded view
PROJECTA logo

Projecta HDBC35 6/12/24V Automatic and Manual 21 Amp 2 Stage Battery Charger

SKU: HDBC35
Price
$920
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Projecta HDBC35 6/12/24V Automatic and Manual 21 Amp 2 Stage Battery Charger

Projecta HDBC35 6/12/24V Automatic and Manual 21 Amp 2 Stage Battery Charger

$920

Product features

The bigger 21A version of the HDBC workshop charger, with 85A engine start on 12V, for transport and farm gear. A timer turns the charger off at a set time. Size and weight: 301 x 264 x 161 mm, 11.5kg.

In the box: 6V/12V/24V Automatic and Manual Battery Charger, Instruction Manual. Projecta's battery size guide: automotive 6V, 12V, 24V 550 to 2000CCA, 4 to 10 hours; marine 6V, 12V, 24V 700 to 2000MCA, 5 to 12 hours.

Engine start: 5 cycles 5 min on, 5 min off 6V: 85A at 3.6V 12V: 85A at 7.2V 24V: 48A at 14.4V. Listed voltages: 6V Cut out/cut in/start: 7.1V /6.7V/0.0V 12V Cut out/cut in/start: 14.2V/13.4V/0.0V 24V Cut out/cut in/start: 28.4V/26.8V/0.0V.

Charge in a ventilated area, away from sparks or flames. Read the manual before first use and match the battery type setting to the battery. Connect the clamps before switching on at the wall, and switch off before removing them. Check the leads and clamps for damage before each use. Browse the full battery chargers range, or the whole <a href="https://frankiesautoelectrics.com.au/collections/projecta">Projecta range</a>, for matching parts.

Specifications

  • Output: 21.0A at 6.3V, 21.0A at 12.0V, 13.5A at 26.V
  • Voltage: 6V, 12V, 24V
  • Stages: 2 Stage Automatic and Manual
  • Mains input: 240V, 50Hz, 636W
  • Size: 301 x 264 x 161 mm
  • Weight: 11.5kg

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

What charge current does the HDBC35 put out?

Projecta lists 21.0A at 6.3V, 21.0A at 12.0V, 13.5A at 26.V.

What battery sizes is the HDBC35 suited to?

Projecta's battery size guide: automotive 6V, 12V, 24V 550 to 2000CCA, 4 to 10 hours; marine 6V, 12V, 24V 700 to 2000MCA, 5 to 12 hours.

What comes in the box with the HDBC35?

In the box: 6V/12V/24V Automatic and Manual Battery Charger, Instruction Manual.

Can the HDBC35 help start a flat vehicle?

Yes. Projecta lists 5 cycles 5 min on, 5 min off 6V: 85A at 3.6V 12V: 85A at 7.2V 24V: 48A at 14.4V.
