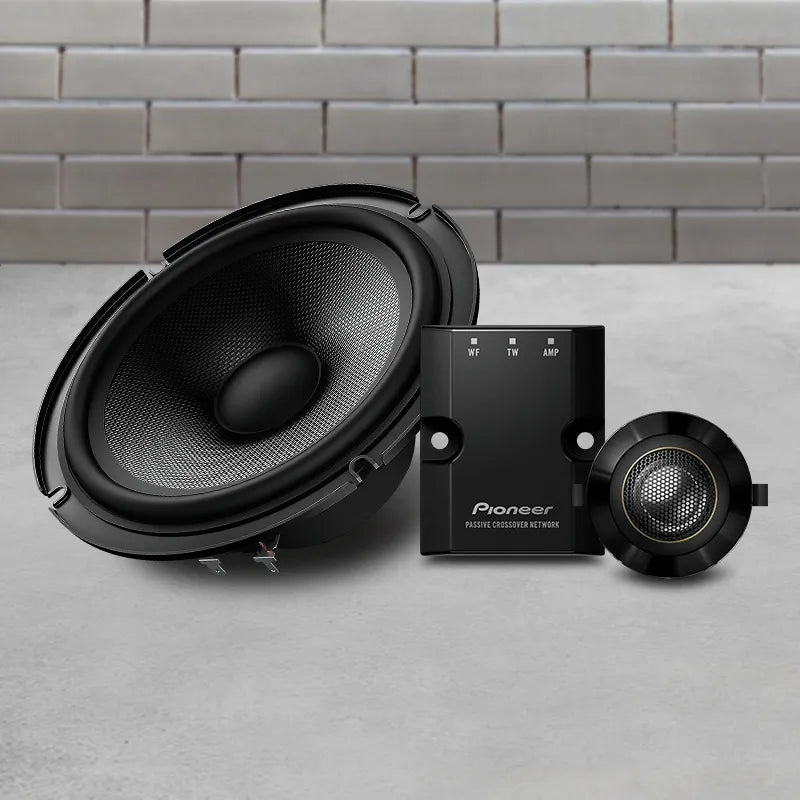

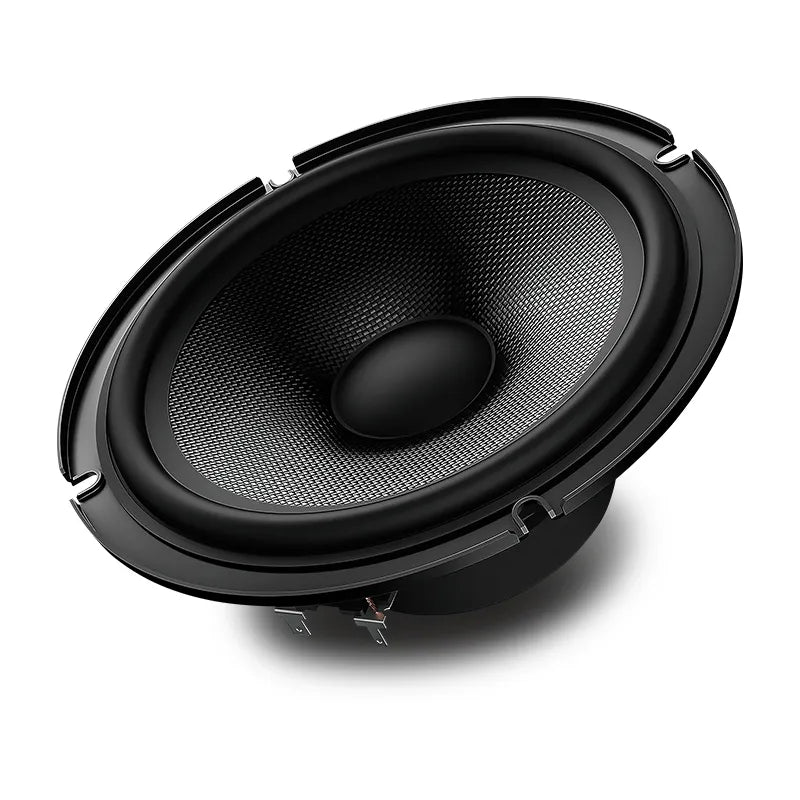

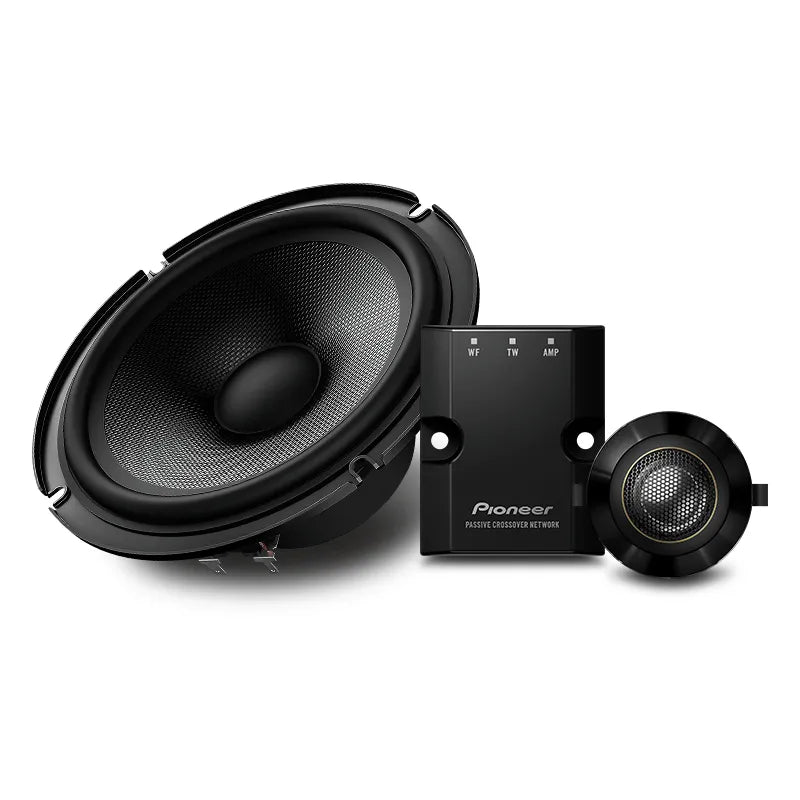

Pioneer TS-Z65C 330W 6.5” Coaxial 2-Way Component Speaker System

SKU: TSZ65C
Sale price
$402.80
Regular price
$505
You save
20%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Product features

Pioneer TS-Z65C 330W 6.5” Coaxial 2-Way Component Speaker System: Z Full Range, No Compromises

The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from our decades of automotive loudspeaker design theory and testing ability.

The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from decades of automotive loudspeaker design theory and testing ability. Following Pioneer’s OPEN & SMOOTH™ sound concept, the Z series of automotive loudspeakers features smooth off-axial frequency response, superior directivity and extended frequency range engineered specifically to produce dynamic, accurate sound quality for the car. The result is a purity of sound that achieves unprecedented audio artistry.

Designed for High-Res Audio
The quality of music recordings available to listeners has evolved. Hi-Res Audio recordings contain significantly more data compared to a standard CD recording and require a loudspeaker that is capable of smoothly reproducing frequencies of 40kHz or higher. The Z speakers are designed to deliver sound that’s clearer, sharper and more complex – reproducing music that is closer to the original performance.

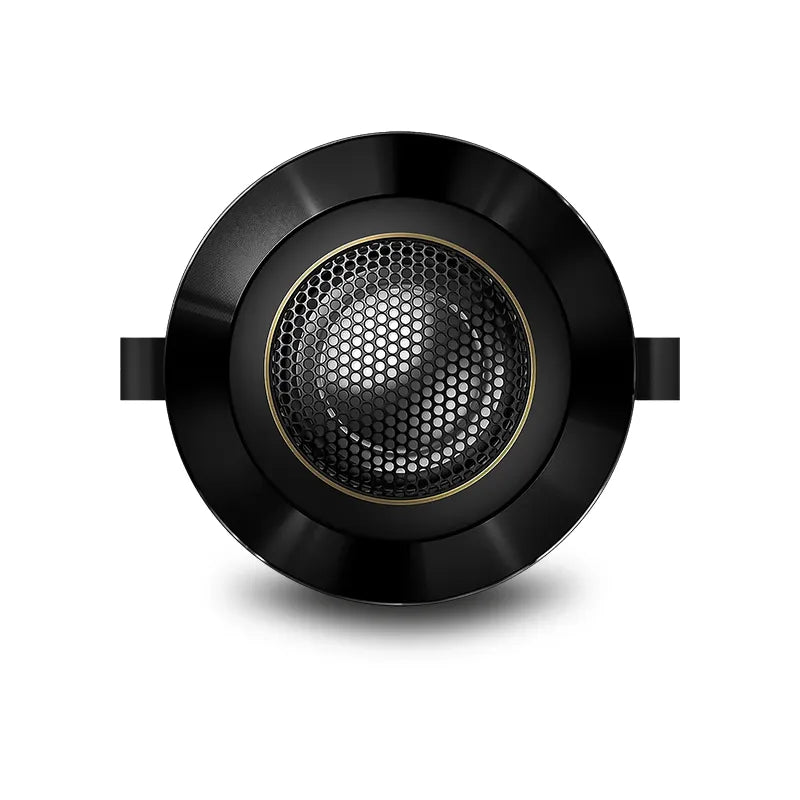

29mm Aluminum Alloy Balanced Dome Tweeter
The Z tweeter’s aluminum alloy diaphragm allows the tweeter to remain pistonic and linear at ultrasonic frequencies. The unique diaphragm shape, developed using HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis, accurately controls differential vibration produced by the diaphragm and improves high frequency dispersion.

Pioneer’s Vertex Drive System improves the mechanical coupling of the voice coil and the tweeter diaphragm, reducing distortion and coloration caused by low damping and increasing power handling.

Pioneer TS-Z65C Features:

  • 330 Watts Max Power / 110 Nominal
  • 29mm Aluminum Alloy Balanced Dome Tweeter
  • Designed for High Res Audio
  • Twaron Aramid Fibre Construction

Pioneer TS-Z65C Specifications:

General

  • Size: 6.5"
  • Design: 6.5" 2-Way Seperate System
  • Tweeter Design: 29mm Balanced Dome
  • Tweeter Composition: Aluminum
  • Tweeter Magnet Composition: Neodymium
  • Woofer Composition: Twaron
  • Woofer Surround: Butyl Rubber
  • Woofer Magnet Composition: Ferrite
  • Warranty: 1 Year

Installation Specification

  • Max. Music Power (Nominal): 300W MAX (100W Nom)
  • Frequency Response: 32Hz to 96kHz
  • Sensitivity (1W/1 m): 85dB
  • Impedance: 4Ω
  • Crossover Frequency: 2000 Hz
  • Mounting Depth: 65mm
  • Cut-Out Dimensions: 144mm
