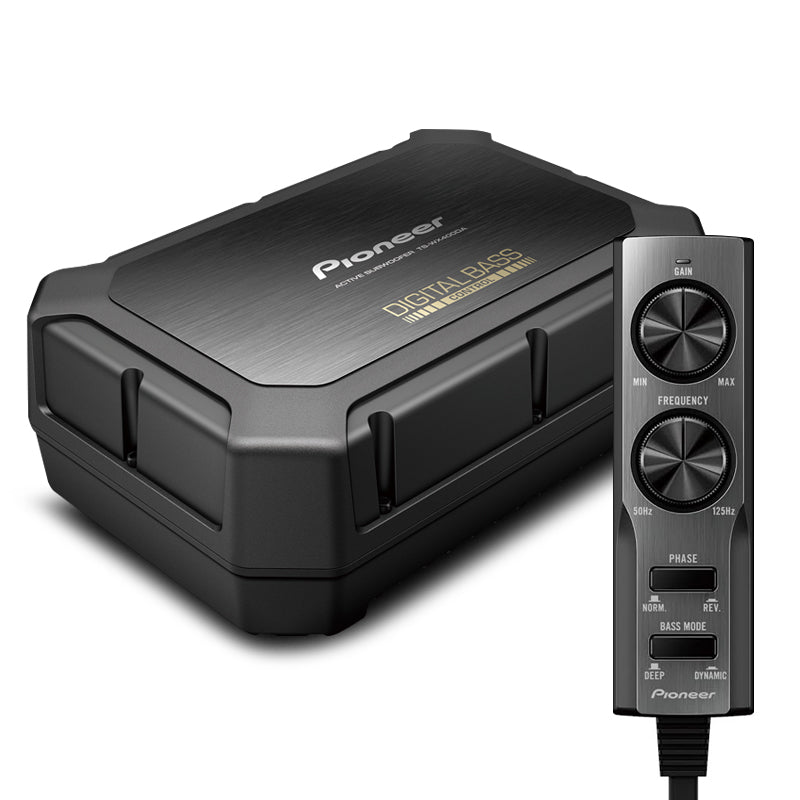

Pioneer TS-WX400DA 250W Compact Active Underseat Subwoofer with Wired Bass Remote

The Pioneer TS-WX400DA is a powered subwoofer with a built in 250W max (100W nominal) Class D amplifier and a down firing 24 x 14cm driver, all in a box 300mm wide, 200mm deep and 100mm high.

Factory systems in hatches, SUVs and dual cabs are thin on bass, and a traditional sub box eats the boot or tray space you need. The TS-WX400DA slides under or behind a seat, draws a modest 9.4A at most, and the wired remote lets you set the bass level from the driver's seat.

What it does

• Built in Class D amplifier, 250W max and 100W nominal
• Down firing driver for fuller low end from a small enclosure
• Digital Bass Control with Deep and Dynamic modes
• Wired remote for gain, crossover, phase and bass mode
• Speaker level and RCA style low level inputs for factory or aftermarket head units
• Fits under seats, behind seats or in small storage spaces

Specifications

Fitment and what comes in the box

Measure the space under your seat: the sub needs 300 x 200mm of floor and 100mm of height, plus room for the wiring at the end. Pioneer notes its fitment guide is a reference only, so we check the seat rails and any under seat ducts before we fit.

Ask us what comes in the box before you order.

Installation notes

The TS-WX400DA accepts speaker level input, so it can be added to most factory head units without a line output converter. Run the power cable straight from the battery with a fuse near the terminal.

Warranty

Pioneer Australia lists a 1 year warranty on the TS-WX400DA. Your rights under the Australian Consumer Law always apply.

Call Albion Park Rail (02) 4257 2636 or South Nowra (02) 4423 5254 and we will check whether the TS-WX400DA fits under your seat.

Frequently asked questions

Will the TS-WX400DA fit under my seat?

It needs 300 x 200mm of floor and 100mm of height. Give us your vehicle and we will check the space.

Does it need a separate amplifier?

No. The Class D amplifier is built in.

Does the TS-WX400DA work with the original stereo?

Yes. Pioneer lists speaker level inputs as well as low level inputs, so it suits factory and aftermarket head units.

What do Deep and Dynamic do?

They are two bass tuning curves. Deep favours extension and Dynamic gives more punch; pick the one that suits your music and car.

What warranty does it have?

Pioneer Australia lists a 1 year warranty. Your rights under the Australian Consumer Law always apply.

How much current does it draw?

Pioneer lists 9.4A maximum, so we run the power cable from the battery with a fuse close to the terminal.
