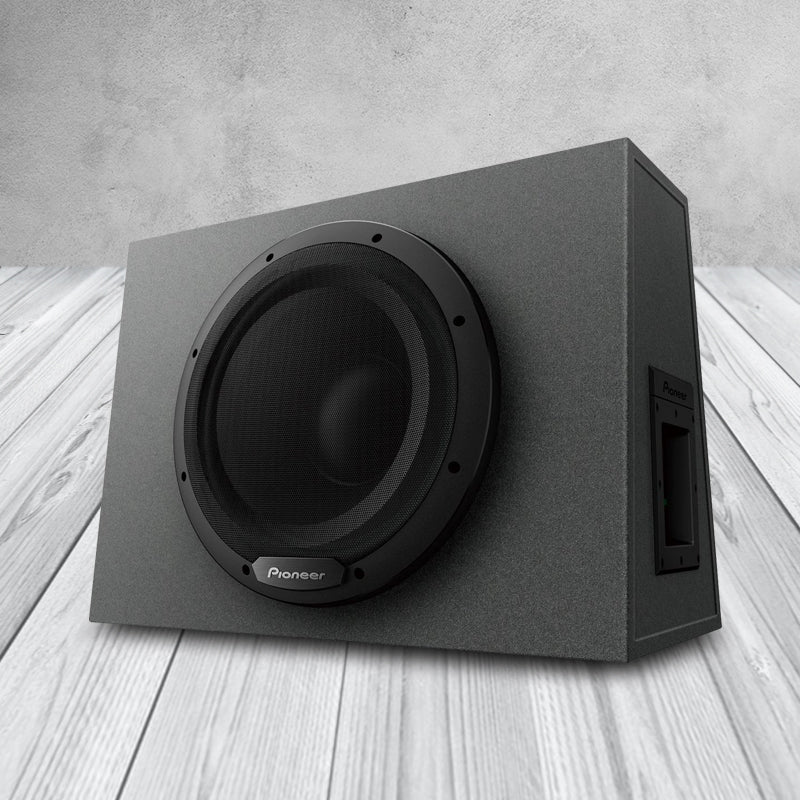

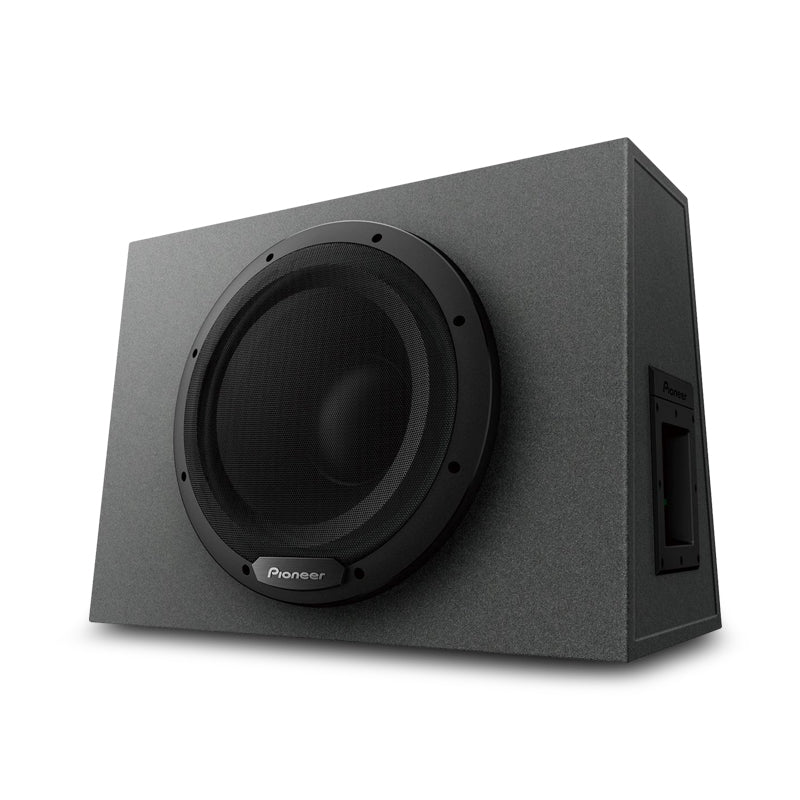

Pioneer TS-WX1210A 12" 1300W Sealed Enclosure Active Subwoofer With Built-In Amplifier

The Pioneer TS-WX1210A Delivers Big Bass in Small Spaces!

12” Active Subwoofer in Sealed Enclosure
TS-WX1210A subwoofers are built with high bandwidth, high output, and low distortion 300-watt class D amplifiers mated to high sensitivity woofers specifically optimized for use in small, sealed enclosures. User-adjustable controls include a variable low pass filter (50Hz to 125Hz), phase control (Normal/Reverse), and variable bass boost (0 to +12 dB gain with 40Hz to 100Hz center frequency) providing enhanced control of subwoofer output. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.

Powered Amplified Subwoofer
Built with high bandwidth, high output, and low distortion 300-watt Class D amplifier mated to high-sensitivity woofers specifically optimized for use in small, sealed enclosures.

Flexible Sound Adjustment

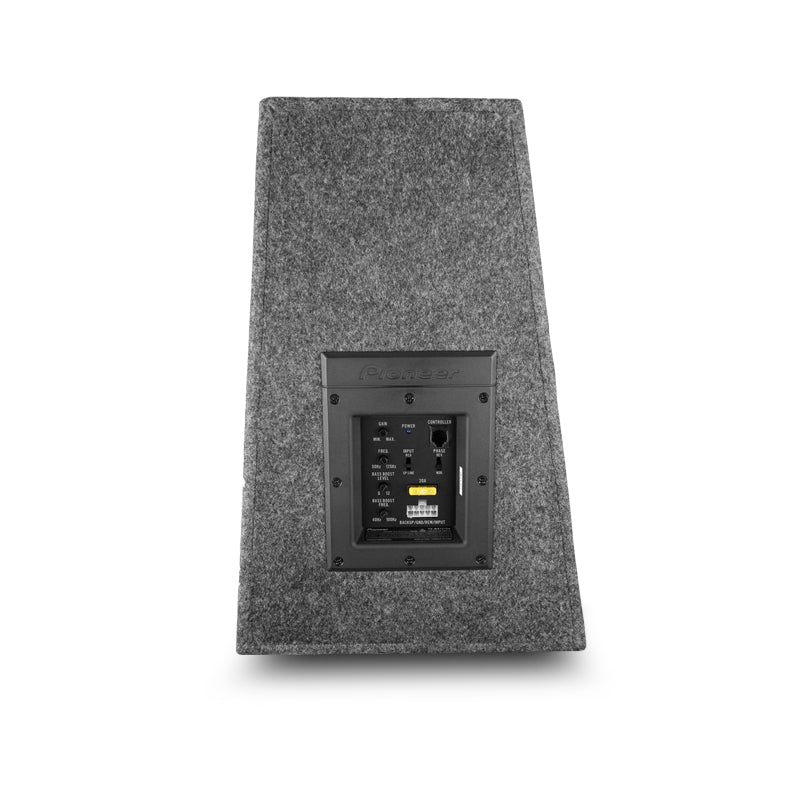

User-adjustable controls include an LPF, phase control, and variable bass boost (0 to +12 dB, 40Hz to 100Hz) providing enhanced control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.

Install Flexibility
The innovative trapezoid shape of the enclosure is designed for high rigidity and to reduce internal standing waves, while also increasing installation flexibility. Can be installed freely in the cabin or under seats and re-positioned with the subwoofer firing rear, front, or upwards for optimal bass tuning. The enclosure is fully carpeted, creating a non-slip, durable, and scratch-resistant surface.

Features:

• 1,300 Watts Max Power. (350 Watts Nom.)
• Built-in 300 Watts Output Class-D Amplifier
• Variable Bass Boost (0 to +12 dB, 40Hz to 100Hz)
• Wired Remote Bass Control & Gain Control on the side panel

Specifications:

General:

• Driver Size: 12"
• Enclosure Dimensions: 528mm (W) x 279mm (D) x 380mm (H)
• Max. Music Power (Nominal): 1300W Max (350W Nom)
• Woofer Composition: Cellulose Fiber
• Woofer: Surround Urethane

Audio:

• Frequency Response: 20Hz ~ 125Hz
• Sensitivity (1W/1 m): 114dB

What's in the Box:

• 2 Metal Mounts
• Install Screws
• Power & Ground/System Remote/RCA Input Cable
• Wired Remote
• Remote Cable
• Warranty Card
• Owner's Manual
