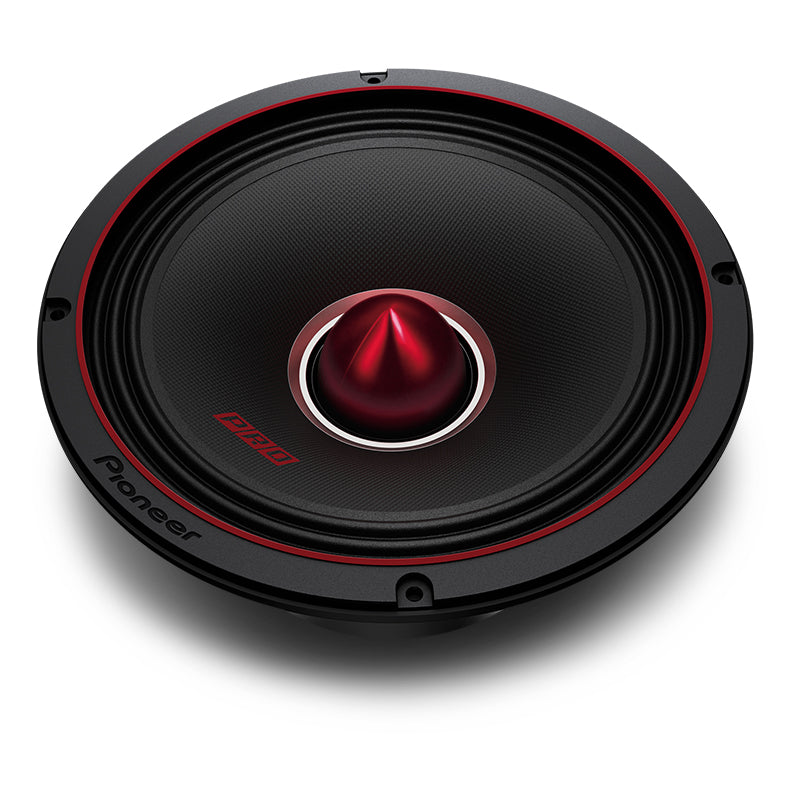

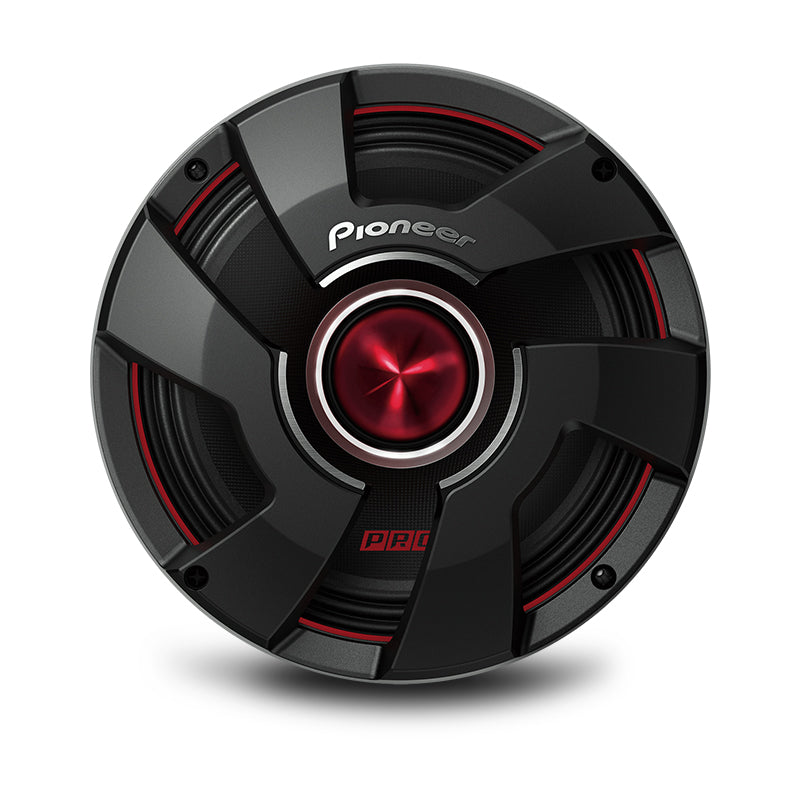

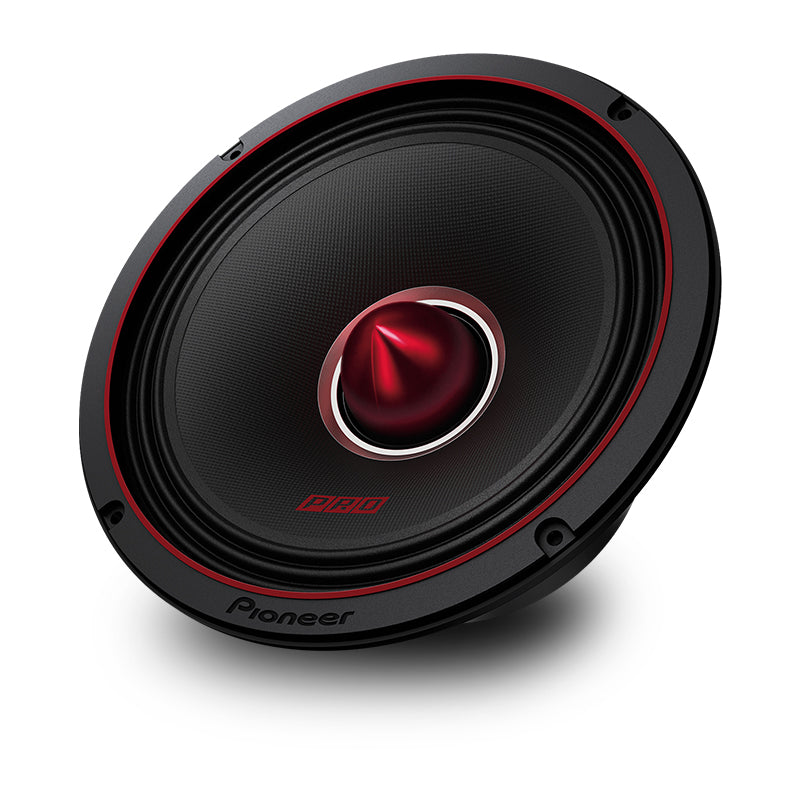

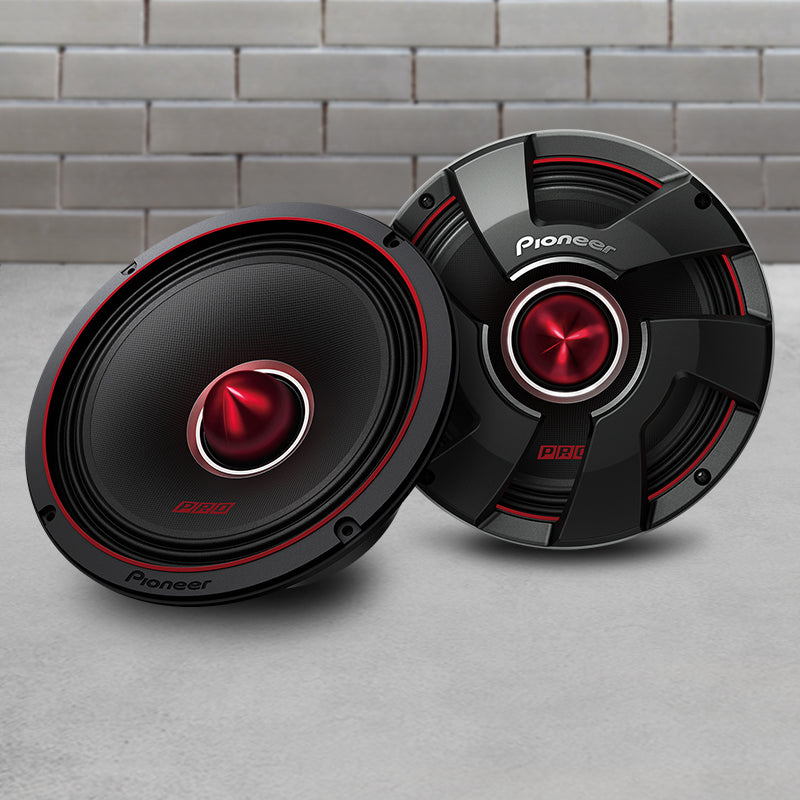

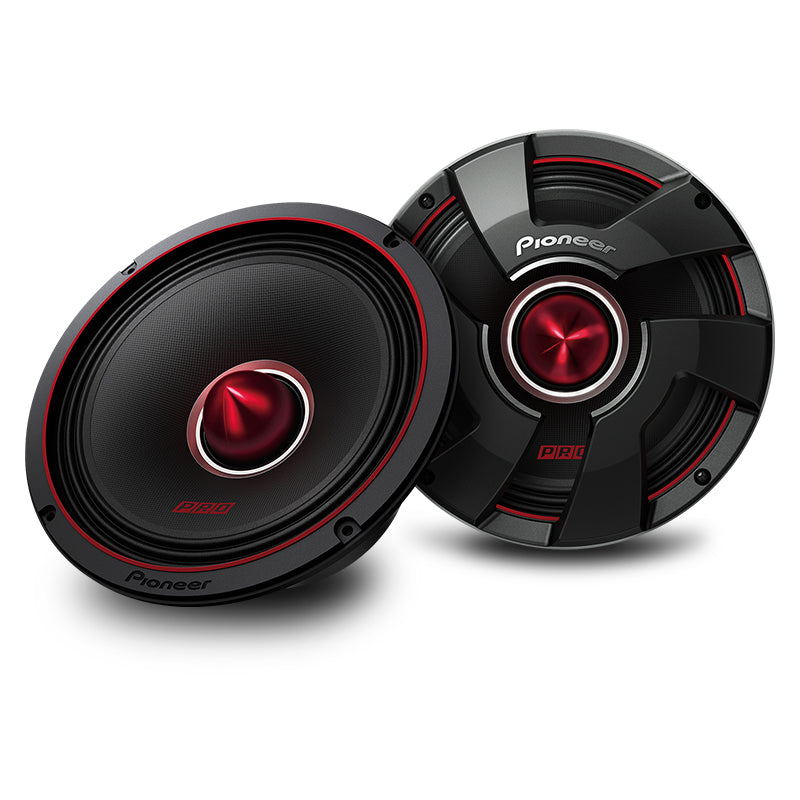

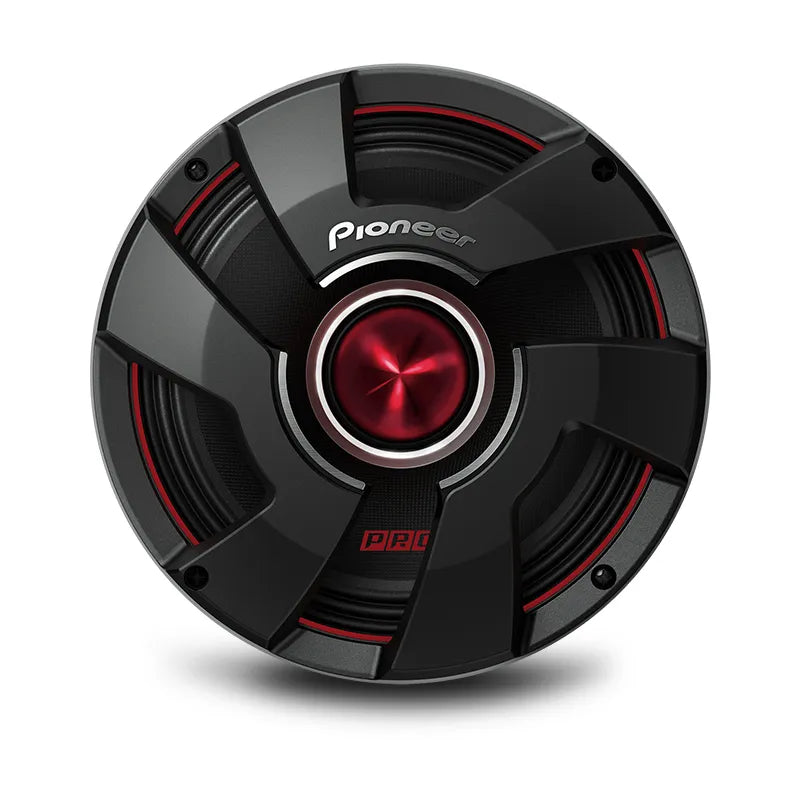

Pioneer TS-M801PRO 8" 700w Max Power PRO Series Mid-Bass Driver

Are You Ready To Go P.R.O.?

The P.R.O. series of speakers are designed specifically for those looking to produce some serious sound pressure levels. Inspired by Pioneer’s history of record breaking SPL competition, the new P.R.O. series line of speakers is constructed with the street enthusiast in mind. With an emphasis on efficiency and power handling, the P.R.O. series lineup consists of bullet tweeters, mid-bass drivers, and a subwoofer that can be mixed and matched to deliver impressive output, without requiring an impressive investment.

Pure Power
The TS-M801PRO mid-bass driver delivers the perfect balance of power handling and output to compliment the crisp highs from the bullet tweeters. Anchored by high strength, stamped steel frames, the mid bass drivers feature lightweight blended pulp cones suspended by a corrugated surround and motivated by oversized magnets resulting in copious amounts of sensitivity, excursion, and power handling.

Specifications:

System

• System Type: Mid-Bass Driver
• Sound Pressure Level (Sensitivity): 96dB
• Frequency Range: 40 Hz to 15 kHz
• Continuous Power Handling (RMS): 200 Watts
• Maximum Peak Power Handling: 700 Watts
• Nominal Impedance: 4 ohms
• Shape: Round
• Size: 8"

Woofer

• Cone Material: Lightweight/ Rigid Pulp
• Surround Material: Cloth
• Surround Type: Corrugated
• Basket Material: Stamped Metal
• Magnet Material: Ferrite
• Magnet Weight: 38.0 oz
• Voice Coil Bobbin: Glass imide
• Voice Coil Wire: Copper-clad Aluminum
• Spider Material: Polyester and cotton
• Wire Terminals: Lug Type
• Unit Size (mm - in.): 208mm - 81/4"
• Mounting Depth (mm - in.): 93mm - 3-5/8"
• Cut Out Dimensions (mm - in.): 184mm - 7-1/4"
