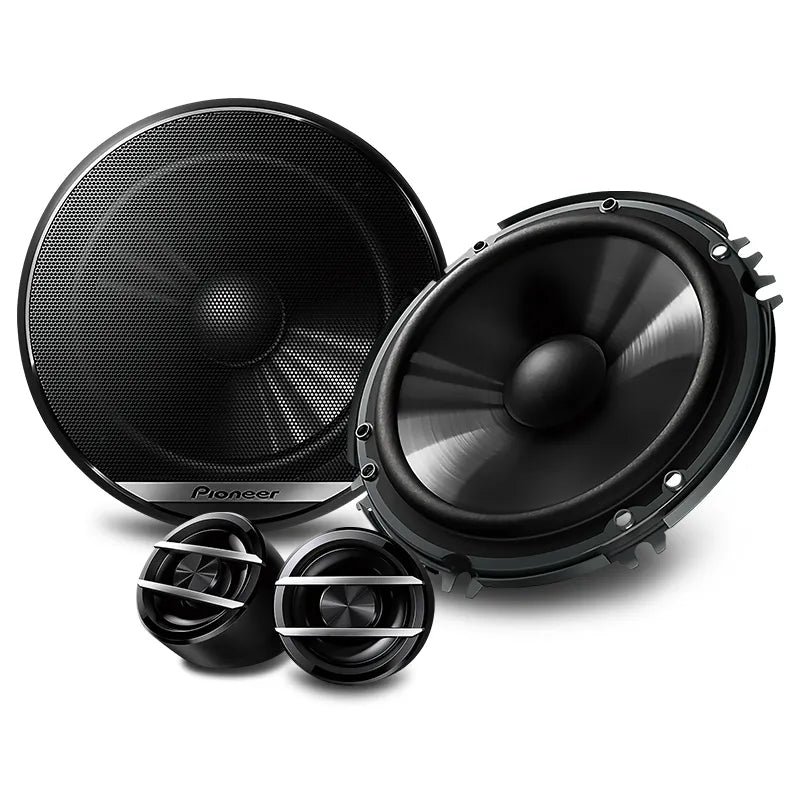

Pioneer TS-G160C-2 woofers, tweeters and crossovers together
Pioneer TS-G160C-2 woofers, tweeters and crossovers together

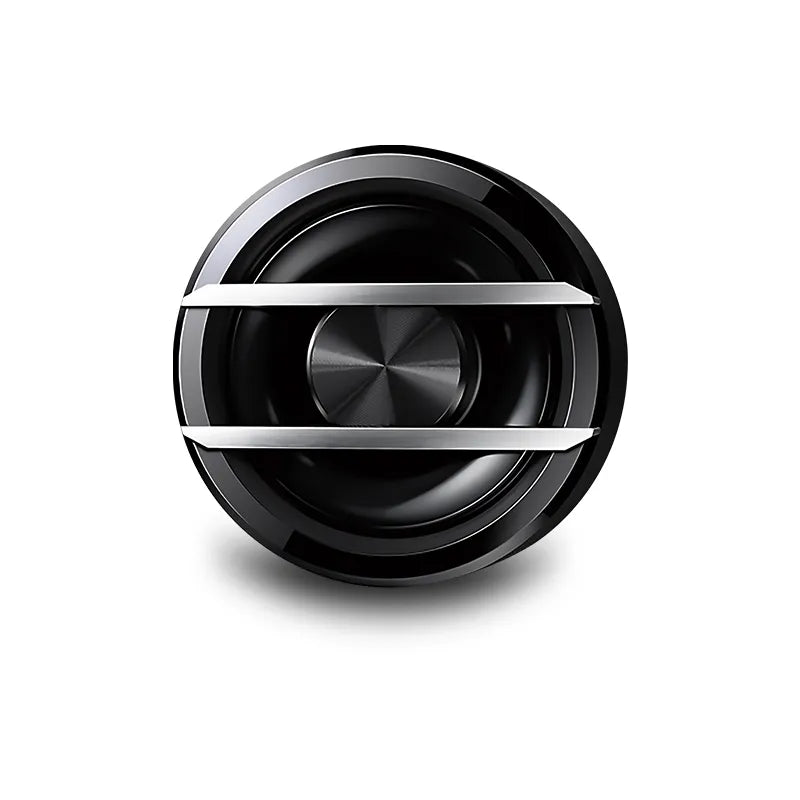

Front view of the 30mm tweeter with grille
Front view of the 30mm tweeter with grille

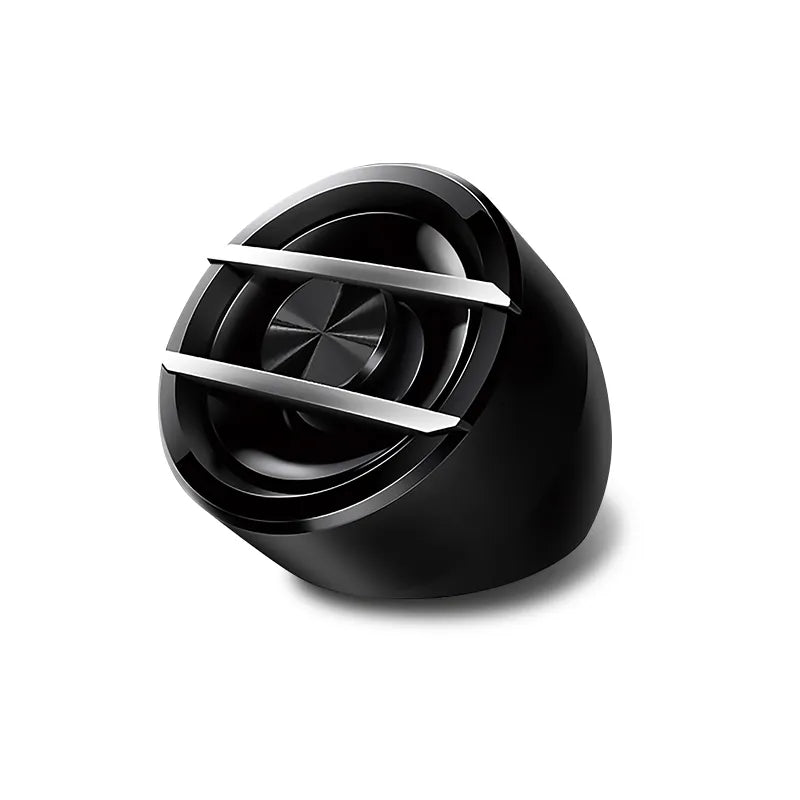

Tweeter in its angled housing
Tweeter in its angled housing

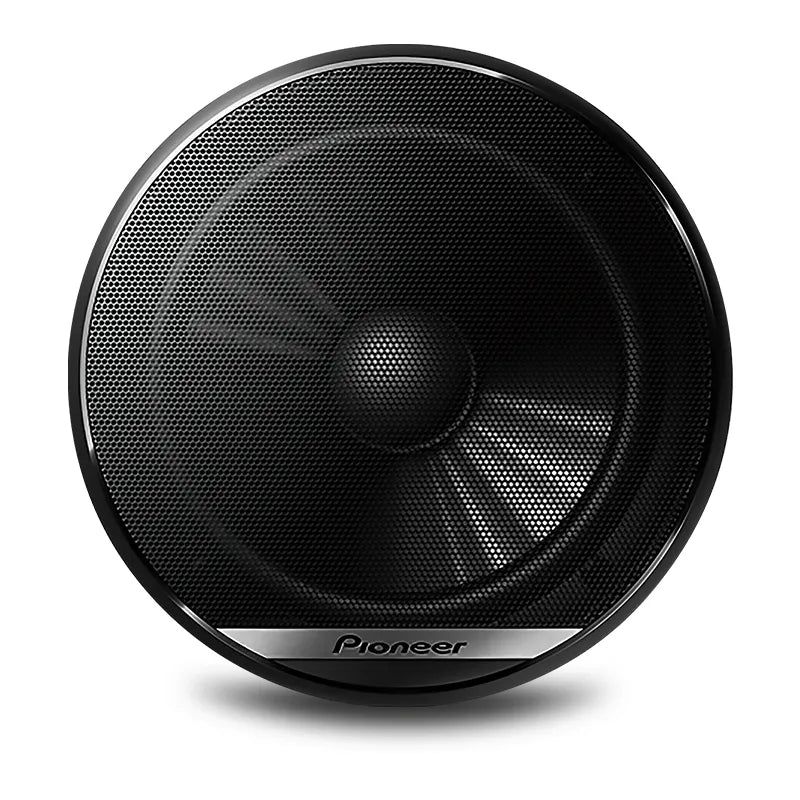

Front view of the 6.5 inch woofer cone
Front view of the 6.5 inch woofer cone

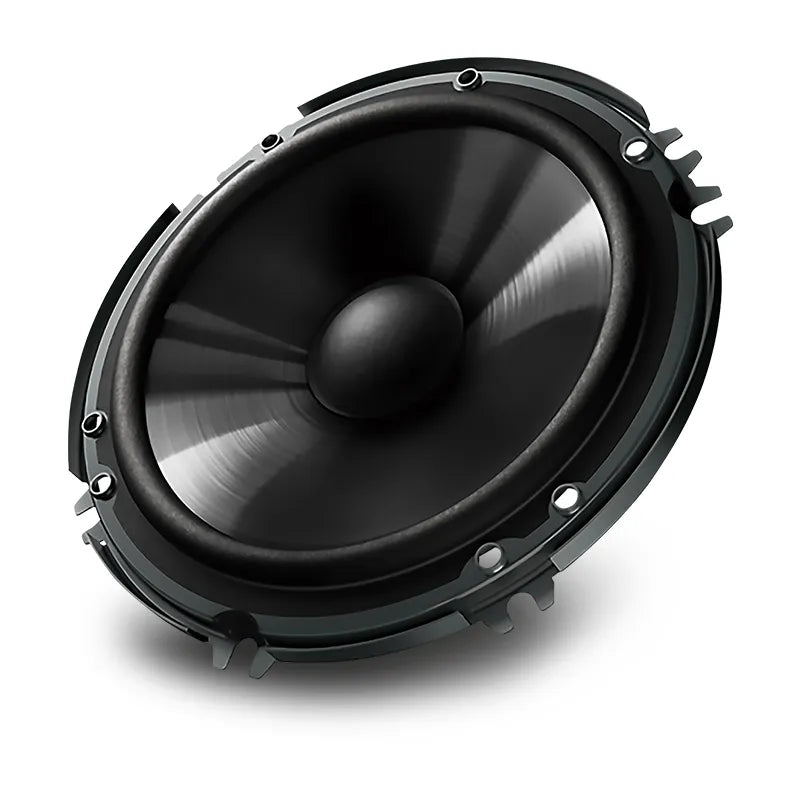

Woofer shown at an angle
Woofer shown at an angle

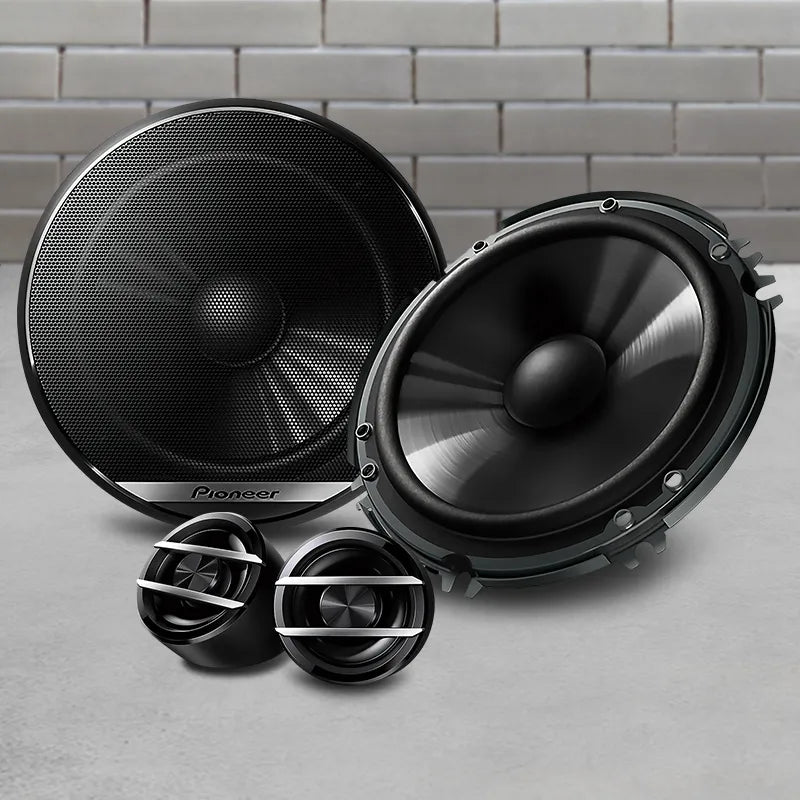

Component set on a grey studio background
Component set on a grey studio background
Click to open expanded view
PIONEER logo

Pioneer TS-G160C-2 6.5" 300W 2 Way Component Speaker Package

SKU: TSG160C2
Price
$109.95
Recommended retail price
$145.00
Difference from recommended retail price
$35 below RRP
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Pioneer TS-G160C-2 woofers, tweeters and crossovers together

Pioneer TS-G160C-2 6.5" 300W 2 Way Component Speaker Package

$109.95
Recommended retail price
$145.00
Difference from recommended retail price
$35 below RRP

Product features

When the tweeter sits low in the door, singers sound like they are in the footwell rather than in front of you.

The TS-G160C-2 separates a 30mm balanced dome tweeter from the 6.5 inch woofer so the tweeter can go higher in the door or dash. Pioneer lists 300W max and 45W nominal, a 128mm cut out and a 42mm mounting depth, which suits shallow doors.

TS-G160C-2 features

  • 6.5 inch two way separate system
  • 300W max power, 45W nominal
  • 30mm balanced dome tweeter in PET
  • Rubber coated cloth woofer surround

Specifications

Design 6.5 inch 2 way separate system
Frequency response 42 Hz to 26 kHz (minus 20 dB)
Sensitivity (1W/1m) 91 dB
Impedance 4 ohm
Cut out 128mm
Mounting depth 42mm

Fitment and compatibility

Pioneer lists a 128mm cut out and 42mm depth for the woofer. Send us the make, model and year so we can check the tweeter location and adaptor rings for your car.

What is in the box

Pioneer Australia leaves the grille entry blank for the TS-G160C-2, so we cannot promise grilles. Call us and we will check a boxed pack for grilles and tweeter mounts.

Install notes

The separate tweeters need a mounting spot and a crossover wired in line, so allow extra fitting time. Book the job at our Albion Park Rail workshop on (02) 4257 2636.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

What power does the TS-G160C-2 handle?

Pioneer rates it at 300W max and 45W nominal.

How much space does the TS-G160C-2 woofer need?

Pioneer lists a 42mm mounting depth and a 128mm cut out.

What tweeter does it use?

A 30mm balanced dome tweeter made from PET.

Will these fit my front doors?

Most 6.5 inch doors suit. Tell us your vehicle and we will check the tweeter spot and the rings needed.
