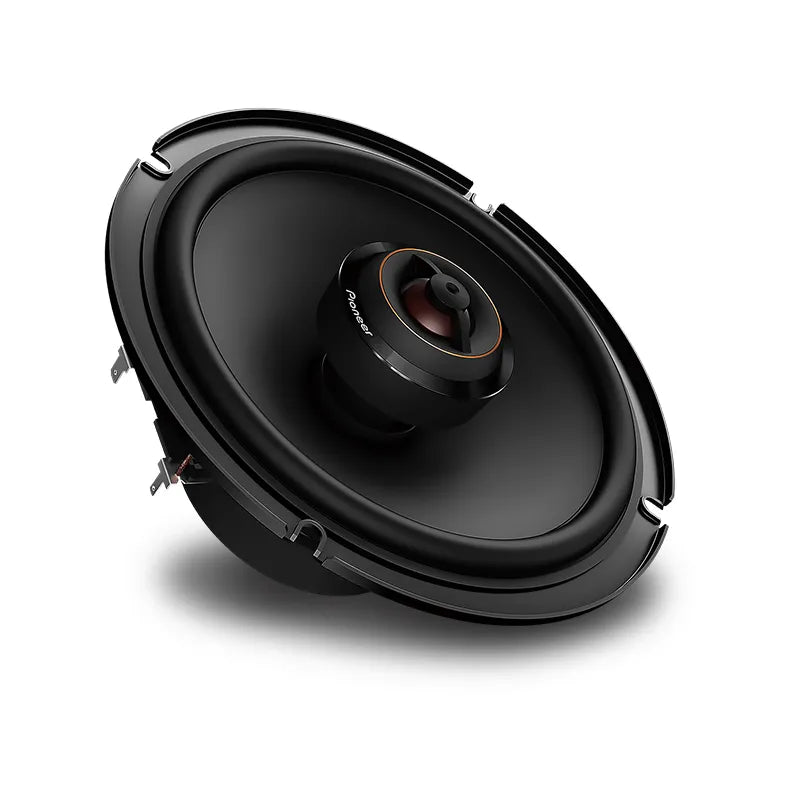

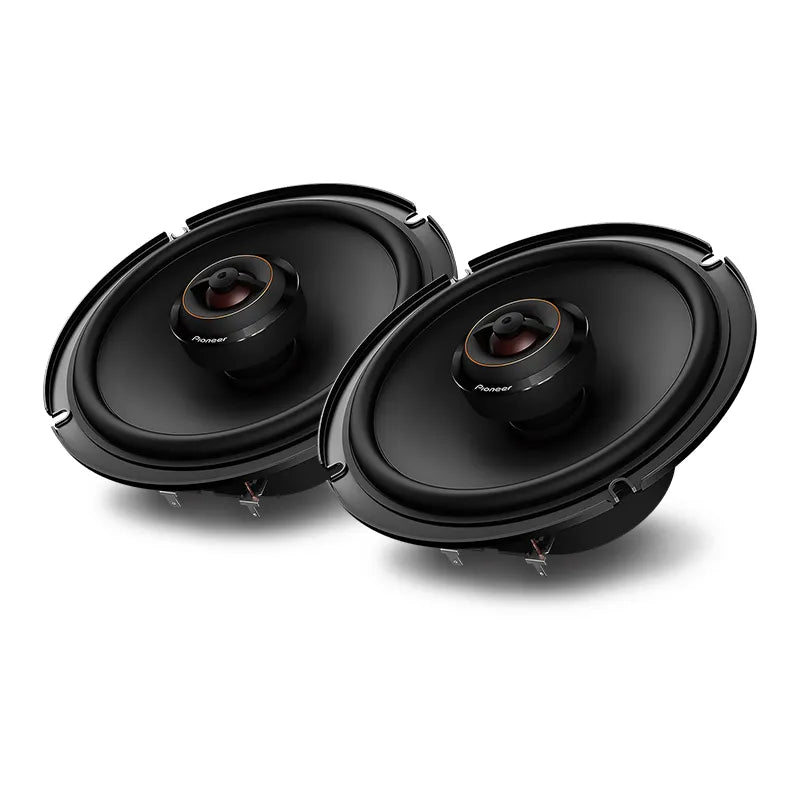

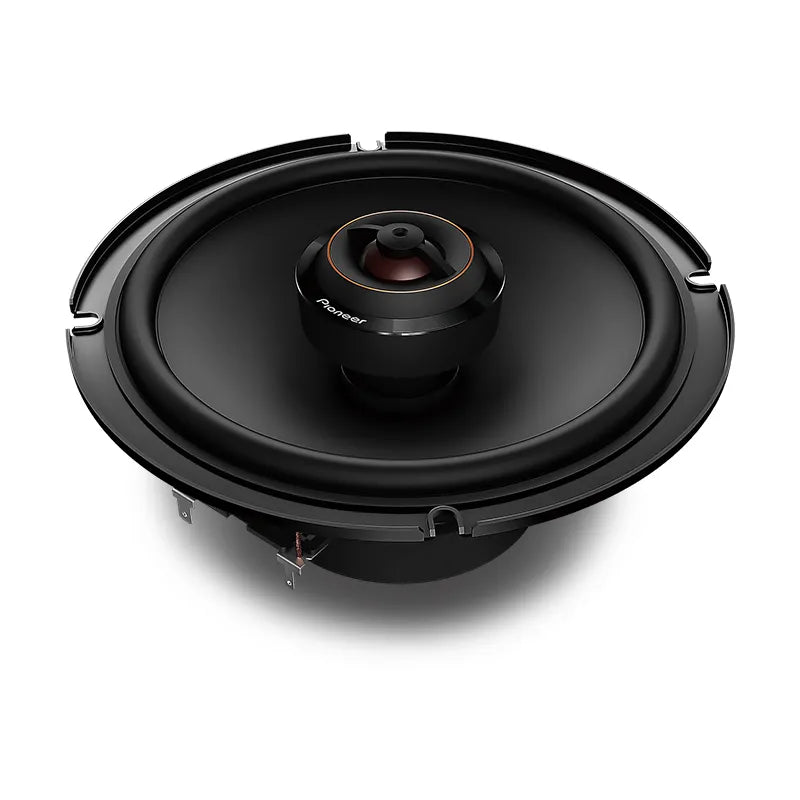

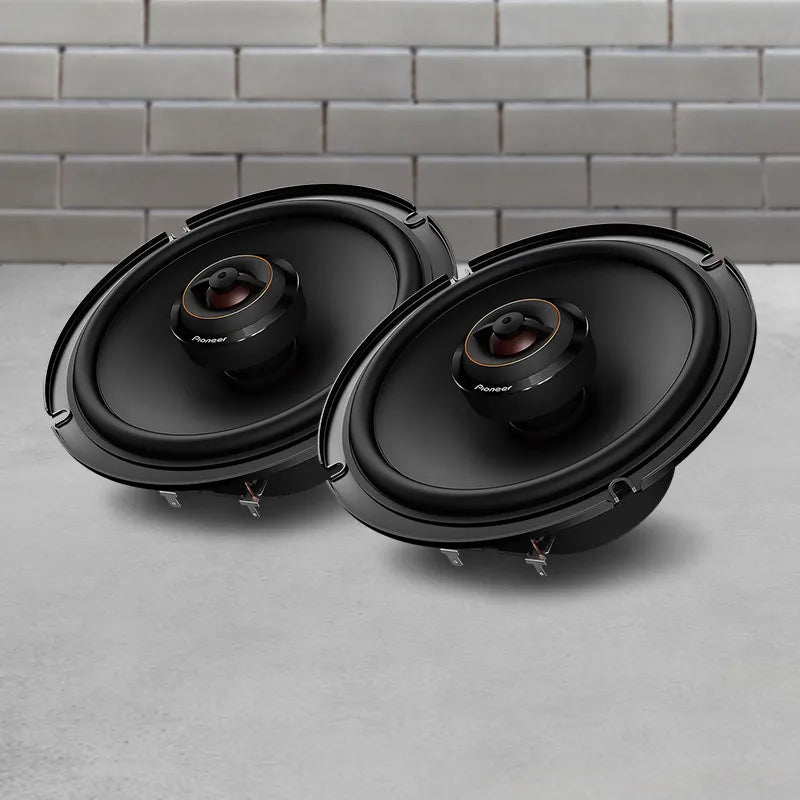

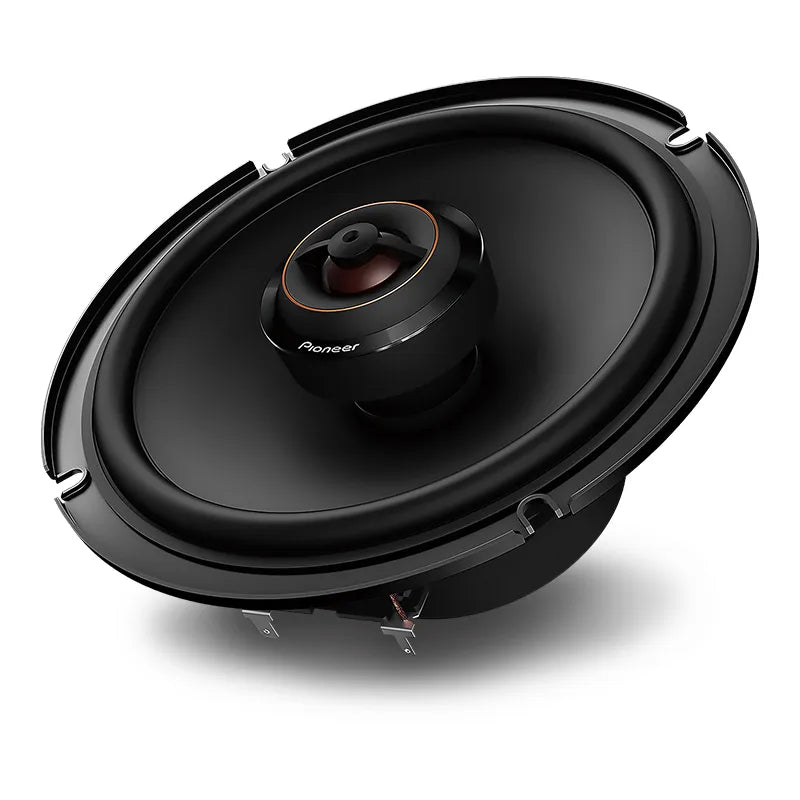

Pioneer TS-D65F D-Series 6.5” 270W Coaxial 2-Way Speakers

SKU: TSD65F
Regular price
$275
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Pioneer D-Series 6.5” 270W Coaxial 2-Way Speakers: Not Your Average 6.5" Speaker!

D Full Range, Music for All

The D is a result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities.

Following Pioneer’s OPEN & SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage and amazing fidelity for the listener.

26mm Polyester Soft Dome Tweeter

Contoured from Lightweight, Resin-Impregnated Fibers of Coated Polyester Fabric, the D Tweeter Delivers Extended High-Frequency Performance. the 26mm Diaphragm Is Very Resistant to The Harsh Environmental Conditions of The Automotive Interior (temperature, Humidity, Vibration, Etc.), While Maintaining Its Uniform Hemispherical Shape to Reduce Dome Breakup Due to Excessive Vibration at Ultrasonic Frequencies. the Result Is Extremely Low Distortion Levels and A Smooth, Natural Sound.

Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)

Polypropylene (pp) Is a Tough Thermoplastic Resin, Ideal Material for A Speaker Cone. the Low Mass and High Damping of A Pp Cone Generate Good Sensitivity and Low Distortion. However, Polypropylene Cones Lack the Rigidity and Strength Required for High Output and Extreme Low Bass. to Resolve This, Pioneer Engineers Used Advanced Computer-Aided Manufacturing to Develop a Process to Blend Aramid Fibers Into the Polypropylene Resin During the Injection Molding Process. the Resulting Aramid Fiber Interlaced Impp Cone Is Ultra-Thin and Low Mass with High Rigidity and Superior Strength, Built to Produce Natural, Detailed Sound with Deep and Powerful Bass.

Pioneer TS-D65F Features:

  • 270 Watts Max Power
  • 26mm Polyester Soft Dome Tweeter with Swivel Capability
  • Aramid Fiber Interlaced Injection Molded Polypropylene (impp) Cone Construction
  • Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass & Sound

Pioneer TS-D65F Specifications:

General

  • Size: 6.5"
  • Design: 6.5" 2-Way Coaxial System
  • Tweeter Design: 26mm Soft Dome
  • Tweeter Composition: Polyester
  • Woofer Composition: Aramid Fiber Interlaced Injection Molded Polypropylene (impp)
  • Woofer Surround: Butyl Rubber
  • Woofer Magnet Composition: Ferrite
  • Warranty: 1 Year

Pioneer TS-D65F Installation Specification

  • Max. Music Power (nominal): 270 W Max (90 W Nom)
  • Frequency Response: 33 Hz to 49k Hz
  • Sensitivity (1 W/1 M): 85d B
  • Impedance: 4 Ω
  • Mounting Depth: 65mm
  • Cut-Out Dimensions: 144mm
