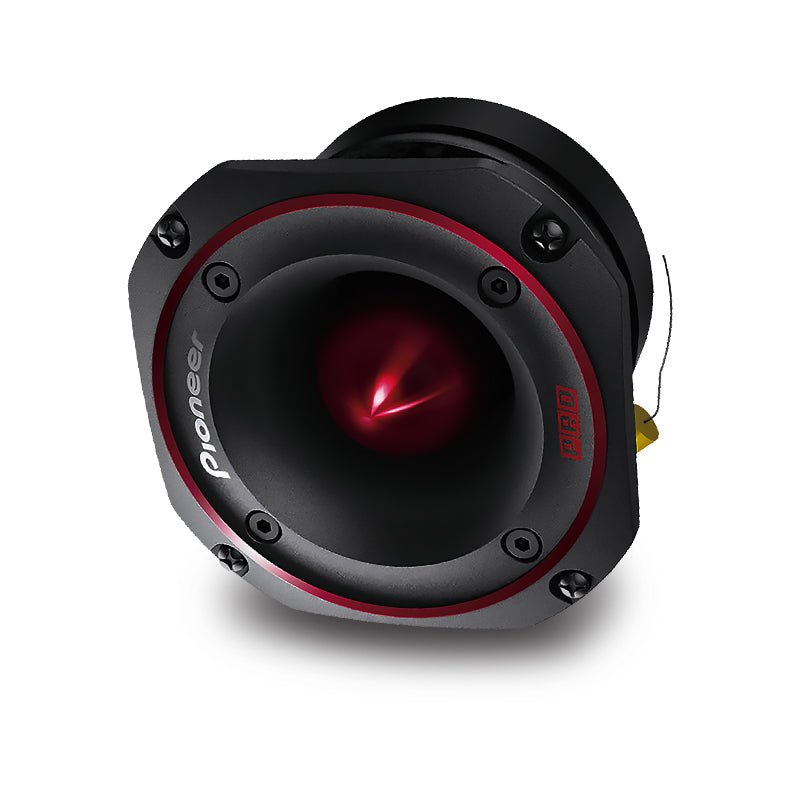

Bullet tweeter with red ring from the front
Bullet tweeter with red ring from the front

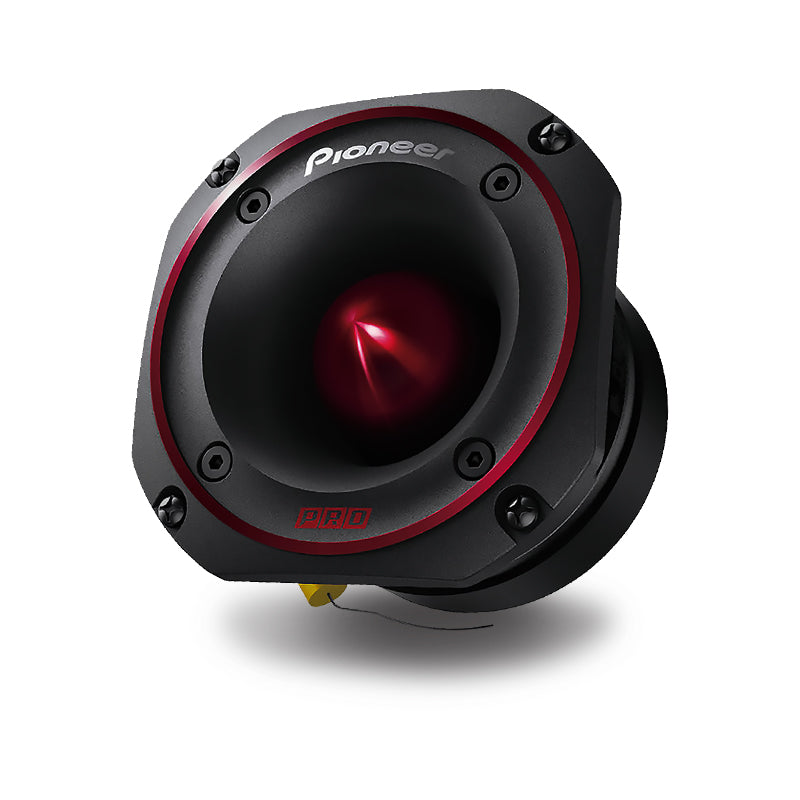

Tweeter angled left showing the red bullet and terminals
Tweeter angled left showing the red bullet and terminals

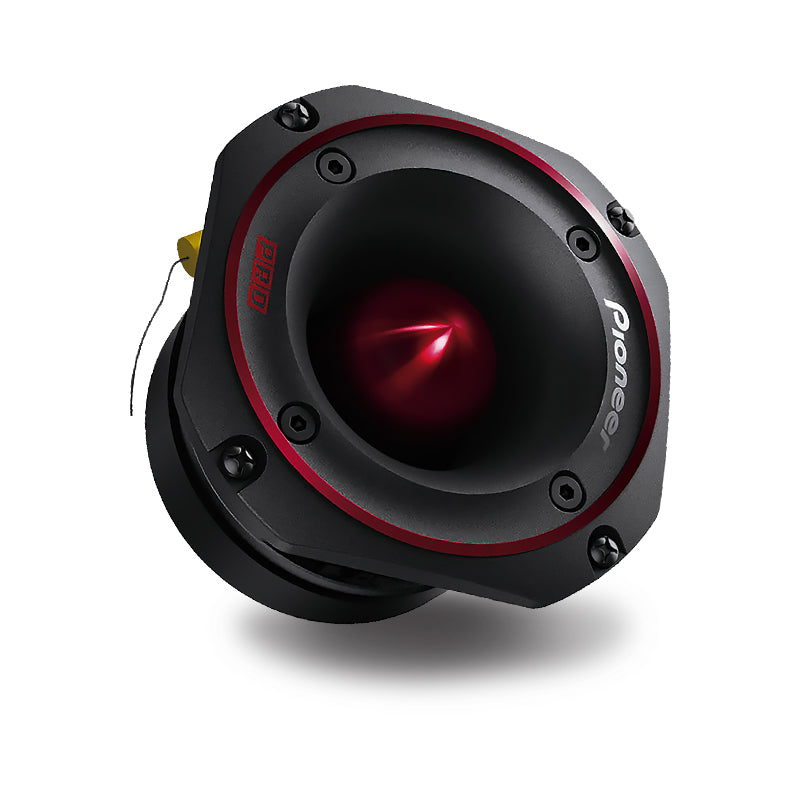

Tweeter angled right with the flange and terminals
Tweeter angled right with the flange and terminals

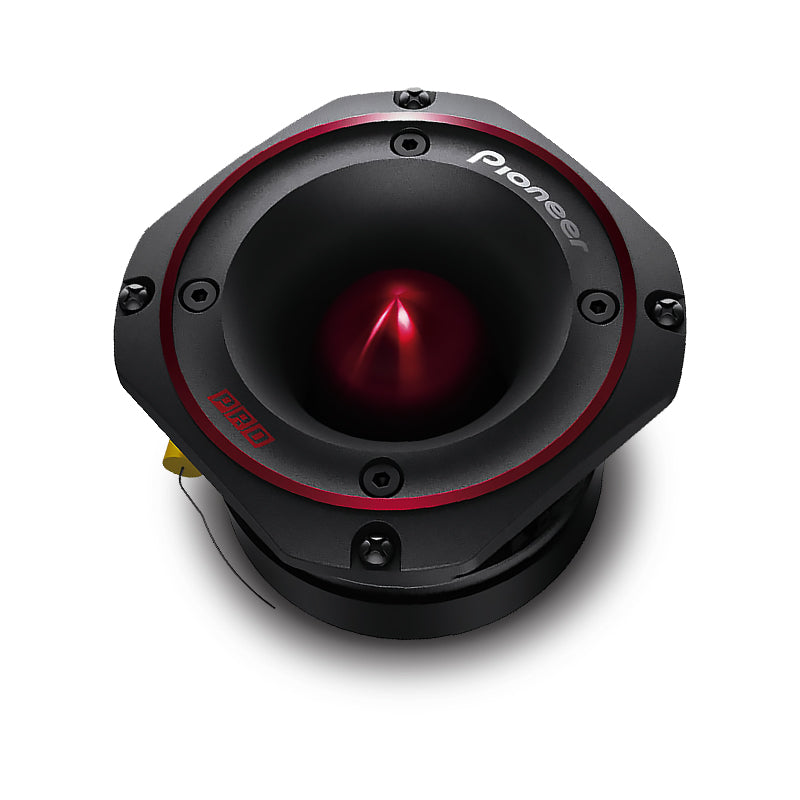

Tweeter from a low front angle
Tweeter from a low front angle

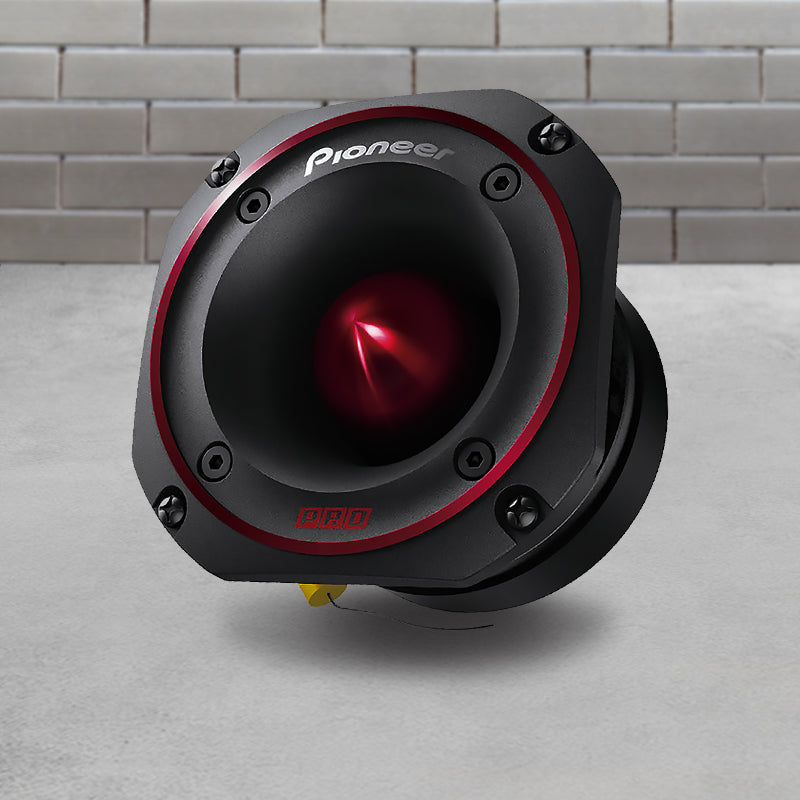

Tweeter on a concrete floor in front of a brick wall
Tweeter on a concrete floor in front of a brick wall
Pioneer TS-B401PRO 4 inch bullet tweeter, product view
Pioneer TS-B401PRO 4 inch bullet tweeter, product view
Pioneer TS-B401PRO 4 inch bullet tweeter, cutaway view
Pioneer TS-B401PRO 4 inch bullet tweeter, cutaway view
Click to open expanded view
PIONEER logo

Pioneer TS-B401PRO 4" 600W PRO Series Titanium Bullet Tweeter, Single

SKU: TSB401PRO
Price
$145
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Bullet tweeter with red ring from the front

Pioneer TS-B401PRO 4" 600W PRO Series Titanium Bullet Tweeter, Single

$145

Product features

Loud open show and SPL builds swamp an ordinary dome tweeter, so the top end vanishes once the mid bass and subs are turned up.

The TS-B401PRO is a horn loaded bullet tweeter from the Pioneer P.R.O. series with a titanium diaphragm in a die cast aluminium chassis. It handles 300W nominal and 600W max at 4 ohms with 106 dB sensitivity, covering 2,500 Hz to 22 kHz, and the tweeter unit is field serviceable. Each pack holds one speaker.

TS-B401PRO features

  • 4 inch titanium diaphragm bullet tweeter
  • Die cast aluminium basket for heat dissipation
  • Red aluminium bullet
  • Horn throat designed for efficiency and a flat response
  • Large magnet and motor assembly
  • Field serviceable tweeter unit
  • Sold as a single speaker

Specifications

Type Bullet tweeter, horn
Size 4"
Power 300W nominal, 600W max
Impedance 4Ω
Sensitivity 106 dB (1W/1m)
Frequency range 2,500 Hz to 22 kHz
Diaphragm Titanium
Magnet Ferrite
Mounting depth 68 mm
Cut out 95 mm
Grille Not included

Fitment and compatibility

It needs a 95 mm cut out and 68 mm of depth, so it suits pods, kick panels and custom panels more than factory tweeter spots.

What is in the box

Pioneer states the pack contains one speaker and no grille. Buy two for a left and right pair.

Install notes

A tweeter this sensitive needs a proper high pass crossover. South Nowra on (02) 4423 5254 can set one up.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

How much power does the Pioneer TS-B401PRO handle?

300W nominal and 600W max.

Is it sold as a pair?

No, each pack contains one speaker.

What cut out does the TS-B401PRO need?

95 mm, with 68 mm of mounting depth behind it.

Can it go in my factory dash tweeter spot?

Usually not at 95 mm. Tell us the car and we will suggest a pod or panel.
