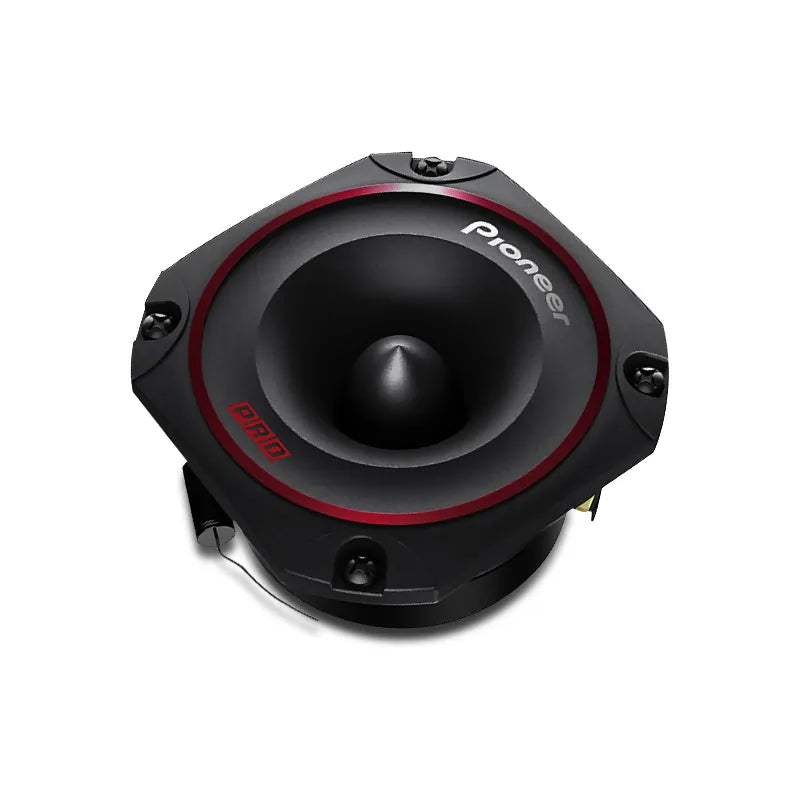

Black horn tweeter with red trim ring, slightly turned to the right
Black horn tweeter with red trim ring, slightly turned to the right

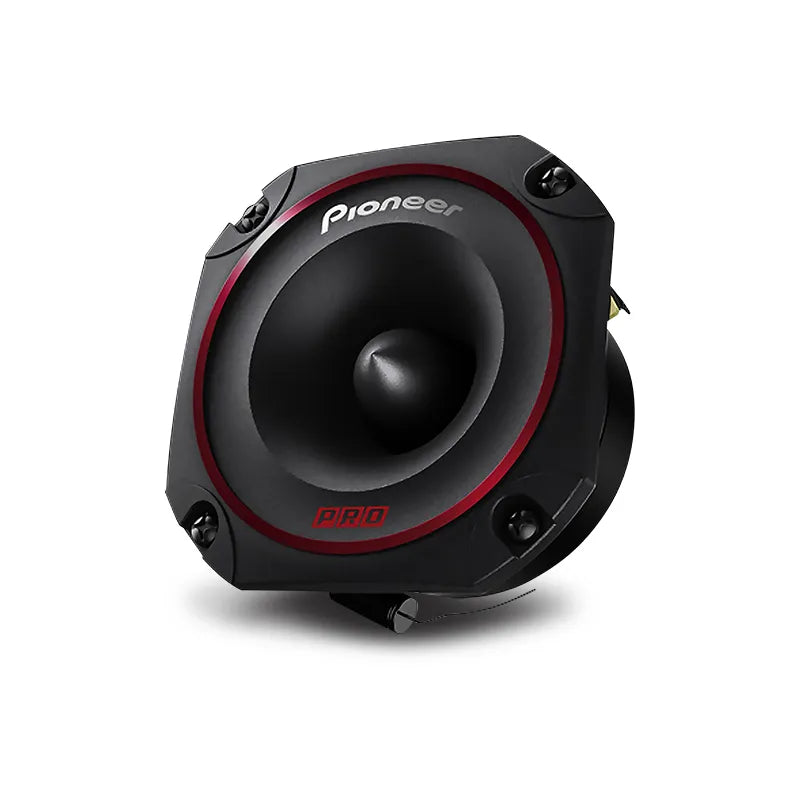

Tweeter face on with the Pioneer logo at the top
Tweeter face on with the Pioneer logo at the top
Tweeter tilted back to show the top edge and rear housing
Tweeter tilted back to show the top edge and rear housing

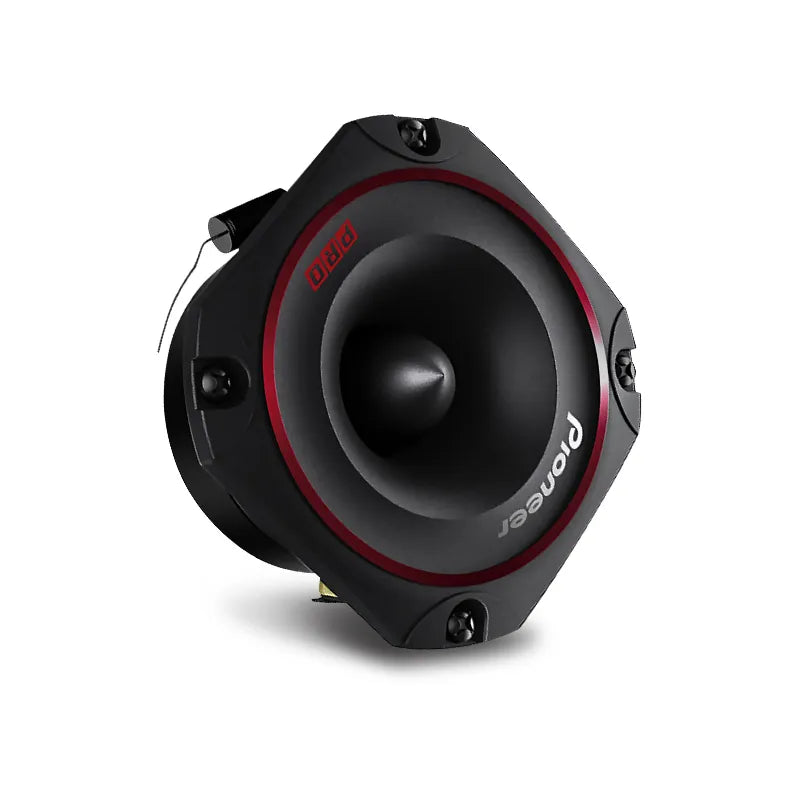

Tweeter rotated so the square flange sits on a point
Tweeter rotated so the square flange sits on a point

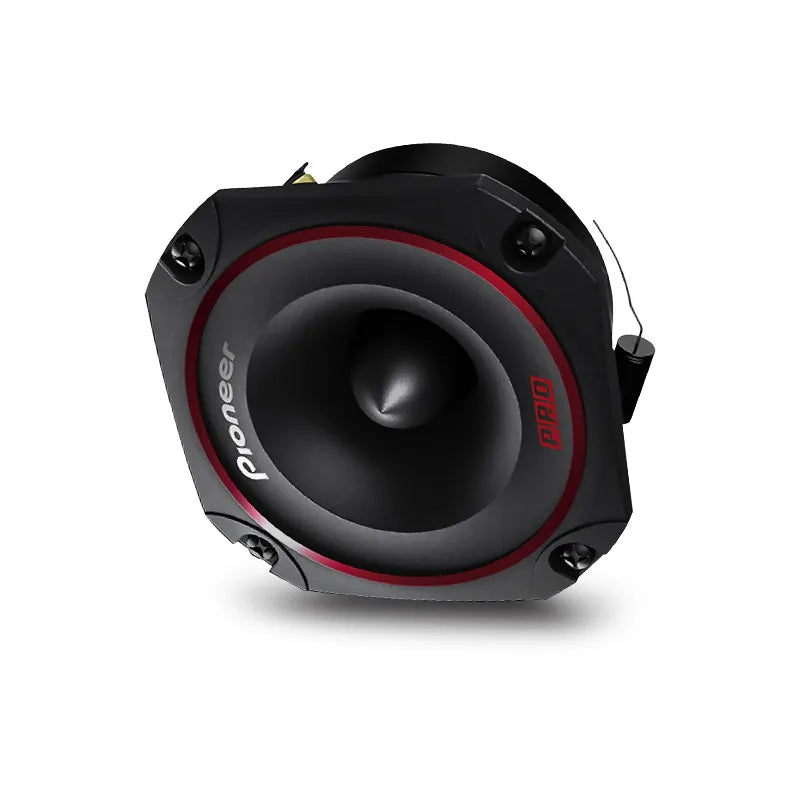

Tweeter turned to the left with the terminal lead visible on the side
Tweeter turned to the left with the terminal lead visible on the side
Square flange of the horn seen straight on, four corner screws and red ring around the dome
Square flange of the horn seen straight on, four corner screws and red ring around the dome
Horn turned right with its thin lead curling out under the housing
Horn turned right with its thin lead curling out under the housing
Sectioned render of the horn showing the phase plug, magnet and terminals inside
Sectioned render of the horn showing the phase plug, magnet and terminals inside
Click to open expanded view
PIONEER logo

Pioneer TS-B351PRO 3.5" PRO Series Bullet Tweeter

SKU: TSB351PRO
Sale price
$99
Regular price
$125
You save
21%
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Black horn tweeter with red trim ring, slightly turned to the right

Pioneer TS-B351PRO 3.5" PRO Series Bullet Tweeter

$99
$125

Product features

The TS-B351PRO is a pair of Pioneer PRO Series 3.5 inch bullet tweeters with titanium diaphragms, a die cast aluminium chassis and a horn waveguide. They handle 150W RMS and 300W peak at 100dB sensitivity, which makes them loud enough to keep up with a high output street or SPL system.

The problem they solve

In a loud system, small dome tweeters run out of headroom first. Turn it up and the top end turns harsh or the tweeter dies. A big bullet tweeter with high sensitivity and a horn plays loud and clear with far less strain, so the highs keep pace with the midbass and subs.

Specifications

Type Bullet tweeter
Size 87mm (3 1/2 inch)
Unit size 100mm (4 inch)
Frequency range 3,000Hz to 22kHz
Power 150W RMS, 300W peak
Sensitivity 100dB
Impedance 4 ohms
Diaphragm Titanium
Magnet Ferrite, 7.9oz
Waveguide Horn
Mounting depth 44mm (1 3/4 inch)
Cutout 75mm (3 inch)
Protrusion 8mm (1/4 inch)
In the box 1 pair

Fitting tips

Run them through a crossover or set a high pass filter on the amp or DSP well above 3kHz to start, then adjust by ear. Driving a tweeter full range is the fastest way to kill it. Point them towards the listening position for the best stereo image, and keep them away from where knees and bags hit.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

Do they need a crossover?

Yes. Use a crossover or a high pass filter so only high frequencies reach them.

How big a hole do they need?

A 75mm cutout and 44mm depth.

Is it one tweeter or two?

The box contains one pair.

Which systems suit them?

Loud street and SPL systems with an amplifier and a crossover or DSP. They are not a drop in for a factory dash tweeter spot.

How do I mount them?

Cut a 75mm hole with 44mm of depth behind it, wire them through a high pass crossover, and aim them at the listening position.
