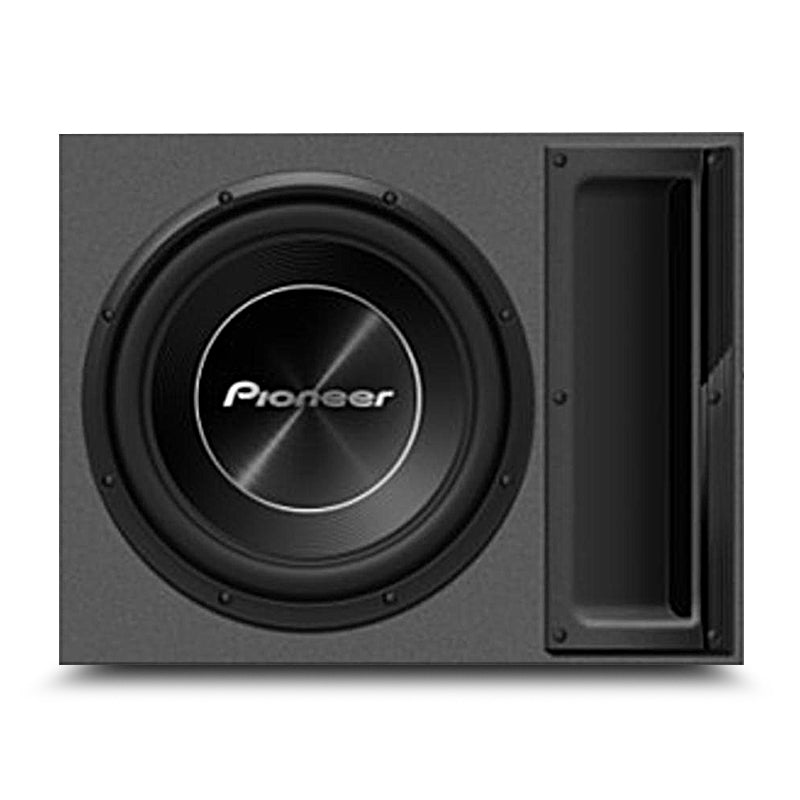

Pioneer TS-A300B 12" 1500W “A” Series Pre-Loaded Ported Subwoofer Enclosure

Pioneer TS-A300B: Designed to Perfectly Match the Pioneer “A” Series Full-Range Loudspeakers

The bass reflex port is uniquely shaped to reduce port noise while producing clear and accurate bass.

Combining the latest design and technology with specifically selected materials this subwoofer enclosure provides high quality sound and excellent bass response.

Match with a compatible Pioneer amplifier for an impressive in car experience!

IMPP Cone Construction
12″ glass fiber and mica interlaced Injection Molded Polypropylene (IMPP) cone construction.

CarSoundFit
The Pioneer CarSoundFit app is a car sound simulator designed to allow you to experience an in-car sound with your own smartphone. Hear examples of the difference between the original speakers and Pioneer speaker upgrades to understand what improvements Pioneer can offer. To experience the virtual listening demonstration download the free Pioneer CarSoundFit app from either the App Store or Google Play.

Easily Upgrade to High Performance
Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

Linear, Balanced Motion
Linear, balanced motion in both the forward and reverse directions of cone movement is critical to accurate reproduction of recorded sound waves. Careful engineering of the entire motor structure and suspension system (voice coil, magnet, surround and spider) is required maintain a high level of linearity, even during high output / high excursion transients.

Specifications:

Pioneer TS-A300B System

• System Type: Pre-loaded subwoofer (passive)
• Sound Pressure Level (Sensitivity): 78dB (+- 1.5dB)
• Frequency Range: 20 Hz to 2.6 kHz
• Continuous Power Handling (RMS): 500 Watts
• Maximum Peak Power Handling: 1500 Watts
• Nominal Impedance: 2Ω

Woofer

• Diameter: 12"
• Cone Material: Glass fiber and mica reinforced Injection Molded Polypropylene (IMPP)
• Surround Material: Butyl Rubber
• Basket Material: Stamped Steel
• Magnet Material: Double stacked ferrite
• Magnet Weight: 60 oz
