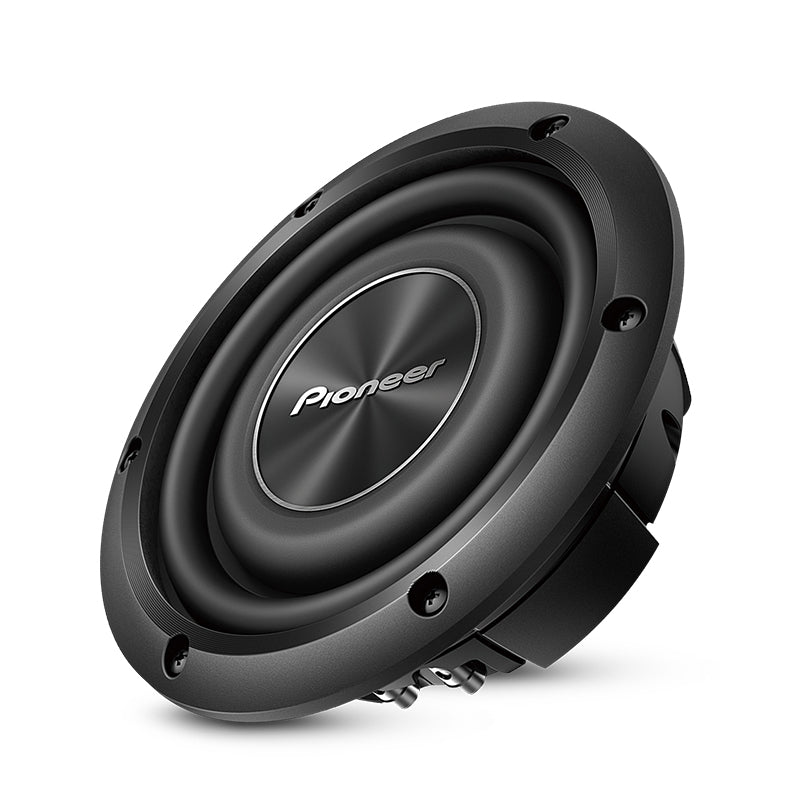

Pioneer TS-A2000LD2 A-Series 8” 700W Shallow Mount Subwoofer

The Pioneer TS-A2000LD2 is an 8 inch A-Series shallow mount subwoofer with a 67mm mounting depth. It handles 250W nominal and 700W maximum through dual 2 ohm voice coils, and its glass fibre and mica reinforced IMPP cone keeps bass tight. It is made for slim boxes under or behind seats.

For cars with no room for a sub

Utes, small hatches and dual cabs rarely have space for a standard sub box. At 67mm deep, this woofer is less than half the depth of a typical sub in its class, according to Pioneer. It fits a slim sealed box of around 14.2 litres, so you keep your boot or cargo tray.

Specifications

What is in the box

• TS-A2000LD2 subwoofer
• Trim ring
• Adhesive backed foam gasket
• Six screws

A grille is not included.

Wiring

The dual 2 ohm coils can be wired in parallel for 1 ohm or in series for 4 ohms. Check your amplifier's minimum load before choosing.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

Is the TS-A2000LD2 shallow enough for a behind seat box?

Mounting depth is 67mm, so measure the gap behind or under the seat and allow for the box walls.

What box size suits it?

Pioneer recommends 14.2 litres, sealed or ported.

Does it come with a grille?

No.

How do I mount the TS-A2000LD2?

Cut a 179mm hole in the box or panel, lay the foam gasket, then screw the sub down with the six screws and fit the trim ring.
