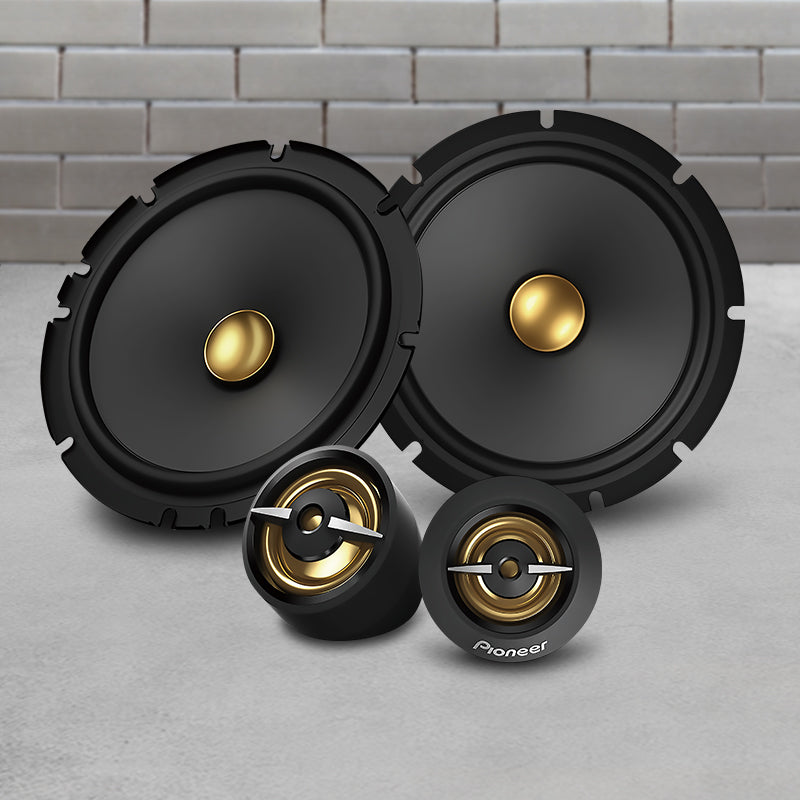

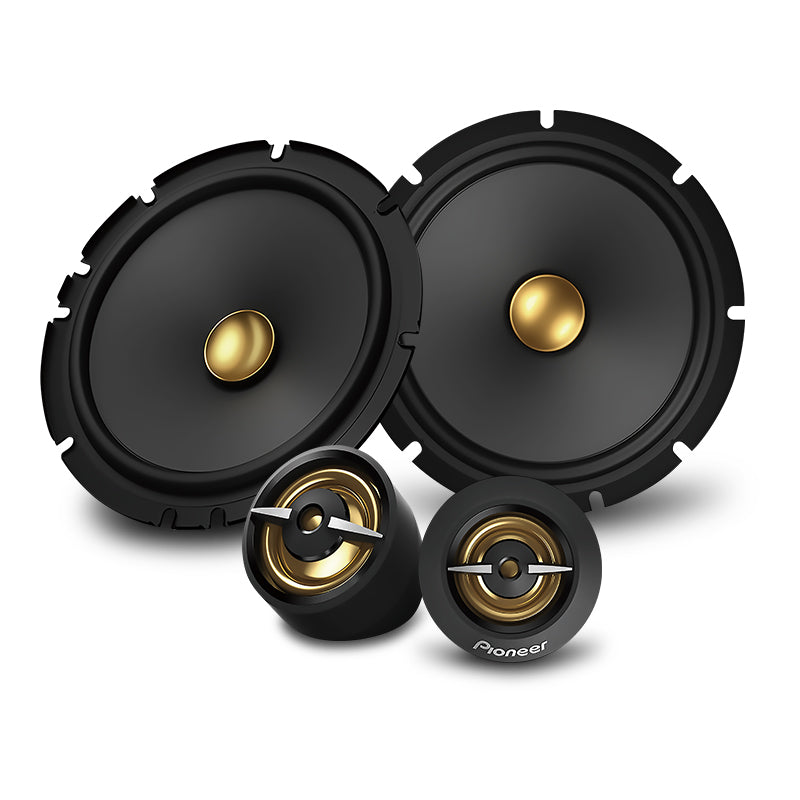

Pioneer TS-A1601C 6.5” A-Series 2-Way Component Speakers with 20mm Polyetherimide (PEI) Dome Tweeter

Designed to Meet Pioneer’s “Open & Smooth” Sound Concept

Pioneer’s latest generation of TS-A series speakers support the following features:

• Carbon & Mica reinforced IMPP cone construction for fast and deep bass response.

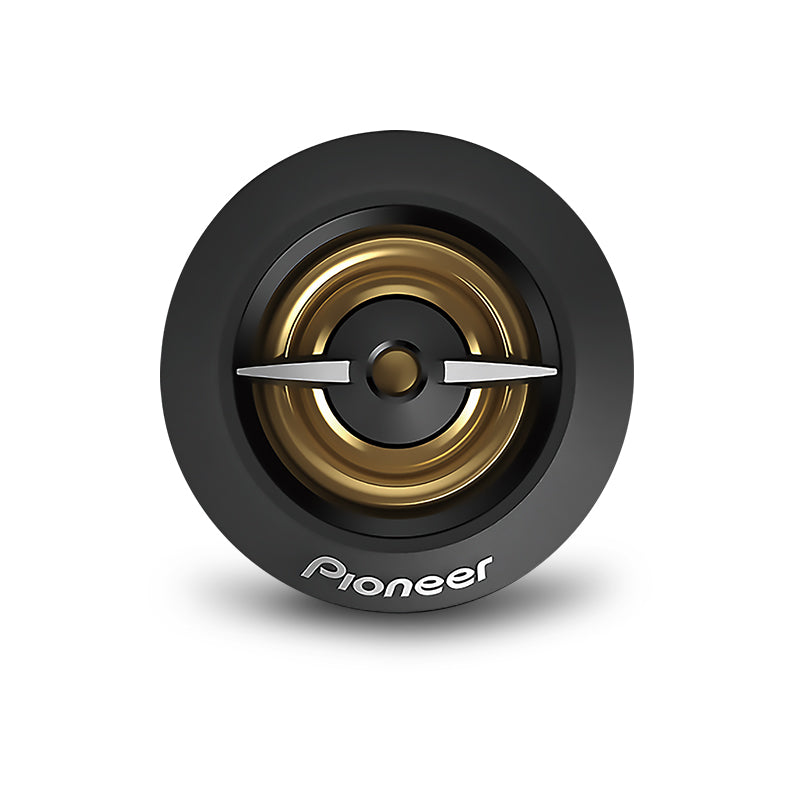

• A specially designed tweeter diaphragm to provide clear mid-range and highs with low distortion.

Designed to meet Pioneer’s “Open & Smooth” sound concept, these speakers are designed to perform at a wides range of audio frequencies, providing the listener with an “Open” (wide) sound staging and “Smooth” transition. With over 80 years of experience designing and manufacturing loudspeakers, we are confident you will enjoy the experience.

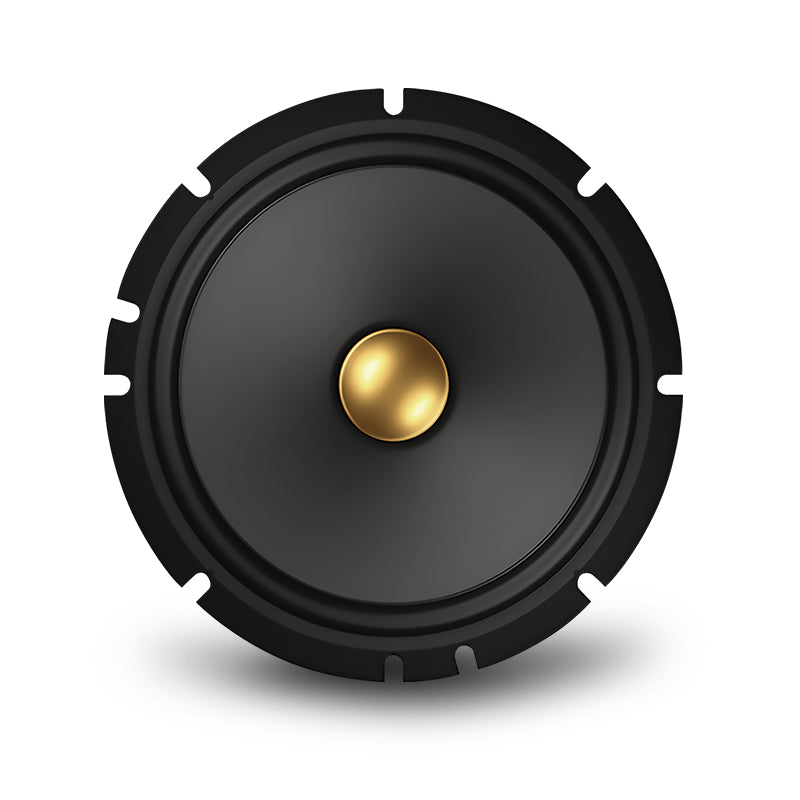

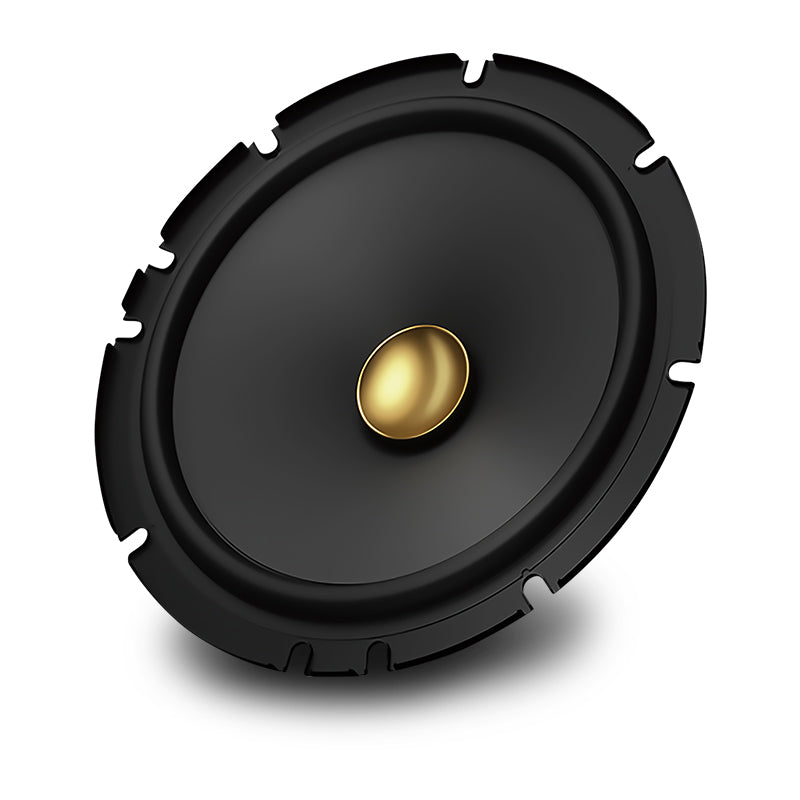

IMPP Cone Construction
Carbon & Mica reinforced IMPP cone for deeper and richer bass response.

Pioneer’s “Open & Smooth”™ Sound Concept
The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

Easy Installation

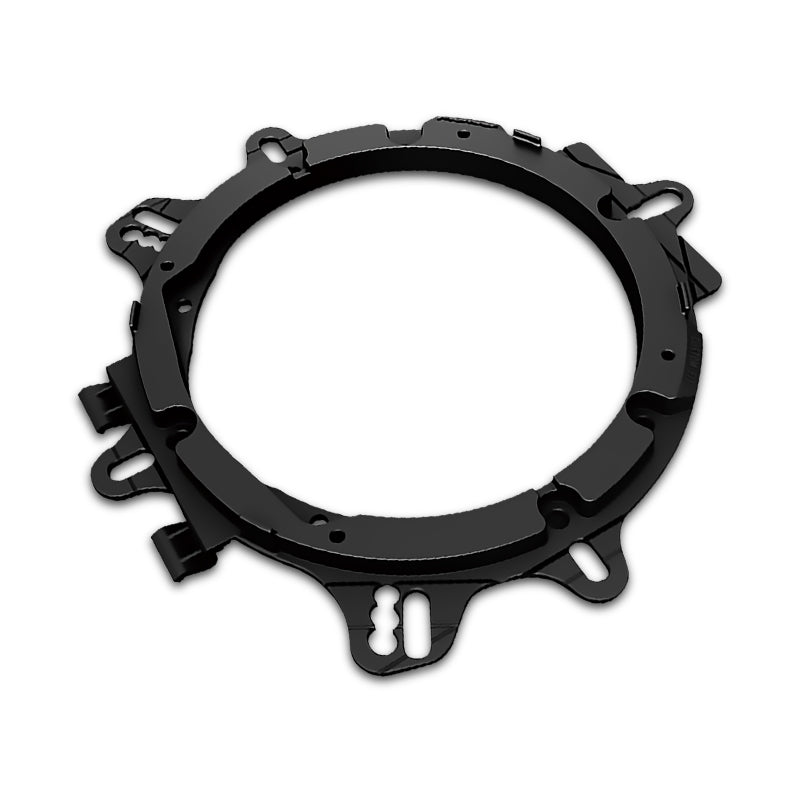

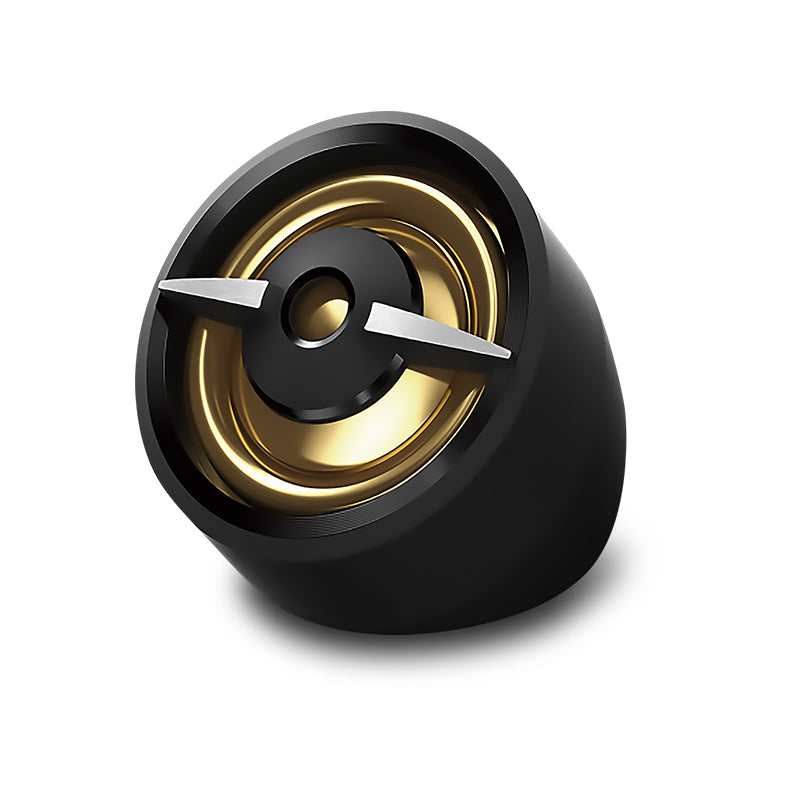

Included with the component system are 6.5″ multi-fit installation adaptors that expand flexibility and improve acoustic performance also included are tweeter mounts for surface mounting, flush mounting and specially designed multi-fit adaptors for mounting in original equipment (OE) tweeter locations. With the integrated/in-line crossover network, you increase installation flexibility without the need for a large external crossover.

EV Optimised
The TS-A1601C speakers are the perfect addition for increased sound quality in your electric vehicle! High-efficiency with a sensitivity rating of 90dB, these speakers will not only provide optimal audio quality but are also designed to produce deep bass with minimal input.

CarSoundFit
Pioneer’s CarSoundFit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and Pioneer audio upgrades and immerse yourself in the sound quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

Specifications:

General

• Size: 6.5"
• Design: 6.5" 2-Way Component System
• Tweeter Design: 20mm
• Tweeter Composition: PEI
• Woofer Composition: Carbon and mica-reinforced IMPP
• Woofer Surround: Elastic polymer
• Woofer Magnet Composition: Neodymium
• Warranty: 1 Year

Installation Specification

• Max. Music Power: (nominal) 350 W Max (80 W Nom)
• Frequency Response: 33 Hz, 58k Hz (-20d B)
• Sensitivity: (1 W/1 M) 90d B
• Impedance: 4 Ω
• Mounting Depth: 59mm
• Cut-Out Dimensions: 144mm
• Grills Included: No

FAQ

How much power can the Pioneer TS-A1601C handle?

It is rated at 350W peak.

What is the mounting depth of the Pioneer TS-A1601C?

The listed mounting depth is 59mm. Measure your door or enclosure before you order.

What impedance is the Pioneer TS-A1601C?

It is a 4 ohm design.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
