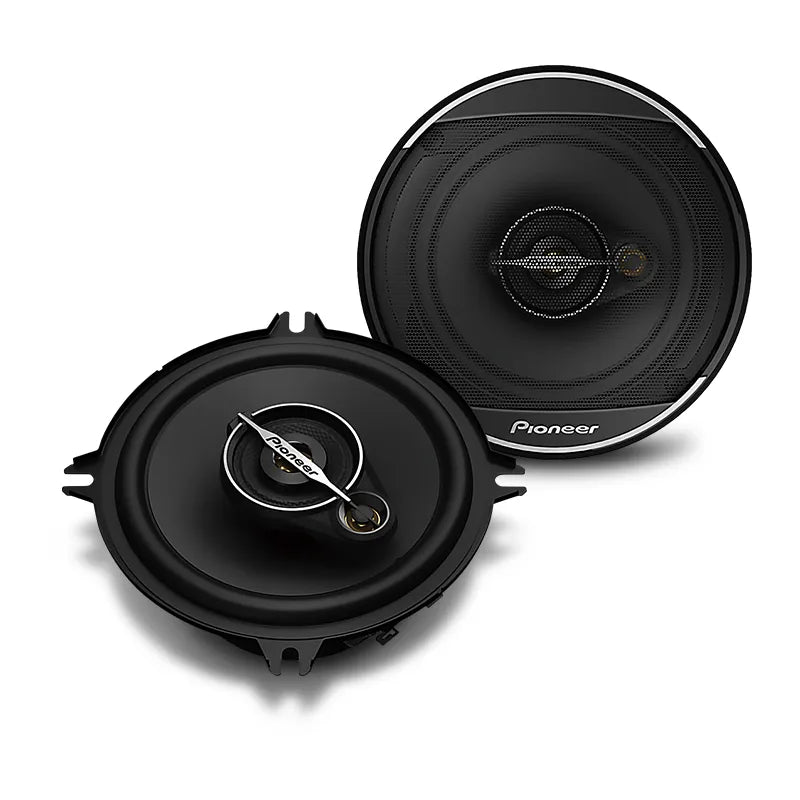

Pair of Pioneer TS-A1371F 5.25 inch coaxial speakers shown at an angle with grey cones
Pair of Pioneer TS-A1371F 5.25 inch coaxial speakers shown at an angle with grey cones

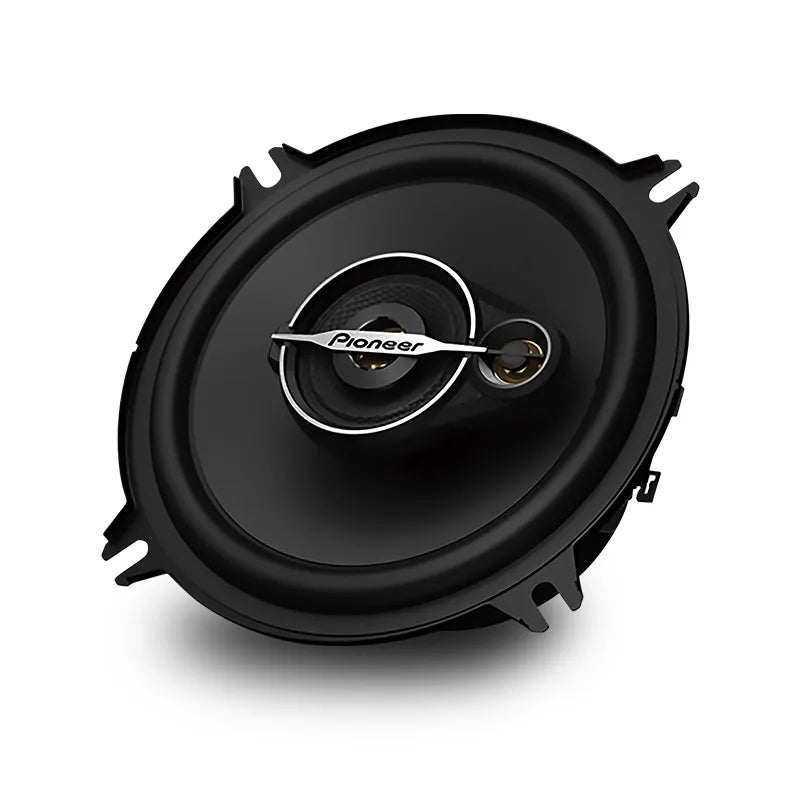

Single Pioneer TS-A1371F speaker angled to show the 3 way driver layout
Single Pioneer TS-A1371F speaker angled to show the 3 way driver layout
Side angle of one TS-A1371F showing the basket and magnet
Side angle of one TS-A1371F showing the basket and magnet

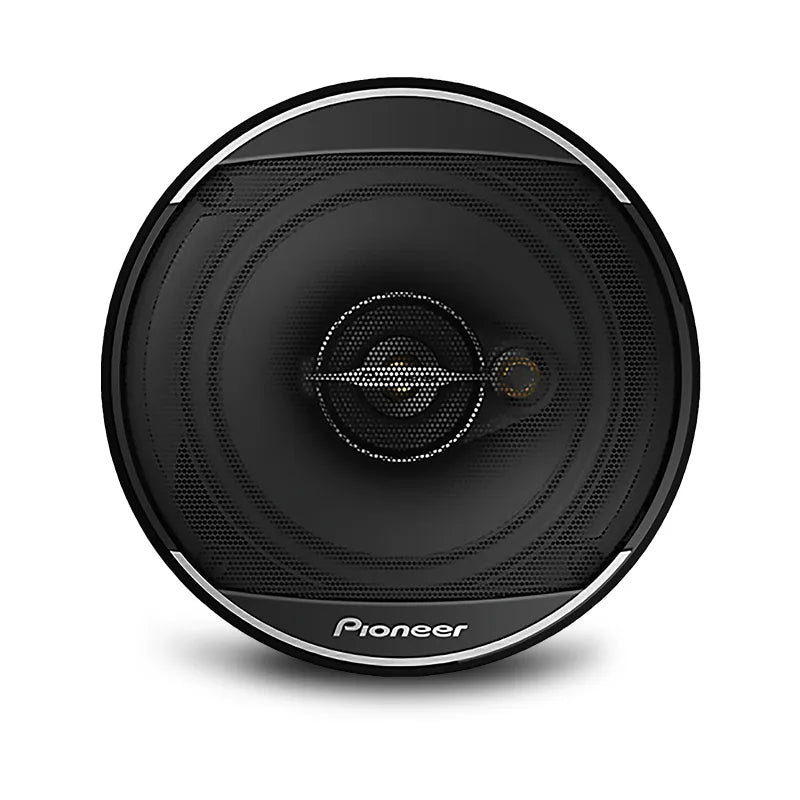

Front face of the TS-A1371F with the Pioneer logo on the tweeter bridge
Front face of the TS-A1371F with the Pioneer logo on the tweeter bridge

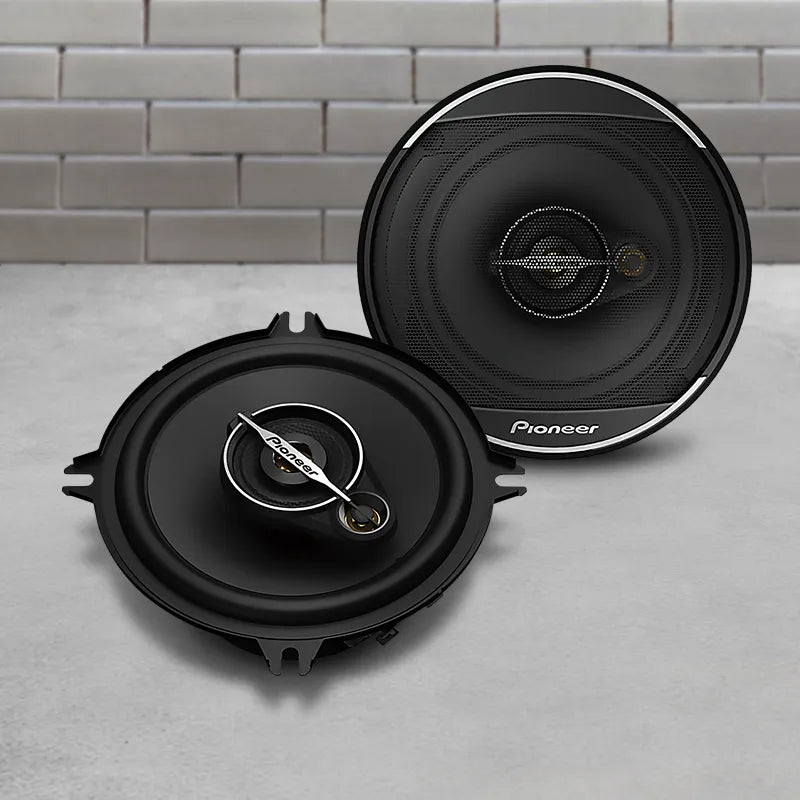

Pair of TS-A1371F speakers resting on a grey brick background
Pair of TS-A1371F speakers resting on a grey brick background
Pioneer TS-A1371F 5.25 inch 3 way coaxial speaker, angle view
Pioneer TS-A1371F 5.25 inch 3 way coaxial speaker, angle view
Pioneer TS-A1371F 5.25 inch 3 way coaxial speaker, cutaway view
Pioneer TS-A1371F 5.25 inch 3 way coaxial speaker, cutaway view

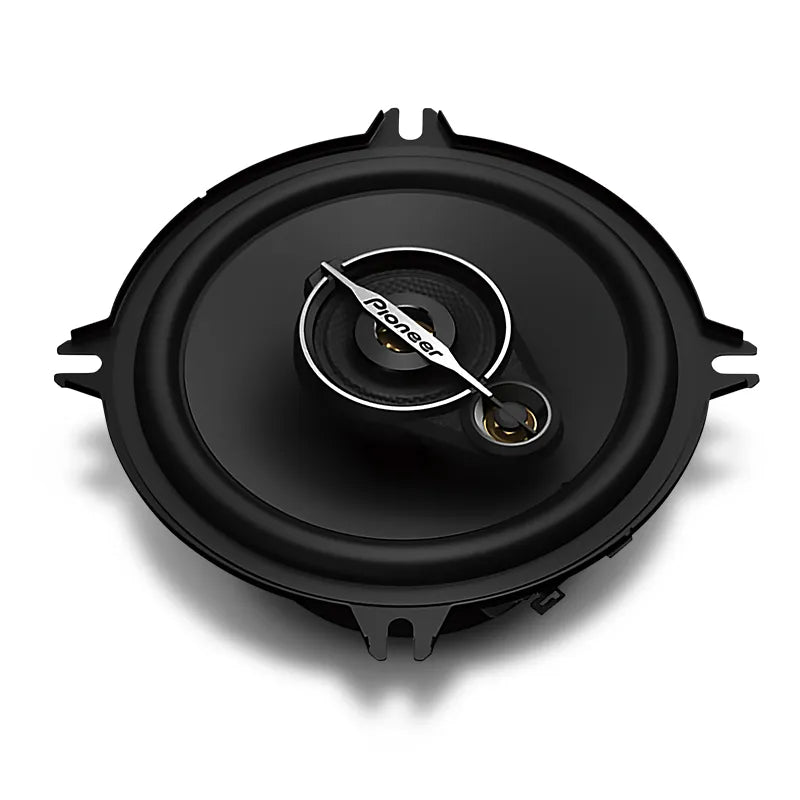

Pioneer TS-A1371F 5.25 inch 3 way coaxial speaker, top view
Pioneer TS-A1371F 5.25 inch 3 way coaxial speaker, top view
Click to open expanded view
PIONEER logo

Pioneer TS-A1371F 5.25" A Series 3 Way Coaxial Speakers

SKU: TSA1371F
5.0 (1)
Sale price
$97.95
Regular price
$140
You save
30%
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Pair of Pioneer TS-A1371F 5.25 inch coaxial speakers shown at an angle with grey cones

Pioneer TS-A1371F 5.25" A Series 3 Way Coaxial Speakers

$97.95
$140

Product features

Factory 5.25 inch speakers often sound flat and muddy once the volume goes up. The Pioneer TS-A1371F swaps them for a 3 way coaxial with a separate midrange and tweeter, running fine off a standard head unit.

Pioneer rates it at 50W nominal and 300W max with 89dB sensitivity, so it does not need an amplifier to wake up.

Problems it solves

  • Dull top end from paper factory cones. A 42mm midrange and a small tweeter sit in front of the woofer, so vocals and cymbals come through clearly.
  • Weak bass from the door. The carbon and mica reinforced IMPP cone is built for a firmer low end than a basic paper cone.
  • Not sure an upgrade is worth it? Pioneer has a free CarSoundFit app that lets you hear the difference on your phone before you buy.

TS-A1371F specifications

  • Size: 5.25 inch, 3 way coaxial
  • Power: 50W nominal, 300W max
  • Sensitivity: 89dB (1W/1m)
  • Frequency response: 44Hz to 52kHz
  • Impedance: 4 ohm
  • Mounting depth: 54mm
  • Cut out: 121mm
  • Grilles: included

Fitment and compatibility

These suit cars with 5.25 inch factory speaker holes that have at least 54mm of depth behind the mount and a 121mm opening. Many cars need a spacer or adaptor ring as well, so check your door before ordering or ring us with the car details.

What is in the box

Pioneer includes grilles. Pioneer Australia does not publish the rest of the carton list, so call Albion Park Rail on (02) 4257 2636 if you need it checked.

Install notes

Check polarity on both terminals when wiring, as a reversed speaker thins out the bass. A spacer usually brings the speaker forward enough to clear the window glass in a door.

Warranty

Pioneer Australia lists a 1 year warranty on the TS-A1371F. This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

TS-A1371F FAQs

How deep a hole do the TS-A1371F need?

54mm of mounting depth and a 121mm cut out, per Pioneer Australia.

Will these run off my factory head unit without an amp?

Yes. At 89dB sensitivity and 50W nominal they work on head unit power, though an amp gives more headroom.

Can I hear them before I buy?

Pioneer offers the free CarSoundFit app, which simulates how these speakers sound compared with factory ones.
