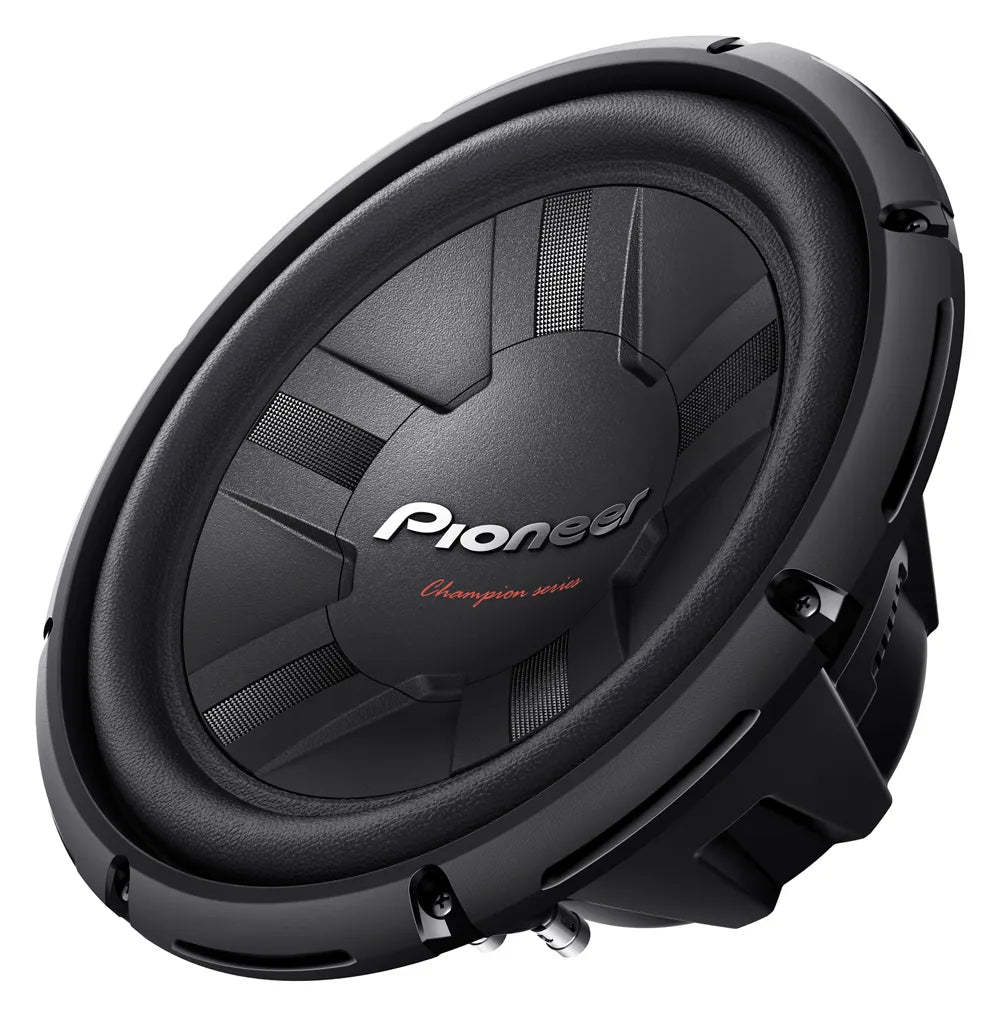

Pioneer TS-W311S4 12 Inch 4Ω Enclosure-Type Single Voice Coil Subwoofer 1400W

Designed to produce high-quality sound, the TS-W series of Subwoofers are equipped with a fully enclosed basket which suppresses repulsion efficiently, ensuring accurate, clear and rythmical bass.

Get powerfull, punchy bass in your car, built from the pedigree of world record-breaking subs. The TS-W311S4 delivers up to 1400 Watts and is suitable for enclosure use.

Each subwoofer features advanced technologies, such as Pioneer patented IMPP composite cone, 1 rigid 3D-shaped cone design and large dbouble stacked magnets. On top of that, these TS-W series subwoofers offer easy installation into many different types of vehicles.

Specifications

• Impedance: 4ohm
• Frequency Response: 20 to 125Hz
• Sensitivity: 95dB
• Lowest resonance frequency: 42Hz
• Maximum power input: 1400 W
• Nominal output power: 400 W
• Woofer Material: IMPP Composite Cone
• Voice coil type: Copper, 4 Layer
• Voice coil bobbin type: Aluminium
• Pole yoke type: 2
• Terminals: Push type
• Dimensions: 326.6 x 168.5 mm
• Magnets: Ferrite (Double)
• Surround: Dual layer, fibre reinforced Elstic Polymer Surround
• Screw terminals: 8
• Weight: 6.1kg
• Cut hole: 283mm
• Mounting depth: 151mm
• Size: 30cm (12in)

FAQ

How much power can the Pioneer TS-W311S4 handle?

It is rated at 1400W peak.

What is the mounting depth of the Pioneer TS-W311S4?

The listed mounting depth is 151mm. Measure your door or enclosure before you order.

What impedance is the Pioneer TS-W311S4?

It is a 4 ohm design.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
