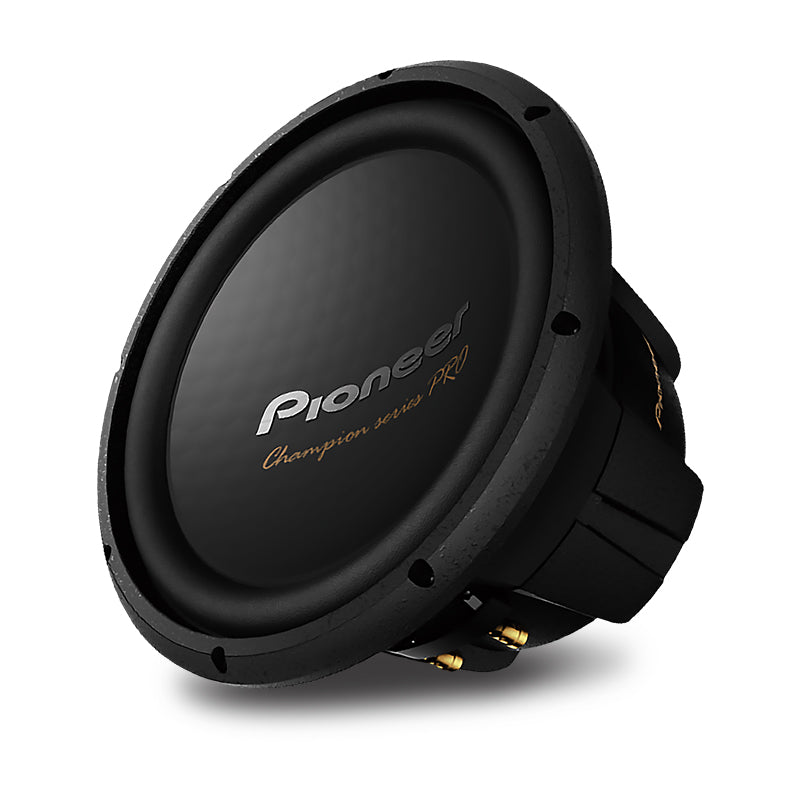

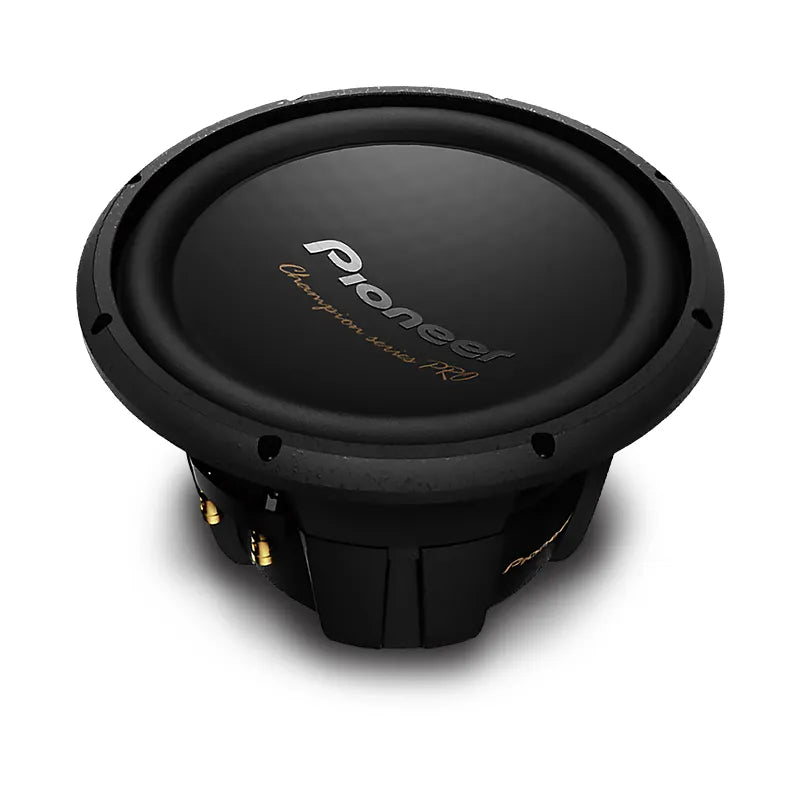

Pioneer TS-W3004D4 12" 2400W Champion Series PRO Subwoofer

Pioneer TS-W3004D4: The “Champion-Series Pro” Has Arrived!

Pioneer’s latest “Champion-Series PRO” sub-woofer is here. The Pioneer TS-W3004D4 is designed to take the current “Champion Series” name to the next level with a performance to wake the neighbourhood.

With a lightweight/high rigidity cone design, dual-layer hybrid surround, massive powerful motor assembly, iconic red dual spider design, 115oz double stacked magnet, and enclosed basket structure, this new “Champion-Series PRO” sub-woofer not only looks amazing but will make you the envy of your mates!

Match with Pioneer’s powerful GM-D Series amplifiers for an impressive in (and out of) car experience!

Rigid Cone Construction
Combining a large rigid centre cap and lightweight high-rigidity cone structure improves output performance and reduces loss. Improved dual layer (elastic polymer & fibre) hybrid surround provides a lighter and more durable surround than traditional rubber compounds.

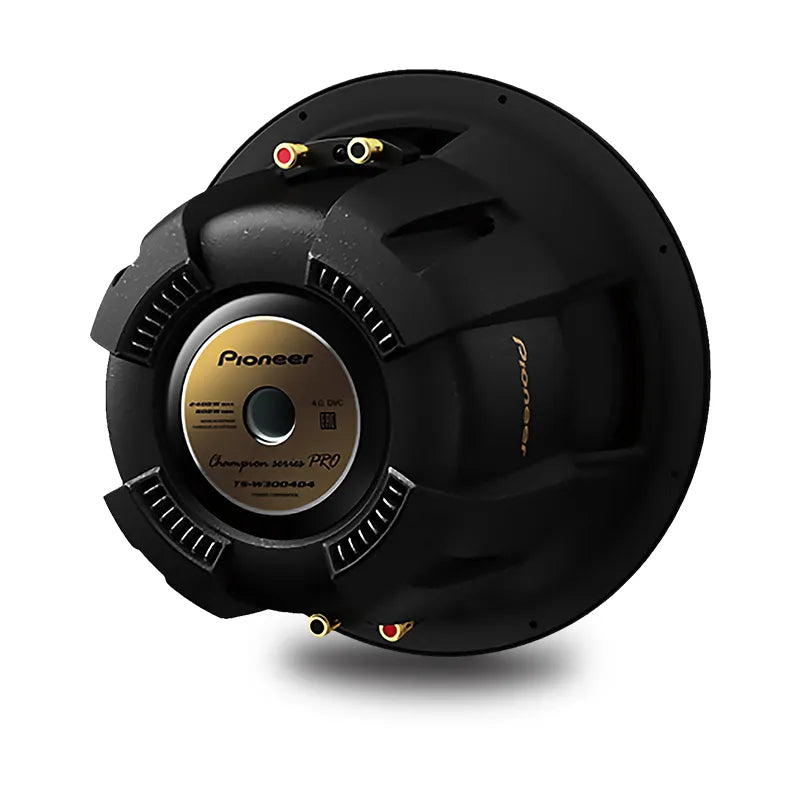

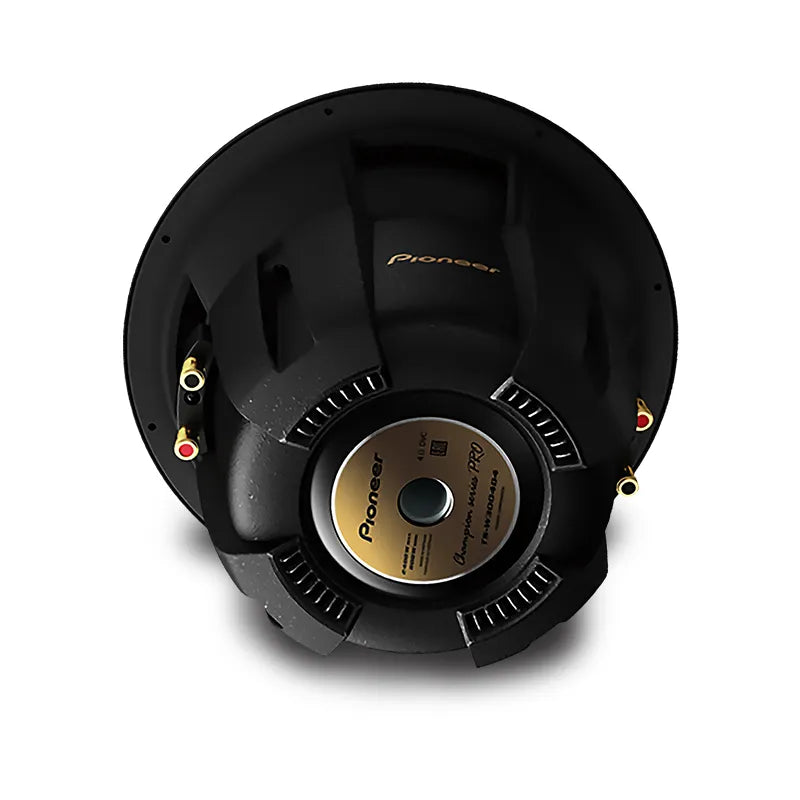

Powerful Motor Assembly
Combining a double-stacked 115oz magnet (the largest in the “Champion-Series” range) with a huge voice coil, this “Champion-Series PRO” sub-woofer is designed to make the world stand up and listen!

Pioneer TS-W3004D4 Specifications:

General

• Mounting Depth 190mm
• Magnet Weight 115oz
• Woofer Magnet Composition Ferrite
• Woofer Surround Dual Layer (Elastic Polymer & Fibre)
• Woofer Composition Paper (Honeycomb design)
• Impedance Dual 4Ω
• Maximum Peak Power Handling 2,400w
• Continuous Power Handling (RMS) 800w
• Size 12"

Audio

• Hi-Res Certified No
• Sensitivity (1W/1 m) 94dB
• Frequency Range 20 Hz to 1.6 kHz

FAQ

How much power can the Pioneer TS-W3004D4 handle?

It is rated at 2400W peak.

What is the mounting depth of the Pioneer TS-W3004D4?

The listed mounting depth is 190mm. Measure your door or enclosure before you order.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
