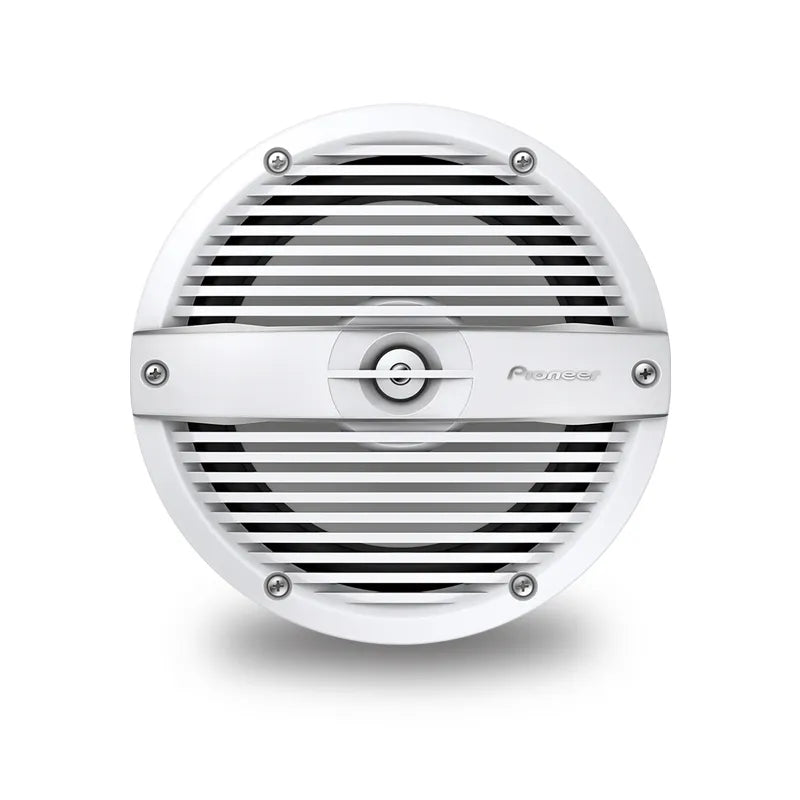

Pioneer TS-ME770FC 7.7" 250W Marine 2-Way Speaker With Classic Grille Design

Get Protected From the Effects of Sun & Water Exposure!

Pioneer ME-series speakers (both Sports and Classic designs) are protected from the effects of sun and water exposure, meeting both IPX7 and ASTM D4329 certification to achieve all-weather reliability. Mica Reinforced IMPP monocoque cone with butyl rubber surround, constructed using an advanced in-mold bonding technique for superior water resistance while maintaining high quality, powerful sound.

The symmetrical motor design with high-strength suspension is optimized to provide stability, linearity, and clear, low-distortion sound reproduction. Lightweight polyimide (PI) tweeter diaphragm and uniquely shaped waveguide provide natural and clear vocals with wide dispersion. The TS-ME770FC 7.7″ Speakers come with sleek classic style grilles in a white finish that cosmetically integrates seamlessly into marine interiors and cabin designs.

IPX7 Certified

Marine products are constantly exposed to the elements but with IPX7 certification you can be assured your Pioneer speakers are purpose-built for these environments. Highly durable but also focused on providing a superb audio experience your Pioneer speakers are the perfect addition to your marine audio system!

ASTM D4329 Certified

Additionally, ASTM D4329 certification has been achieved ensuring the UV stability and durability of Pioneer Marine speakers are built for Australian conditions.

UD-ME770LED Optional LED Light Kit

Looking for a more customized look for your marine audio system? Add the UD-ME770LED RGB LED Light Kit (sold separately) to give your system a custom look!

Features:

• 75 Watts Nominal Power
• IPX7 Certified
• Mica reinforced IMPP Monocoque Cone
• Rated ASTM D4329 for UV Exposure

Specifications:

General:

• Size: 7.7"
• Design: 7.7" 2-Way Coaxial System
• Tweeter Design: 13/16" (20mm) Dome
• Tweeter Composition: Polyimide
• Tweeter Magnet Composition: Neodymium
• Woofer Composition: Injected Molded Polypropylene™
• Woofer Surround: Trex Plane
• Woofer Magnet Composition: Ferrite

Marine:

• Water Resistant IPX7
• UV Resistant ASTM D4329
• Grille Style Classic White Grille

Installation Specification:

• Max. Music Power (Nominal): 250W Peak (75W RMS)
• Frequency Response: 32 Hz ~ 23 kHz
• Sensitivity (1W/1 m): 88 dB
• Impedance: 4Ω
• Mounting Depth: 3-1/8" (80mm)
• Cut-Out Dimensions: 6-1/4" Dia. (φ159mm)
