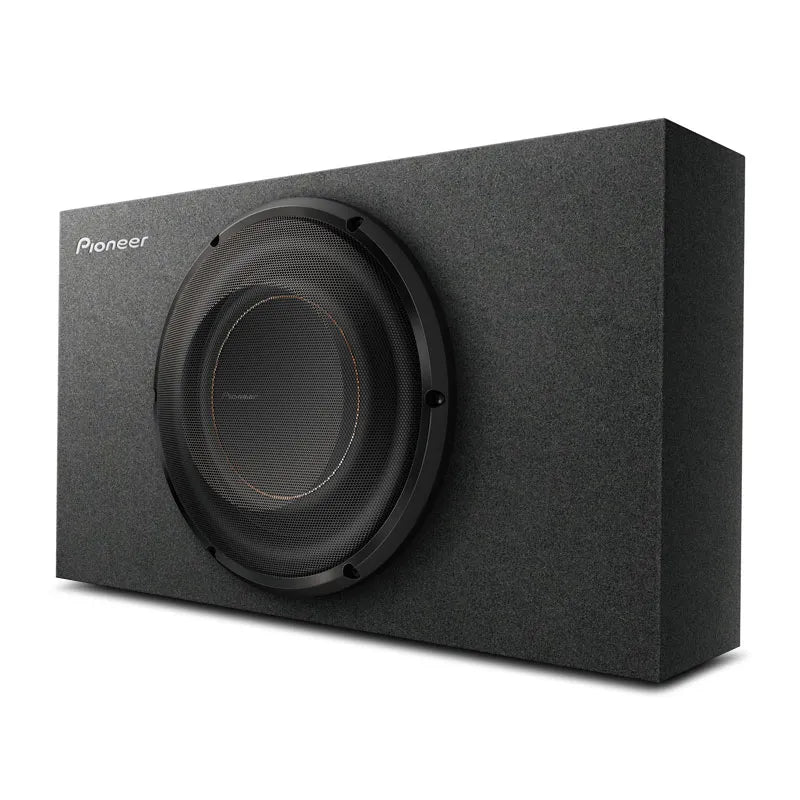

Pioneer TS-D10LB 10" 1300W “D” Series Shallow-Mount Pre-Loaded Enclosure

SKU: TSD10LB
Regular price
$400
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Love Your Audio but Limited for Space? Pioneer has You Covered with the TS-D10LB 10″ “D” Series Slim Sealed Enclosure

Keeping the compact design without sacrificing the desired audio quality has been achieved by utilizing specifically selected high quality materials and the latest design technology. The design and size allows a multitude of installation opportunities with the added benefit of protecting the subwoofer with the inclusion of the Pioneer subwoofer grill.

Don’t just listen to your music, feel it!

Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)

Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a subwoofer cone – with low mass and high damping, PP cones offer good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting Aramid Fiber Interlaced IMPP subwoofer cone is incredibly strong and low mass with high rigidity and superior strength to produce deep, powerful and undistorted bass.

Butyl Rubber Surround

Made of a specially blended, highly durable and moisture-resistant compound, butyl rubber keeps the cone moving in a linear direction, seals the cone to the basket and quickly dampens cone vibration once the signal has changed or stopped. This results in less distortion and superior frequency response.

Large Diameter Voice Coil and Double Stacked Magnets

A subwoofer motor structure consists of the voice coil and magnet assembly. Increasing the diameter and length of the voice coil provides greater control of the woofer cone and higher power handling. To take full advantage, however, the magnet must also be increased, both in magnetic power and physical size. The D subwoofer uses an oversized 4-layer voice coil and high energy double stacked magnets to increase the overall power handling and SPL output with no sacrifice in sound quality.

Features:

  • 10˝ Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) cone construction
  • Sealed enclosure design
  • Butyl rubber surround for strength and linearity during high excursion
  • Includes protective subwoofer grill

Specifications:

System

  • System Type: Pre-loaded subwoofer (passive)
  • Sound Pressure Level (Sensitivity): 76 dB
  • Frequency Range: 20 Hz - 3.4 kHz
  • Continuous Power Handling (RMS): 350 Watts
  • Maximum Peak Power Handling: 1300 Watts
  • Impedance: 2Ω
  • Dimensions: 530mm (W) x 300mm (T) x 150mm (D)

Woofer

  • Diameter: 10˝
  • Woofer Composition: Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
  • Woofer Surround: Butyl Rubber
  • Basket Material: Stamped Steel
  • Woofer Magnet Composition: Ferrite
  • Magnet Weight: 43oz
