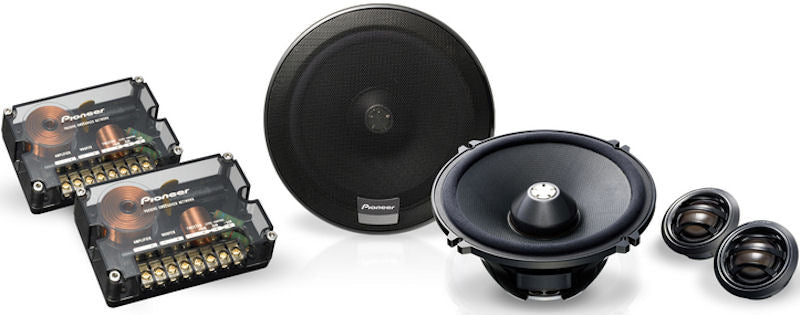

Pioneer TS-C172PRS 200W 17cm Separate 2-Way Reference Series Speaker System
Click to open expanded view
PIONEER logo

Out of stock

Pioneer TS-C172PRS 200W 17cm Separate 2-Way Reference Series Speaker System

SKU: TSC172PRS
Regular price
$899
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

High Definition, Competition-Grade Power

This 17cm separate speaker system is part of the Pioneer Reference Series that was designed to deliver precise audio quality with competition-grade power. Improvements include better sound performance and better woofer installation.

The tweeter’s back chamber is enlarged, allowing lower frequency response than before. Usage of PCOCC wire, consisting of a very pure type of copper, offers a cleaner and more detailed sound. Furthermore the tweeter now features a black chassis.

For better quality and power handling in the lower range, a progressive damper is used in the new subwoofer. An inside magnet further enhances sound quality and also improves installation.

These improvements create a high-definition, ultra low distortion sound that, with stereoscopic and expansive staging, is unrivalled in its acuity.

IMPPTM - enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone

Pioneer Reference Series (PRS)

Settle for no less then exceptional sound quality with competition-grade power and high-end design.

Specifications:

  • Magnets: Neodymium
  • Size: 17 cm
  • Weight:
    • Woofer: 1.21kg
    • Tweeter: 0.1kg
    • Network: 0.52kg kg
  • Impedance: 4 Ω
  • Cut-out Hole: 142 mm
  • Frequency response: 25 - 35,000
  • Mounting Depth: 67 mm
  • Sensitivity: 89 dB
  • Lowest resonance frequency: 45 Hz
  • Maximum power: 200
  • Pioneer Reference Series (PRS): Yes
  • Nominal input power: 50 W
  • 2 way component: Yes
  • Woofer material: Multi-Layer IMX Aramid Fibre with IMPP™ composite cone woofer
  • Tweeter size: 28 mm
  • Tweeter material: Soft dome
  • Tweeter fitting kits included: Surface mount slant spacer, flash mount adapter and invisible mount adapter
  • Dimensions: Without grille: 165 x 78 / With grill: 183 x 92 mm
  • Thiele/Small Parameters
  • S.P.L. : 89 (± 1,5)
