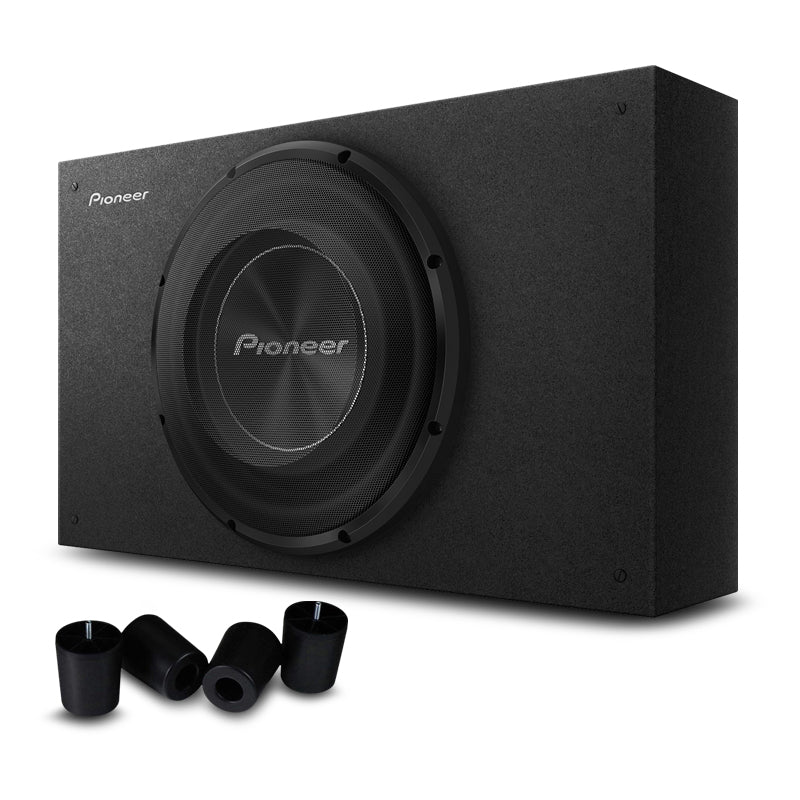

Pioneer TS-A3000LB 12" 1,500W A-Series Shallow-Mount Pre-Loaded Enclosure

Unleash the Beat: Pioneer A-Series Sound Design for Seamless Harmony and Powerful Bass!

Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

IMPP Cone Construction
Glass fibre & Mica reinforced IMPP cone for deeper and richer bass response.

Pioneer’s Sound Concept “Open & Smooth”™
The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

CarSoundFit
The Pioneer CarSoundFit app is a car sound simulator designed to allow you to experience an in-car sound with your own smartphone. Hear examples of the difference between the original speakers and Pioneer speaker upgrades to understand what improvements Pioneer can offer. To experience the virtual listening demonstration download the free Pioneer CarSoundFit app from either the App Store or Google Play.

INSTALLATION FLEXABILITY
With vehicle applications so varied, the Pioneer Shallow Mount Subwoofer Enclosures are designed to provide the maximum installation flexibility partnered with high performance sound quality. Coupled with 10″ and 12″ options, it doesn’t matter if your driving a Ute, Pick-up, Sedan or Hatch, there’s an option to suit.

Down-Firing: Utilising the four included feet (screwed into the pre-installed mounting locations) allows the subwoofer to fire the soundwaves directly towards the floor where they are reflected producing a rich “rumble” bass response.

Up-Firing: Without utilising the provided feet and placing the enclosure on it’s back, the subwoofer will provide a strong, clean bass performance.

Vertical-Firing: This option positions the subwoofer enclosure with the cone facing sideways like a traditional loudspeaker. This position can produce an incredibly precise, punchy bass response.

Features:

• 1,500w Max (400w Nom)
• Glass fibre and mica reinforced Injection Moulded Polypropylene (IMPP) cone construction
• Sealed enclosure design
• Removable feet
• Protective subwoofer grill
• Dimensions: 600mm (W) x 350mm (T) x 170mm (D)

Specifications:

• System
  System Type Pre-loaded subwoofer (passive)
  Sound Pressure Level (Sensitivity) 88 dB
  Frequency Range 20 Hz, 1.0 kHz (-20dB)
  Continuous Power Handling (RMS) 400 Watts
  Maximum Peak Power Handling 1,500 Watts
  Impedance 2Ω
  Dimensions 600mm (W) x 350mm (T) x 170mm (D)
• Woofer
  Diameter 12˝
  Woofer Composition Glass Fibre and mica reinforced Injection Molded Polypropylene (IMPP)
  Woofer Surround Butyl Rubber
  Basket Material Stamped Steel
  Woofer Magnet Composition Ferrite

FAQ

How much power can the Pioneer TS-A3000LB handle?

It is rated at 1500W peak.

What impedance is the Pioneer TS-A3000LB?

It is a 2 ohm design.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
